Satel RS232-RSTTL Cable with converter

26,25 EUR including 22.00% VAT
Product code: #40520
Manufacturer: Satel
  • For connecting the ETHM-1 Plus module to PERFECTA 64 M and VERSA
  • Terminals for connecting 12 V DC power supply
  • Terminated with PIN5, PIN3 and RJ plug
  • LED indicators
  • Supply voltage: 12V DC
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

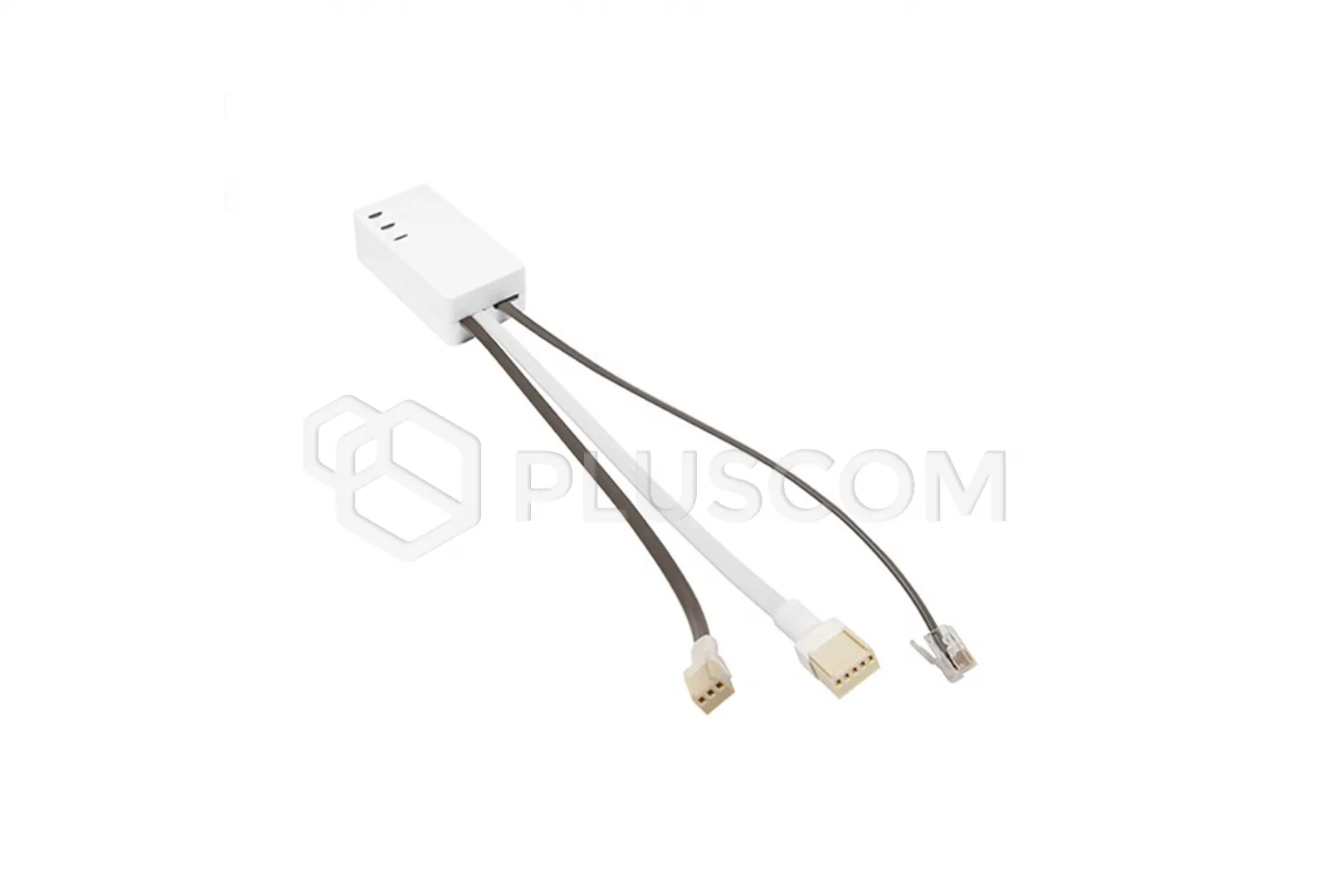

Satel RS232-RSTTL Cable with converter for connecting the ETHM-1 Plus module to the PERFECTA 64 M and VERSA control panels


The converter is used to connect the RS-232 port of the ETHM-1 Plus module to the RS-232 (TTL) port of the PERFECTA 64 M / VERSA alarm control panel. This allows remote programming and updating of the control panel software via the Ethernet network.

Properties

  • Cable terminated with a PIN5 plug for connection to the RS-232 port of the ETHM-1 Plus module
  • Cable terminated with a PIN3 plug for connection to the RS-232 (TTL) port of the PERFECTA 64 M control panel
  • Cable terminated with an RJ plug for connection to the RS-232 (TTL) port of the VERSA control panel
  • LED indicators
  • Screw terminals for connecting the +12 V DC power supply
The converter requires a +12 V DC power supply if it is connected to the PERFECTA 64 M control panel.

Technical data:

  • Supply voltage: 12 V DC ±15%
  • Current consumption in standby: 25 mA
  • Maximum current consumption: 40 mA
  • Operating temperature range: -10...+55°C
  • Maximum humidity: 93±3%
  • Converter dimensions: 67 x 34 x 21 mm
  • Weight: 52 g
Download
Datasheet 0.1 MB
User manual 0.21 MB
