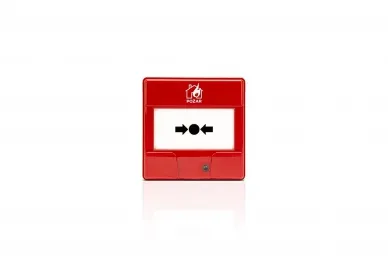

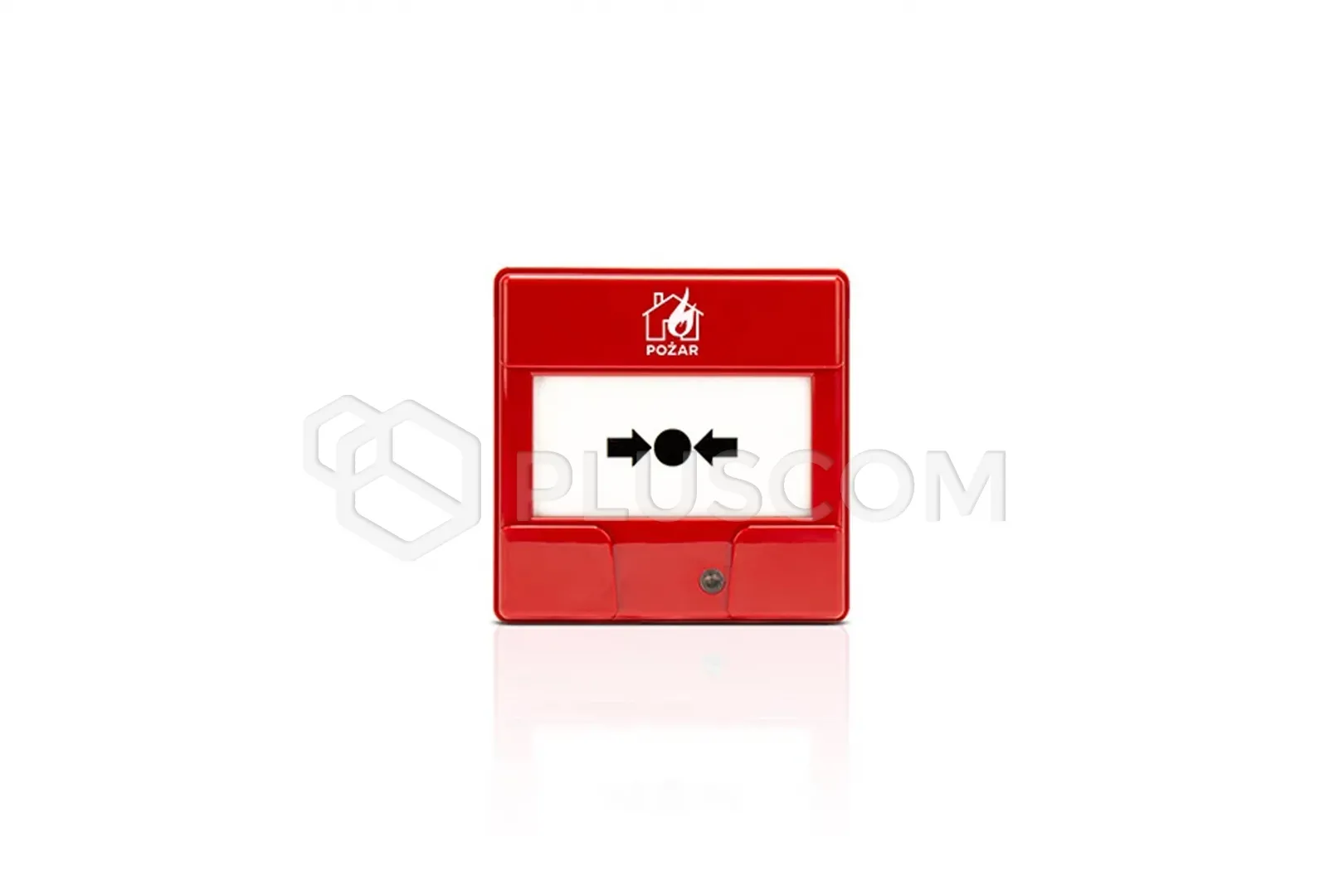

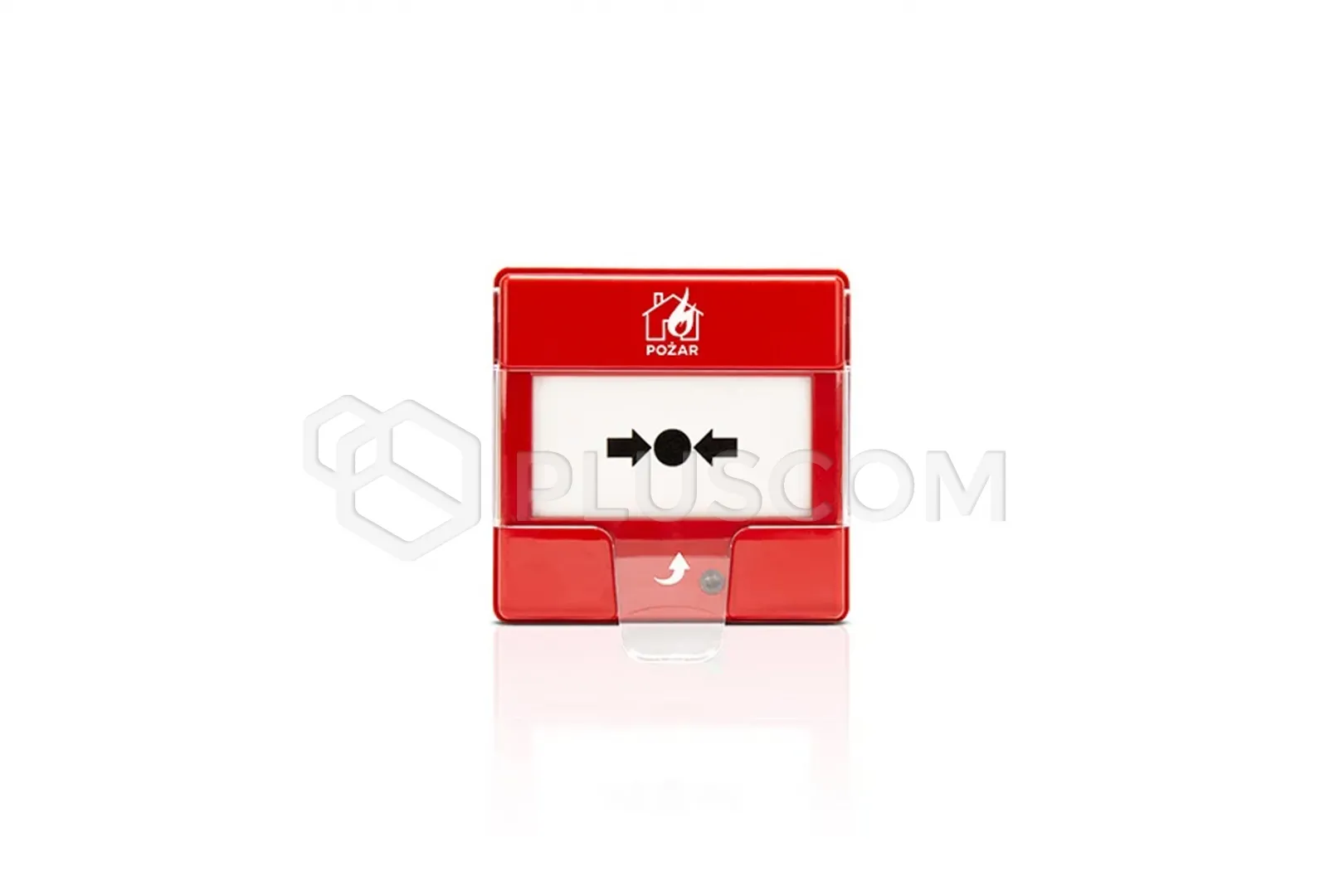

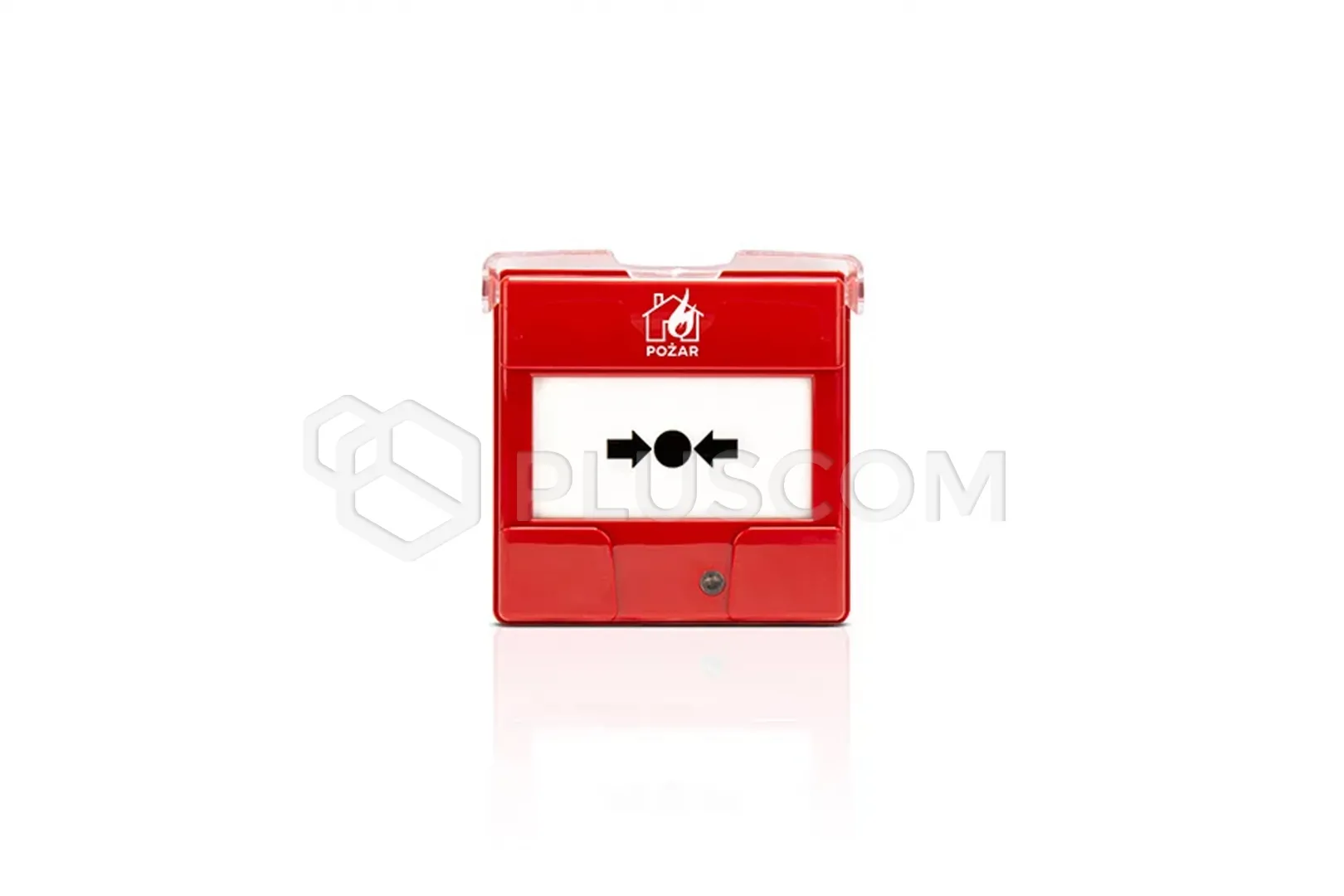

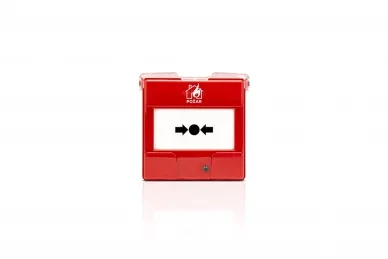

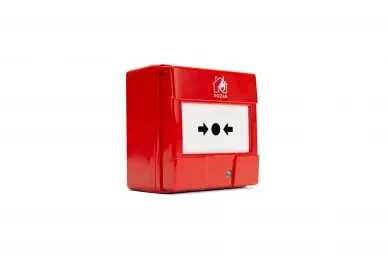

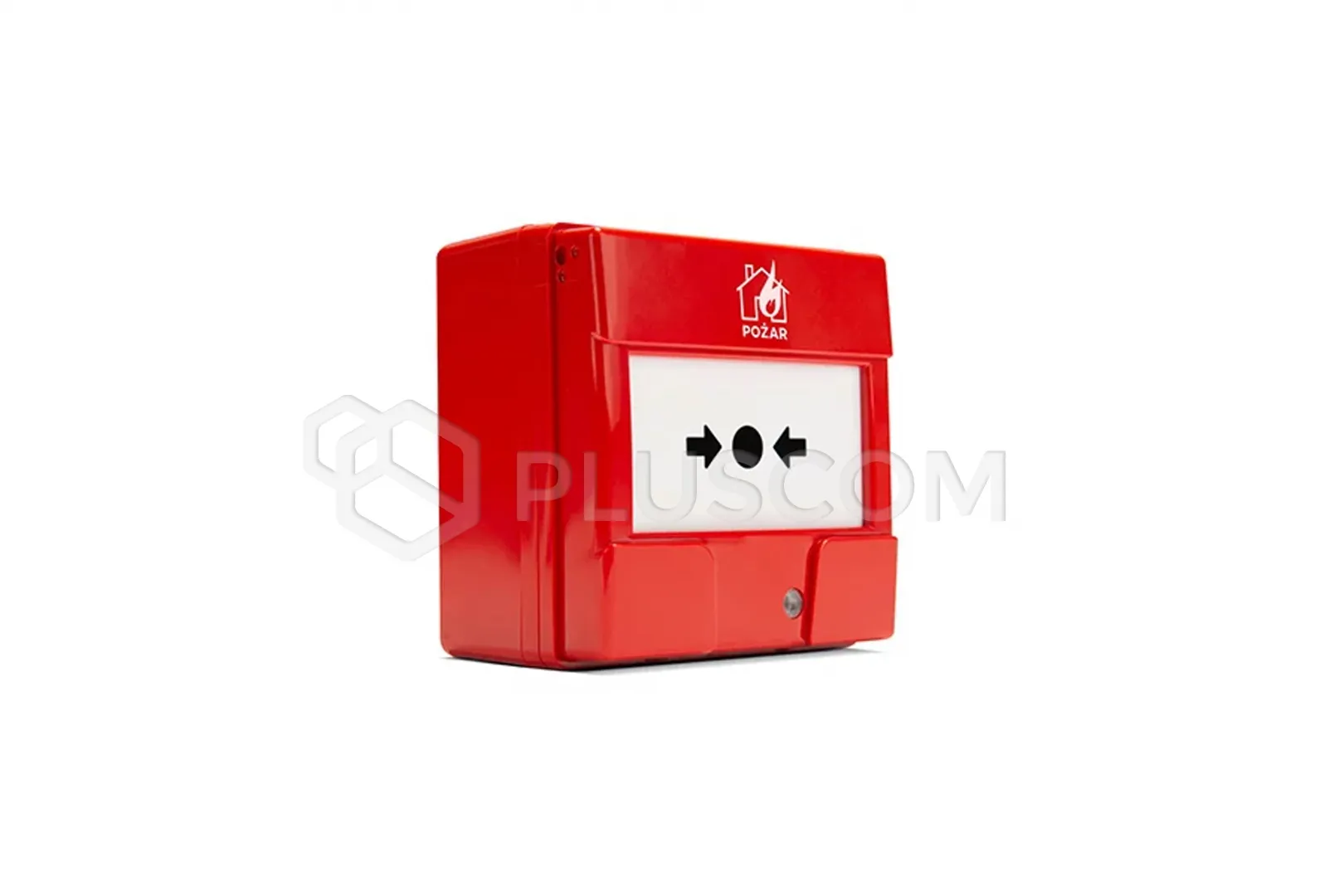

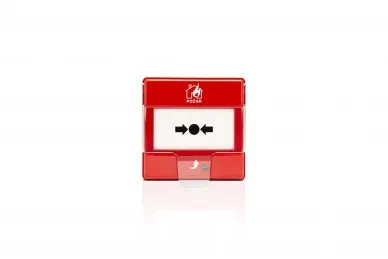

Satel ROP-400/PL Addressable manual call point, indoor

64,92 EUR including 23.00% VAT
Product code: #43180
Manufacturer: Satel
  • For indoor use
  • ROP-KEY-U key included
  • Reusable plastic lens
  • LED for optical signaling
  • Power supply from the monitoring loop
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ROP-BS Surface-mounted box for ROP-110 and ROP-400 Satel ACSP-402 Fire Alarm Control Panel Satel ROP-FLAP Protective cover for manual fire call points (10-pack) Satel ROP-KEY-U Spare key for manual fire call points Satel ROP-BT Surface-mounted box for ROP-110 and ROP-400 (10-pack)

Satel ROP-400/PL Addressable Manual Fire Call Point, Indoor


The ROP-400 manual call point allows for manual alarm triggering in the event of a fire. It is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel.

FEATURES:
  • Reusable plastic window
  • ROP-KEY-U key (included) enables:
  • Testing
  • Resetting
  • LED for visual indication
  • Double-sided short circuit isolator
  • Loop powered
  • Optional ROP-BT or ROP-BS mounting box
  • Optional ROP-FLAP protection against accidental activation

TECHNICAL DATA:

  • Power supply voltage: 18-26 V DC
  • Current consumption in quiescent mode: 170 µA
  • Current consumption in alarm mode: 450 µA
  • Operating temperature range: -10°C ~ +55°C
  • Maximum humidity: 95%
  • Dimensions: 87 x 87 x 40 mm
  • Weight: 86 g
Download
CE Declaration 0.26 MB
