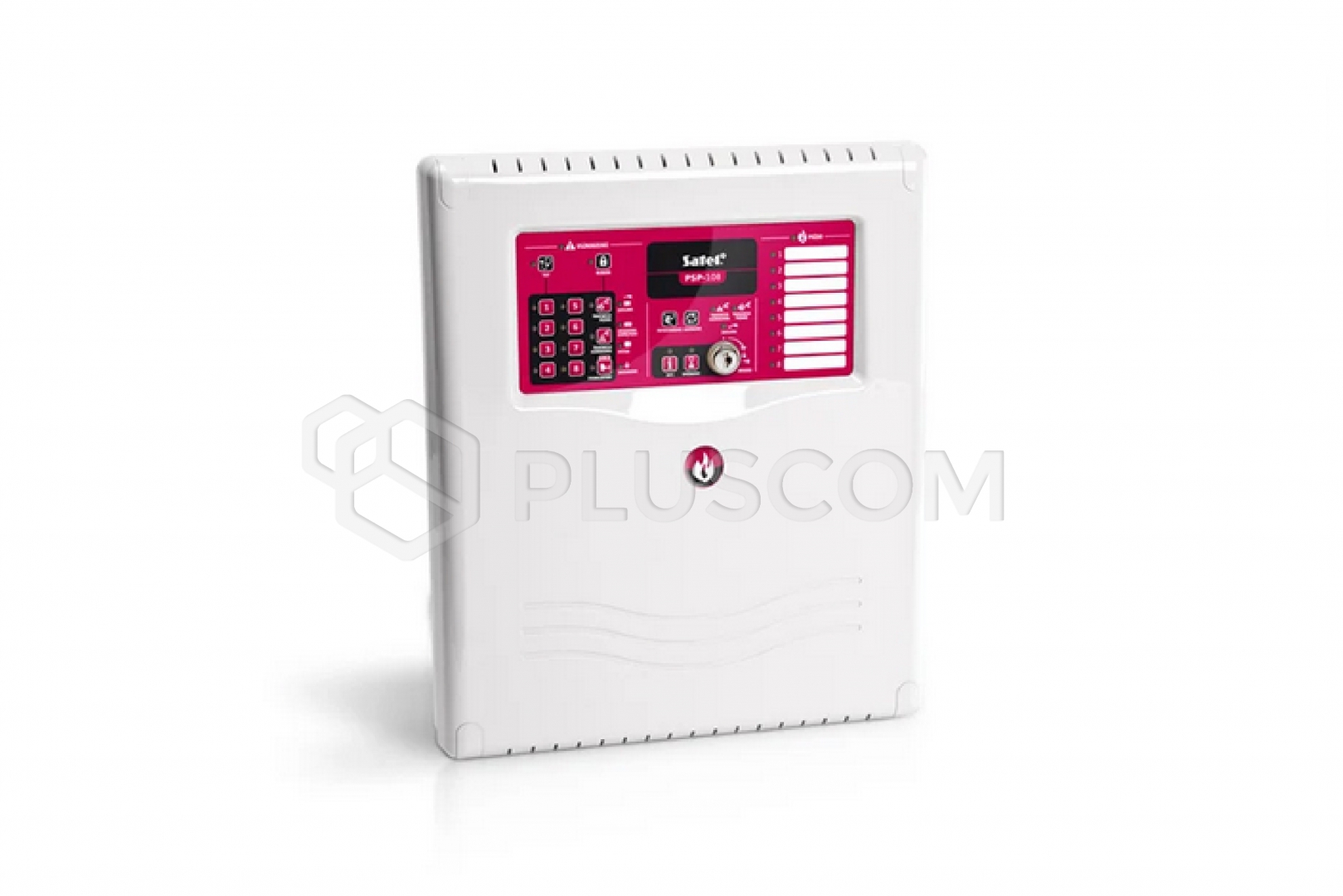

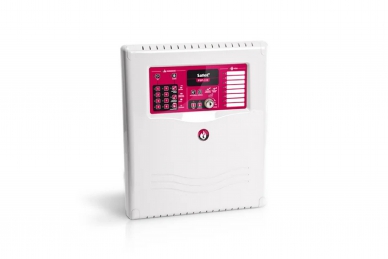

Satel PSP-108 Remote Control and Signaling Panel

Satel PSP-108 Remote Control and Signaling Panel

The remote panel for the CSP-100 series control panels allows for operation of the fire alarm system from a location remote from the physical location of the control panel, replicating its user interface. This allows the fire alarm control panel to be installed wherever it is most convenient from the system topology perspective, while the panel can be placed near the operating personnel.

Thanks to the user interface being identical to the control panel, operating the system using the panel is exactly the same as operating it locally using the control panel.

• Built-in buffer power supply with a single 12 V 17 Ah battery and 24 V and 18 V AUX power outputs.

Technical specifications:

• Operating temperature range: -5…+40 °C.
• Maximum humidity: 93±3%.
• Dimensions: 324 x 382 x 108 mm.
• Transport temperature range: -25…+55 °C.
• Primary power supply from 230 V AC mains: +10%, -15% 50 Hz.
• Maximum current consumption from mains: 0.5 A.
• Backup power supply operating time: 72 h.
• Maximum battery charging current: 1 A
• Maximum internal battery resistance (with wires and terminals in the circuit): 1 Ω
• Battery current consumption in quiescent mode: 60 mA
• Battery current consumption in alarm mode: 60 mA
• Integrated AC power supply current consumption in quiescent mode: 55 mA
• Integrated AC power supply current consumption in alarm mode: 55 mA
• Housing protection: IP30
• Weight without battery: less than 3 kg
• Backup power supply: internal lead-acid battery: Yes
