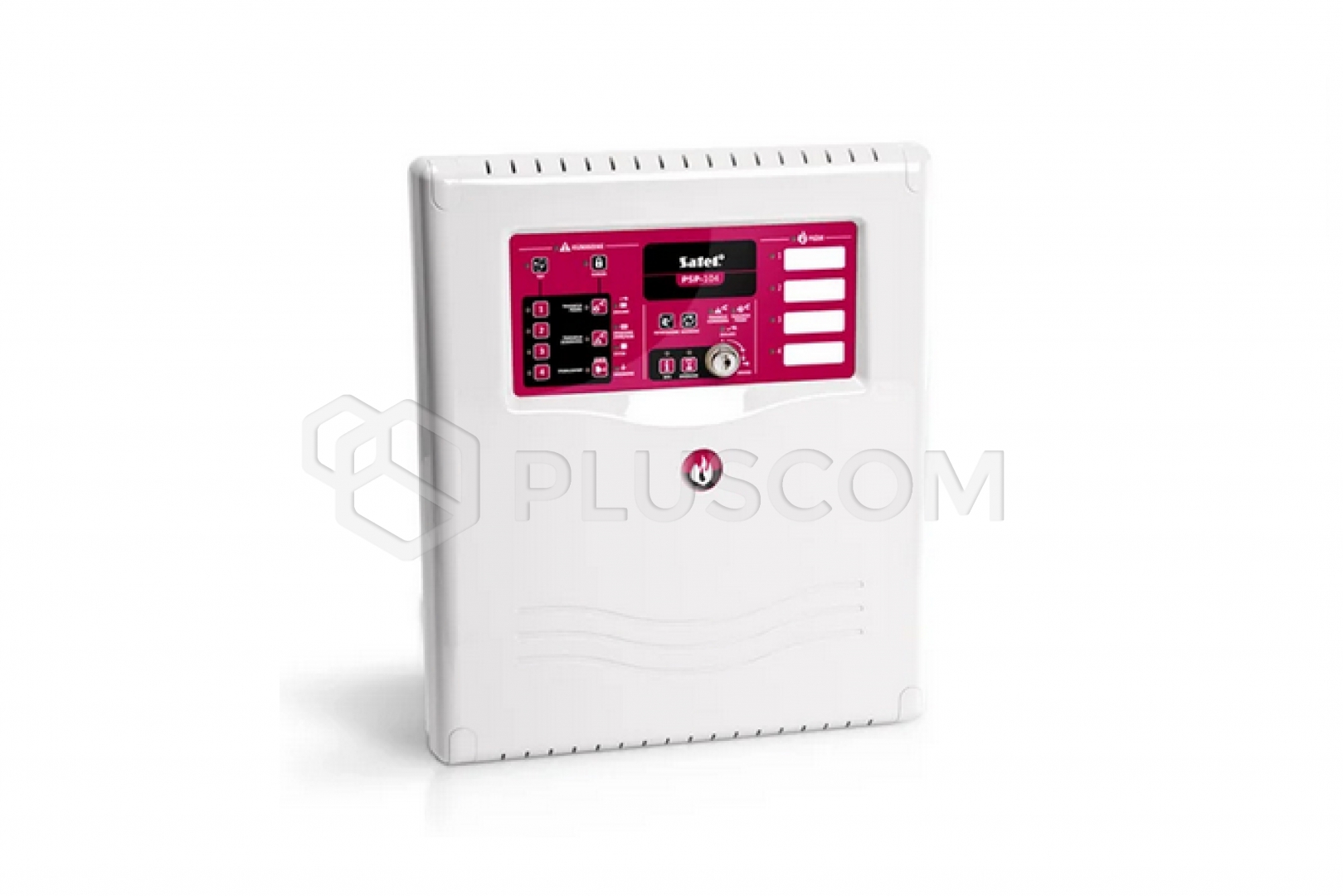

Satel PSP-104 Remote control and signaling panel

Satel PSP-104 Remote control and signaling panel

The remote panel for the CSP-100 series control panels allows you to operate the fire alarm system from a location remote from the control panel's physical location, duplicating its user interface. This allows the fire alarm control panel to be installed wherever is most convenient from a system topology perspective, while the panel can be placed near operating personnel.

Thanks to the user interface being identical to the control panel, operating the system using the panel is exactly the same as operating it locally from the control panel.

Built-in buffer power supply with a single 12 V 17 Ah battery, and 24 V and 18 V AUX power outputs

Technical specifications:

• Backup power supply: internal lead-acid battery
• Backup power supply operating time: 72 h
• Max. Battery internal resistance (with wires and terminals in the circuit): 1 Ω
• Maximum humidity: 93±3%
• Maximum current consumption from the mains: 500 μA
• Weight without battery: less than 3 kg
• Battery current consumption in alarm mode: 60 mA
• Battery current consumption in quiescent mode: 60 mA
• Integrated AC power supply current consumption in alarm mode: 55 mA
• Integrated AC power supply current consumption in quiescent mode: 55 mA
• Maximum battery charging current: 1 A
• Housing protection: IP30
• Dimensions: 324 x 382 x 108 mm
• Operating temperature range: -5…+40 °C
• Transport temperature range: -25…+55 °C
• Primary power supply from a 230 V AC mains: +10%, -15% 50 Hz
