Satel PERFECTA-T 32-WRL

104,81 EUR including 23.00% VAT
In stock. Ships today!
Product code: #19480
Manufacturer: Satel
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel MPD-300 Wireless motion detector for MICRA system Satel SPW-100 Indoor siren Satel SP-4001 R Outdoor siren with optical and acoustical signaling Satel MMD-300 Wireless door/window opening detector Satel MMD-300 BR Wireless door/window opening detector Satel MSD-300 Wireless smoke and heat detector for MICRA system Satel MGD-300 Wireless glassbreak detector for MICRA system Satel MGD-300 BR Wireless glassbreak detector for MICRA system

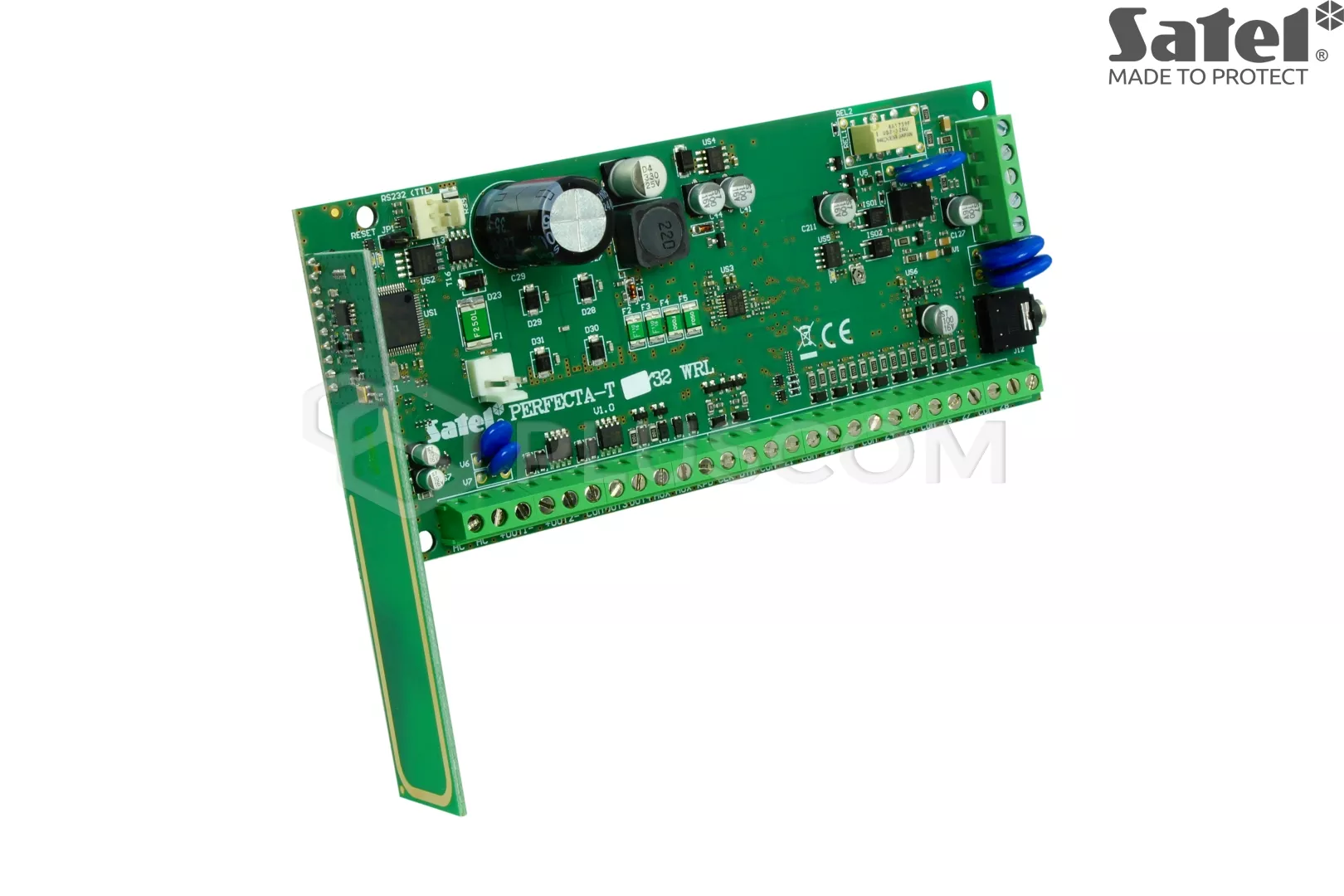

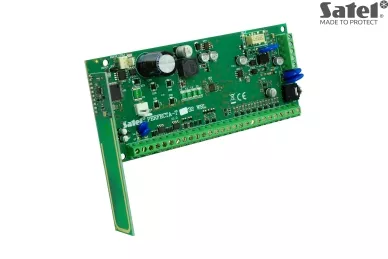

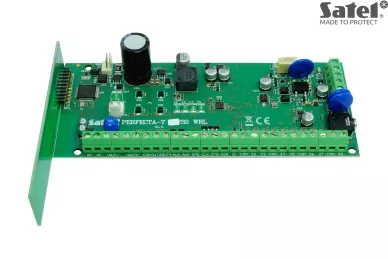

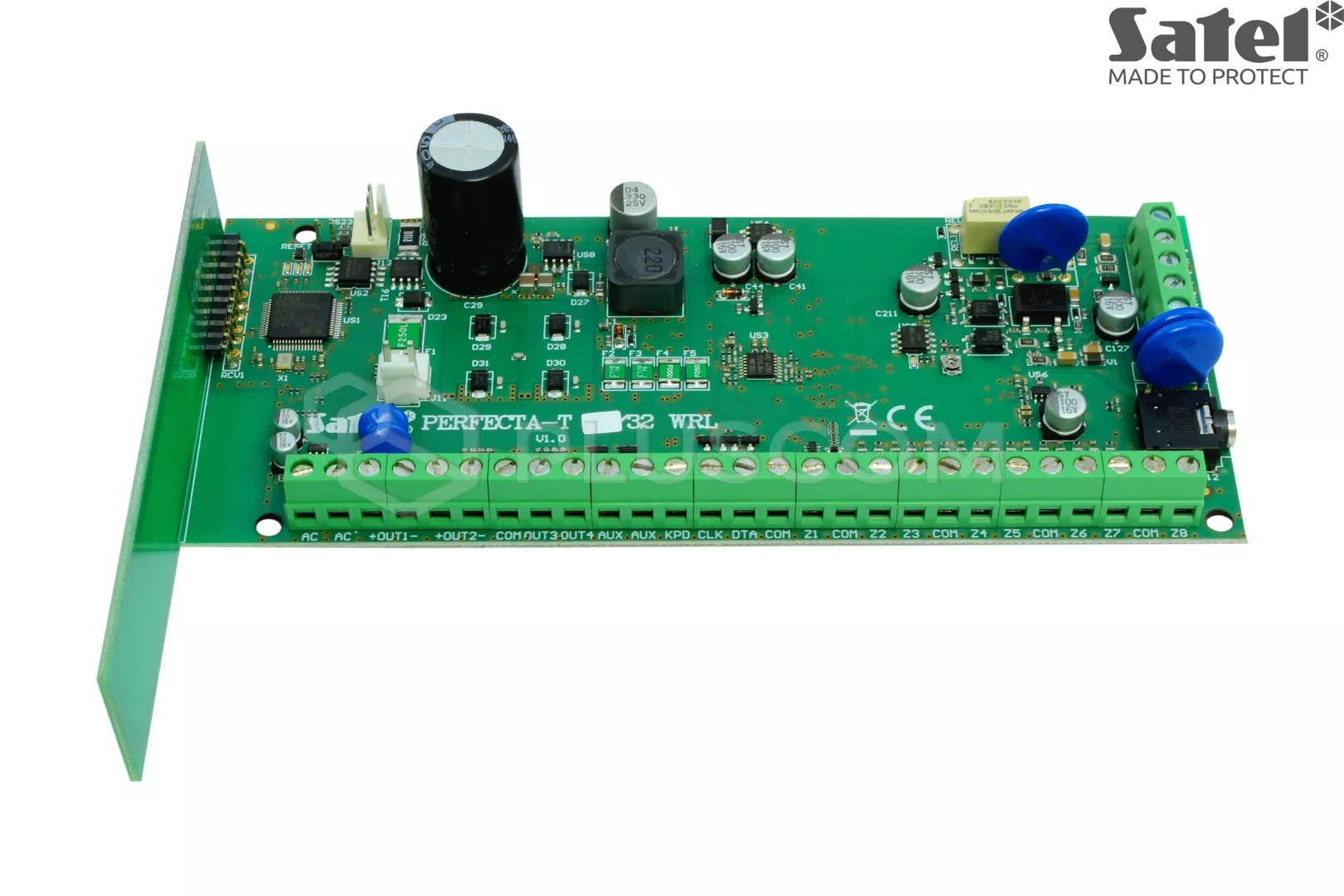

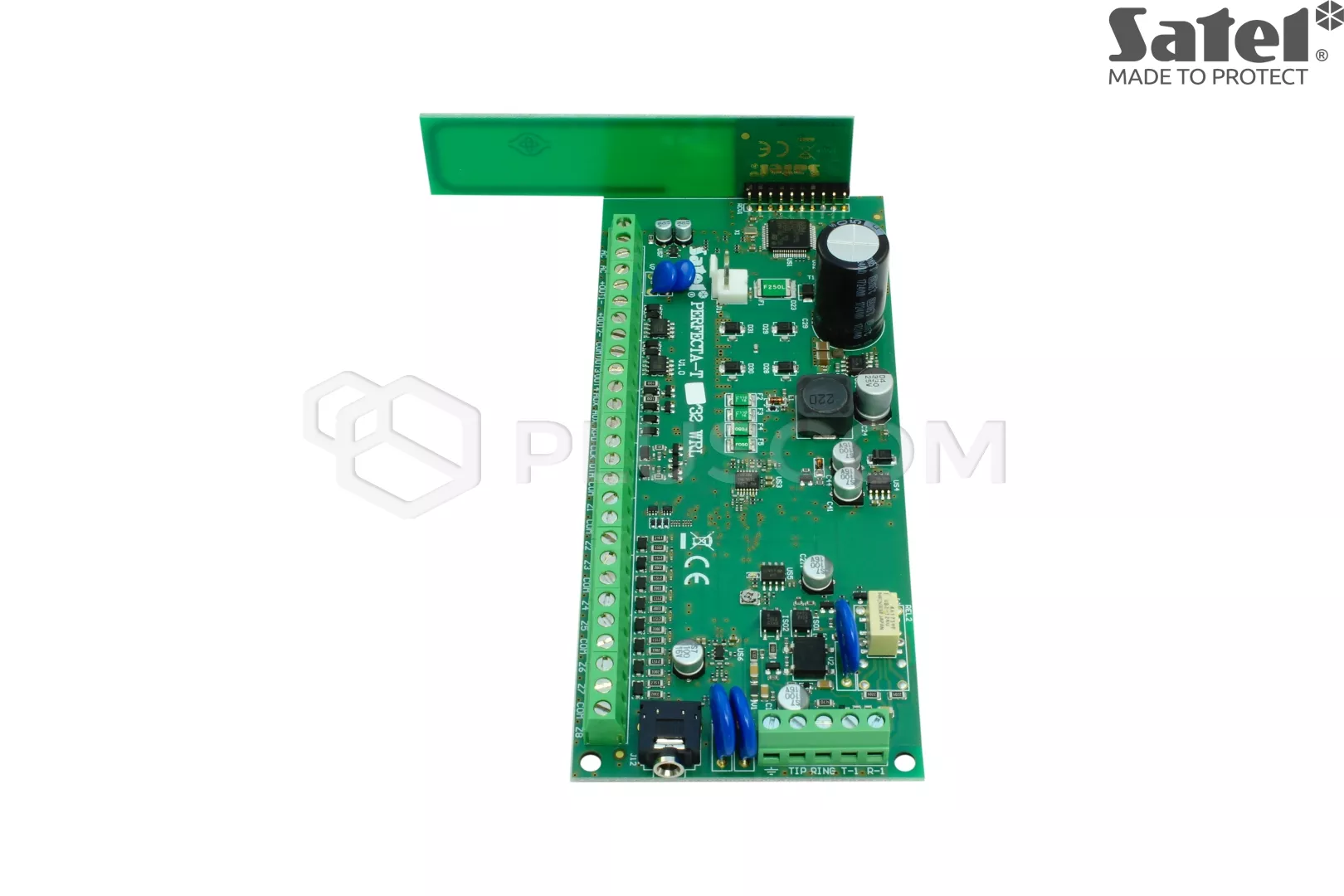

Satel PERFECTA-T 32-WRL Alarm control panel



The PERFECTA-T 32 alarm control panel is designed to secure small and medium-sized buildings. The system is characterized by simple configuration as well as easy and intuitive operation. The control panel allows you to create a wireless or hybrid system. The control panel allows you to create a wireless or hybrid system (the latter being combination with a traditional wired system). Two-way communication with the PRF-LCD-WRL wireless keypads and MSP-300 R) sirens takes place in the 433 MHz band. In the wireless system, the MICRA series detectors and MPT-350 keyfobs are also used.
The PERFECTA-T series alarm control panels meet the requirements of the following standards: EN 50131-1 Grade 2, EN 50131-3 Grade 2, EN 50131-6 Grade 2, EN 50130-4 and EN 50130-5 Class II.
Satel PERFECTA-T 32-WRL

Satel PERFECTA-T 32-WRL

Satel PERFECTA-T 32-WRL

Satel PERFECTA-T 32-WRL



CONTROL PANEL PARAMETERS AND FUNCTIONS
  • 8 programmable hardwired zones on the control panel mainboard:
    • support for NO and NC type detectors, as well as roller shutter and vibration detectors
    • support for Single EOL and Double EOL configuration
    • maximum number of programmable zones: 32
  • 4 programmable hardwired outputs on the control panel mainboard:
    • 2 high-current outputs
    • 2 low-current outputs, OC type
  • 2 partitions (group of zones)
  • each zone can be assigned to two partitions
  • additional 4 wireless outputs to support MSP-300 R wireless sirens
  • integrated radio module operating on 433 MHz frequency, ensuring encrypted wireless communication:
    • two-way with the PRF-LCD-WRL keypads and MSP-300 R sirens
    • one-way with the MICRA series detectors and MPT-350 keyfobs
  • built-in modules:
    • PSTN telephone dialer (reporting to the station, voice notifications)
    • voice module
    • audio alarm verification
  • capability to connect keypads and expansion modules
  • electrical protection of communication bus
  • support for 433 MHz radio devices
  • encrypted radio communication
  • two-way communication with wireless keypads and sirens
  • up to 6 control functions available from keyfob
  • 3584 events
  • 15 users
  • capability to assign to the user code or keyfob
  • switching-mode power supply 12 V / 2 A
    • short-circuit protection
    • battery status monitoring and low battery cut-off circuit
Download
