Satel PERFECTA-T 32

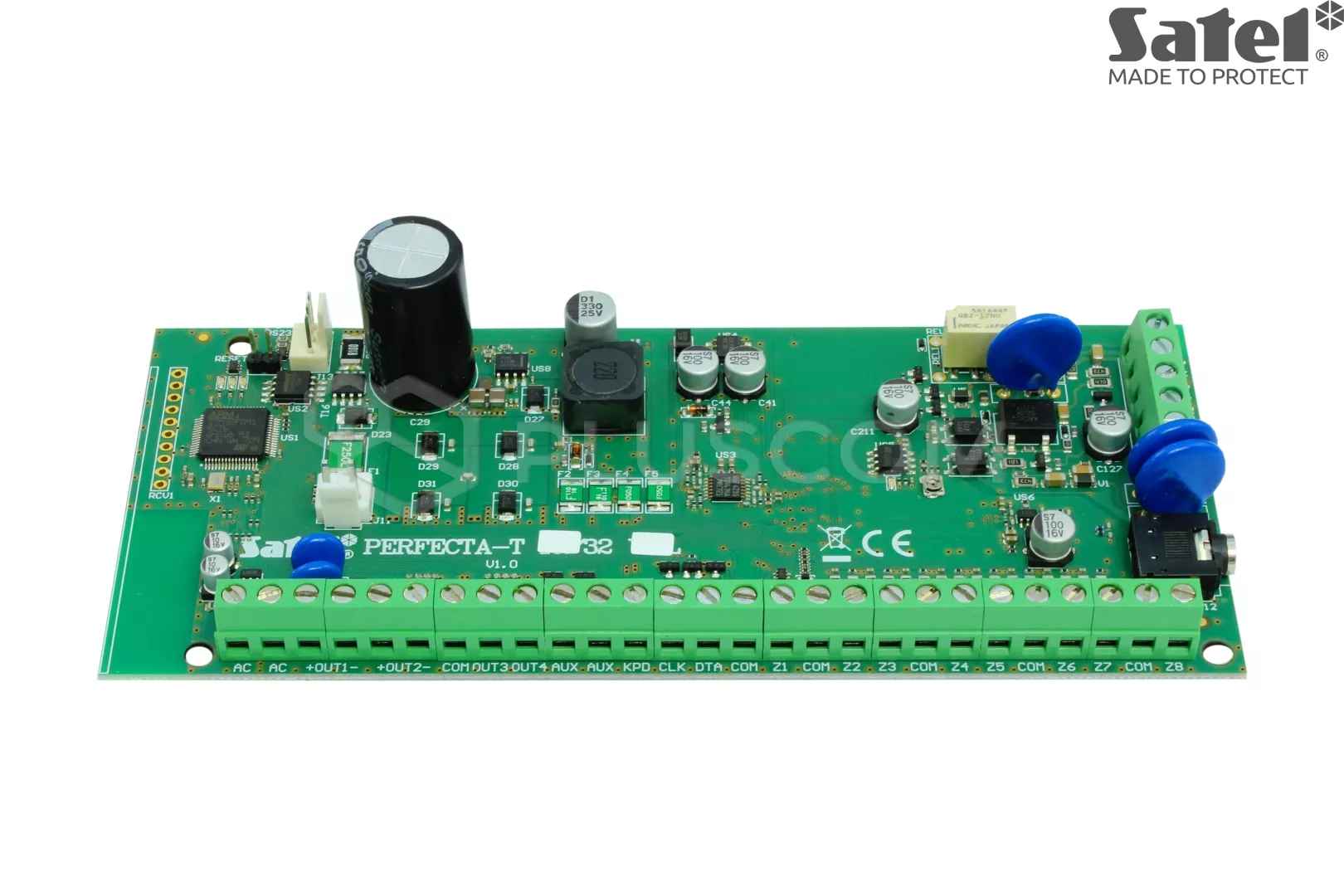

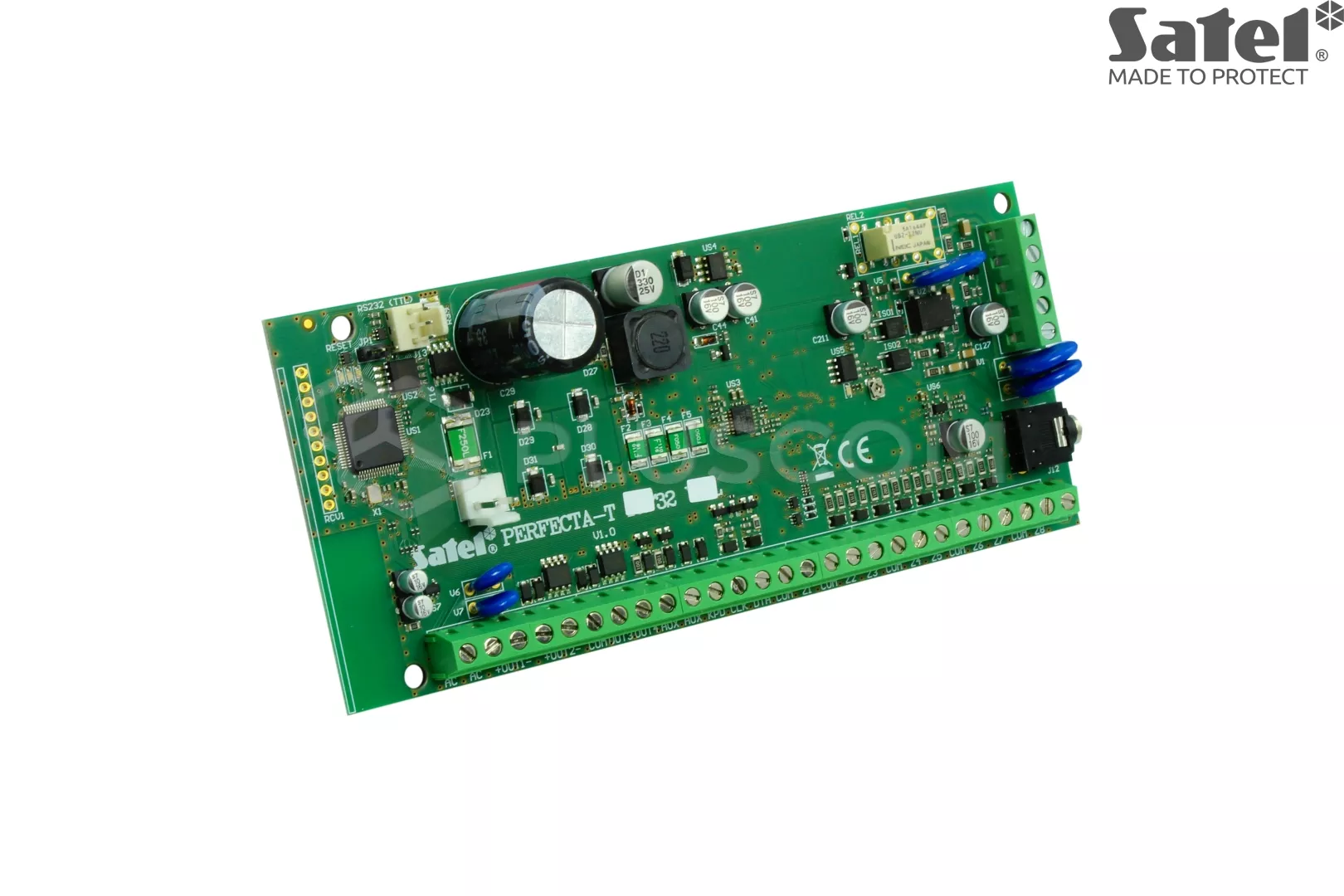

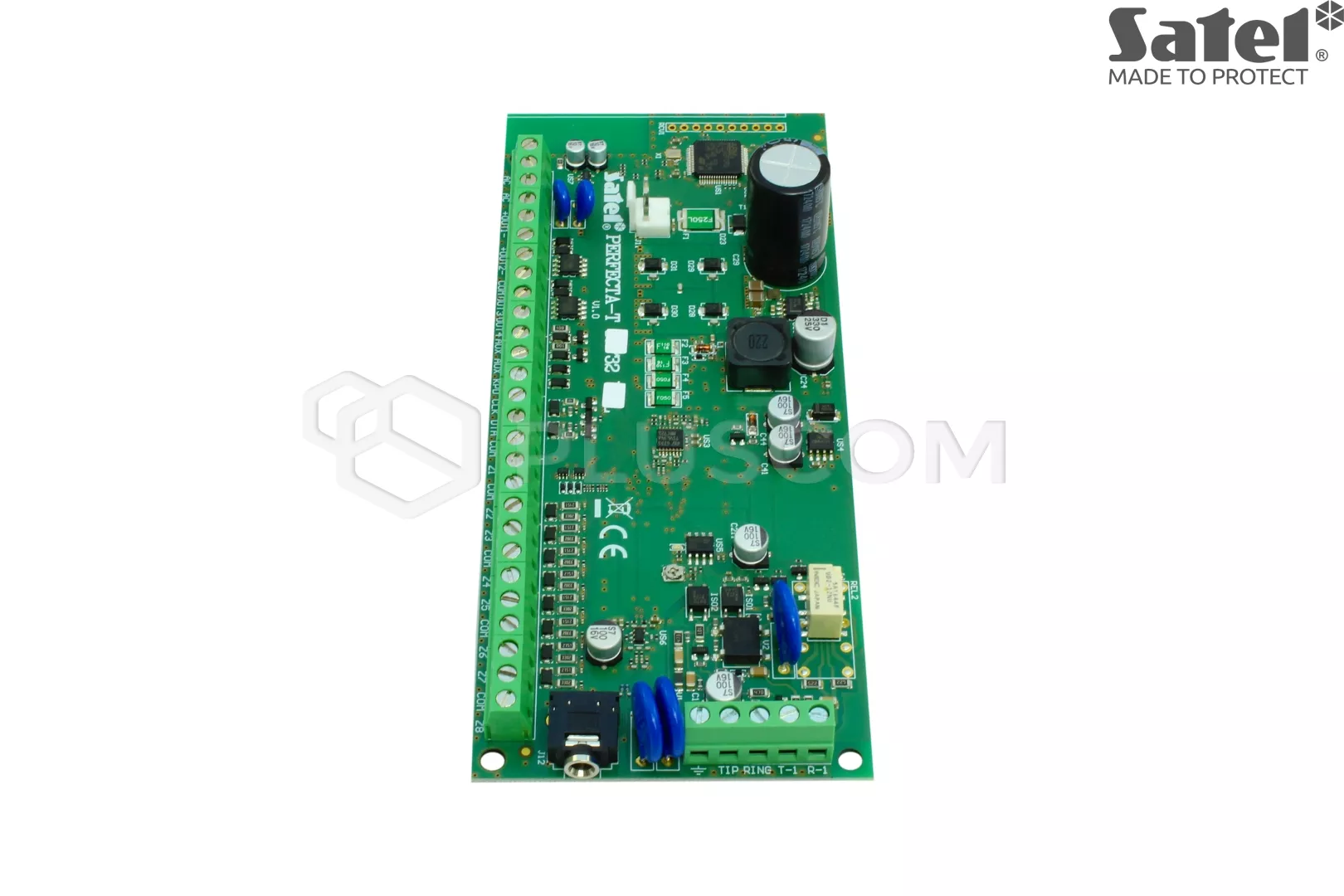

Satel PERFECTA-T 32 Alarm control panel

The PERFECTA-T 32 alarm control panel is designed to secure small and medium-sized buildings. The system is characterized by simple configuration as well as easy and intuitive operation. Keypads are used to configure and operate it. It can also be controlled with keyfobs working in the 433 MHz frequency band.
The PERFECTA-T series alarm control panels meet the requirements of the following standards: EN 50131-1 Grade 2, EN 50131-3 Grade 2, EN 50131-6 Grade 2, EN 50130-4 and EN 50130-5 Class II.


CONTROL PANEL PARAMETERS AND FUNCTIONS

• 8 programmable hardwired zones on the control panel mainboard:

• • support for NO and NC type detectors, as well as roller shutter and vibration detectors
  • support for Single EOL and Double EOL configuration
  • maximum number of programmable zones: 32

• 4 programmable hardwired outputs on the control panel mainboard:
• • 2 high-current outputs
  • 2 low-current outputs, OC type
• 2 partitions (group of zones)
• each zone can be assigned to two partitions

• built-in modules:
• • PSTN telephone dialer (reporting to the station, voice notifications)

  • voice module
  • audio alarm verification

• capability to connect keypads and expansion modules
• electrical protection of communication bus
• support for 433 MHz radio devices
• two-way communication with wireless keypads and sirens
• up to 6 control functions available from keyfob
• 3584 events
• 15 users
• capability to assign to the user code or keyfob
• switching-mode power supply 12 V / 2 A
• • short-circuit protection
  • battery status monitoring and low battery cut-off circuit
