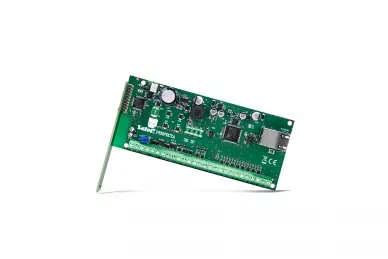

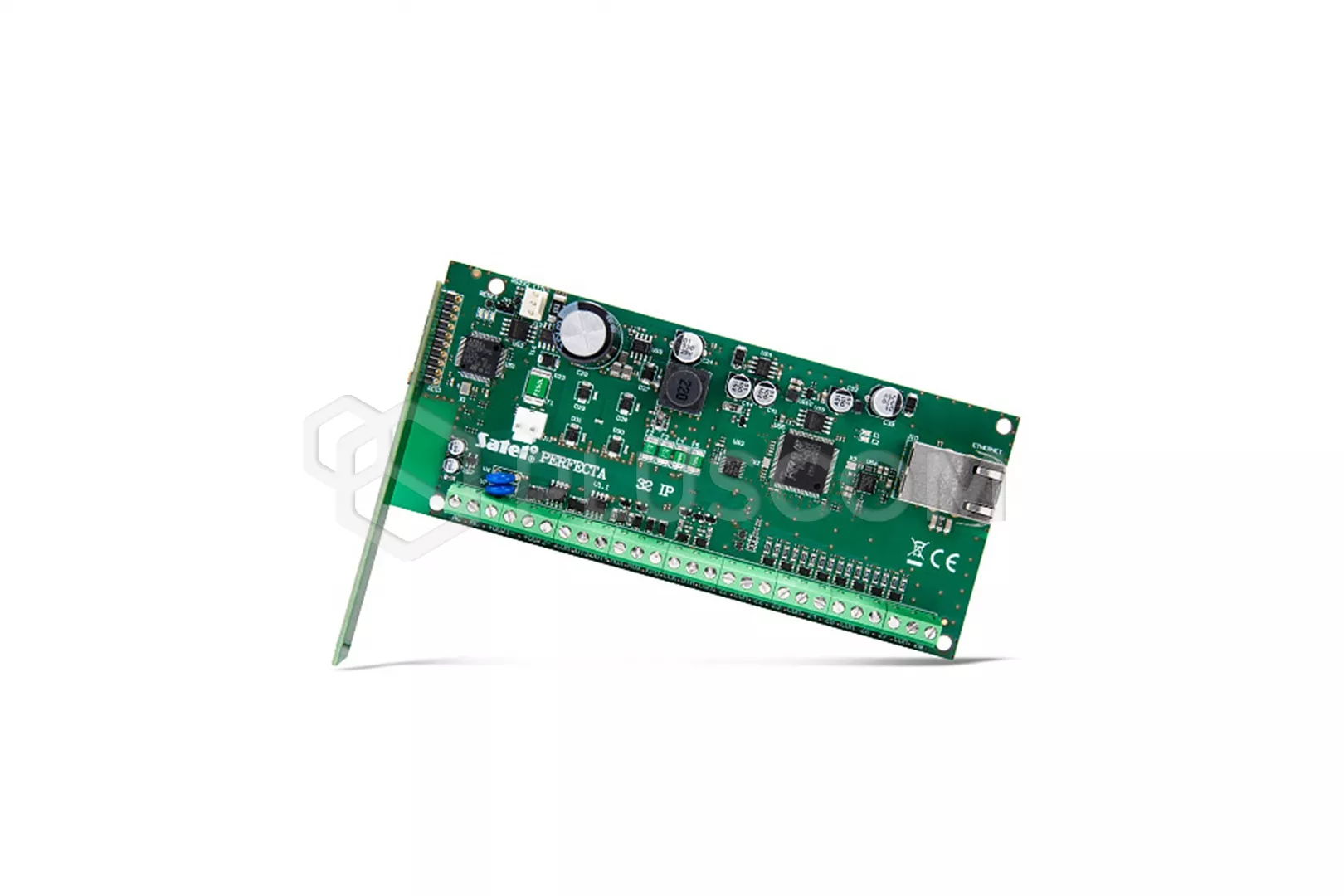

Satel PERFECTA-IP 32-WRL Control panel with ETHERNET communication module

Satel PERFECTA-IP 32-WRL Control panel with ETHERNET communication module

The PERFECTA family control panels are designed to protect small and medium–sized premises, such as apartments, detached houses, segments of terraced houses, offices, small businesses, etc. They provide protection to the requirements of EN 50131 Grade 2.

The control panel allows you to create a wireless system and a hybrid system (combination with the traditional wired system). The control panels are characterized by simple configuration as well as easy and intuitive operation using keyfobs. The alarm system can also be controlled remotely using the PERFECTA CONTROL mobile application and MPT-350 keyfobs.

The control panel makes it possible to create wired and wireless (433 MHz frequency band) systems. Radio transmissions can be bidirectional (with wireless PRF-LCD-WRL keypads and MSP-300 R sirens) or unidirectional (with MICRA series detectors and MPT-350 keyfobs). Wireless communication allows for easy expansion of the existing system, without having to lay additional cable runs.

CONTROL PANEL PARAMETERS AND FUNCTIONS

• from 8 to 32 programmable hardwired zones:
• • configuration options: NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • support for roller shutter and vibration detectors
• from 4 to 12 programmable hardwired outputs
• 2 power outputs on the mainboard
• additional 4 wireless outputs for operating MSP-300 wireless sirens
• built-in modules:
• • Ethernet module (reporting to monitoring station, mobile application, PUSH notifications)
  • 433 MHz radio module
• support for encrypted wireless communication:
• • bidirectional with PRF-LCD-WRL keypads and MSP-300 R sirens
  • unidirectional with MICRA family detectors and MPT-350 keyfobs
• system division into 2 partitions:
• • 3 arming modes in each partition
  • option to assign a zone to two partitions
  • user-controlled or timer- controlled
• communication bus for connecting keypads (PRF-LCD), expansion modules (INT-E, INT-O, INT-ORS)
• system control using:
• • PRF-LCD keypads (up to 4)
  • PERFECTA CONTROL mobile application
  • MPT-350 keyfobs (up to 15)
• firmware updates available
• passwords:
• • 15 user codes
  • 1 service code
• editable names (of users, partitions, zones, outputs and modules) for easy control and supervision of the system
• 8 timers with exceptions setting capability
• memory of 3584 events
• automatic diagnostics of the system main components
• built-in switch-mode power supply:
• • over-current protection
  • battery deep discharge protection
  • battery charging current control
• programming control panel settings:
• • locally ‒ keypad or computer with PERFECTA Soft program installed, connected to the control panel RS-232 (TTL) port
  • remotely ‒ computer with PERFECTA Soft program installed, connecting to the control panel via Ethernet
