Satel PERFECTA 32 WRL LTE SET-A Set

Set PERFECTA 32 WRL LTE SET-A

The kit includes:

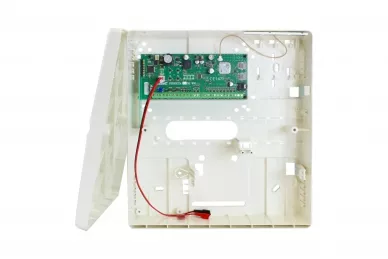

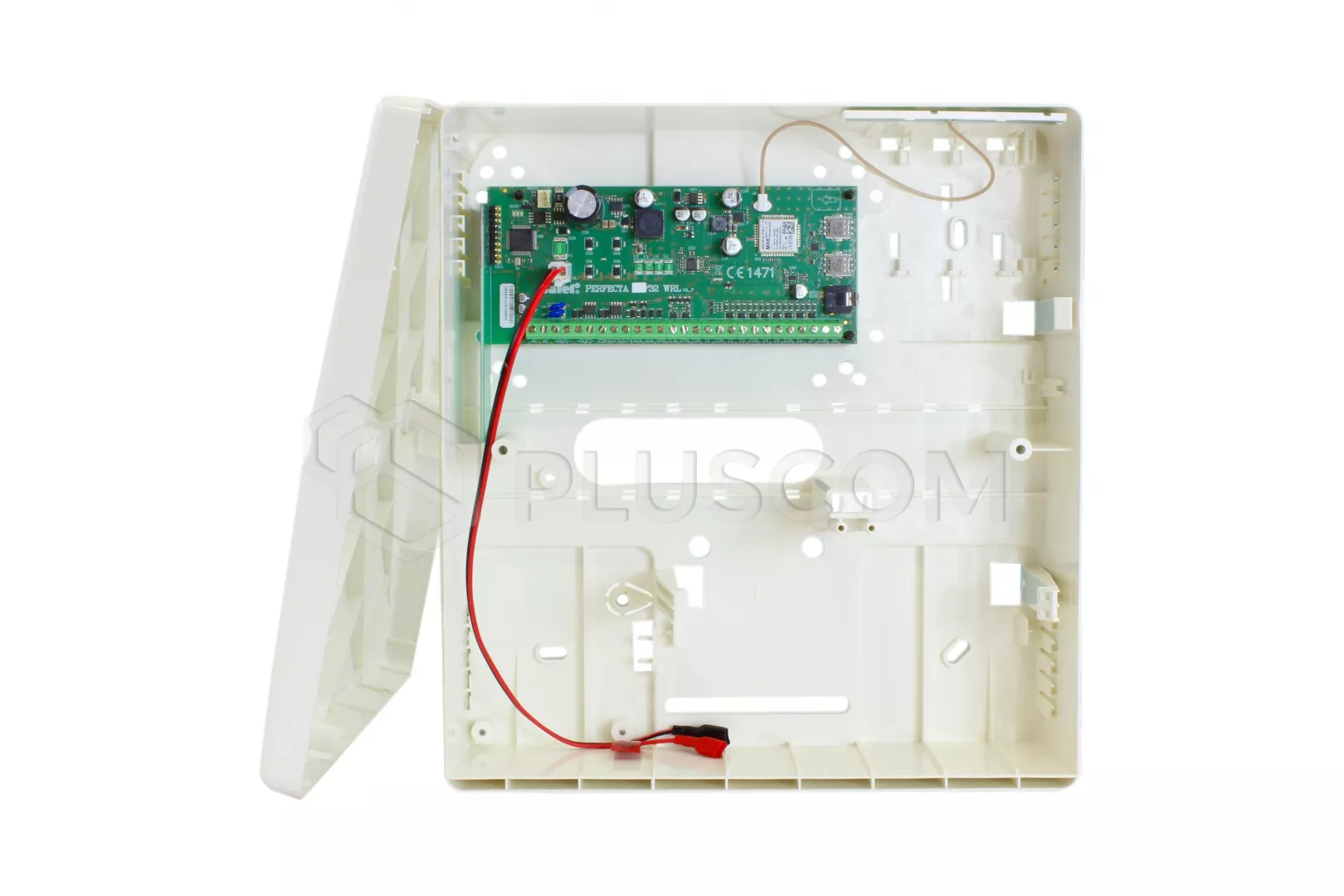

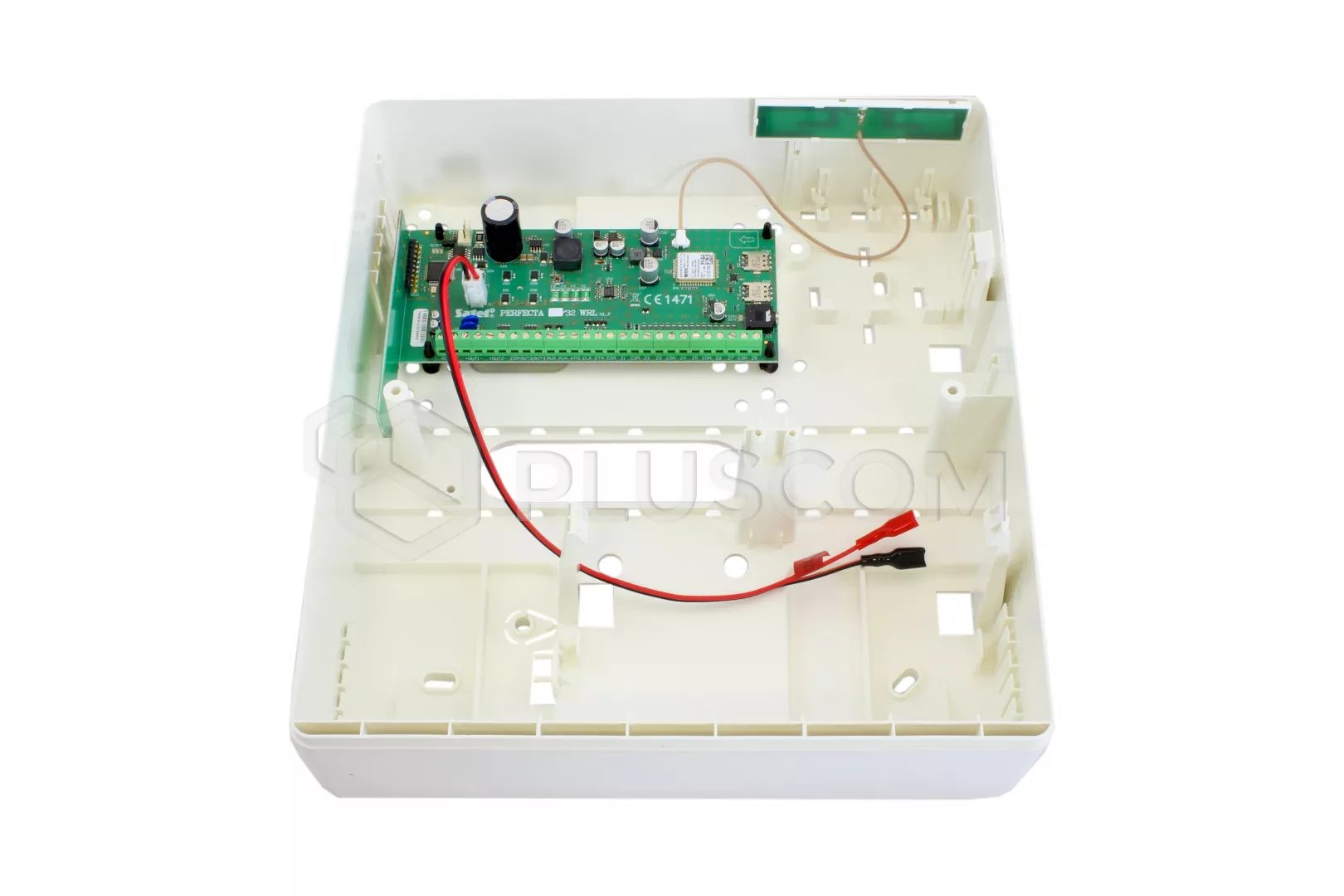

• Control panel PERFECTA 32 WRL LTE
• LTE antenna with IPX connector

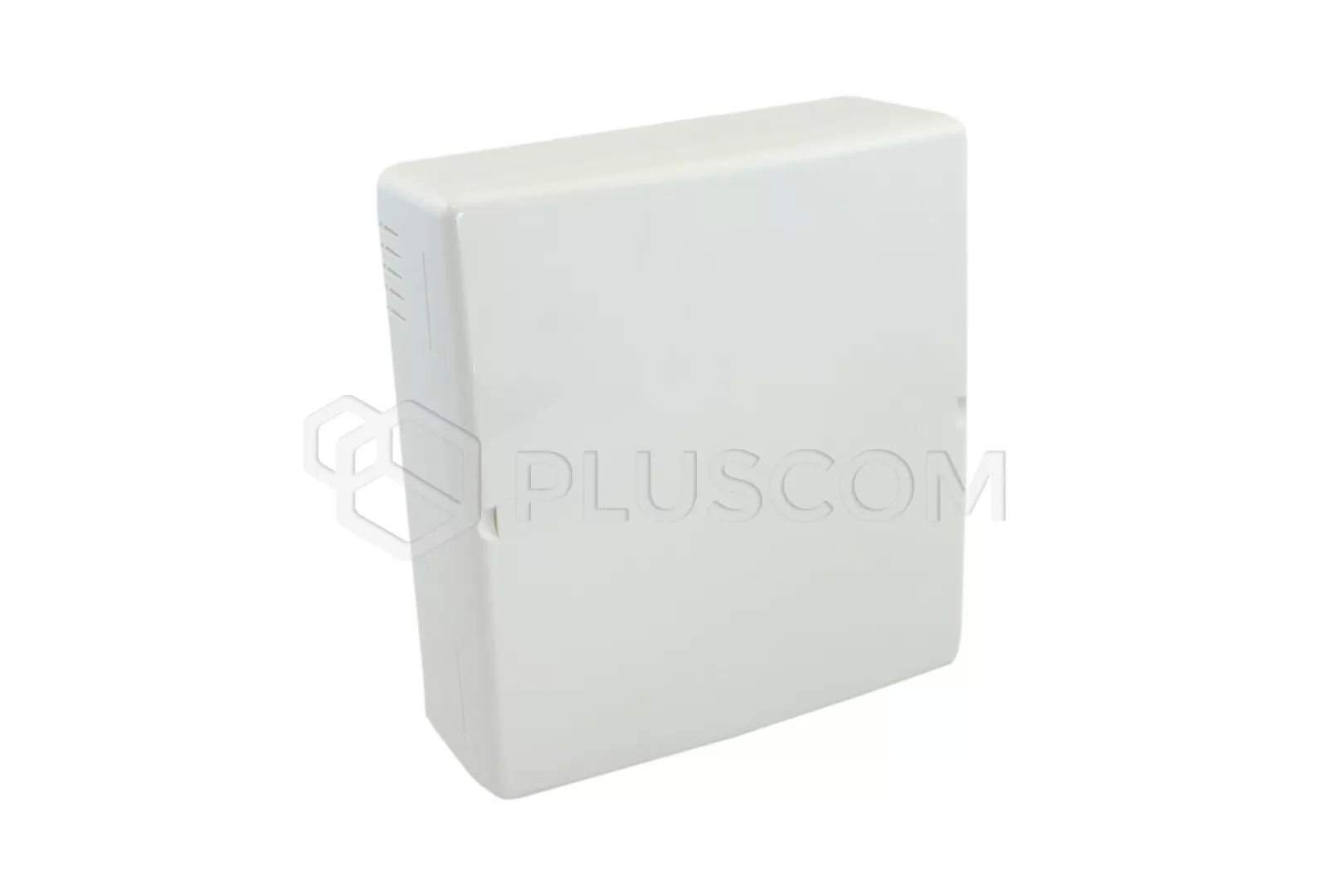

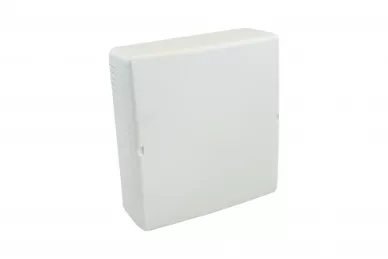

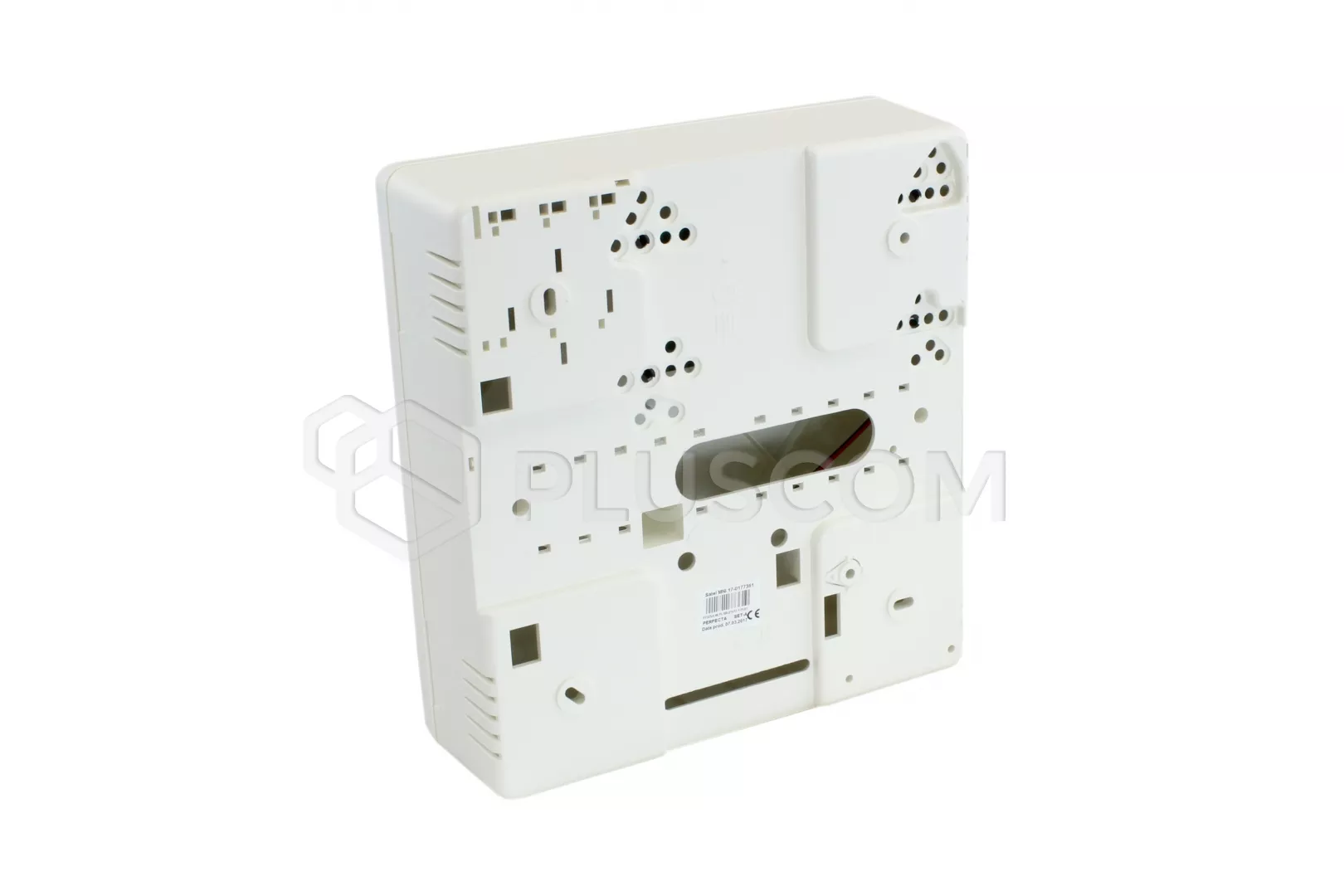

• OPU-4 P enclosure (without transformer)

Alarm system based on the PERFECTA control panel it is distinguished by simple configuration, intuitive operation and convenient control. The control panel provides protection in accordance with the requirements of Grade 2 EN 50131
System configuration can be done by:

• computer with PERFECTA Soft program installed
• remotely - thanks to data transmission from the cellular network and using the keypad

CONTROL PANEL PARAMETERS AND FUNCTIONS

• 8 programmable hardwired inputs on board

• • expansion to 32 using INT-E expanders
  • configuration selection NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • support for roller shutter and vibration detectors
• 4 programmable hardwired outputs on board
• • extension to 12 using the INT-O expander
  • two power outputs
• 2 partitions witch 3 arming modes in each partition
• 8 timers with exceptions setting capability

• built-in modules:
• • cell phone with 2 nano-SIM slots
  • voice module
  • audio alarm verification module

• local system operation by means of PRF-LCD wired keypads (max 4 pcs)
• support up to 15 users + 1 service
• memory of 3584 events
• built-in switch-mode power supply
• • over-current protection
  • battery deep discharge protection
  • battery charging current control

he housing has space for mounting:

• transformer 60VA

• battery 12V 7Ah


KEYPADS AND REMOTE CONTROL FOR PERFECTA CONTROL PANEL
