Satel PERFECTA 32 Control panel with GSM/GPRS

Satel PERFECTA 32 Control panel with GSM/GPRS

The PERFECTA family control panels are designed to protect small and medium–sized premises, such as apartments, detached houses, segments of terraced houses, offices, small businesses, etc. They provide protection to the requirements of EN 50131 Grade 2.

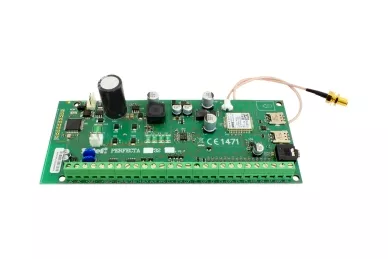

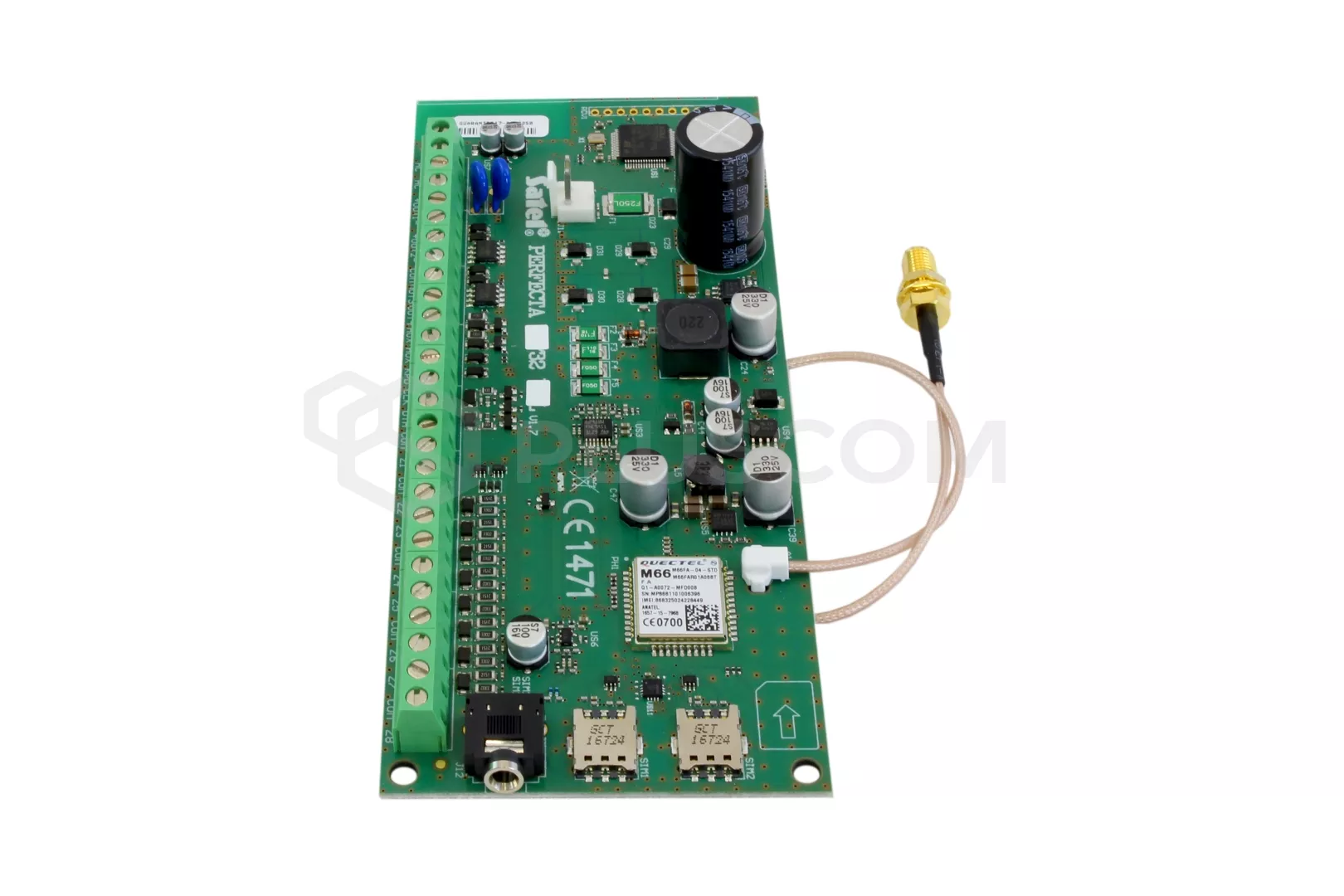

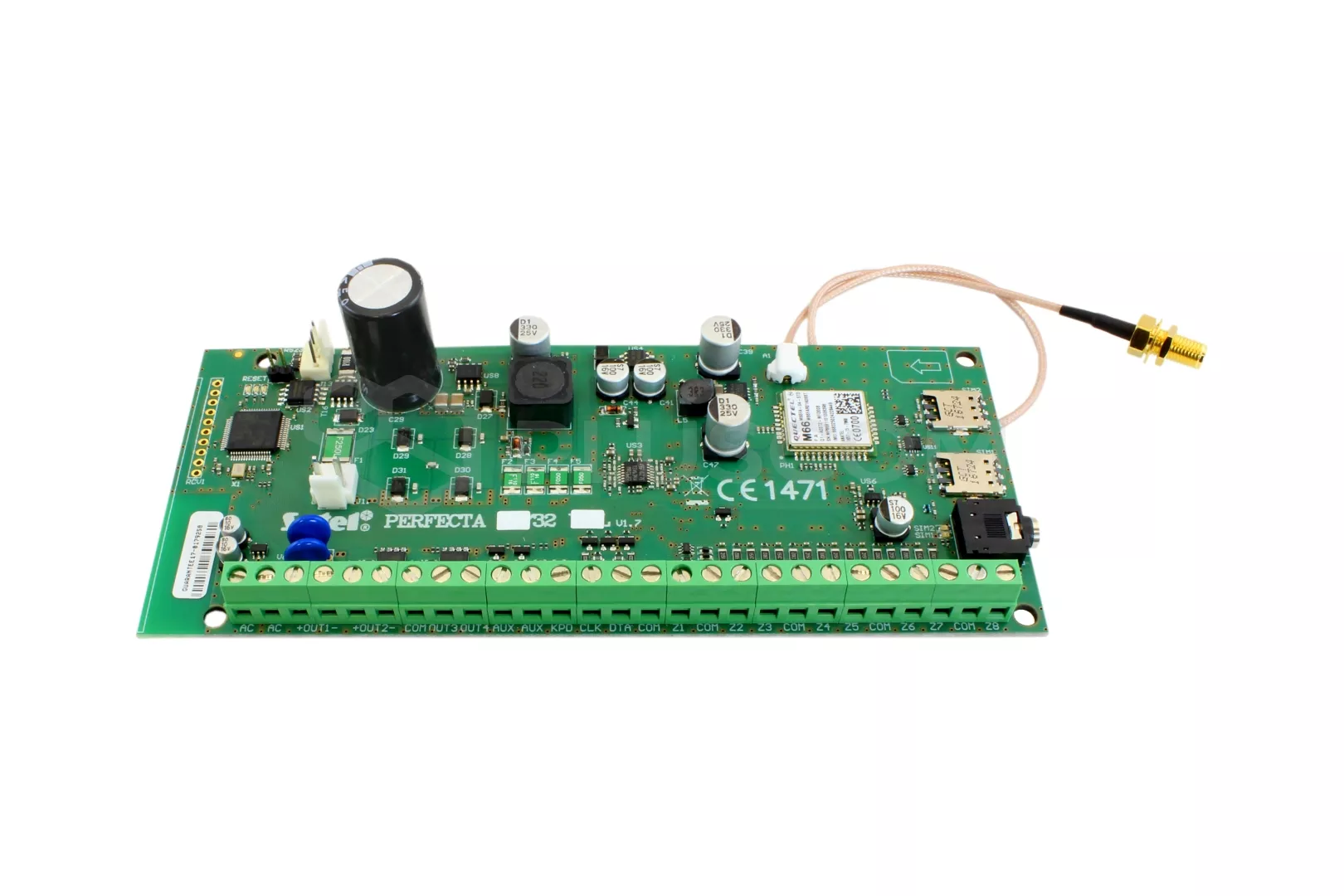

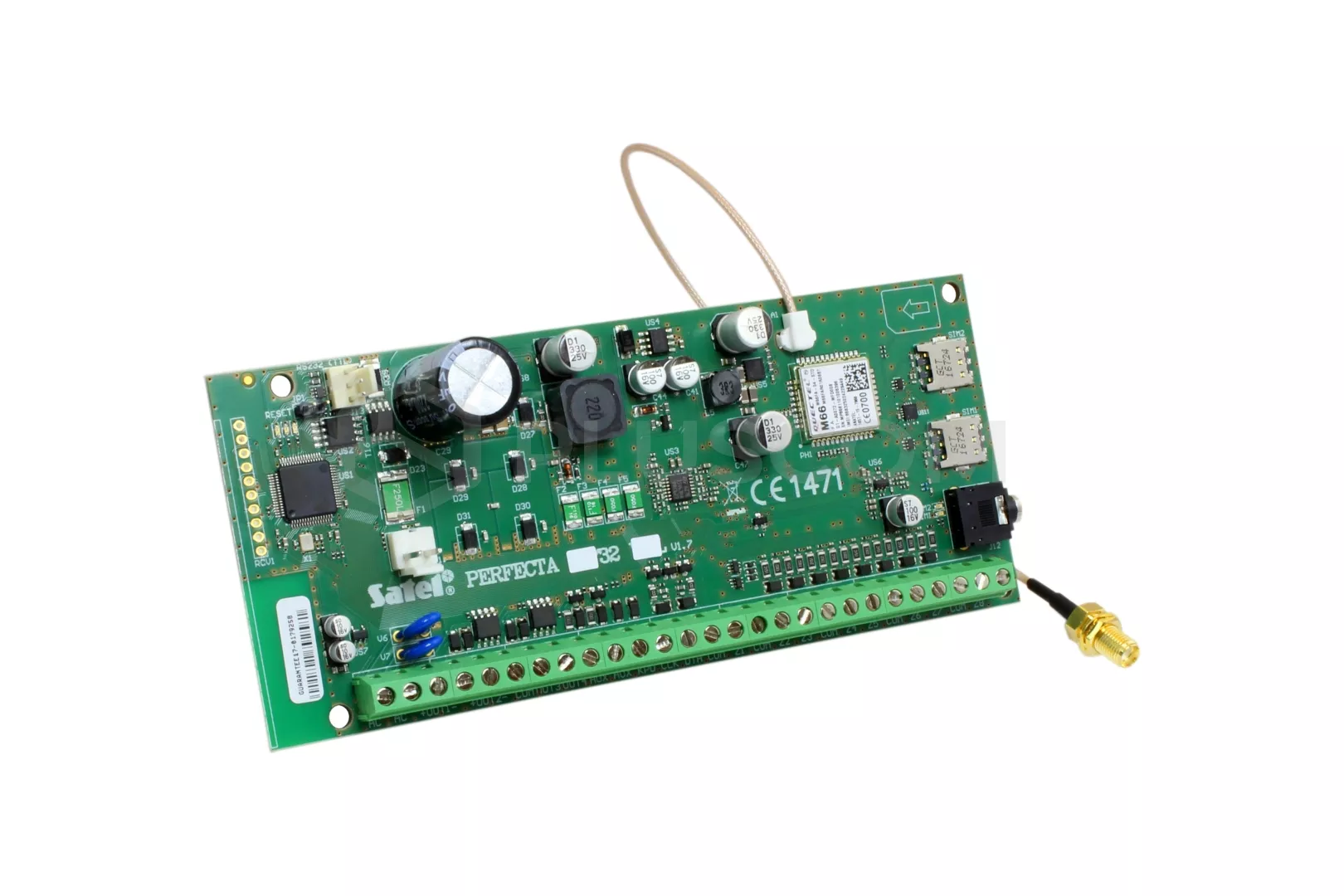

The control panel electronics board is provided with wired 8 zones and 4 outputs. Their number can be increased by connecting the extension modules: INT–E zone expander and INT–O or INT–ORS output expanders. This allows you to expand the system by adding more detectors, sirens, and even actuators (to control the garage door, roller shutters, garden sprinklers).
The system can be configured in two ways: using the intuitive PERFECTA Soft program (from a computer connected with RS–232 (TTL) cable or remotely) and from a keypad, using shortcuts in the service menu.

FEATURES:

• from 8 to 32 programmable wired zones:
• • selectable configuration: NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • support for roller shutter detectors / vibration detectors
• 4 to 12 programmable wired outputs
• 2 power outputs on mainboard
• built–in modules:
• • GSM/GPRS with 2 SIM slots
  • voice (playback of voice messages for telephone messaging purposes)
  • audio alarm verification (listening in)
• system control by using:
• • PRF–LCD keypads (up to 4)
  • PERFECTA CONTROL mobile application
  • remote control keyfobs operating in the 433 MHz band (up to 15) – requires cooperation with the INT–RX–S module (PERFECTA 32 Firmware version 1.02 or higher)
• 15 user codes and 1 service code
• 8 timers with exceptions setting capability
• memory of 3584 events
• built-in switching power supply:
• • overload protection
  • battery deep discharge protection
  • battery charging current control
• compliance with EN 50131 Grade 2
