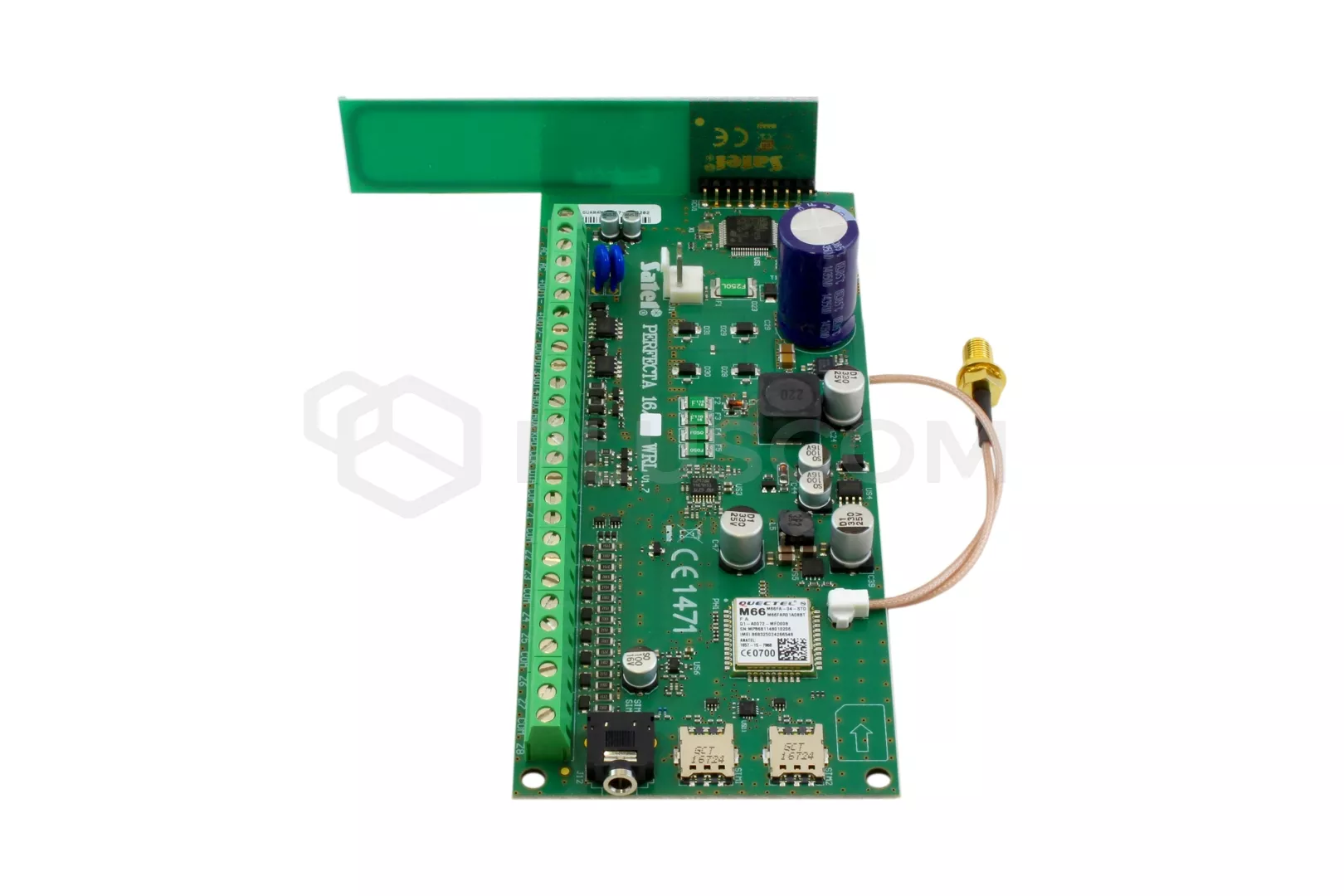

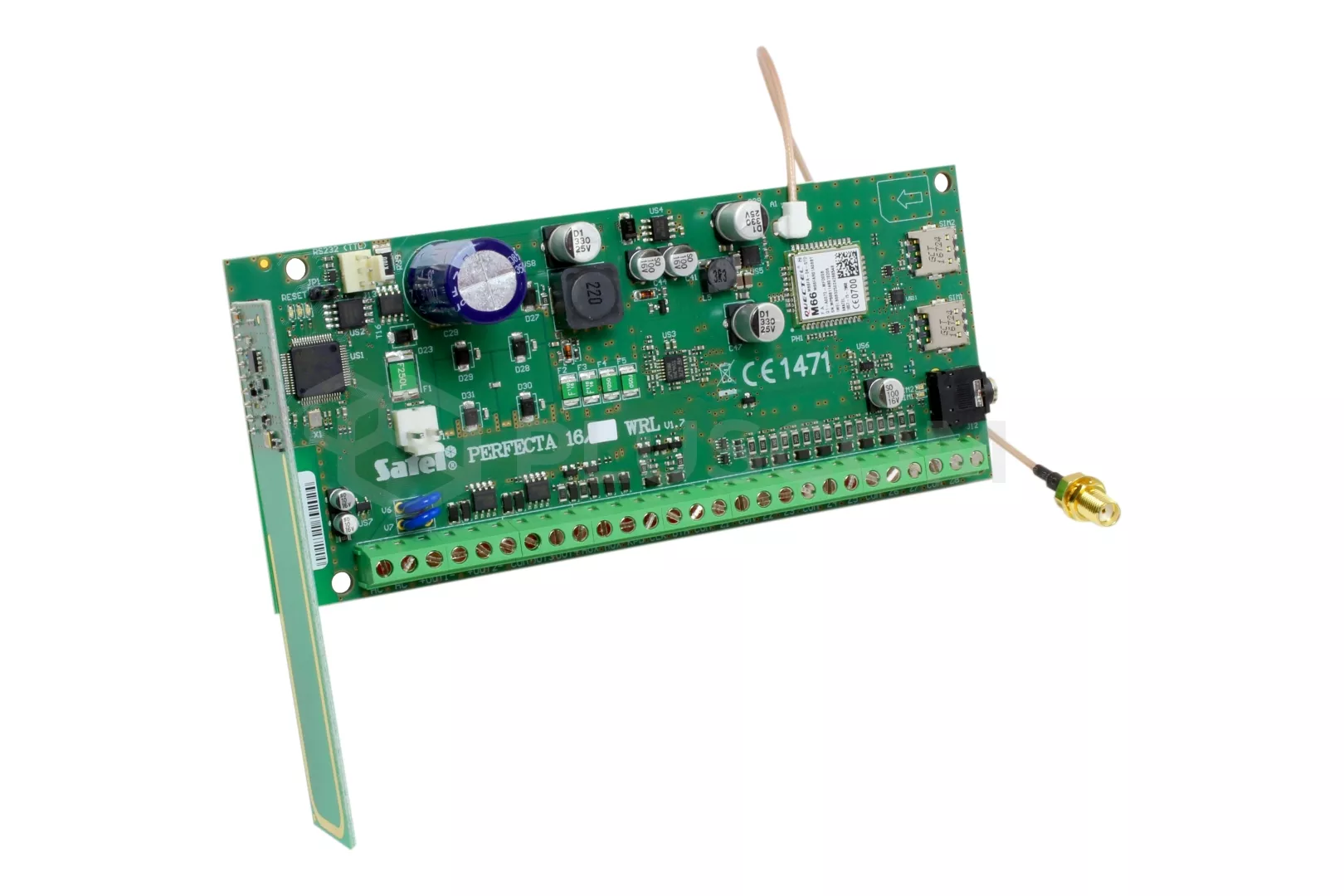

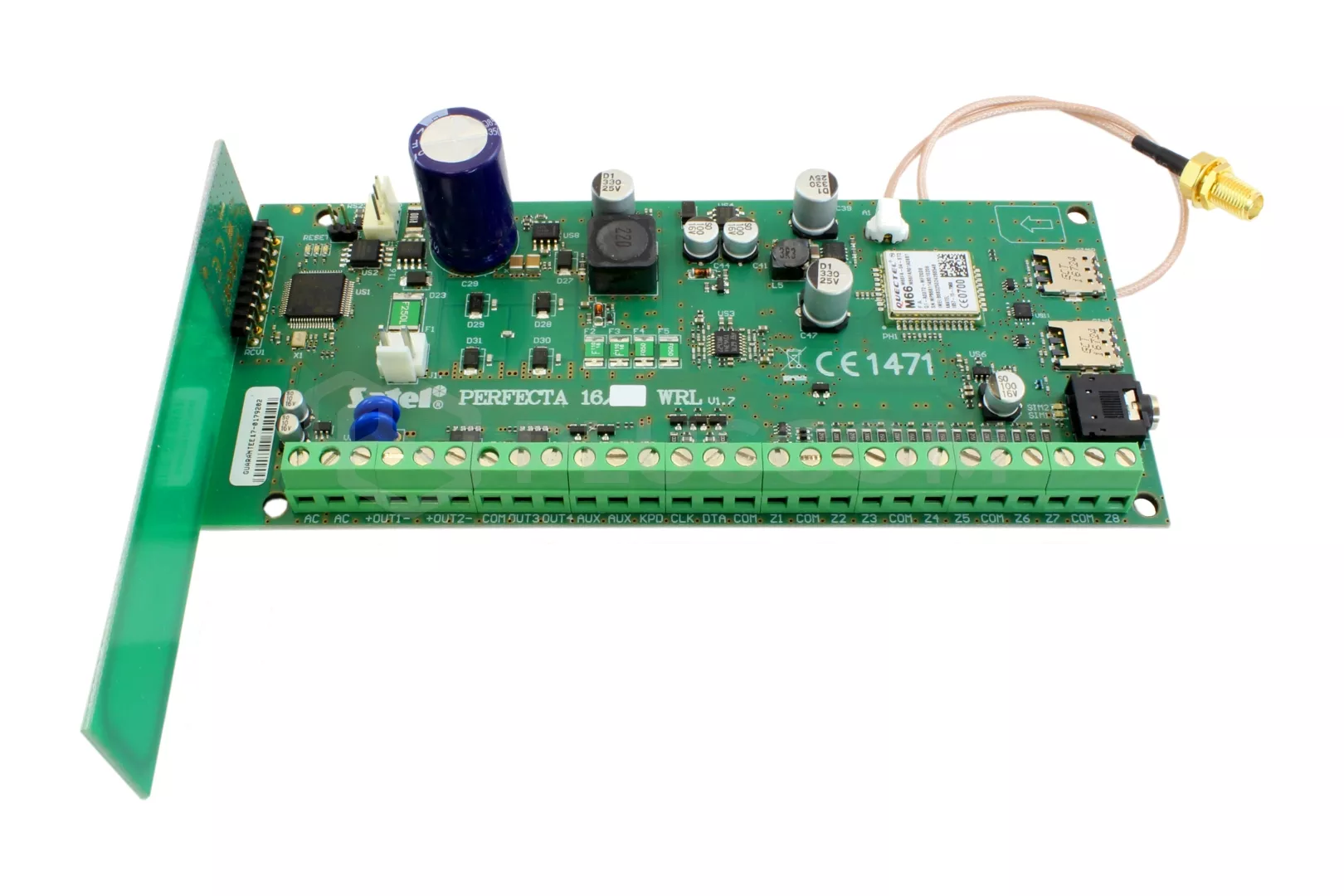

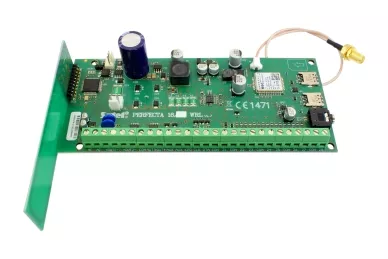

Satel PERFECTA 16-WRL Control panel with GSM/GPRS

Satel PERFECTA 16-WRL Control panel with GSM/GPRS

The control panel is intended for alarm installations in small buildings, flats, small houses, commercial premises summer houses. The control panel allows you to create a wireless system and a hybrid system (combination with the traditional wired system). Two-way communication with the wireless PRF-LCD-WRL keypads and MSP-300 R sirens is realized at 433 MHz. In the wireless system, the MICRA series detectors and the new MPT-350 keyfobs are also used.
The control panel provides protection in accordance with the requirements of Grade 2 EN 50131

FEATURES:

• 8 programmable hardwired zones on the control panel mainboard:
• • support for NO and NC type detectors, as well as roller shutter and vibration detectors
  • support for Single EOL and Double EOL configuration
• 4 programmable hardwired outputs on the control panel mainboard:
• • 2 high-current outputs
  • 2 low-current outputs, OC type
• maximum number of programmable outputs: 16
• 23 performed functions
• 2 power supply outputs on the control panel mainboard
• electrical protection of all outputs
• built-in GSM/GPRS communicator
• 15 user codes and 1 service code
• 8 timers with exceptions setting capability
• memory of 3584 events
• built-in switching power supply:
• • overload protection
  • battery deep discharge protection
  • battery charging current control

KEYPADS AND REMOTE CONTROL FOR PERFECTA CONTROL PANEL





ANTENNA GSM
