Satel PERFECTA 16 SET-A Set

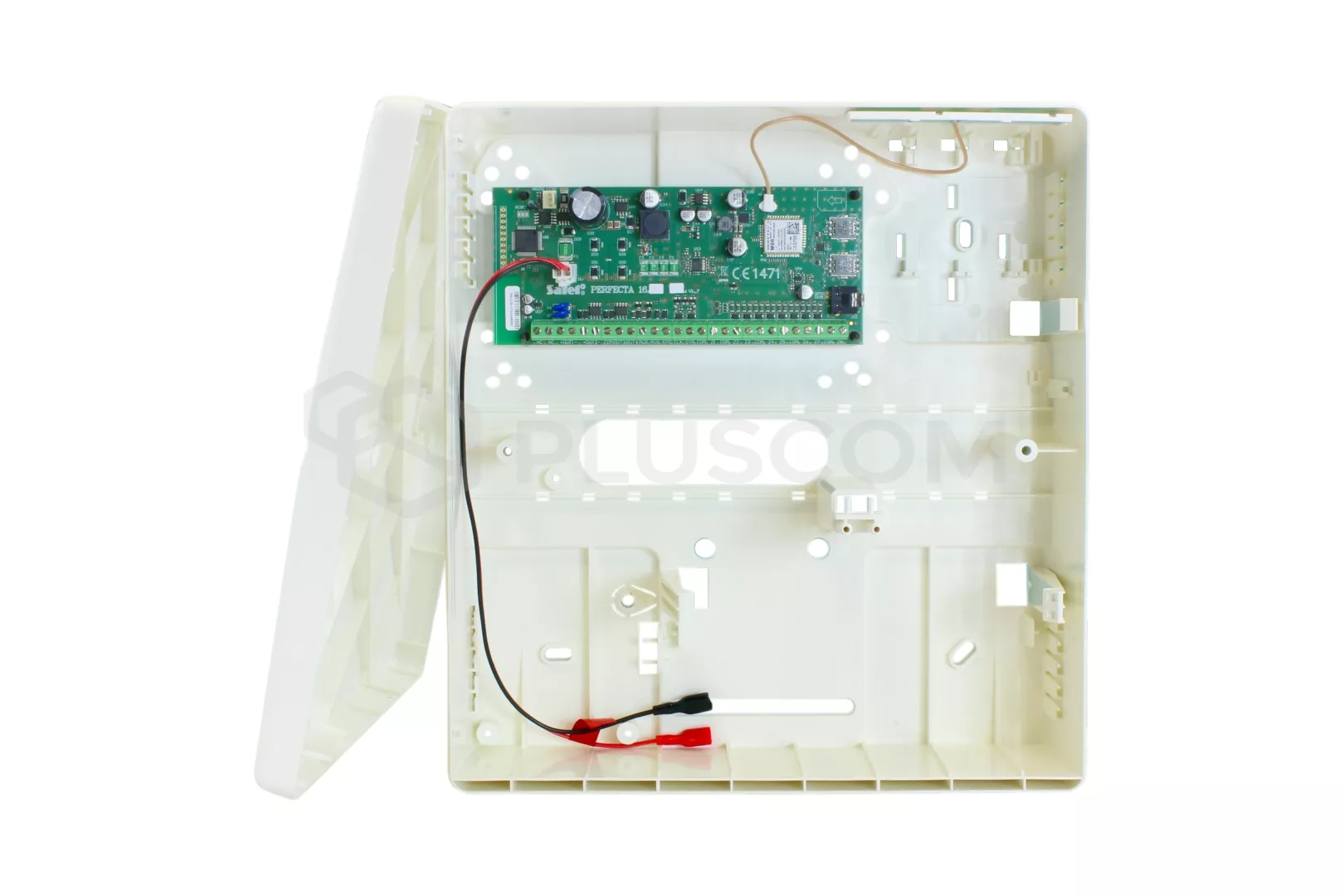

Set PERFECTA 16 SET-A

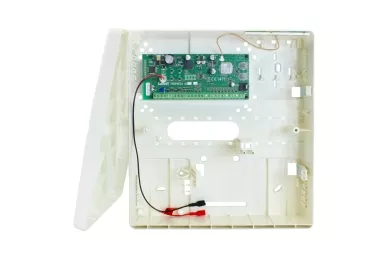

The kit includes:

• Control panel PERFECTA 16
• ANT-GSM-I antenna dual band GSM antenna with IPX connector

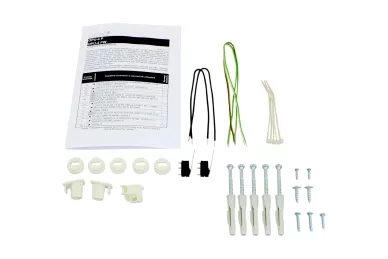

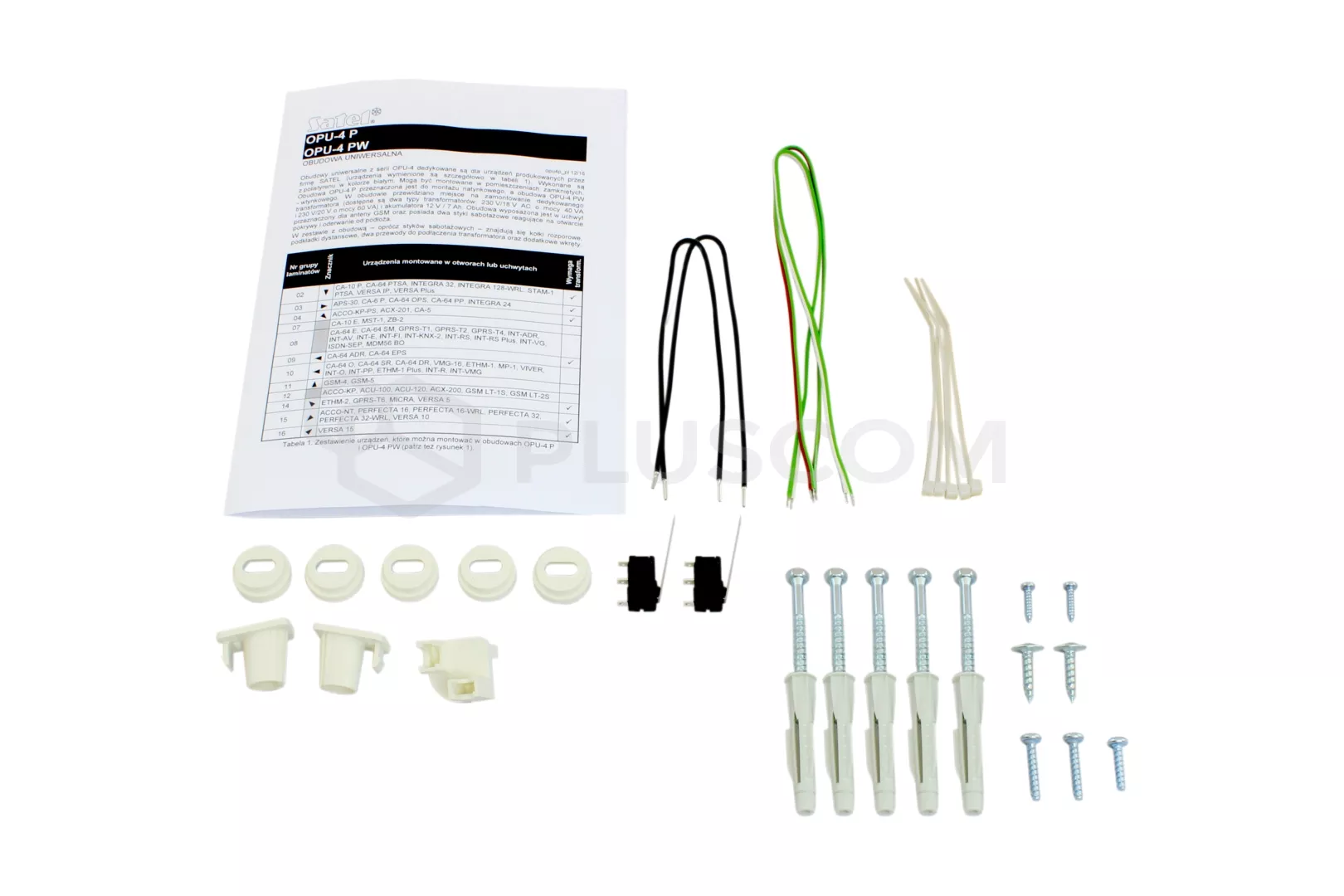

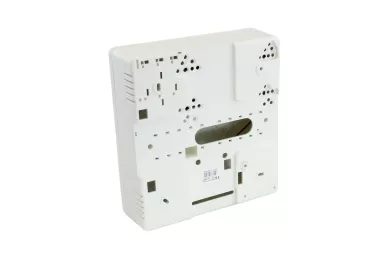

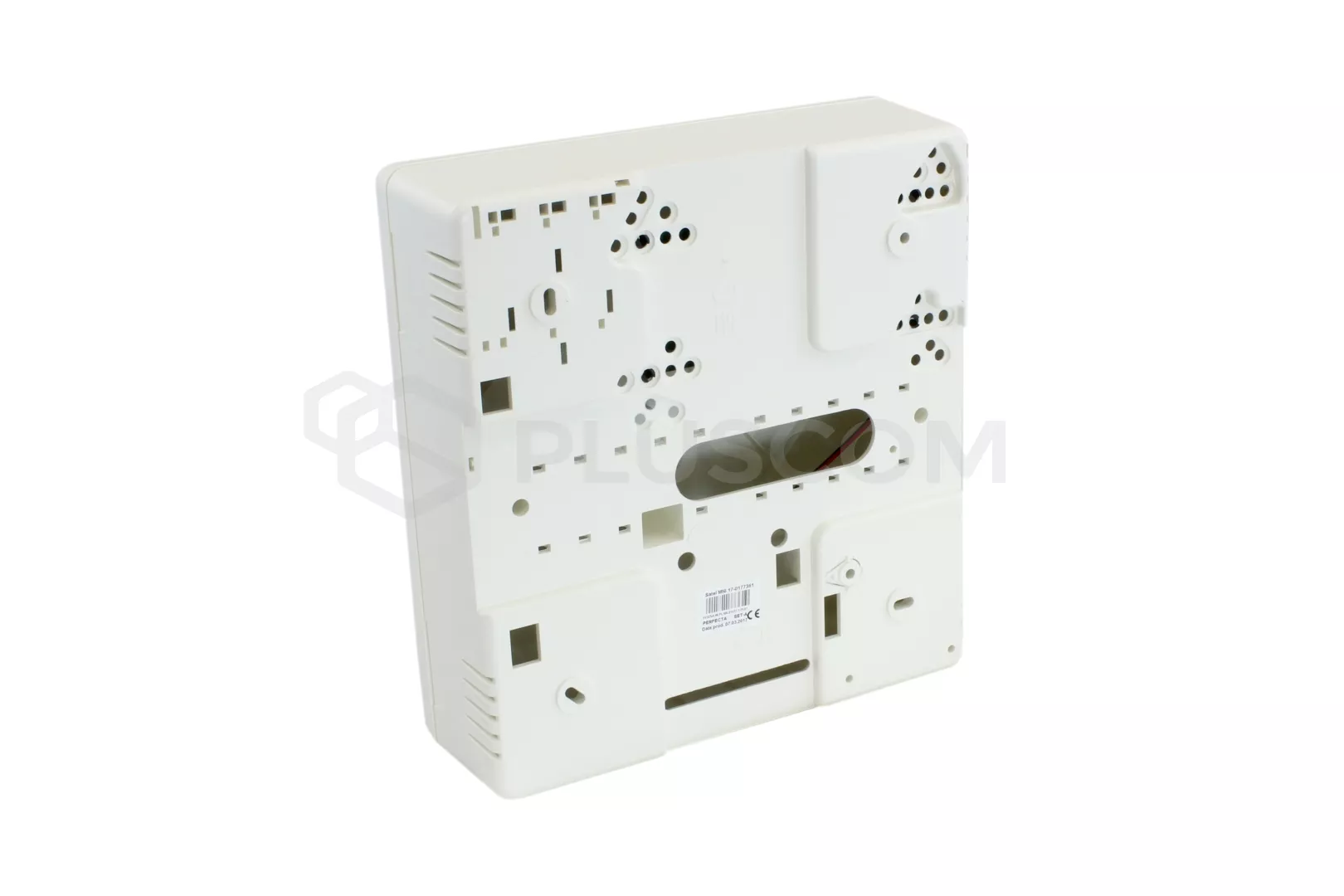

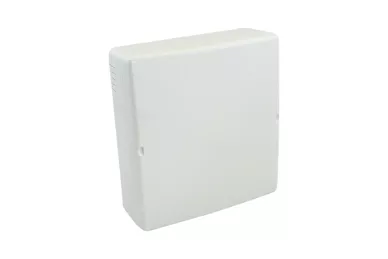

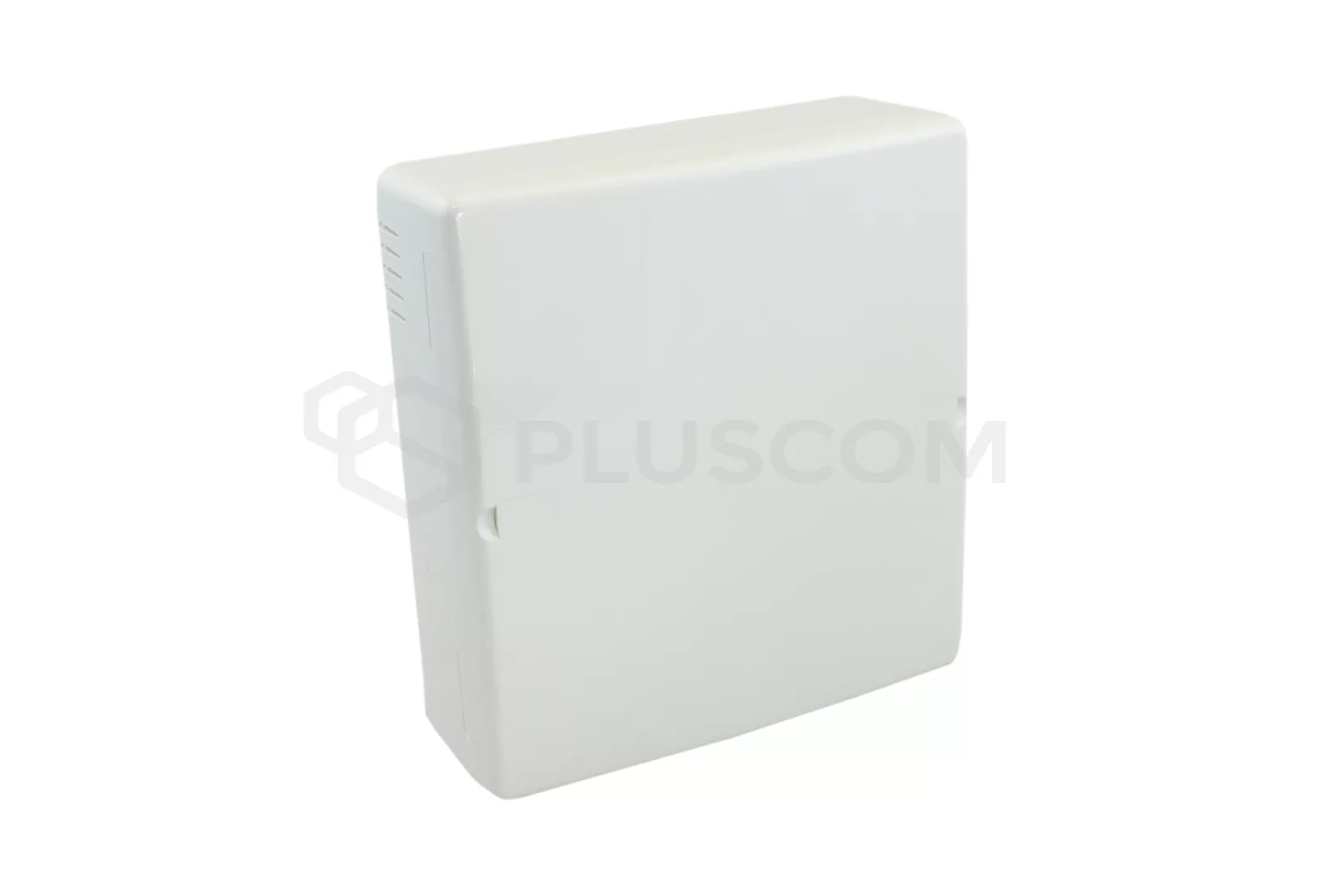

• OPU-4 P enclosure (without transformer)

Alarm system based on the PERFECTA control panel it is distinguished by simple configuration, intuitive operation and convenient control. The control panel provides protection in accordance with the requirements of Grade 2 EN 50131

CONTROL PANEL PARAMETERS AND FUNCTIONS

• 8 programmable hardwired zones on the control panel mainboard:
• • support for NO and NC type detectors, as well as roller shutter and vibration detectors
  • support for Single EOL and Double EOL configuration
• 4 programmable hardwired outputs on the control panel mainboard:
• • 2 high-current outputs
  • 2 low-current outputs, OC type
• maximum number of programmable outputs: 12
• 23 performed functions
• 2 power supply outputs on the control panel mainboard
• electrical protection of all outputs
• built-in GSM/GPRS communicator
• 15 user codes and 1 service code
• 8 timers with exceptions setting capability
• memory of 3584 events
• built-in switching power supply:
• • overload protection
  • battery deep discharge protection
  • battery charging current control

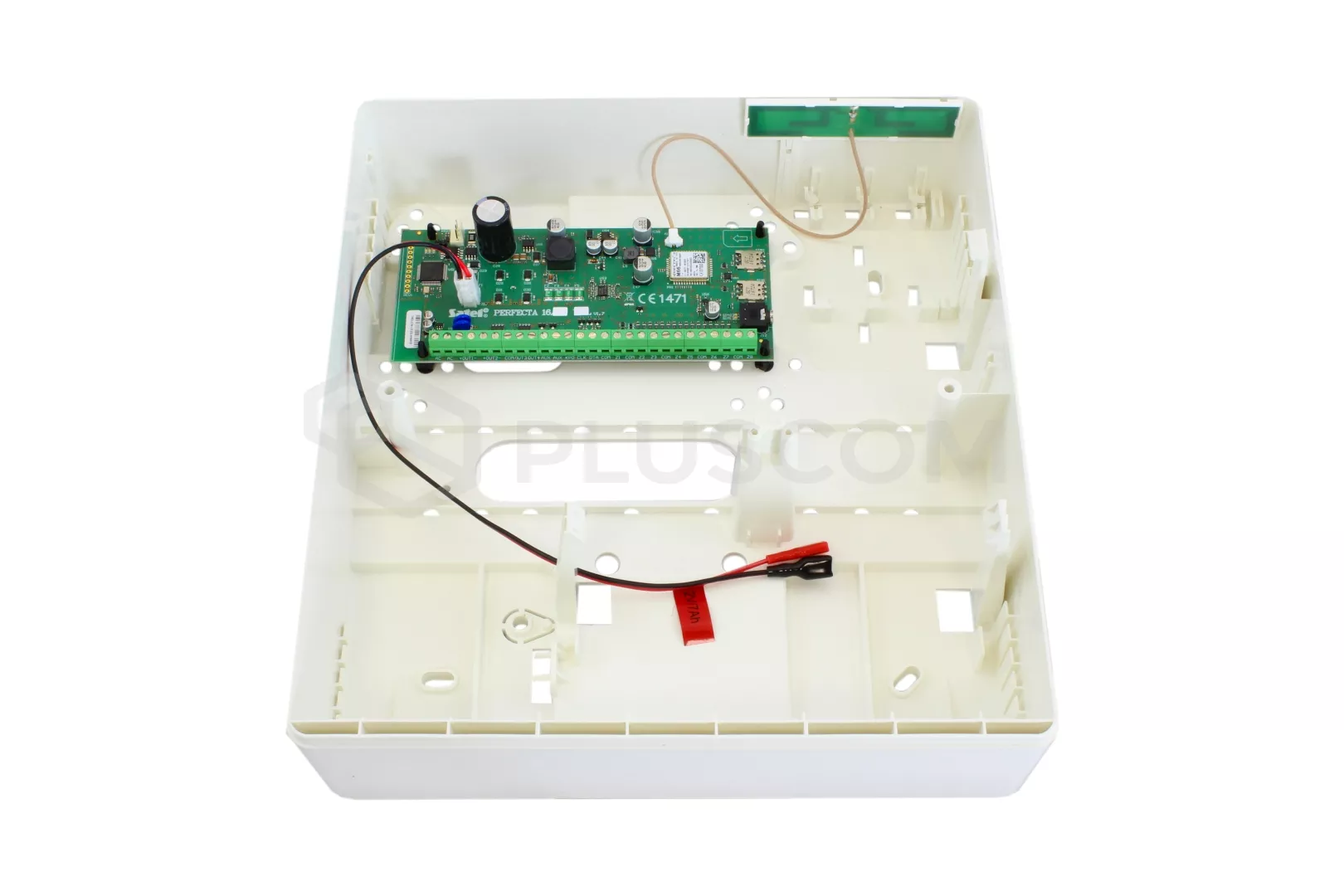

The housing has space for mounting:

• transformer 40VA

• battery 12V 7Ah
