Satel PB-10 panic button

10,65 EUR including 23.00% VAT
In stock. Ships today!
Product code: #25372
Manufacturer: Satel
  • Operation with any alarm control panel that supports NC type detectors
  • Alarm and tamper output (NC)

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel PB-10 panic button

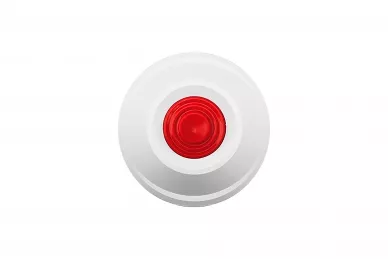

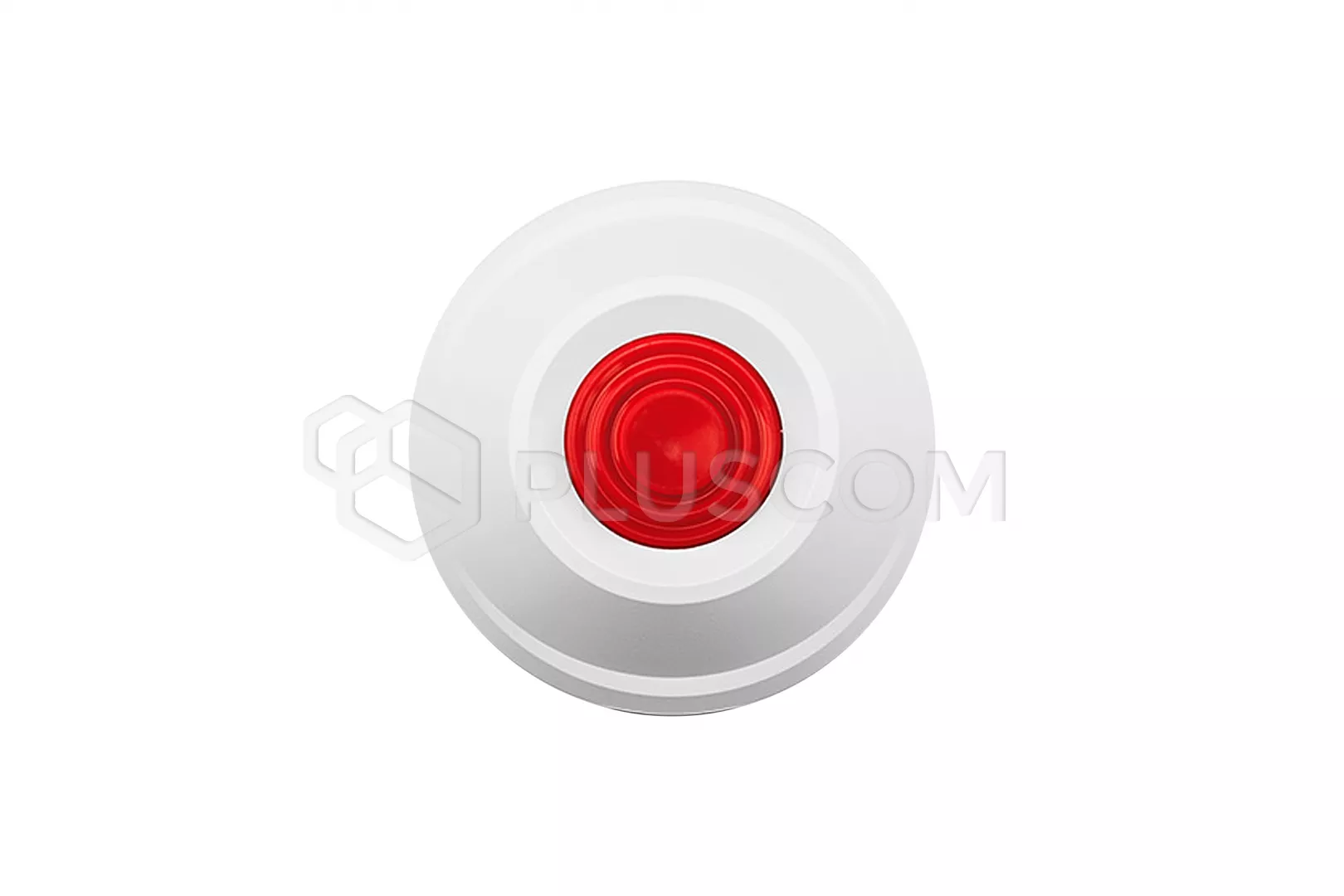

The PB-10 wired panic button is used to trigger a panic alarm or call for help in emergency situations. It can also be used to control the operation of various devices (e.g. automation or access control system devices).

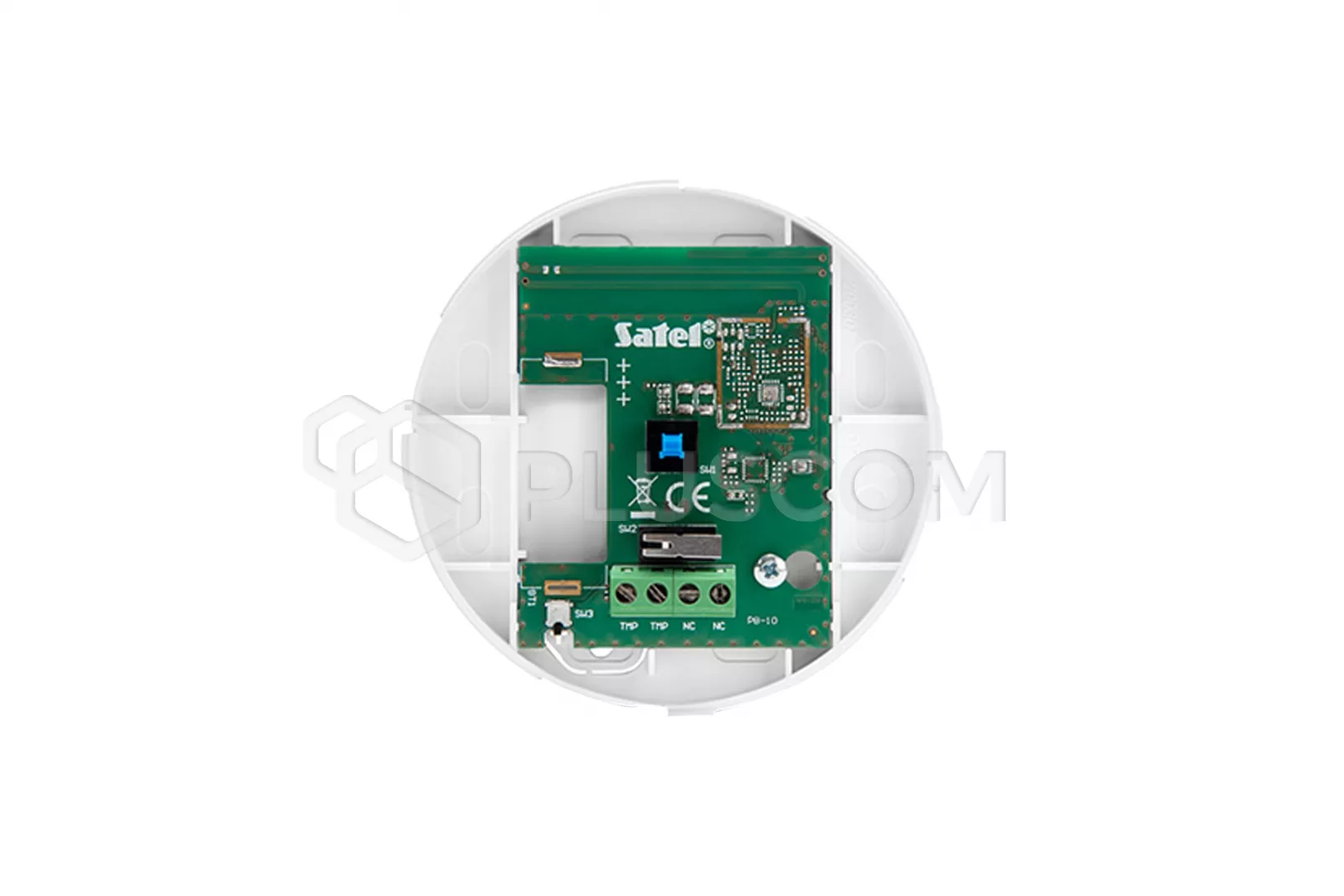

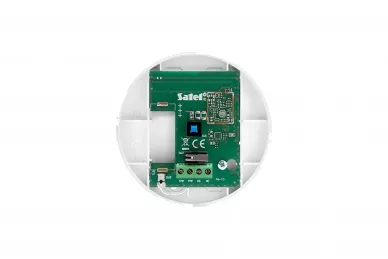

The button reports an alarm when pressed or when the contact is opened tamper (opening the enclosure and detaching it from the mounting surface).

TECHNICAL DATA:
  • exits
    • alarm (NC): 100 mA / 24 V DC
    • tamper (NC): 10 mA / 24 V DC
  • environmental class according to EN 50130-5: II
  • operating temperature range: -10 ° C ... + 55 ° C
  • dimensions: ø97 x 29 mm
  • weight: 58 g

Download
Datasheet 0.1 MB
Datasheet 0.28 MB
