SATEL OPAL external dual motion detector PIR + MW
Satel OPAL Outdoor dual technology motion detector PIR+MW
Outside is an innovative dual motion detector that can detect an intruder
before he gets inside the protected object. Suitable for mounting on the
outside is resistant to adverse weather conditions. He works in a temperature
range of -40°C to + 55°C and splash-proof housing provides protection from
rain, fog or strong wind (IP54)
HIGH EFFICIENCY INTRUDER DETECTION PIR + MW
Detector detects motion in infrared PIR and using the microwave sensor.
Notification of an alarm when both sensors register movement at an interval of
less than 4s.

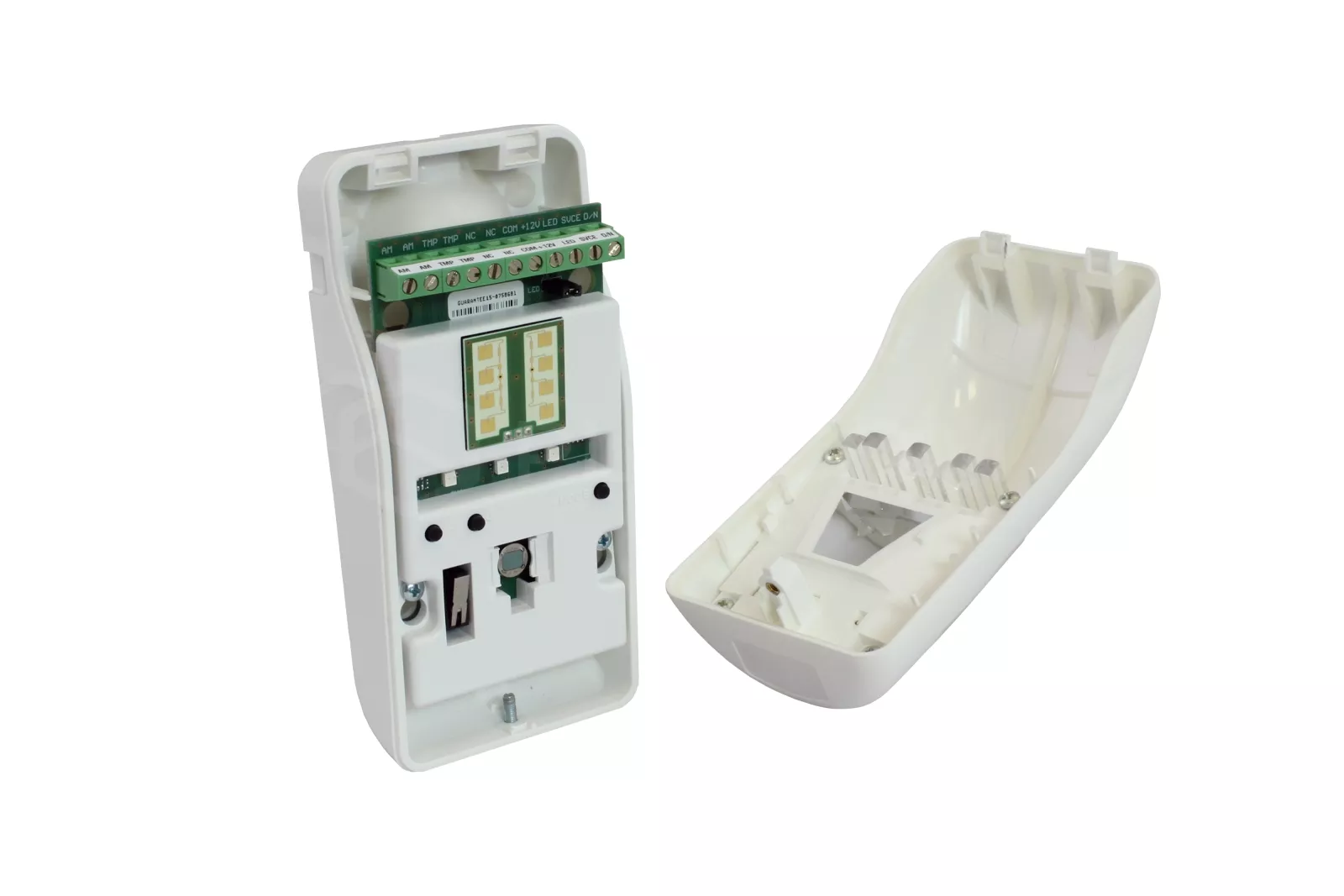

Casing removed:
AREA UNDER THE PROTECTION DETECTOR
motion detection occurs even when the attacker approached directly underneath
the detector to damage it, or cover - band control approach.
ANTI-MASKING
If the microwave sensor detects motion of an object at a distance of 10-20cm is
interpreted as an attempt to mask the detector and the relay antimasking.
SUPERVISORY FUNCTIONS
The detector will signal a failure when a failure occurs in the signal path or
if the voltage drops below 9V. The failure is indicated by a red LED. The
detector is tamper protection against opening and removing from mounting
surface.
HIGH IMMUNITY TO FALSE ALARMS
Working out is a greater possibility of false alarms. Over their elimination
watching:
- digital motion detection algorithm
- digital temperature compensation
- auto-tuning algorithm
With advanced algorithms detect motion detector is resistant to false
alarms caused by moving but not changing its position objects such as. (The
trees)
INSTALLATION
The standard detector is mounted on a flat surface. If the detector is to be
mounted in a corner or is to be tilted vertically or horizontally, use a
special optional brackets from the set BRACKET C
The detector should be installed at a height of 2.4m. The best working
conditions can be expected if the expected movement of an intruder will take
place perpendicular to the tracks detection detector.
If the detector is to be resistant to the movement of animals (up to 20kg) we
recommend to mount on a flat surface. You have to remember that using brackets
ball.

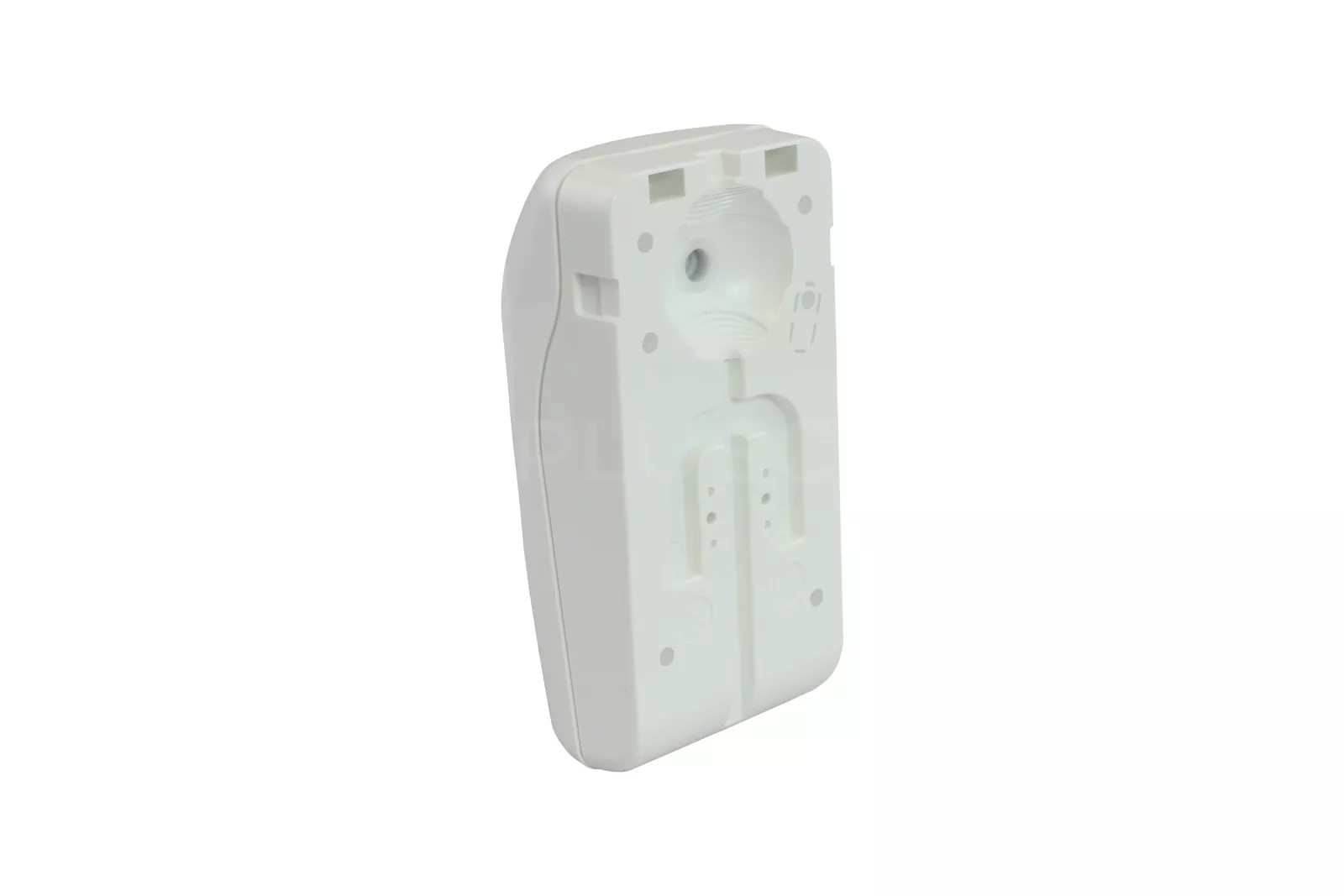

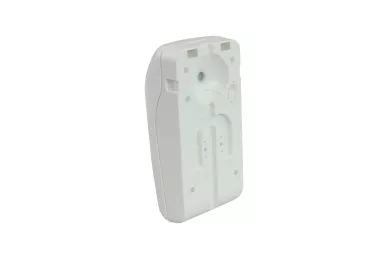

Rear view:
