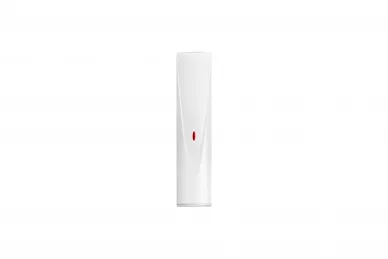

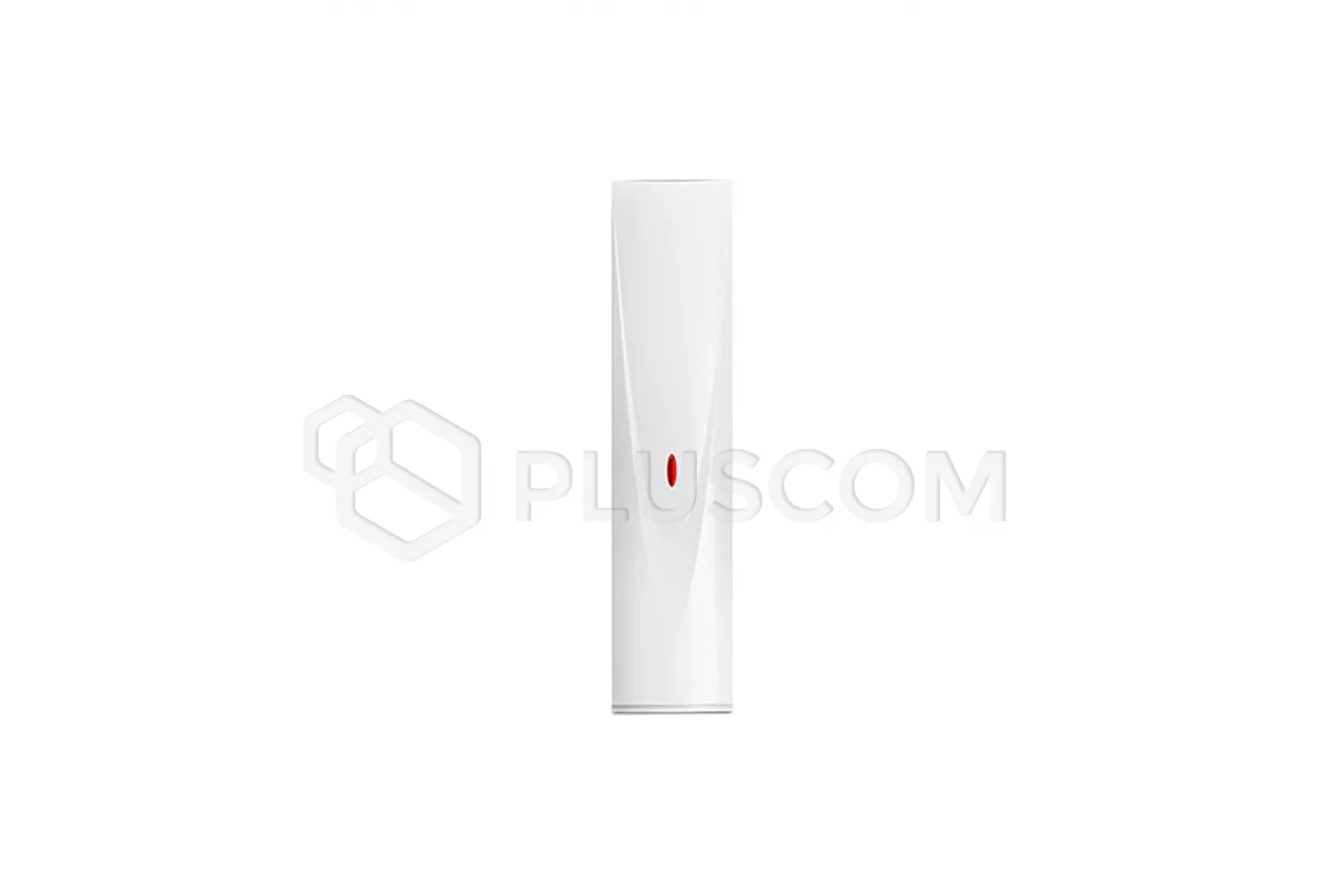

Satel MXD-300 Wireless multipurpose detector

Satel MXD-300 Wireless multipurpose detector

The MXD-300 detector is designed for operation within the MICRA wireless system. It is a multipurpose device that can be used as: magnetic contact, magnetic contact with input for roller shutter detector, shock detector, shock detector and magnetic contact, water flood detector.
The detector is identified in the wireless system as MMD-302. The detector is supported by:

• PERFECTA alarm control panel (WRL models)
• VERSA-MCU controller
• MTX-300 controller
• MICRA alarm module (firmware version 2.02 or newer)

Features

• Encrypted radio transmissions in the 433 MHz frequency band
• Battery status control
• LED indicator
• Tamper protection against enclosure opening and removal from mounting surface
• 2 magnets included (for surface and flush mounting)
• Possibility to select detector type using jumpers

WORKING MODES OF THE DETECTOR:

Magnetic contact

• Detects open door, window, etc.
• Input for connecting an NC type wired detector

Magnetic contact with input for roller shutter detector

• Detects open door, window, etc
• Input for connecting a wired roller shutter detector
• Input for connecting an NC type wired detector

Shock detector

• Detects shocks and vibrations accompanying attempts to force open a door or window

Shock detector and magnetic contact

• Detects shocks and vibrations accompanying attempts to force open a door or window
• Detects open door, window, etc.

Water flood detector

• Detects flooding in spaces provided with plumbing systems
