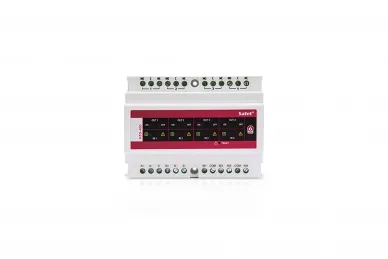

Satel MIO-400 Conventional input / output module

149,63 EUR including 23.00% VAT
Product code: #43187
Manufacturer: Satel
  • 4 entrances
  • 4 relay outputs
  • Power supply from the surveillance line
  • LED indicators
  • DIN rail mounting (35 mm)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

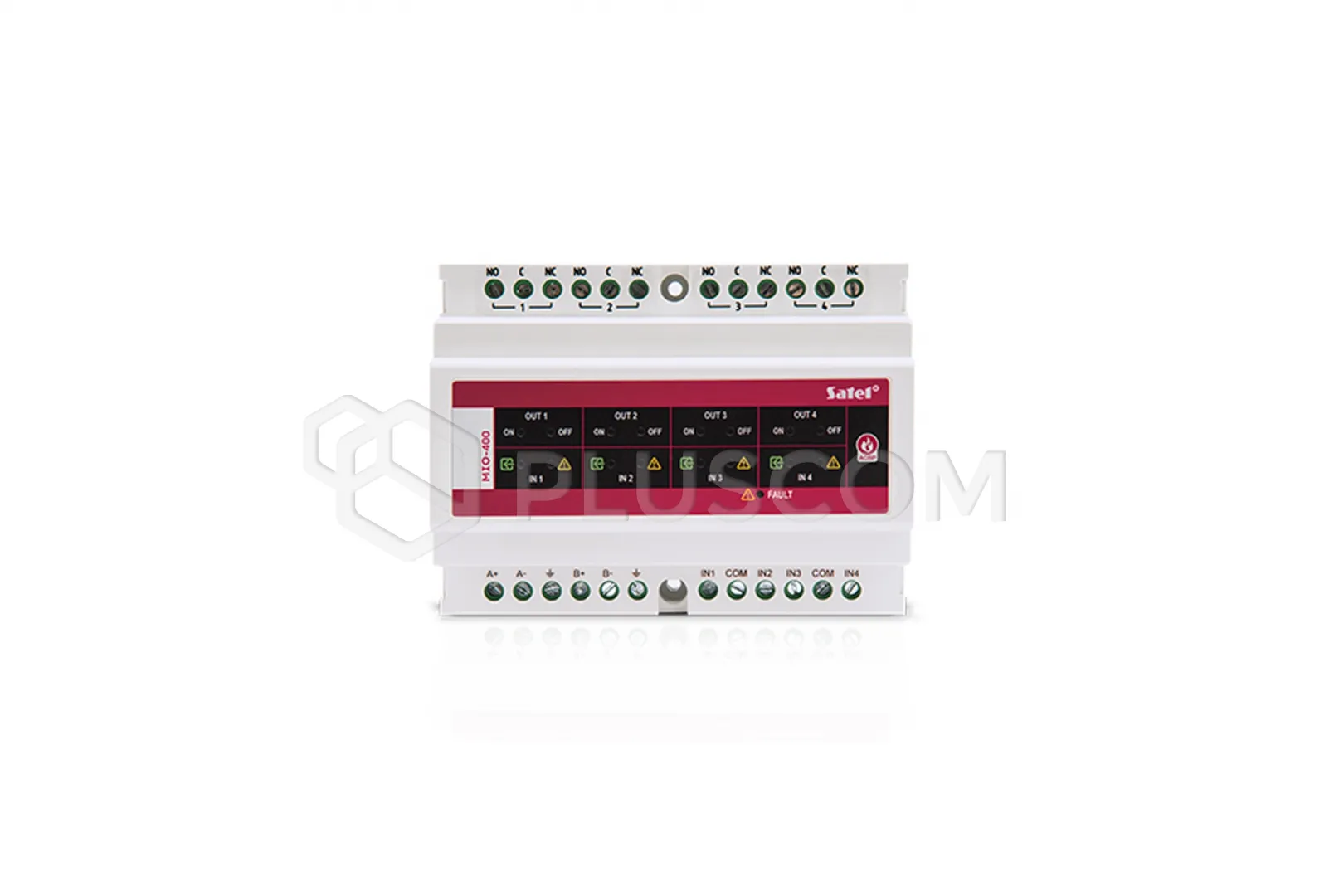

Satel MIO-400 Conventional Input and Output Module


It is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel. It is used to monitor and control fire protection devices, fire protection systems, and other devices.

FEATURES:
  • 4 inputs:
    • Input type selection: NO or NC
    • Programmable operating mode
    • Short circuit or open circuit detection
  • 4 relay outputs:
    • Programmable output type
    • Ability to control electrical devices powered by 230 V AC
    • Switching resistive, inductive, or capacitive loads
  • Double-sided short circuit isolator
  • Power supplied from the detection line
  • LED indicators informing about:
    • Input status
    • Output status
    • Fault inputs
    • module damage
  • Can be mounted on a DIN rail (35 mm)

TECHNICAL DATA:

  • Power supply voltage: 18 ~ 26 V DC
  • Current consumption in quiescent mode: 0.60 mA
  • Current consumption in alarm mode: 0.75 mA
  • Operating temperature range: -10°C ~ +55°C
  • Maximum humidity: 93±3%
  • Dimensions: 122 x 93 x 58 mm
  • Weight: 225 g
Download
Datasheet 0.09 MB
CE Declaration 0.11 MB
User manual 0.88 MB
