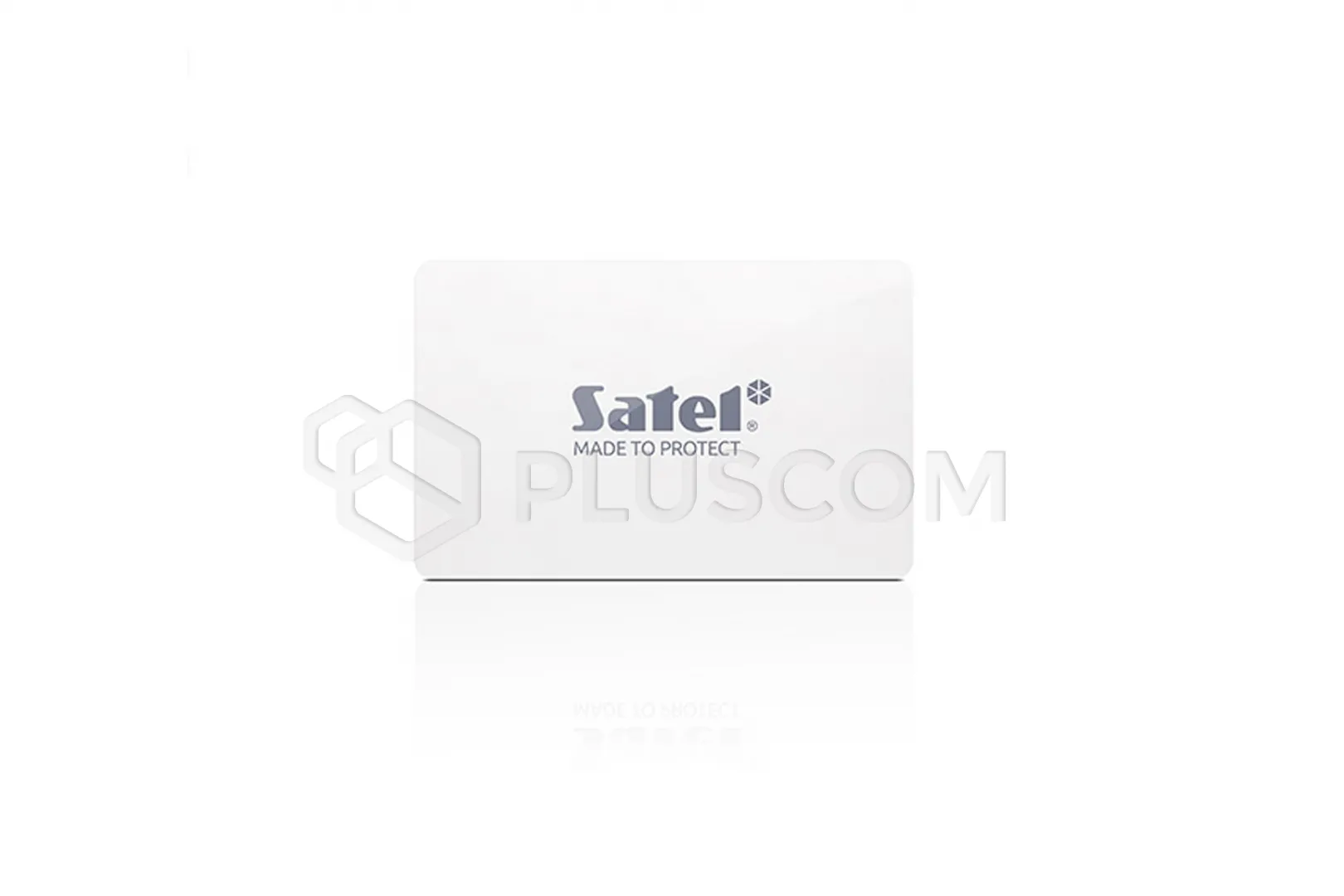

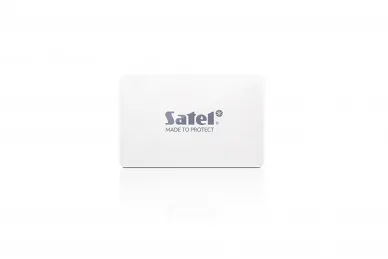

Satel MC-SRV-8 MIFARE DESFire EV3 8k proximity card

7,16 EUR including 23.00% VAT
Product code: #40523
Manufacturer: Satel
  • Passive transponder 13.56 MHz
  • Dimensions 85 x 55 mm (standard credit card)
  • Thickness: 1mm
  • Color: white
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel MC-SRV-8 MIFARE 13.56 MHz Service Card


MC-SRV-8 is a passive 13.56 MHz transponder of the MIFARE DESFire EV3 standard with 8 kB memory. It acts as a so-called service card, which can be used to quickly and easily upload configuration settings to the reader. This is done by bringing the service card close to the reader and holding it there. This process does not require the use of a computer. The configuration data of a single reader or a whole group of readers is prepared in the CR Soft program and then saved to the service card memory using the SO-PRG programmer.

FEATURES:

  • passive 13.56 MHz transponder of the MIFARE DESFire EV3 8K standard
  • option to save the MIFARE® reader settings card to the memory (for their configuration)
  • cooperation with devices: SO-MF3, SO-MF5, CR-MF3, CR-MF5
  • dimensions of a standard credit card (85 x 55 mm, thickness < 1 mm)
  • option to place in a protective cover OP-KT-1, with holes for hanging, e.g. on a lanyard
  • white color
  • printed SATEL logo, SRV marking on the reverse
Download
Datasheet 0.1 MB
