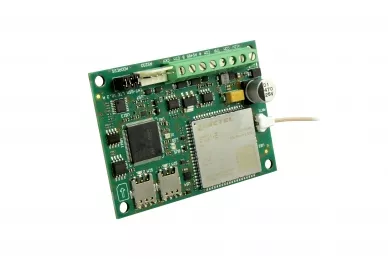

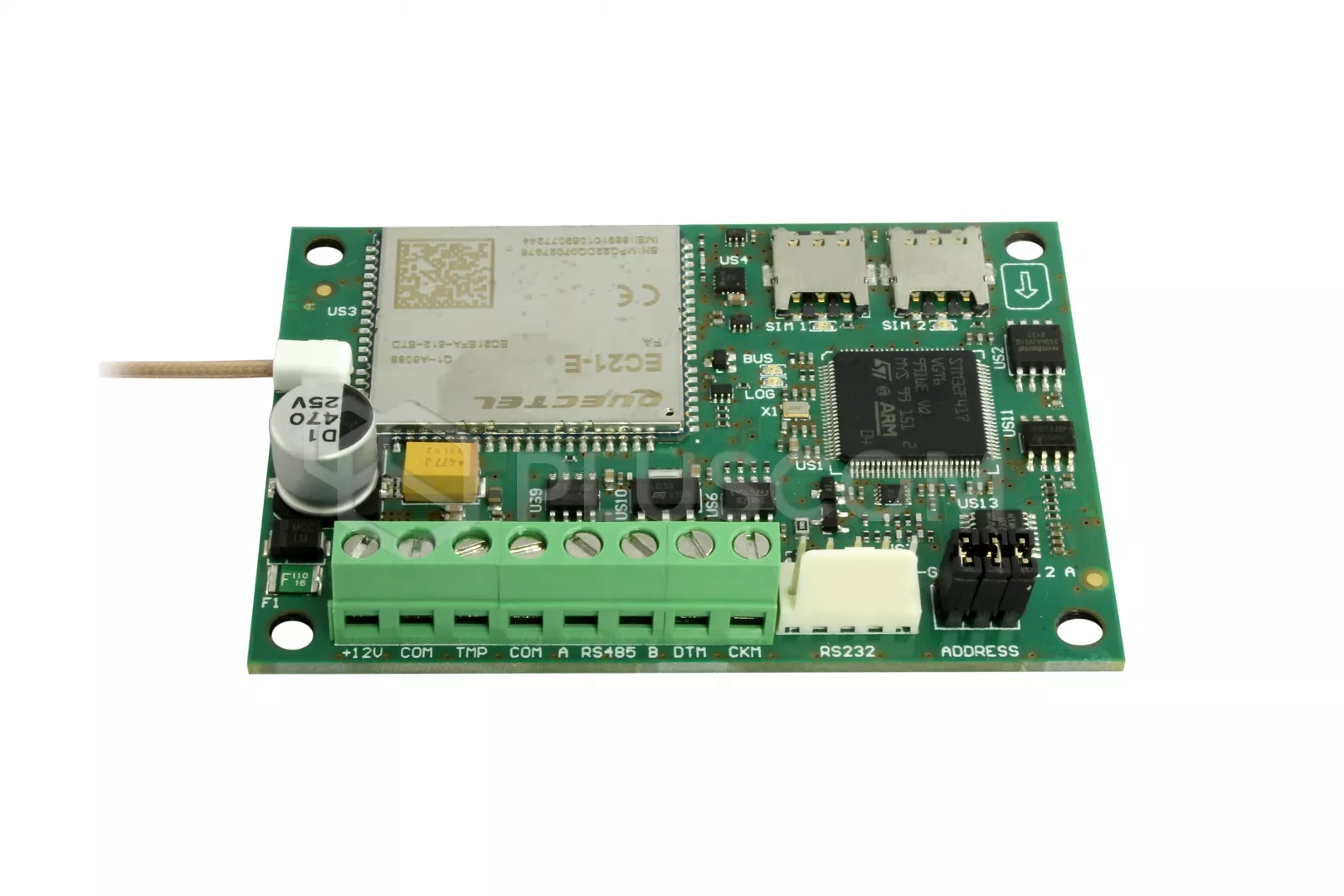

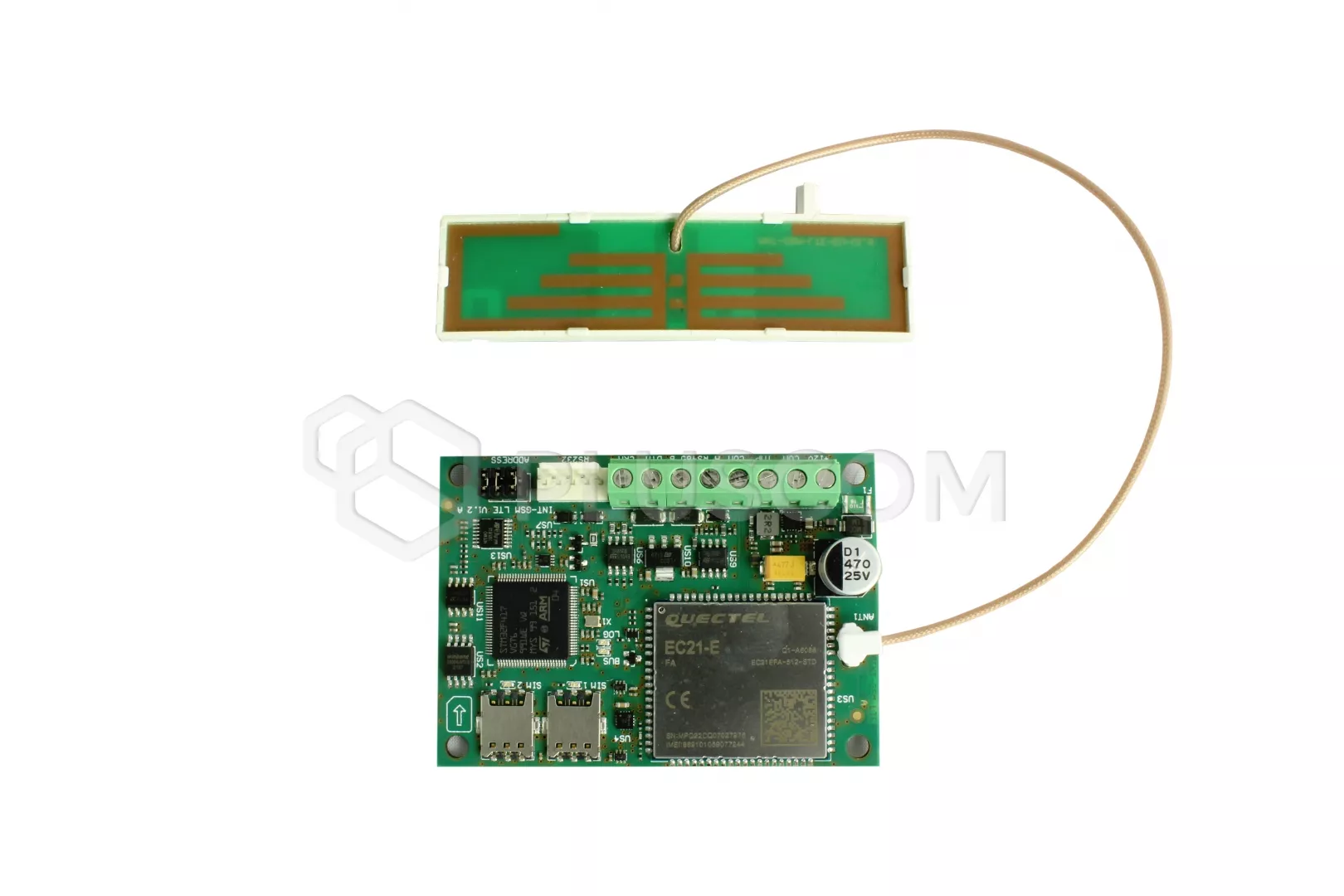

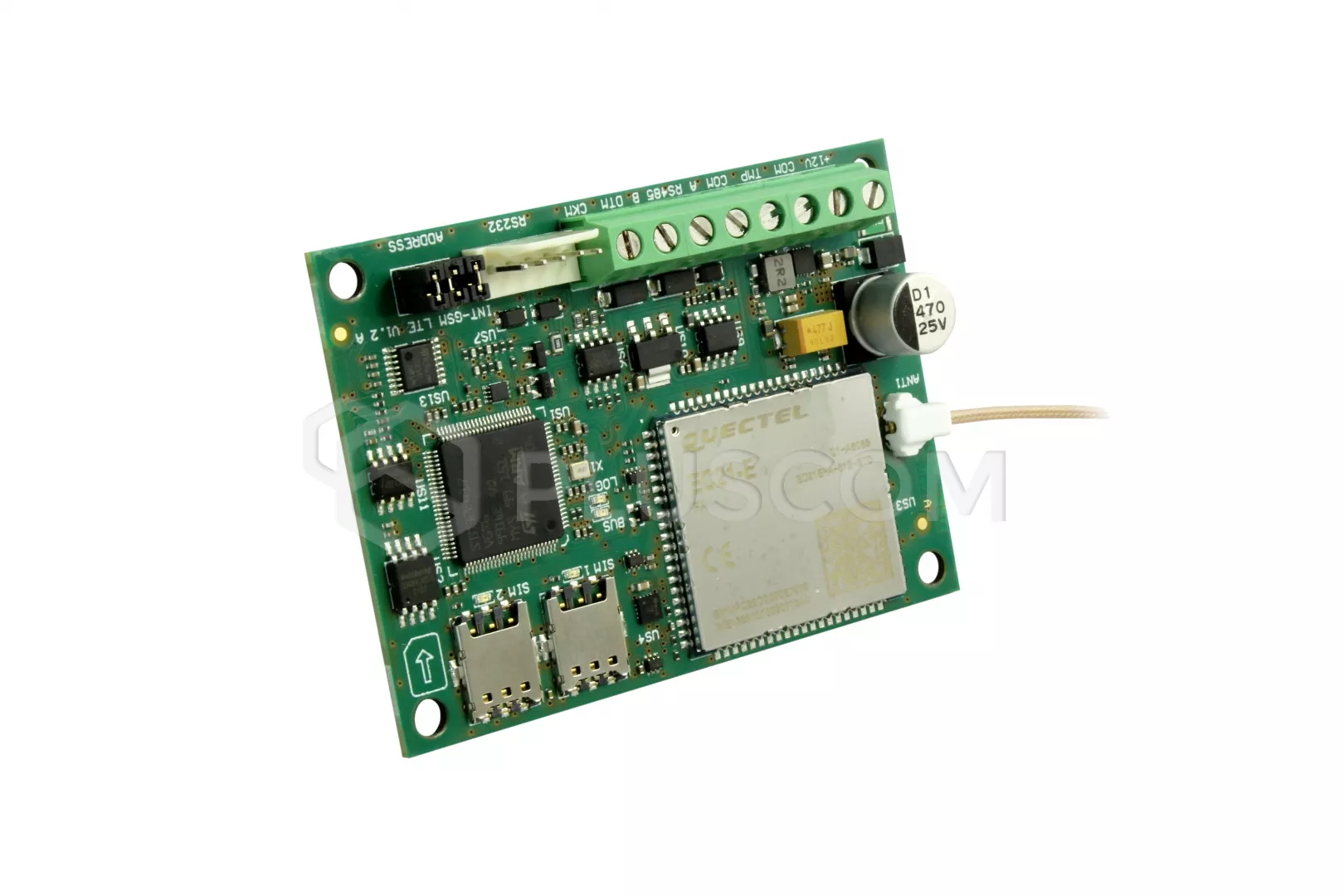

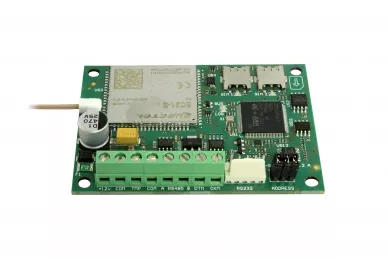

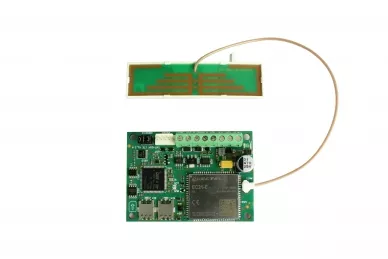

INT–GSM LTE is an LTE communication module that allows INTEGRA and INTEGRA Plus series of alarm control panels to communicate via 2G, 3G or 4G cellular network. The device operates on control panel’s keypad bus. It supports two SIM cards. All cellular data transfers are encrypted in the AES 192 standard.
INT–GSM LTE reports events to two monitoring stations (e.g. security agencies) via cellular network.

A big advantage of INT–GSM LTE device is the ability to work with the ETHM–1 Plus Ethernet module (RS–485 port connection). The duo allows for realization of Dual Path Reporting, in accordance with EN 50136, as well as for determining the priority of event monitoring tracks (Ethernet, cellular data and SMS). By default, cellular network is a backup communication channel for Ethernet.

Communication via cellular network enables wireless connection of the control panel and the computer with the installed DLOADX and GUARDX programs, and thus the configuration of the system, even from a remote location. Connection between the module and PC can be established via the SATEL connection setup service.

Properties:

• cooperation with INTEGRA and INTEGRA Plus control panels (version 1.19 or higher)
• two SIM cards support
• possibility to check the pre–paid account balance
• time synchronization with the NTP server or cellular network
• messaging: SMS, CLIP, PUSH, e–mail (INTEGRA Plus)
• remote control: SMS, CLIP, mobile application
• reporting: cellular data (TCP/UDP), SMS messages
• possibility of cooperation with the ETHM–1 Plus Ethernet module (version 2.07 or higher):
• • Dual Path Reporting, compliant with EN 50136
  • backup communication path
• possibility of using the SATEL connection setup service
• remote system operation via INTEGRA CONTROL app
• • Android (version 4.2.7 or higher)
  • iOS (version 5.0 or higher)
• programming control panels by using DLOADX (version 1.19.004 or higher)
• supervision of the alarm system by using GUARDX (version 1.19.000 or higher) – remote connection
• cooperation with the INTEGRUM system (integration of multiple alarm systems based on the INTEGRA and INTEGRA Plus control panels)
