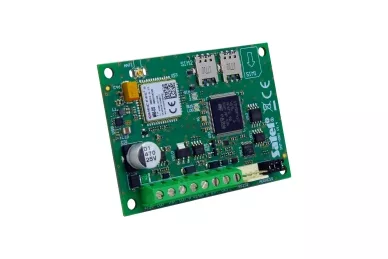

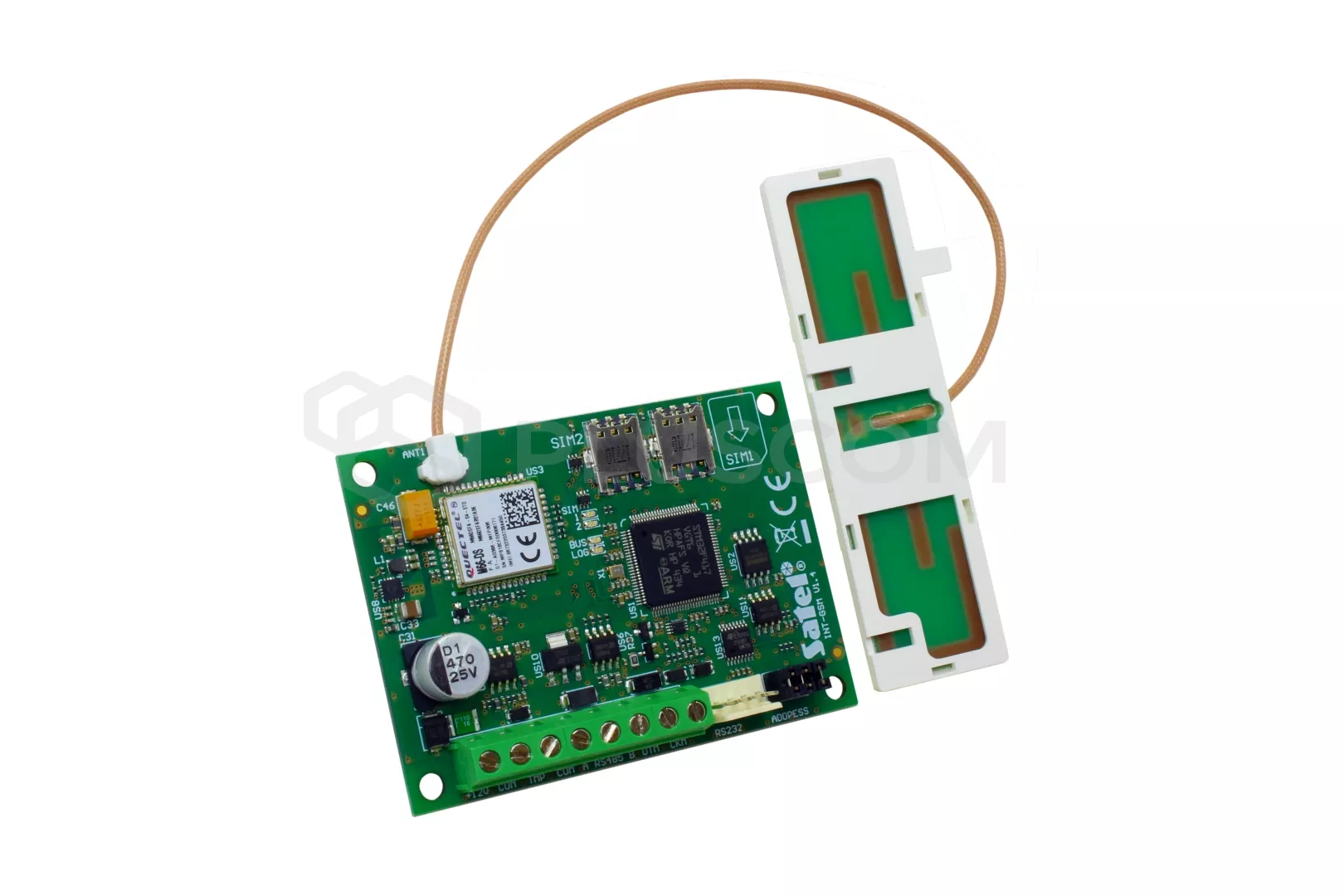

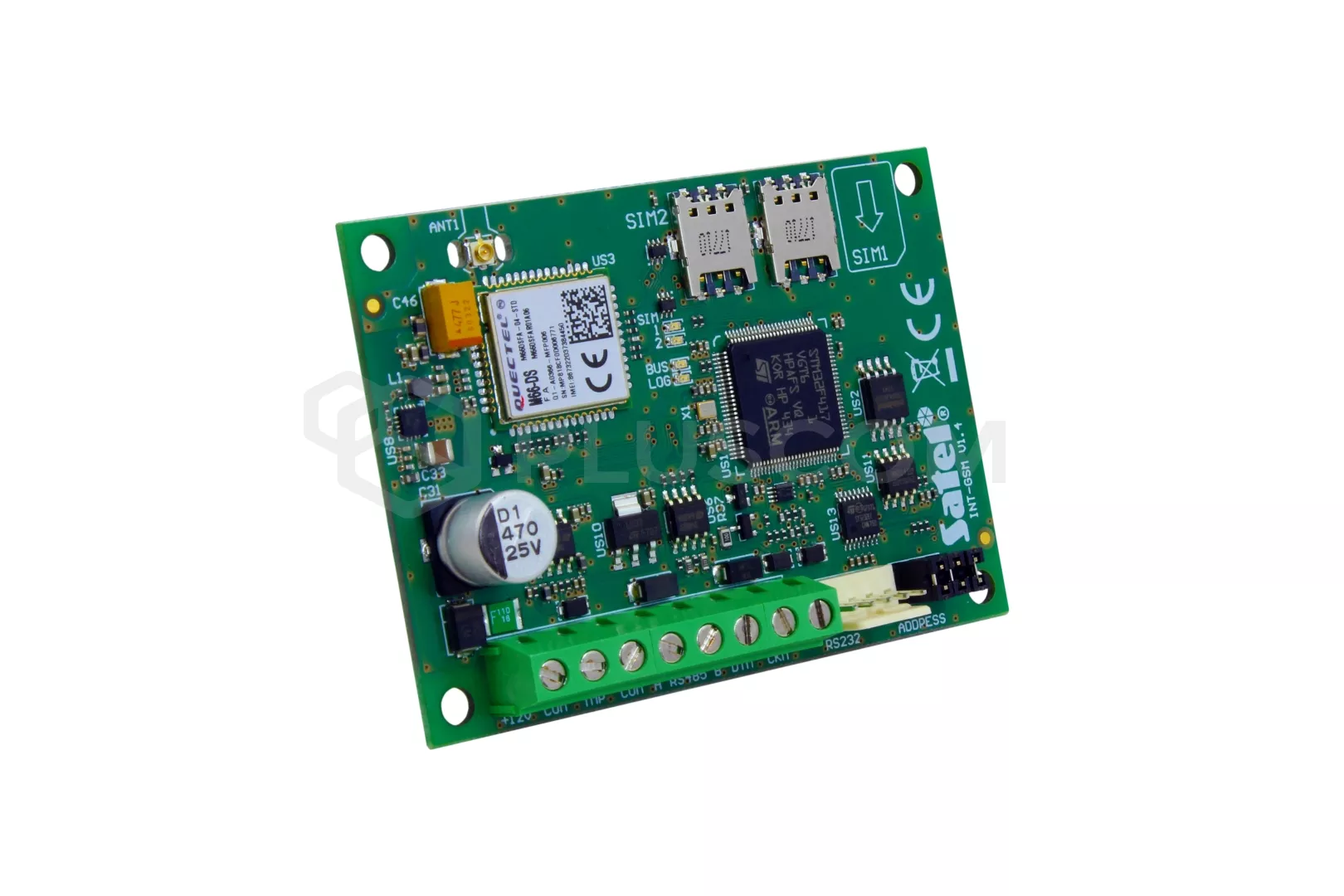

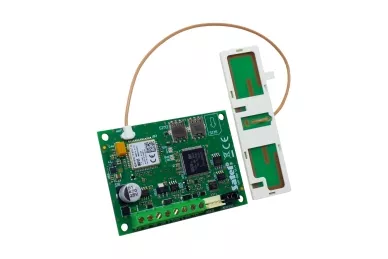

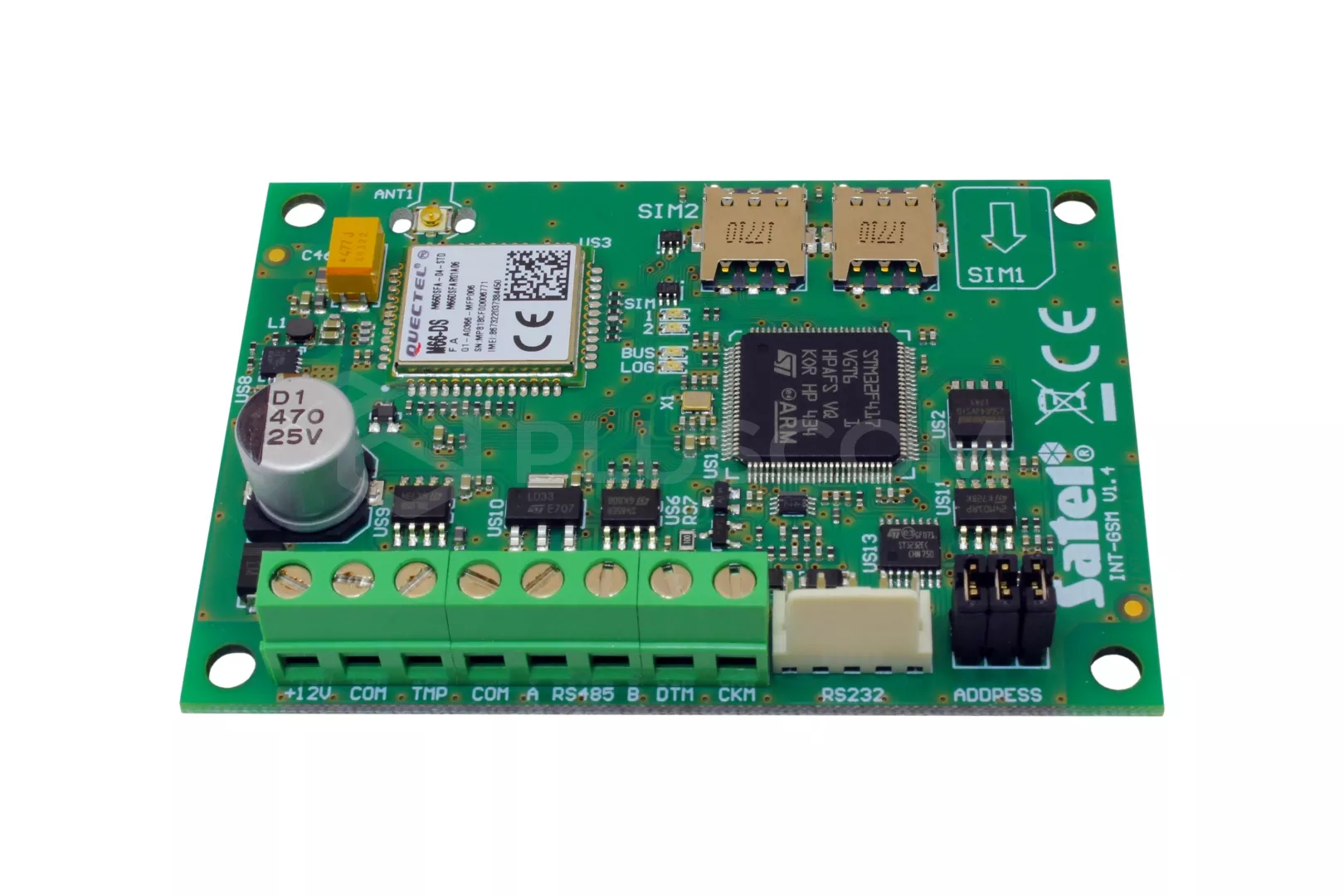

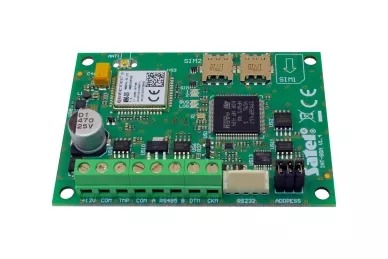

Satel INT-GSM GPRS Communication module

Satel INT-GSM GPRS Communication module

The module is supported by the INTEGRA / INTEGRA Plus alarm control panels with firmware version 1.18 or newer. The module can be connected directly to the control panel or to the ETHM-1 Plus module (firmware version 2.05 or newer required) which is connected to the INTEGRA / INTEGRA Plus control panel.

Features:

• Built-in telephone designed for use in the 850 / 900 / 1800 / 1900 MHz cellular networks
• Dual SIM support (nano-SIM)
• Both SIM cards can be used simultaneously to receive incoming messages and calls
• Possibility to remotely check the account balance and validity of the SIM card installed in the module
• Possibility to define the MCC / MNC code of the operator of network into which the module is to log in
• Advanced 192-bit key based algorithm for encryption of cellular data transmissions
•

• Reporting events to two monitoring stations via cellular network
• Two transmission paths - GPRS and SMS messages
• efining priority for transmission paths
•

• Event notifications using CLIP, SMS and e-mail
• 16 telephone numbers, e-mail addresses to be notified using SMS and CLIP
• Informing users of the INTEGRA CONTROL application about events using push notifications
•

• Operating the alarm system from mobile devices
• Remote configuration of the alarm system from a computer with DLOADX program installed
• Interaction with the ETHM-1 Plus Ethernet module
