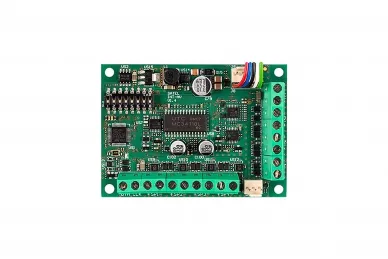

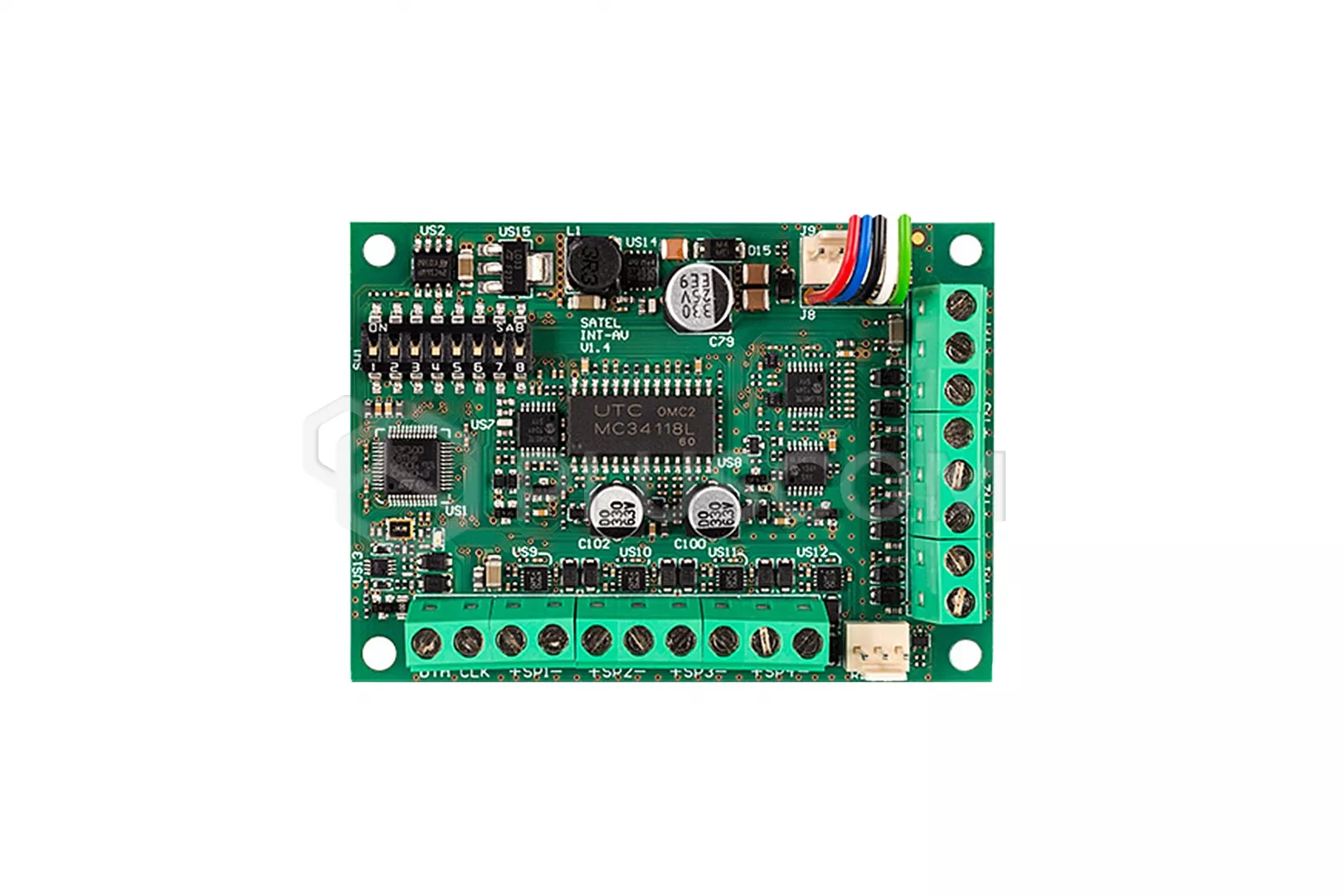

Satel INT-AV Audio alarm verification module

Satel INT-AV Audio alarm verification module

The INT-AV module enables audio alarm verification to reduce the number of false alarms. After having received alarm message from the control panel, the operator of telephone monitoring station is able to listen-in on the sounds coming from the premises to confirm whether there is an intrusion. Owing to the module, the operator can try to contact the people on the premises to determine if the alarm is real or false. The listen-in and talk features are also available to the alarm system users. They can call the control panel number and, after entering the telephone code, get access to these features at any time. Listen-in and communication with the people on the protected premises are possible due to the INT-AVT terminals. The terminal is equipped with a microphone and a speaker. The module delivery set includes one INT-AVT terminal. Up to four INT-AVT terminals can be connected to the module. The module works with the INTEGRA / INTEGRA Plus control panels (firmware version 1.12 or newer). This manual applies to the module electronics version 1.4 and firmware version 1.00 (or newer)

INT-AV module features:

• Two-way (listen-in / talk) audio alarm verification
• Keeping telephone connection with the monitoring station open after the control panel has sent alarm message (line hold mode)
• Receiving phone calls from the monitoring station after the control panel has sent alarm information (call back mode)
• Availability of the listen-in / talk features to the users having a telephone code
• Support for up to four INT-AVT terminals

Specifications:

• Supply voltage: 12 V DC ±15%
• Standby current consumption: 35 mA
• Maximum current consumption (INT-AV + 1xINT-AVT): 160 mA
• Maximum current consumption (INT-AV + 4xINT-AVT): 500 mA
• Environmental class according to EN50130-5 II
• Operating temperature range: -10...+55 °C
• Dimensions: 57 x 80 mm
• Weight: 46 g
