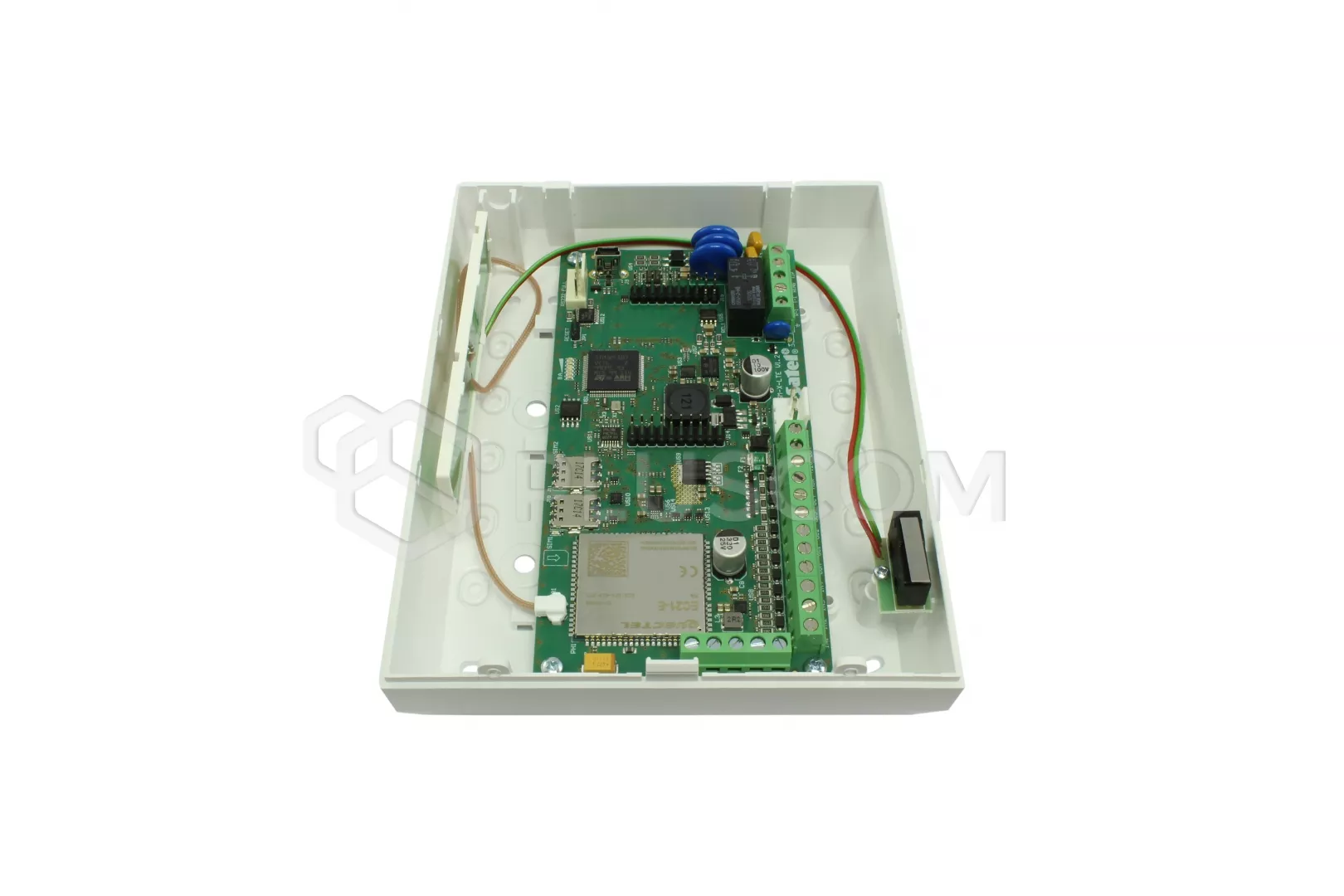

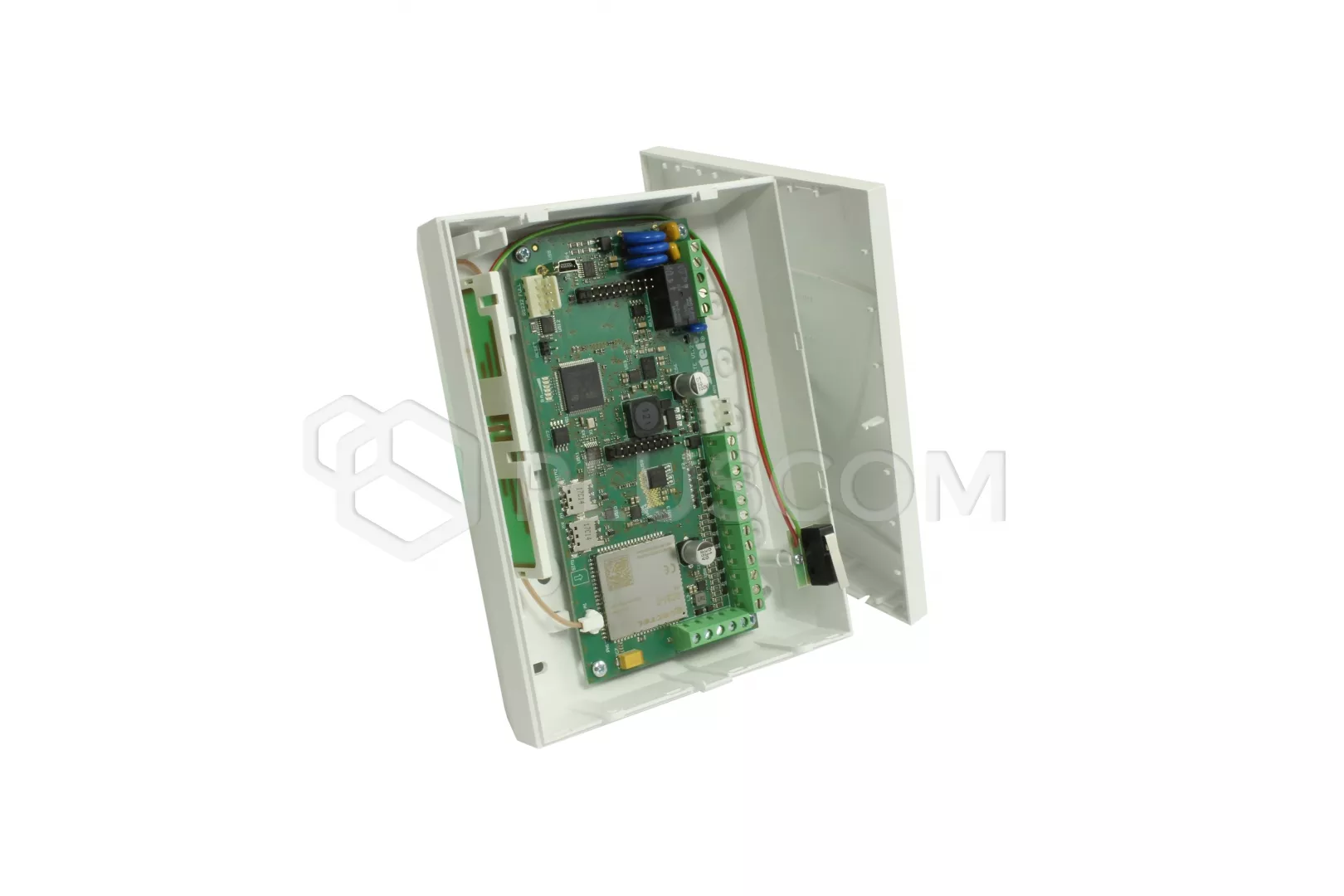

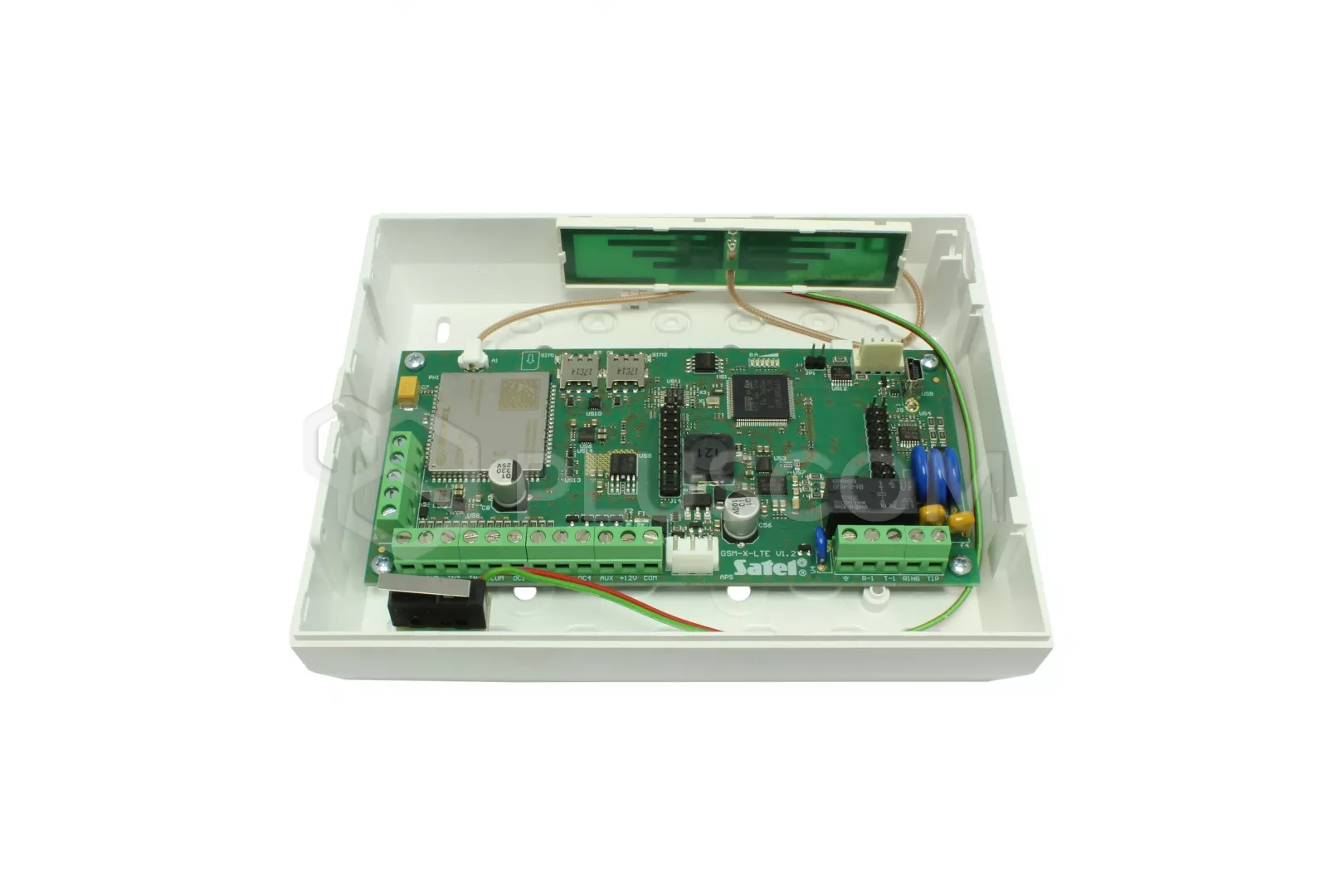

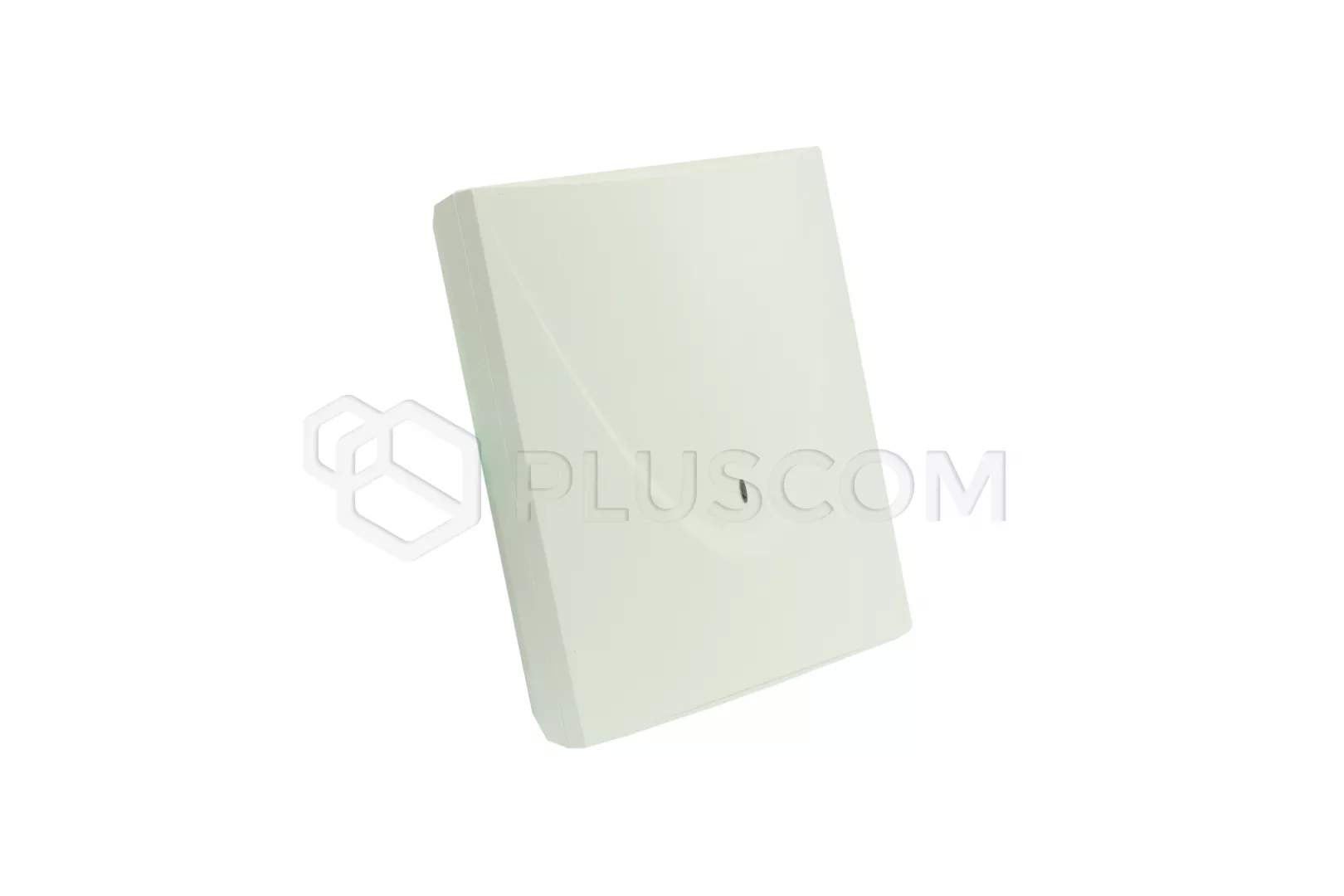

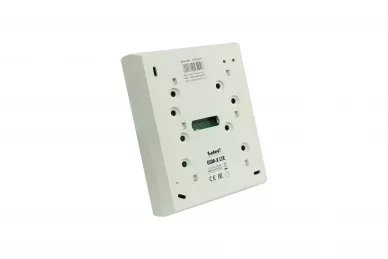

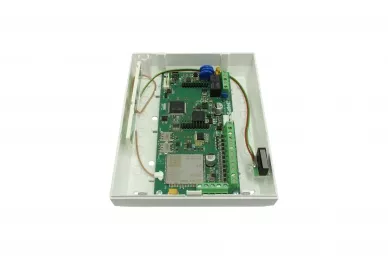

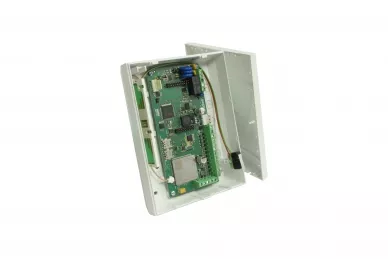

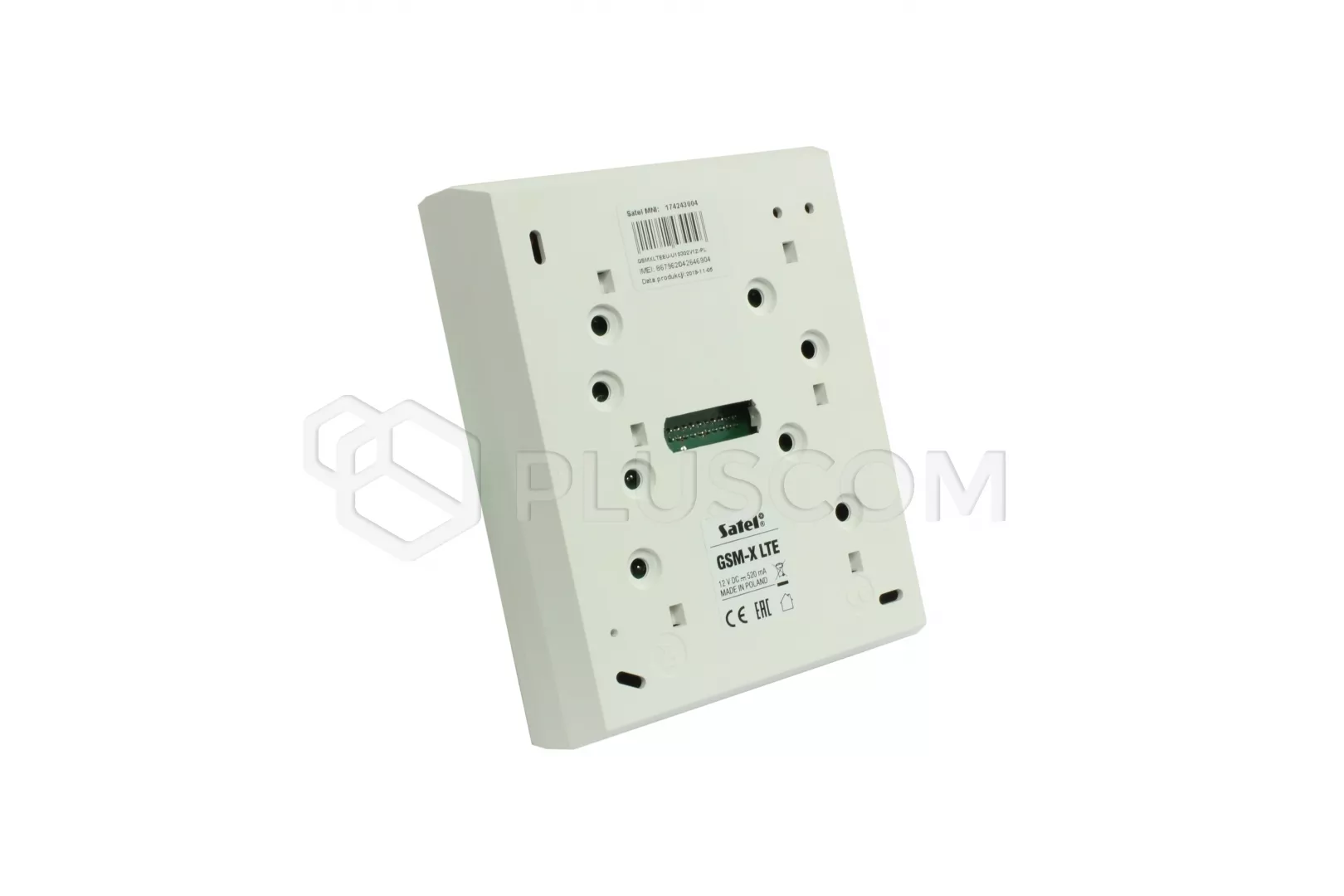

Satel GSM-X LTE Universal Multi-task communication module

Satel GSM-X LTE Universal Multi-task communication module

GSM-X LTE offers extensive communication functionality and support for multipath communication. The device comes with a cellular phone that supports data transmission using LTE technology.
The module can be used to implement reporting in alarm systems. For this purpose, it should be connected to the dialer or suitably configured outputs of the control panel.

An important feature of the device is its expandability by adding the GSM-X-ETH Ethernet module, so that reporting can be implemented using two independent paths (data transmission via cellular network* and Ethernet). Thanks to constant monitoring of the state of connections with the monitoring station and substitutability of transmission paths, the stringent EN 50136 requirements for the so-called Dual Path Reporting are met.

APPLICATIONS AND FUNCTIONS:

• Dual Path Reporting support acc. to EN 50136
• event reporting: audio (over cellular network) / SMS / LTE* / Ethernet
• conversion and retransmission of event codes received from other devices (simulation of telephone monitoring station)
• sending notifications to up to 8 telephone numbers
• messaging: audio / SMS / PUSH / CLIP
• conversion of PAGER messages to SMS
• simulating analog telephone line using cellular connection - GSM gateway
• switching connections to the cellular network in case of analog telephone line trouble
• compatibility with INTEGRA and INTEGRA Plus control panels:
• • fast data transfer via RS-232
  • TCP/IP monitoring
  • automatically created notification content (INTEGRA Plus)
  • capability of remote programming of control panels (DLOADX) and system administration (GUARDX)
• MS and CLIP receiver for STAM-2 monitoring station
• 8 programmable inputs (NO, NC)
• 4 outputs (OC) controlled by SMS / CLIP / DTMF / GX CONTROL / GX Soft
• dual SIM capability
• option to check the pre-paid account balance and notification when the amount of funds drops below the minimum level
• configuration of module settings:
• • locally - computer with the GX Soft program connected to the module USB port
  • remotely - computer with the GX Soft program connecting to the module using data transmission over the celullar network or Ethernet
• compatibility with the GX CONTROL mobile application
• remote firmware update capability
• ability to connect the dedicated APS-612 or APS-412 power supply
• expandability by adding the GSM-X-ETH Ethernet module
