Satel GPRS-A LTE UNIVERSAL MONITORING MODULE

177,17 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #20714
Manufacturer: Satel
  • inputs / outputs: 8/2, 1-wire bus
  • event reporting: SMS / LTE
  • works with any alarm panel
  • power supply: DC 12V
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel DS-T1 Digital temperature sensor Satel APS-612 Buffer power supply

Satel GPRS-A LTE UNIVERSAL MONITORING MODULE

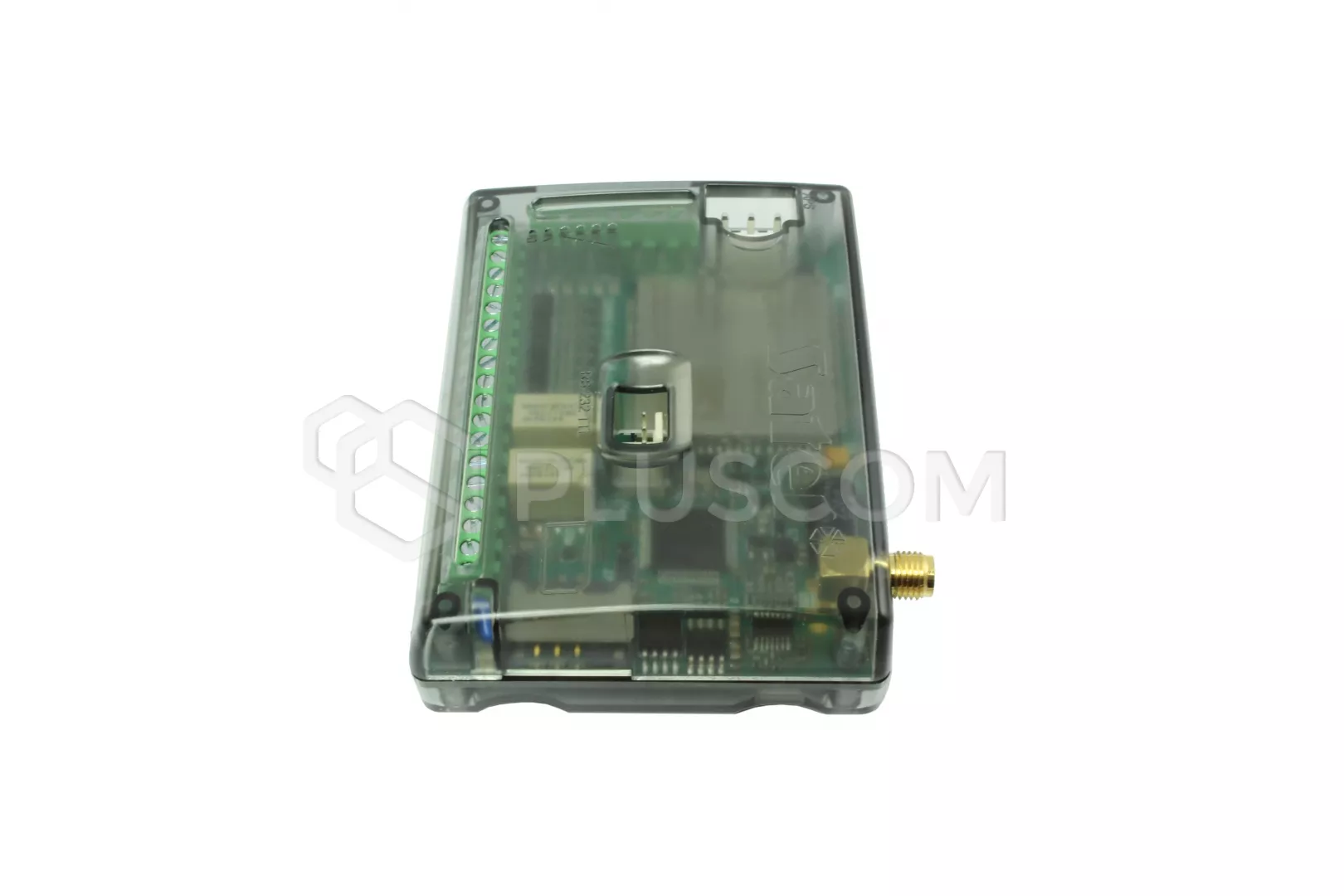

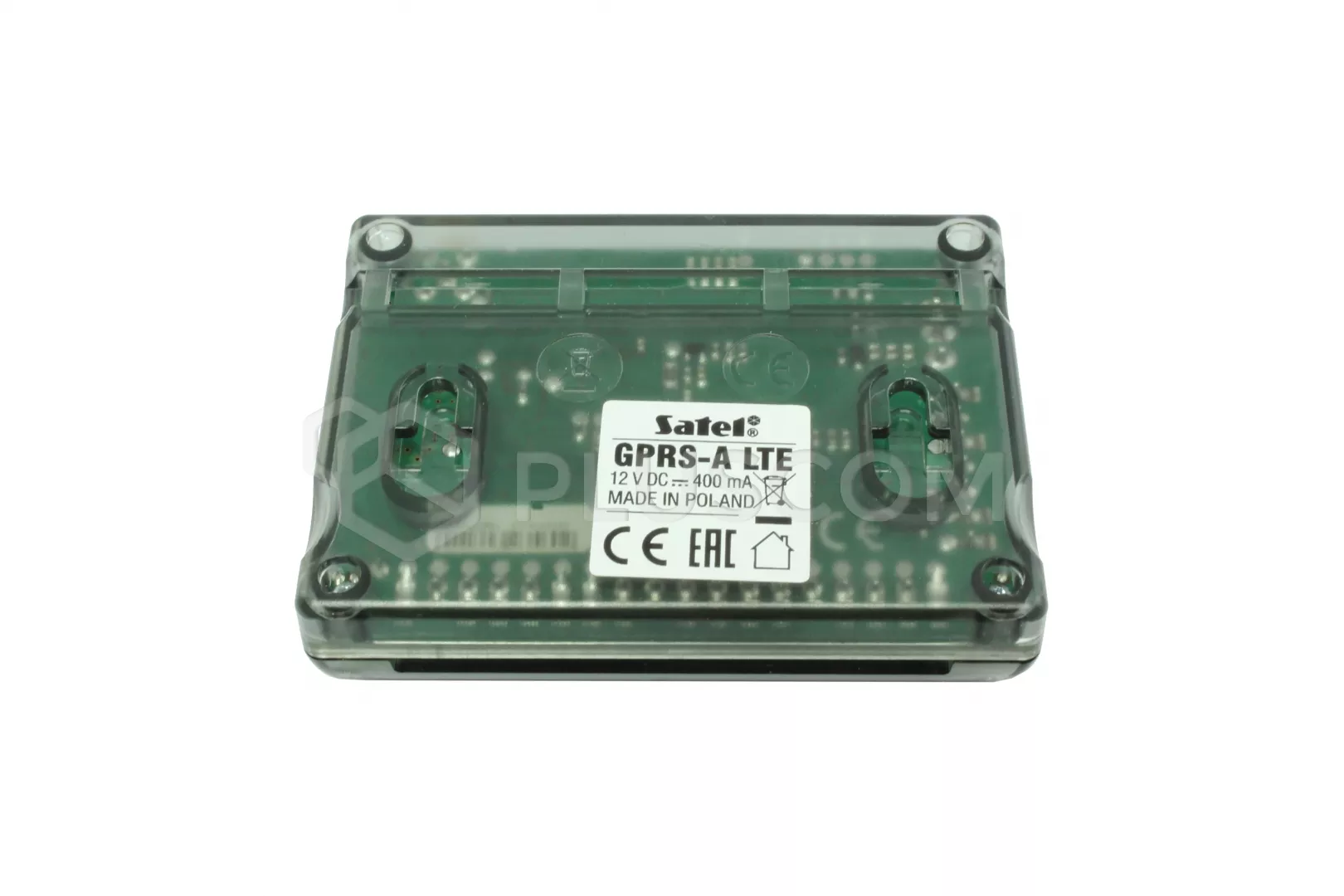

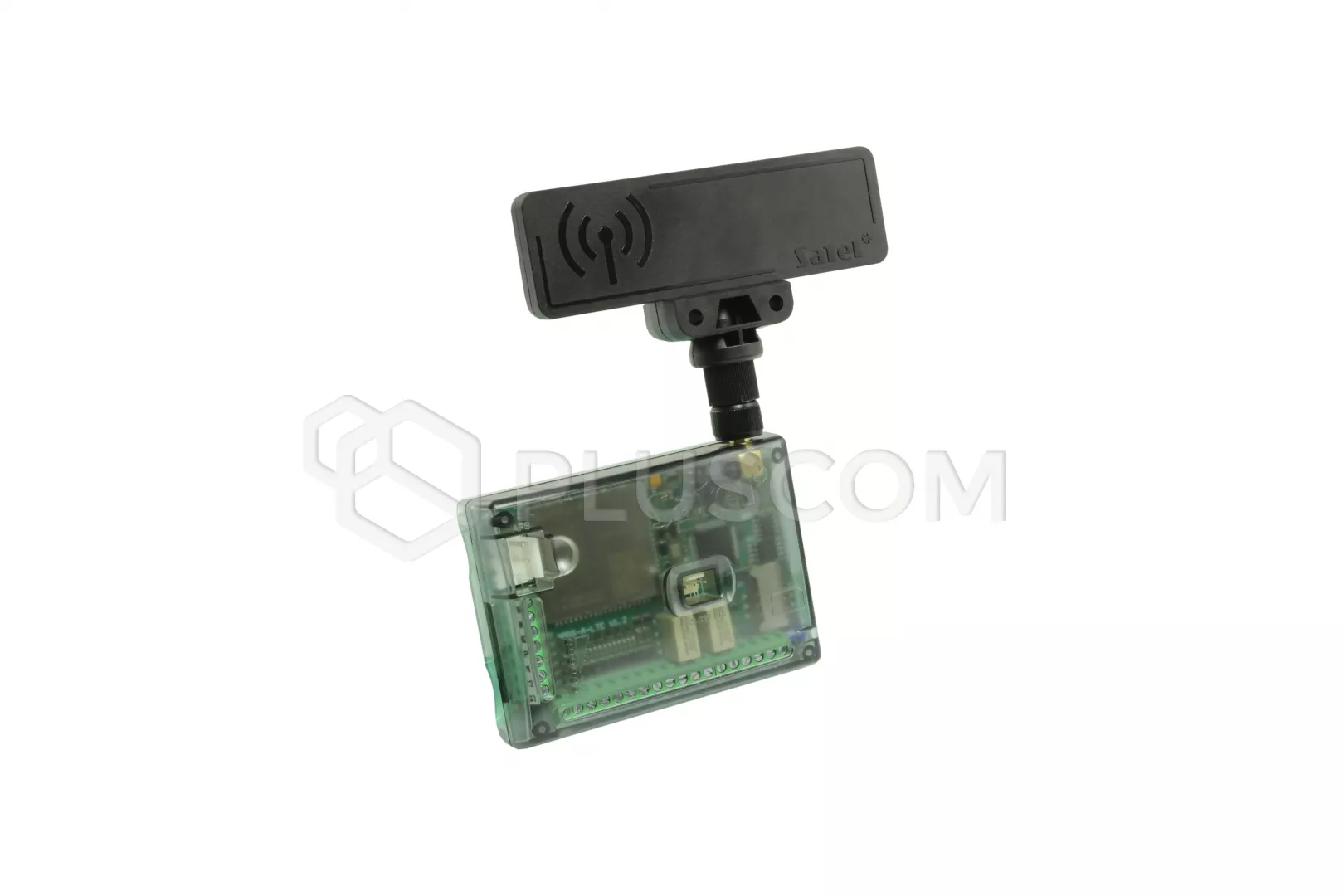

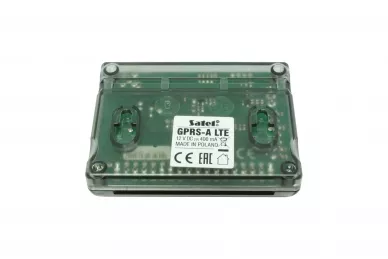

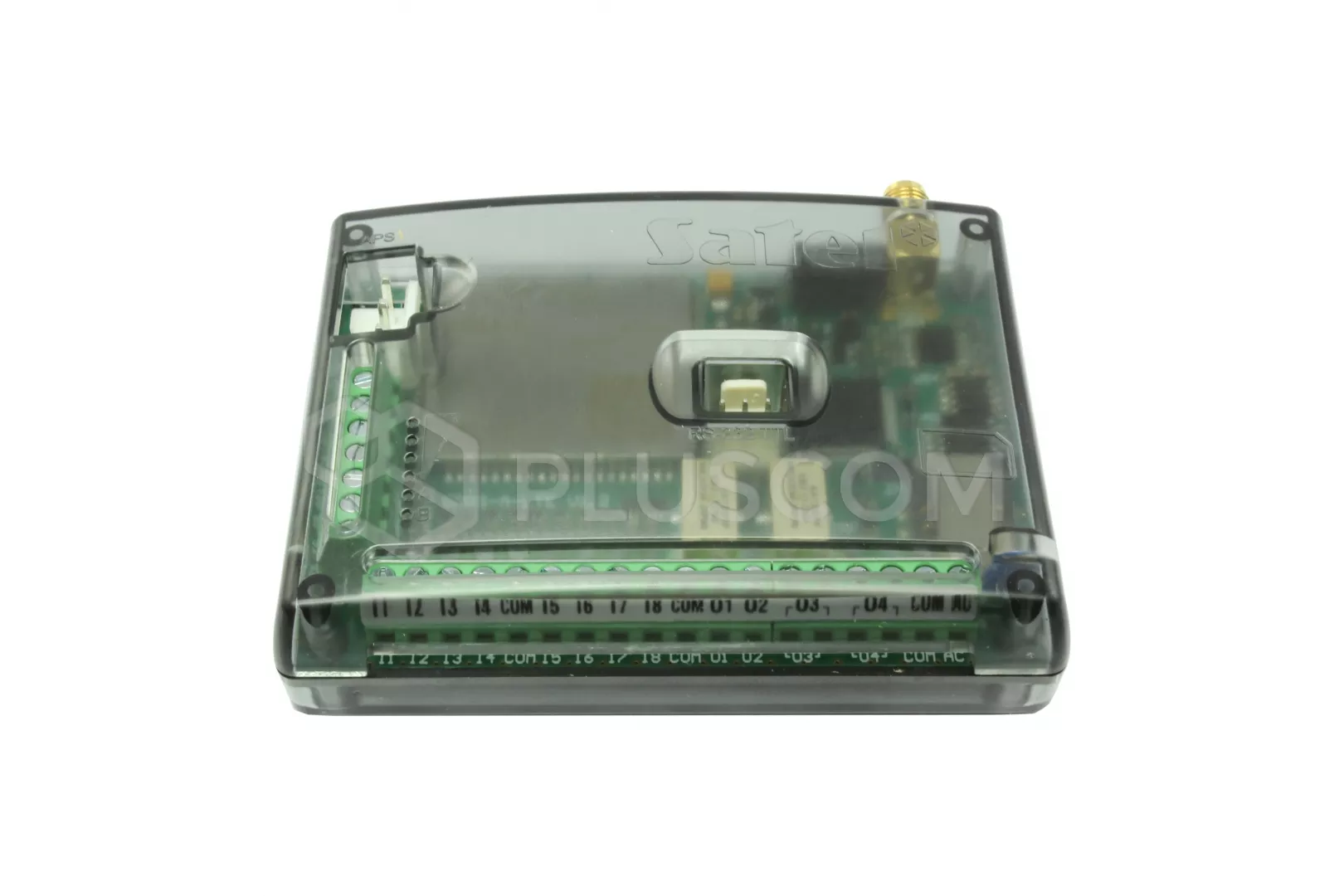

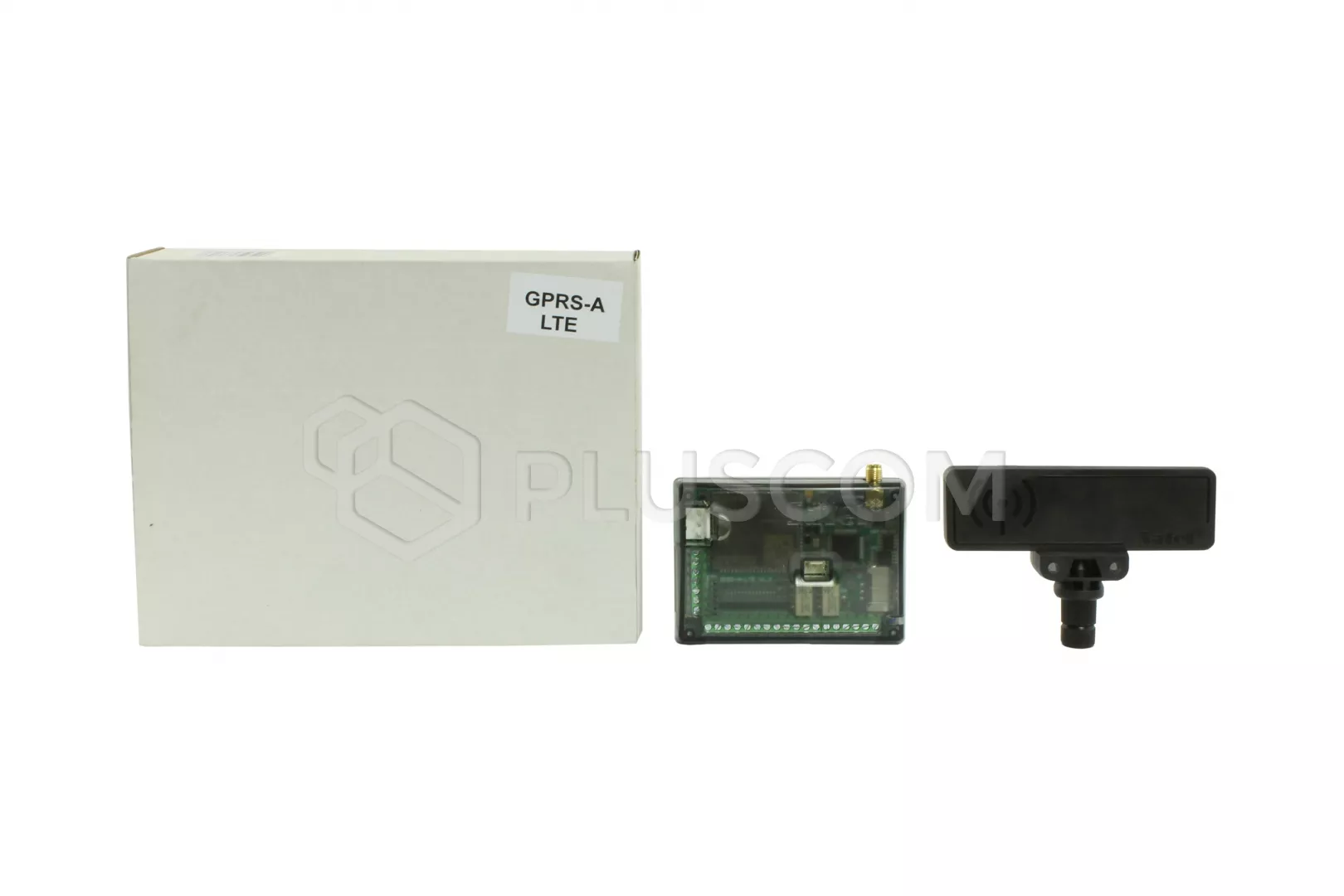

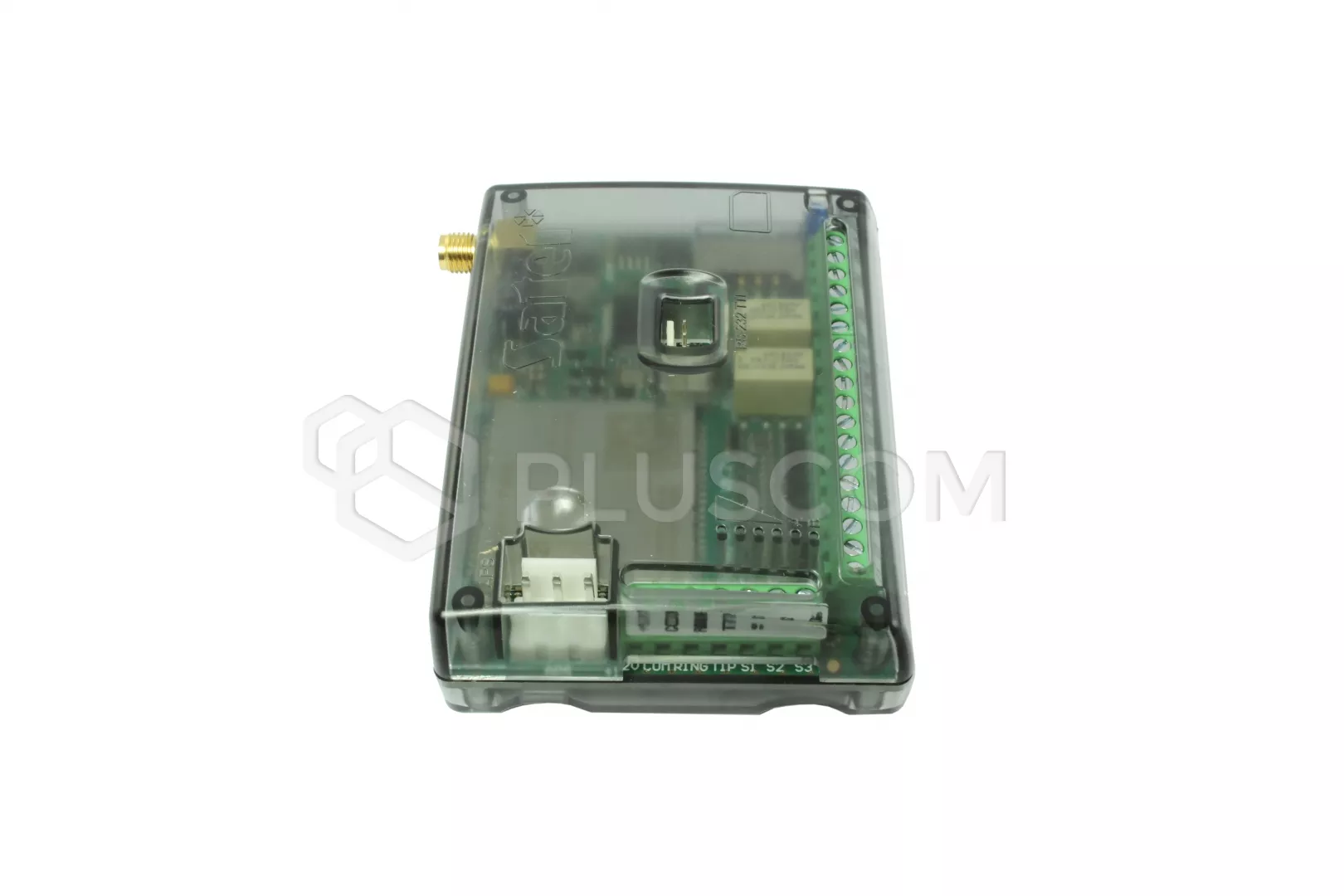

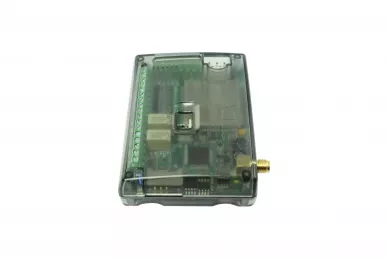

GPRS-A LTE is a universal monitoring module that can work autonomously or as part of an intrusion and hold-up alarm system, as well as automation systems. The device comes equipped with a cellular phone that supports data transmission using the LTE* technology.
In the alarm systems, this module can be used together with any alarm control panel to implement reporting. For this purpose, it should be connected to the dialer or suitably configured outputs of the control panel.
The device has 8 inputs, which can be set as digital (NO, NC) or analog. Those that work as analog ones can be used in automation systems or to monitor a wide spectrum of external devices, such as temperature, pressure and humidity sensors. GPRS-A LTE also has a 1-Wire bus, to which you can connect up to 8 DS-T1 or DS-T2 digital temperature sensors.

THE MOST IMPORTANT FEATURES:
  • event reporting: SMS / LTE
  • conversion and retransmission of event codes received from other devices (simulation of telephone monitoring station)
  • sending notifications to up to 8 telephone numbers
  • messaging: audio / SMS / PUSH / CLIP
  • 8 programmable inputs (NO / NC / analog)
  • 1-Wire bus - support for up to 8 digital temperature sensors
  • ability to configure responses when the set threshold values are exceeded:
    • on analog inputs
    • from 1-Wire sensors
  • AC power control input
  • 4 outputs (2 relay, 2 OC type) controlled by SMS / CLIP (up to 1024 numbers) / GX CONTROL / GX Soft / via IoT
  • IoT - support for open protocols: MQTT, JSON, MODBUS RTU
  • option to check the pre-paid account balance and notification when the amount of funds drops below the minimum level
  • configuration of module settings:
    • locally - computer with GX Soft program connected to the module RS-232 (TTL) port
    • remotely - computer with the GX Soft program connecting to the module using data transmission over the cellular network
  • ompatibility with the GX CONTROL mobile application
  • remote firmware update capability
  • option to connect the dedicated APS-612 power supply
Download
Datasheet 0.14 MB
