Satel DRP-400 Addressable optical smoke detector

68,02 EUR including 23.00% VAT
Product code: #43179
Manufacturer: Satel
  • Visible smoke sensor
  • Power supply: 10.5-26V DC
  • Detection of optical chamber contamination
  • Easy installation of the detector in the DB-400 socket
  • Dust cover included

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,51 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACSP-402 Fire Alarm Control Panel Satel WZ-110 Remote alarm indicator

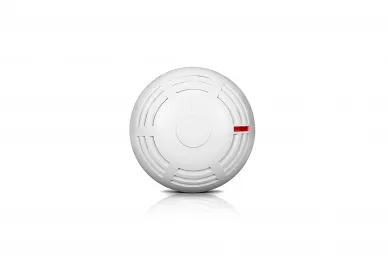

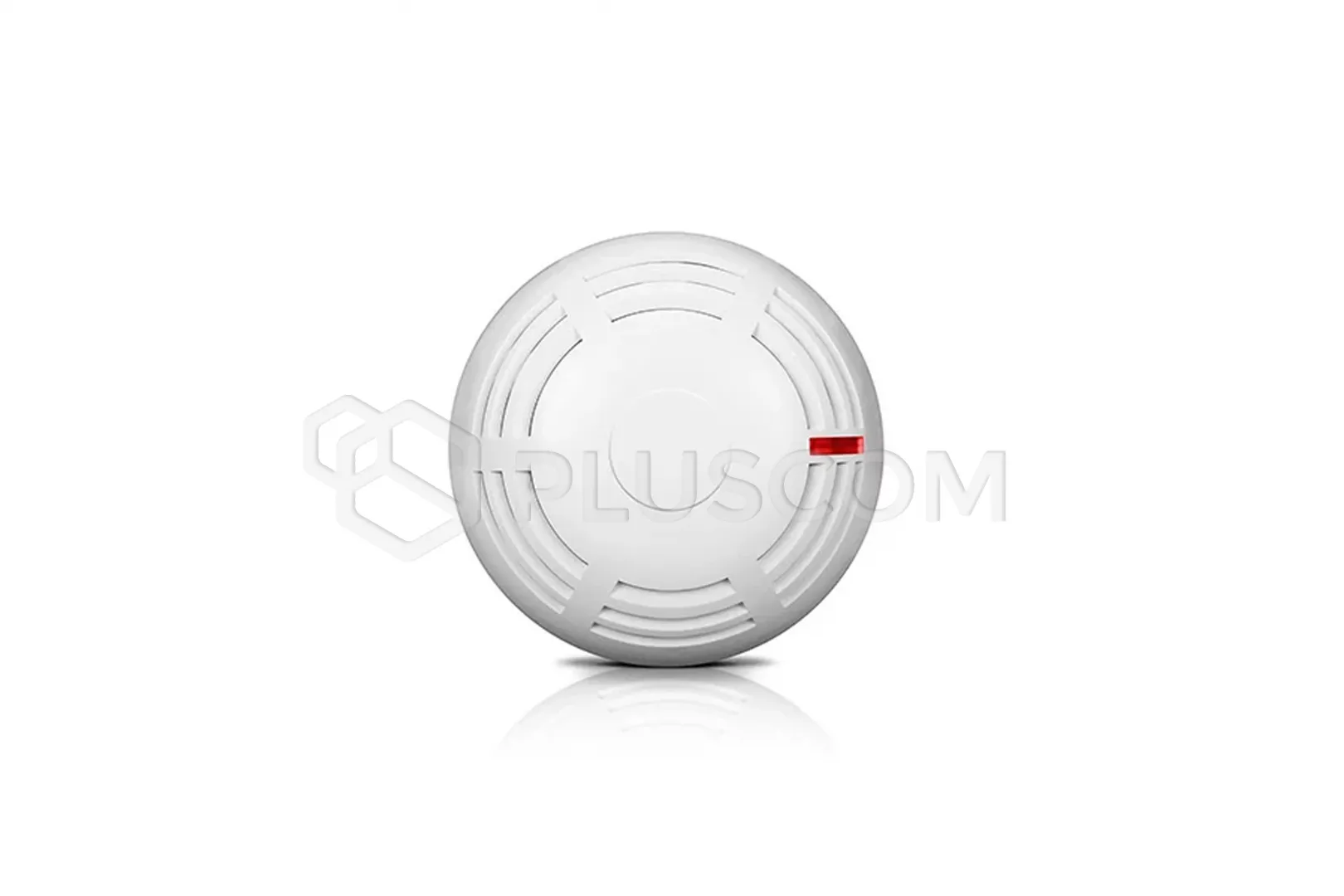

Satel DRP-400 Addressable Optical Smoke Detector


The detector detects the early stages of fire development when visible smoke appears. It is designed to operate in the detection line of the ACSP-402 addressable fire alarm control panel.

FEATURES:
  • Visible smoke sensor
  • Optical chamber contamination detection
  • Smoke sensor sensitivity adjustable by the control panel (4 sensitivity levels)
  • LED for visual indication
  • Double-sided short circuit isolator
  • Power supplied from the detector line
  • Installation in a DB-400 socket (socket sold separately)
  • WZ-110 alarm indicator can be connected
  • Dust cover included

TECHNICAL DATA:

  • Power supply voltage: 18-26 V DC
  • Current consumption in quiescent mode: 450 µA
  • Current consumption in alarm mode: 700 µA
  • Minimum static alarm temperature: 54 °C
  • Maximum static alarm temperature: 65 °C
  • Maximum humidity: 93±3%
  • Housing dimensions: ø108 x 46 mm
  • Weight: 94 g

Download
Datasheet 0.09 MB
CE Declaration 0.11 MB
User manual 0.36 MB
