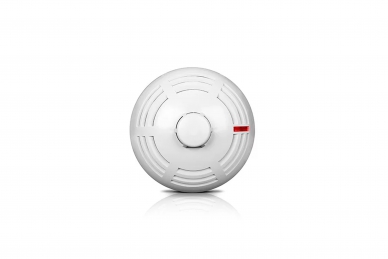

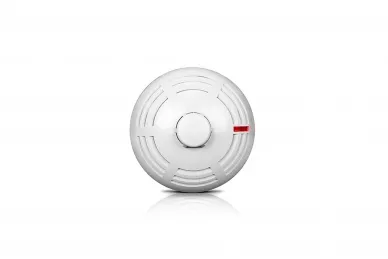

Satel DMP-400 Addressable Multi-Sensor Smoke and Heat Detector

98,81 EUR including 23.00% VAT
Product code: #43178
Manufacturer: Satel
  • Visible smoke sensor
  • Thermal sensor
  • Detection of optical chamber contamination
  • Smoke sensor sensitivity adjustable by the control panel
  • Dust cover included

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACSP-402 Fire Alarm Control Panel Satel WZ-110 Remote alarm indicator

Satel DMP-400 Addressable Multi-Sensor Smoke and Heat Detector


The DMP-400 detector can detect the early stages of fire development when there is some visible smoke and/or temperature rise. It is designed to be used in conjunction with the ACSP-402 fire alarm control panel.

FEATURES:
  • visible smoke sensor
  • heat sensor
  • detection of dirt buildup in the optical chamber
  • smoke sensor sensitivity adjusted by the control panel (4 sensitivity levels)
  • LED indicator
  • double-sided short-circuit isolator
  • power supply from the detection line
  • installation on the DB-400 base by SATEL (sold separately)
  • ability to connect the WZ-110 remote indicator
  • dust cover included

TECHNICAL DATA:

  • Power supply voltage: 18-26 V DC
  • Current consumption in quiescent mode: 500 µA
  • Current consumption in alarm mode: 700 µA
  • Class according to EN 54-5 (thermal sensor): A1R
  • Minimum static alarm temperature: 54 °C
  • Maximum static alarm temperature: 65 °C
  • Maximum humidity: 93±3%
  • Operating temperature range: -25...+50°C
  • Housing dimensions: ø108 x 54 mm
  • Weight: 95 g

Download
Datasheet 0.09 MB
CE Declaration 0.11 MB
User manual 0.36 MB
