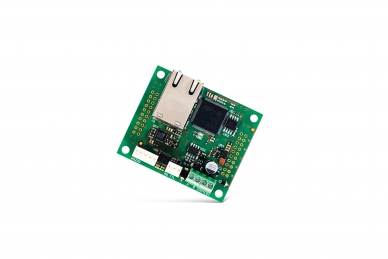

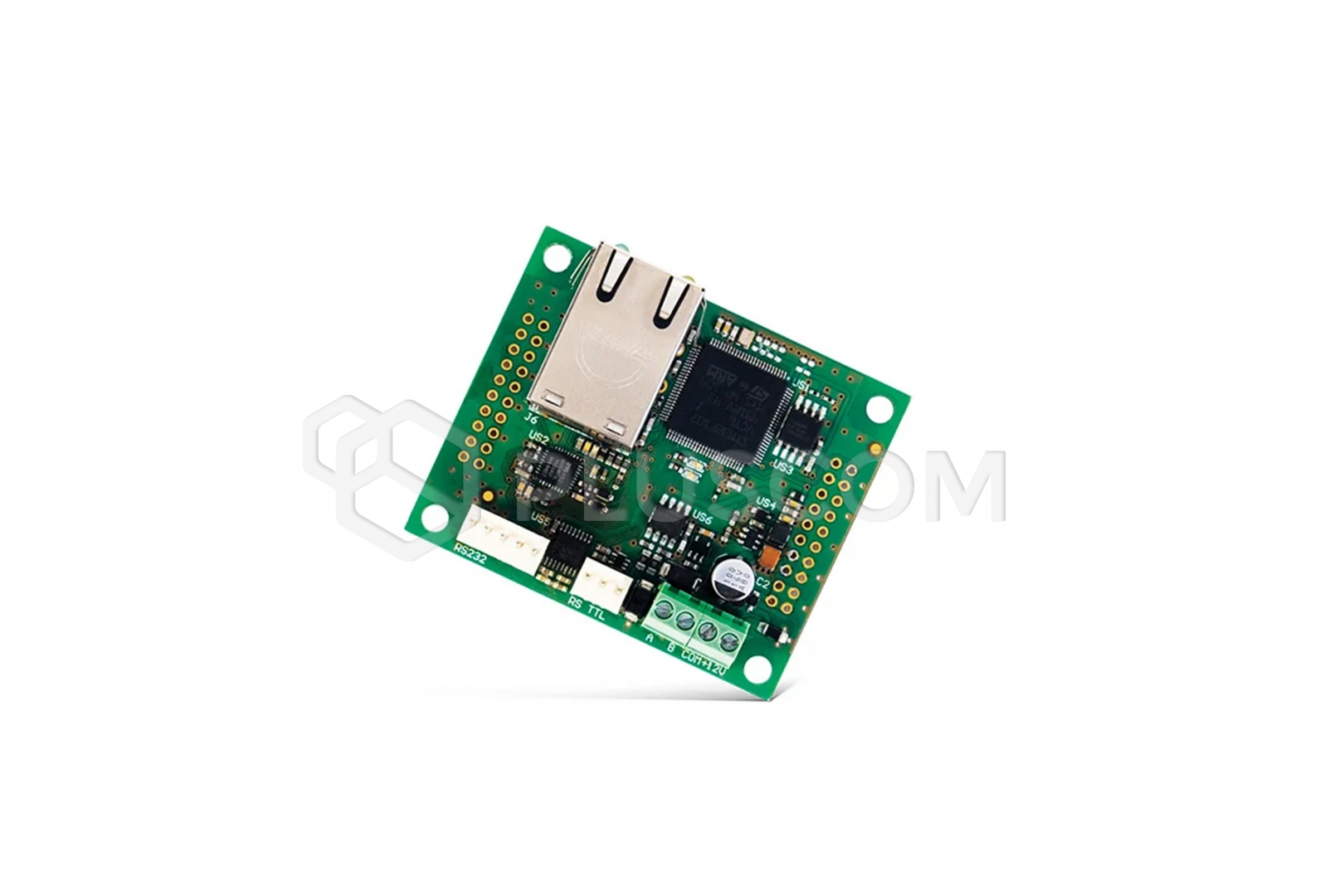

Satel CSP-ETH Communication module with virtual panel

Satel CSP-ETH Virtual Panel Communication Module

The virtual panel server module enables remote viewing of the status of a fire alarm system using the CSP-100 and CSP-200 series control panels. It allows you to check the status of the CSP fire alarm system using a computer with a web browser, from anywhere in the world. This solution facilitates, among other things, remote system diagnostics for system service personnel.

KEY FEATURES:

• Compatibility with CSP-200 and CSP-100 series control panels and PSP-100 and PSP-200 series remote panels
• Automatic IP configuration using DHCP
• Power supplied directly from the control panel
• Module covered by the European CPD construction certificate for CSP-104, CSP-108, CSP-204, and CSP-208 control panels and the national B-mark construction certificate

TECHNICAL DATA:

• Electronics board dimensions: 60 x 50 mm
• Operating temperature range: -5…+40 °C
• Maximum humidity: 93±3%
• Transport temperature range: -25…+55 °C
• Maximum current consumption: 45 mA
• Weight: 24 g
