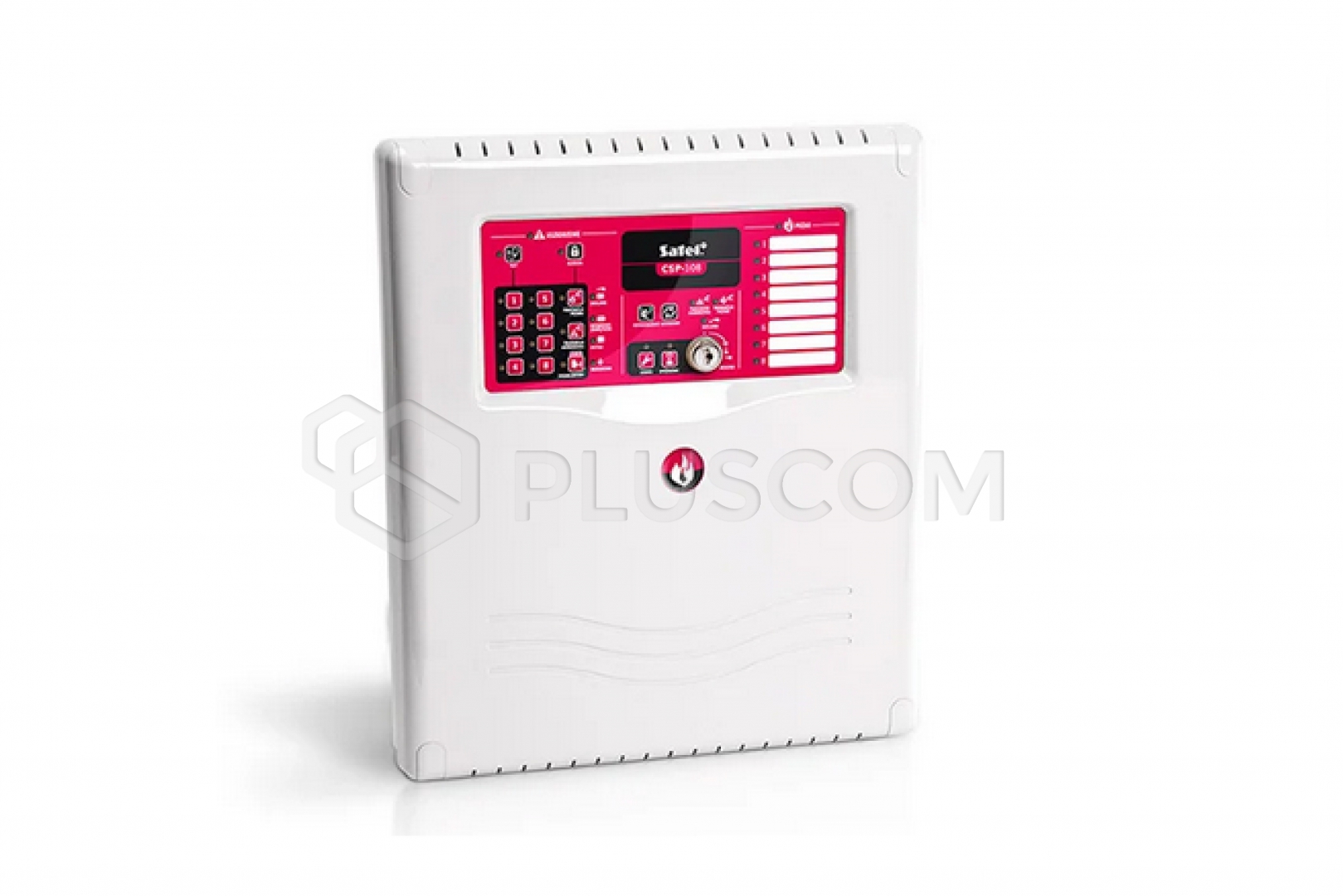

Satel CSP-108 Conventional Fire Alarm Control Panel

Satel CSP-108 Conventional Fire Alarm Control Panel

The CSP 100 series are conventional fire alarm control panels fully compliant with EN54 requirements. They are designed for implementing simple systems in small and medium-sized facilities. A major advantage of SATEL's control panels is their simple installation, aesthetic appearance, and the use of a single, standard 12V battery as an auxiliary power source.

FEATURES:

• 8 detection zones,
• Support for a remote panel and a virtual panel (via the CSP-ETH interface)
• 4 control inputs with installer-programmable functionality
• 8 installer-programmable outputs enabling interaction with other systems
• Support for fire and fault transmission devices
• Built-in buffer power supply compatible with a single 12V battery and 24V and 18V AUX power outputs.

Technical Specifications:

• End-of-line resistor in the alarm line: 10 kΩ +/- 5%.
• Number of detection zones: 8.
• Maximum detection zone resistance: 100 Ω (2 x 50 Ω)
• Maximum number of detectors in the detection line: 32
• Maximum number of manual call points (MCPs) in the line: 10
• End-of-line resistor in the detection line: 5.6 kΩ +/- 5%
• Permissible quiescent current in the detection line: 10 mA
• Maximum current in the line during an alarm: 40 mA
• Current limitation level in the detection line: 54 mA
• Maximum permissible resistance of the alarm, alarm, and fault lines: 75 Ω (2 x 37.5 Ω)
• Number of external alarm lines: 2
• Operating voltage of the alarm lines: 24 V DC +/-15%
• Permissible signaling line current: 180 mA
• Electrical parameters of relay outputs: 1A / 30 V DC (NO or NC)
• Number of alarm transmission lines: 1
• Operating voltage of the alarm transmission line: 24 V DC +/-15%
• Permissible current of the alarm transmission line: 180 mA
• Terminal resistor in the alarm transmission line: 10 kΩ +/-5%
• Number of fault transmission lines: 1
• Operating voltage of the fault transmission line: 24 V DC +/-15%
• Permissible current of the fault transmission line: 180 mA
• Terminal resistor in the fault transmission line: 10 kΩ +/-5%
• Number of programmable relay outputs: 8
• Backup power supply: internal lead-acid battery: 12 V / 17 Ah
• Backup power supply: external lead-acid battery: 12 V / ≤24 Ah
• AUX power output (only for connecting the CSP-ETH module): in case of power failure: AC 12 V DC +15%, -20%
• Housing tightness: IP30
• Maximum humidity: 93±3%
• Dimensions: 324 x 382 x 108 mm
• Transport temperature range: -25….+55 °C
• Primary power supply from the mains: 230 V AC +10%, -15% Hz
• Maximum current consumption from the mains: 500 μA
• Backup power supply operating time: 72 h
• Maximum battery charging current: 1.4 A
• Max. Internal battery resistance (with wires and terminals in the circuit): 1 Ω
• Battery current consumption in quiescent mode: 140 mA
• Battery current consumption in alarm mode: 215 mA
• Integrated AC power supply current consumption in quiescent mode: 105 mA
• Integrated AC power supply current consumption in alarm mode: 155 mA
• Operating temperature range: -5…+40 °C
• Weight without battery: less than 3 kg
• Event memory capacity: 8999
• Alarm counter capacity: 9999
• Clock battery: 3 V (CR2032)
• PC communication output (service): Yes
• Terminal resistor on communication terminals with the remote panel: 100 Ω
• Communication output with the remote panel and CSP-ETH module: Yes
• +24V power output: 24 V DC +/-15% / 200 mA max.
• AUX power output (only for connecting the CSP-ETH module): normal state: 18 V DC +5%, -15%
• Alarm resistor in the control input line: 1 kΩ +/- 5%
• Terminal resistor in the control input line: 10 kΩ +/- 5%
• Number of programmable control inputs: 4
