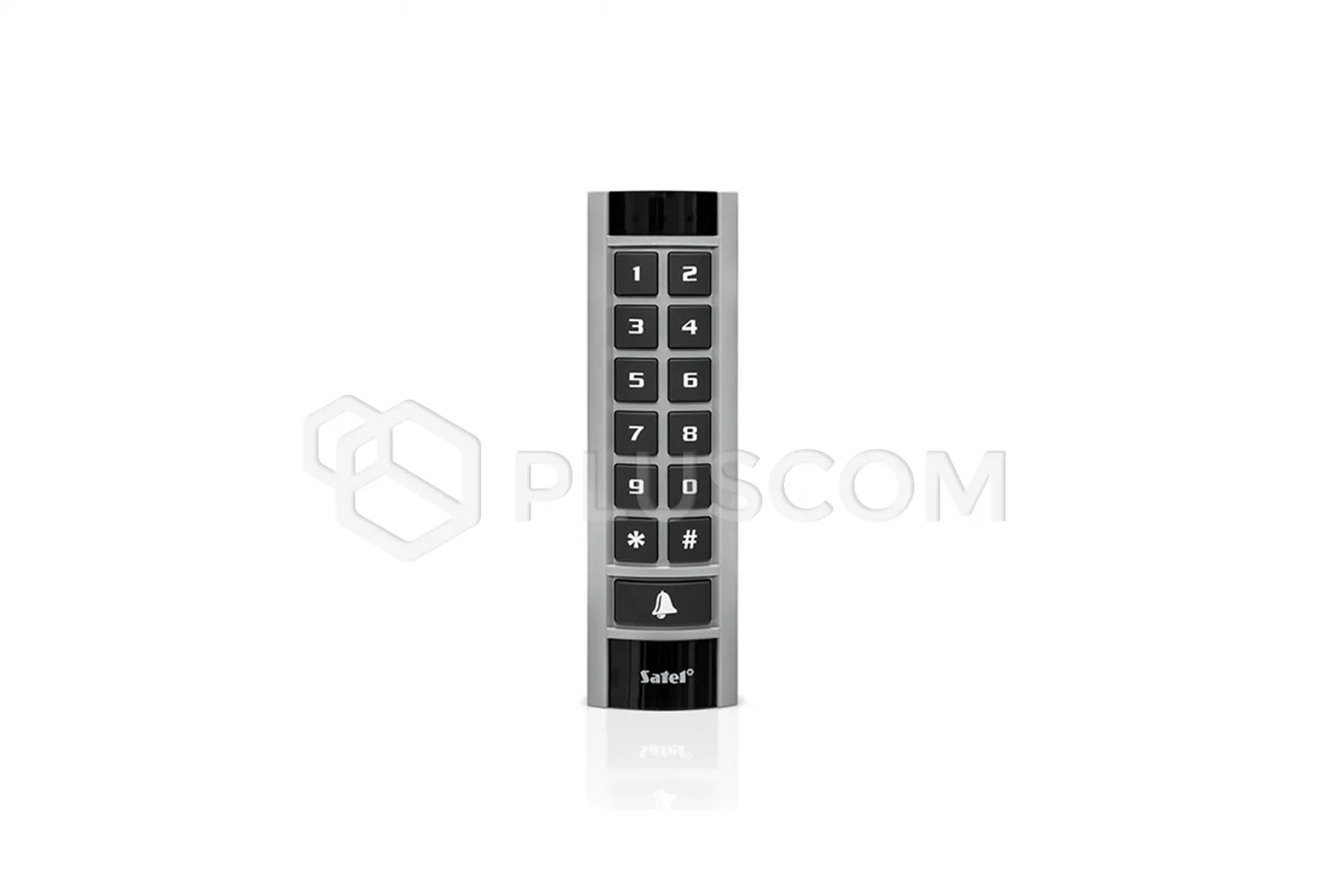

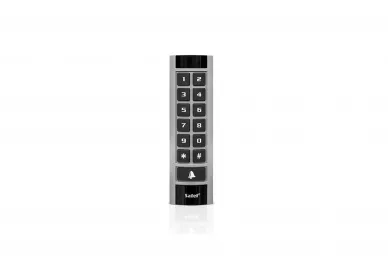

Satel CR-MF5 Keyboard with MIFARE proximity card reader

Satel CR-MF5 Keyboard with MIFARE proximity card reader

The keyboard design allows for external installation. The device is equipped additionally a bell button. It controls the OC type low-current output.
Built-in proximity card readers - performs the code reading function MIFARE proximity cards (13.56 MHz).

The CR-MF5 keyboard can work as:

• INT-SCR partition keyboard in the INTEGRA alarm system
• keyboard with ACCO-SCR proximity card reader in the control system ACCO NET or ACCO
• access
• keyboard with a proximity card reader in systems from other manufacturers (OSDP, Wiegand)
• autonomous passage control module

The settings required for the selected operating mode must be programmed from the CR SOFT program before installation. The exception is the reader, which is to work in the ACCO NET system and is to be connected to the controller ACCO-KP2 using the RS-485 bus (OSDP protocol). They support the OSDP protocol ACCO-KP2 controllers with software version 1.01 (or newer).

PROPERTIES:

• User identification based on the code and/or MIFARE® proximity card.
• Keyboard with backlight:
• • 12 keys to enter the code
  • 1 function key
• Built-in MIFARE 13.56 MHz proximity card reader:
• • Ultralight
  • Classic
  • DESFire (EV1 / EV2 / EV3)
• Support for OSDP protocol (RS-485 bus)
• Additional communication interface:
• • INT-SCR (work in the INTEGRA system)
  • ACCO-SCR (work in the ACCO system)
  • Wiegand (work in another manufacturer's system)
• Programming using CR SOFT
• LED indicators
• OC type output (BELL) controlled by a function key
• Relay output for controlling an electric strike, magnetic lock or other device activating the door (INT-SCR or stand-alone keyboard mode passage control module)
• Input monitoring the door status (INT-SCR keyboard or autonomous module mode passage control)
• Input to the opening button (INT-SCR keyboard or autonomous module mode passage control)
• Built-in sounder
• Tamper protection against opening the housing and against detaching from the wall
• Can be installed indoors or outdoors

TECHNICAL DATA:

• Supply voltage (±15%): 12 V DC
• Dimensions: 47 x 158 x 30 mm
• Standby current consumption: 65 mA
• Maximum current consumption: 115 mA
• Relay output (resistive load): 1A/30V DC
• BELL output, OC type: 30 mA/12V DC
• Reader operating frequency: 13.553...13.567 MHz
• Reading range of MC-DF3-2 encrypted card; up to 55 mm
• Operating temperature range: -25°C...+55°C
• Maximum humidity: 93±3%
• Weight: 129 g
