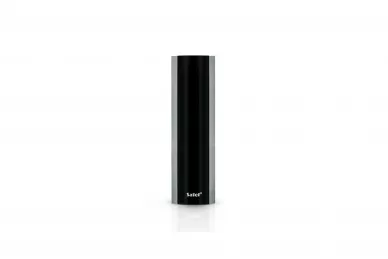

Satel CR-MF3 Proximity card reader

138,56 EUR including 23.00% VAT
Product code: #33955
Manufacturer: Satel
  • Installed directly on wall/door frame
  • MIFARE proximity card reader (13.56 MHz)
  • INTEGRA alarm system
  • ACCO NET or ACCO access control system
  • Built-in sound alarm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel SO-PRG-B MIFARE card programmer Satel MC-DF3-2 Proximity card

Satel CR-MF3 Proximity card reader


CR-MF3 proximity card readers - performs the card code reading function MIFARE proximity cards (13.56 MHz).
Works with the SO-PRG-B proximity card programmer and cards MC-DF3-2 proximity devices. Can work with other devices access control devices that receive data in one of those supported by the reader formats.

The CR-MF3 reader can work as:
  • proximity card reader in the INTEGRA alarm system
  • proximity card reader in the ACCO NET or access control system ACCO
  • proximity card reader in systems from other manufacturers (OSDP, Wiegand)
  • autonomous passage control module
The settings required for the selected operating mode must be programmed from the CR SOFT program before installation. The exception is the reader, which is to work in the ACCO NET system and is to be connected to the controller ACCO-KP2 using the RS-485 bus (OSDP protocol). They support the OSDP protocol ACCO-KP2 controllers with software version 1.01 (or newer).

The design of the readers allows them to be mounted outdoors.

PROPERTIES:
  • User identification based on the MIFARE proximity card
  • Support for MIFARE 13.56 MHz proximity cards:
    • Ultralight
    • Classic
    • DESFire (EV1 / EV2 / EV3)
  • Support for OSDP protocol (RS-485 bus)
  • Additional communication interface:
    • EM-Marine (work in the INTEGRA or ACCO system)
    • Wiegand
  • Programming using CR SOFT
  • LED indicators
  • Relay output for controlling an electric strike, magnetic lock or other door activation device (autonomous door control module mode)
  • Input monitoring the door status (autonomous door control module mode)
  • Entry to the opening button (autonomous door control module mode)
  • Built-in sounder
  • Tamper protection against opening the housing and against detaching from the wall
  • Can be installed indoors or outdoors
  • The reader supports the OSDP version 2.2 protocol
  • The SO-PRG programmer is required to program MIFARE cards

Technical data:
  • Supply voltage: 12 V DC±15%
  • Standby current consumption: 66 mA
  • Maximum current consumption: 110 mA
  • Reader operating frequency: 13.553...13.567 MHz
  • Relay output (resistive load): 1 A / 30 V DC
  • Operating temperature range: -25°C...+55°C
  • Maximum humidity: 93±3%
  • Dimensions: 47 x 158 x 30 mm
  • Weight: 118 g
