Satel CD-2 DG wired curtain detector

27,08 EUR including 23.00% VAT
Product code: #25371
Manufacturer: Satel
  • Passive infrared sensor (PIR)
  • Manually adjusted motion sensor
  • Powered by 12V DC
  • It can be an element of perimeter protection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel CD-2 DG wired curtain detector DARK GREY COLOUR


CD-2 DG is a wired curtain motion detector. CD-2 DG is designed for indoor use and can be an element of perimeter protection.

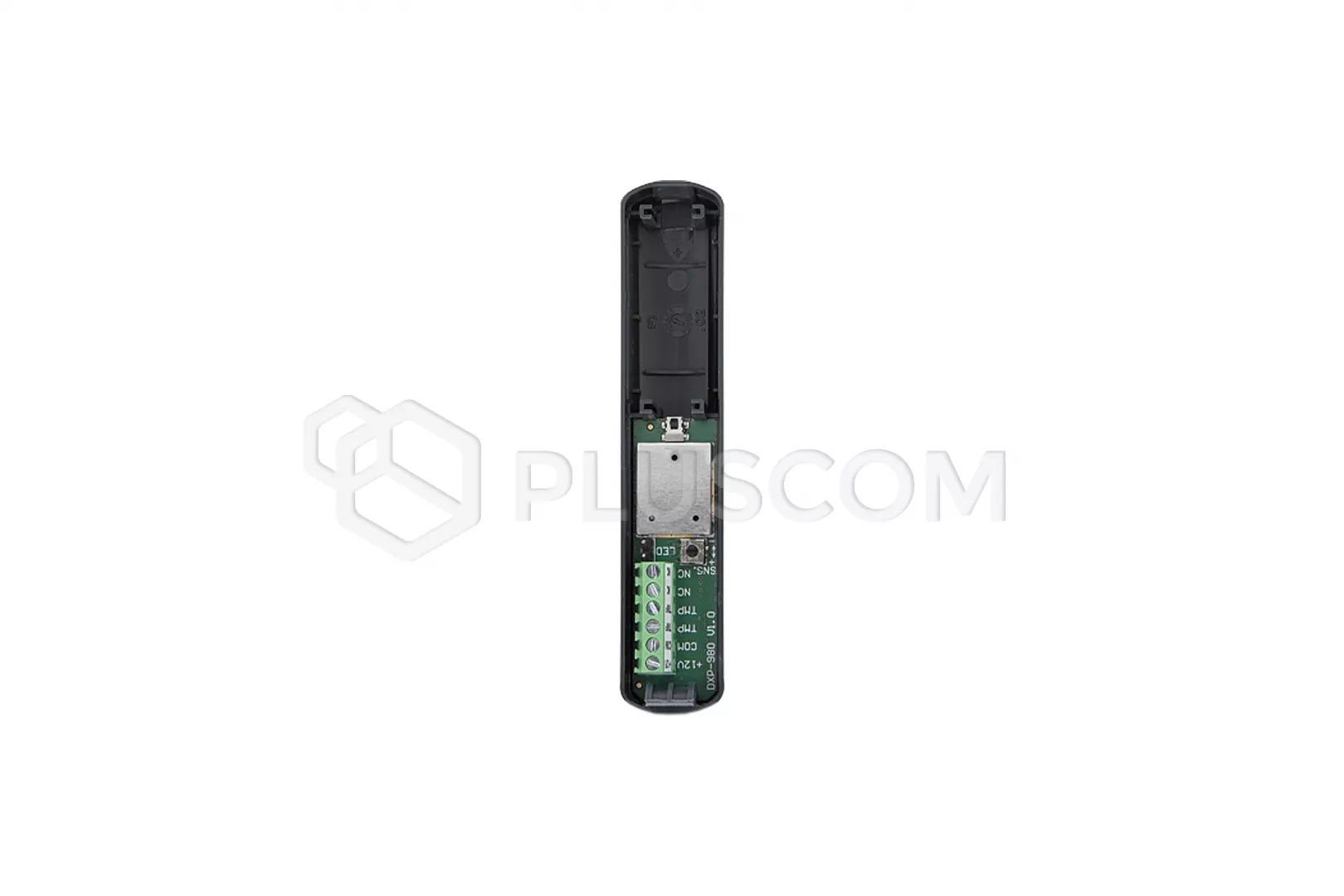

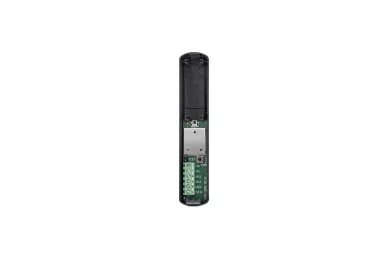

Detector use a digital algorithm of motion detection and temperature compensation, which makes it exceptionally resistant to false alarms. Sensitivity of the CD-2 DG motion sensor is adjusted manually, using potentiometers located on the detector's electronics board.

The CD-2 DG wired detector is powered by 12 V DC and is equipped with a voltage monitoring system. When the voltage drops below threshold, the detector will report a failure, informing the installer that servicing is required.
Additionally, the CD-2 DG is equipped with anti-sabotage protection for opening the enclosure and detaching it from the mounting surface.

PROPERTIES:
  • adjustable sensitivity of motion detection
  • digital algorithm of motion detection
  • digital temperature compensation
  • lens designed specifically for SATEL short range curtain detectors
  • LED indicator
  • monitoring of motion detection system and power supply voltage
  • tamper protection against opening the enclosure and against detaching it from mounting surface
Download
Datasheet 0.1 MB
