Satel B-2T Magnetic detector (white)

11,58 EUR including 22.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #27519
Manufacturer: Satel
  • Dimensions ø9 x 23,5 mm
  • Contact closing distance 19mm
  • Contact opening distance 20mm
  • Max switched voltage/current 100V/0,5A

Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

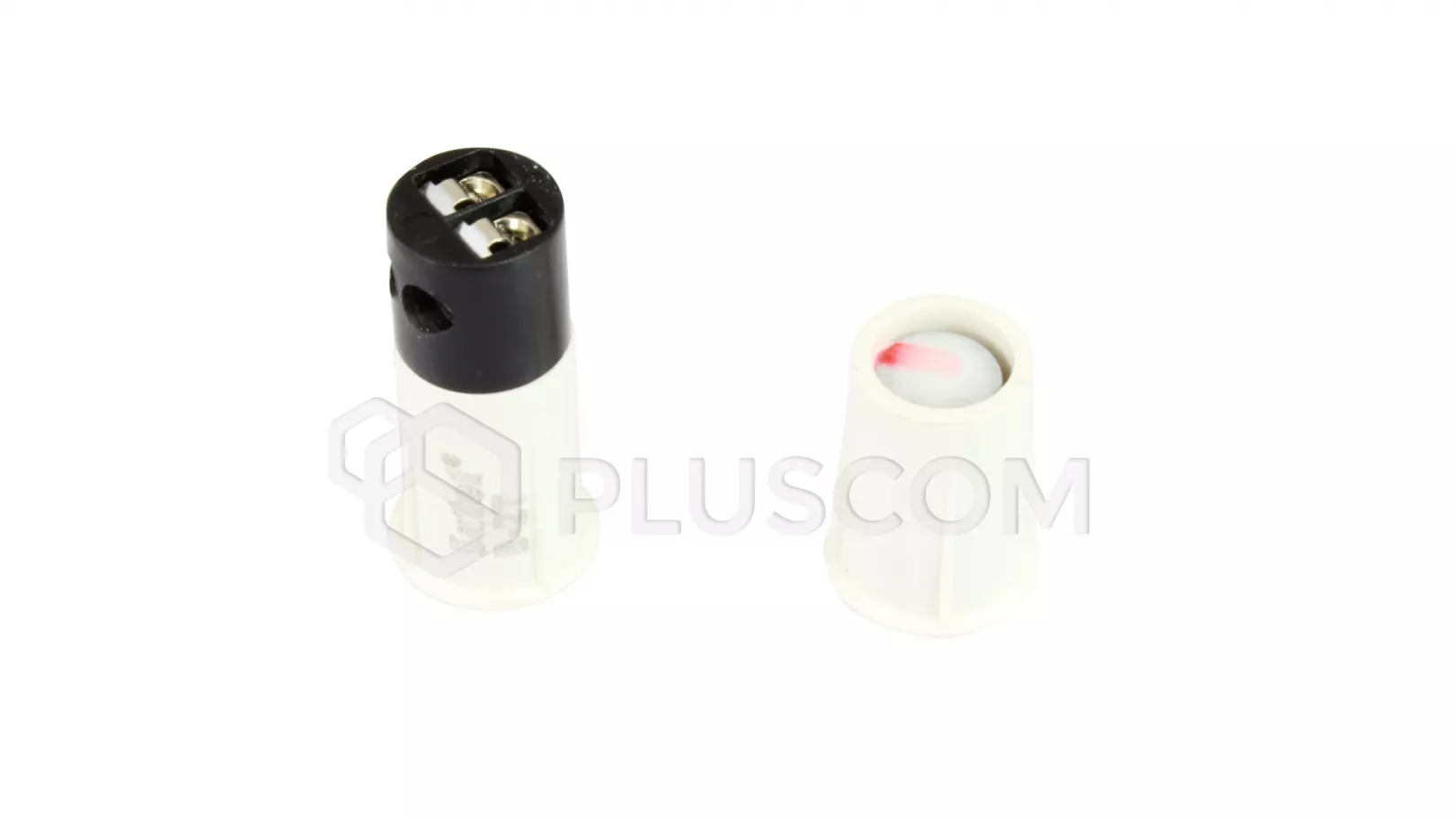

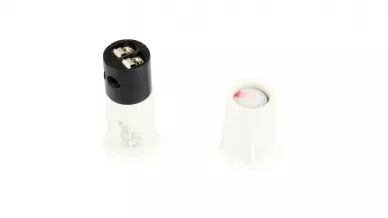

Satel B-2T Recessed reed contact with terminals (white)


Recessed reed switches are the basic perimeter protection of doors and windows.

Properties

  • recessed mounting
  • screw terminals
  • hermetic housing
TECHNICAL DATA:
  • Maximum reed switching voltage: 100 V
  • Maximum switching current: 500mA
  • Reed contact closing distance: 19mm
  • Reed contact opening distance: 20 mm
  • EN50130-5 environmental class: II
  • Detector type (outside magnetic field): NO
  • Magnet housing dimensions: ø9 x 14.5 mm
  • Reed switch housing dimensions: ø9 x 23.5 mm
  • Operating temperature range: -10...+55 °C
  • Weight: 6g
