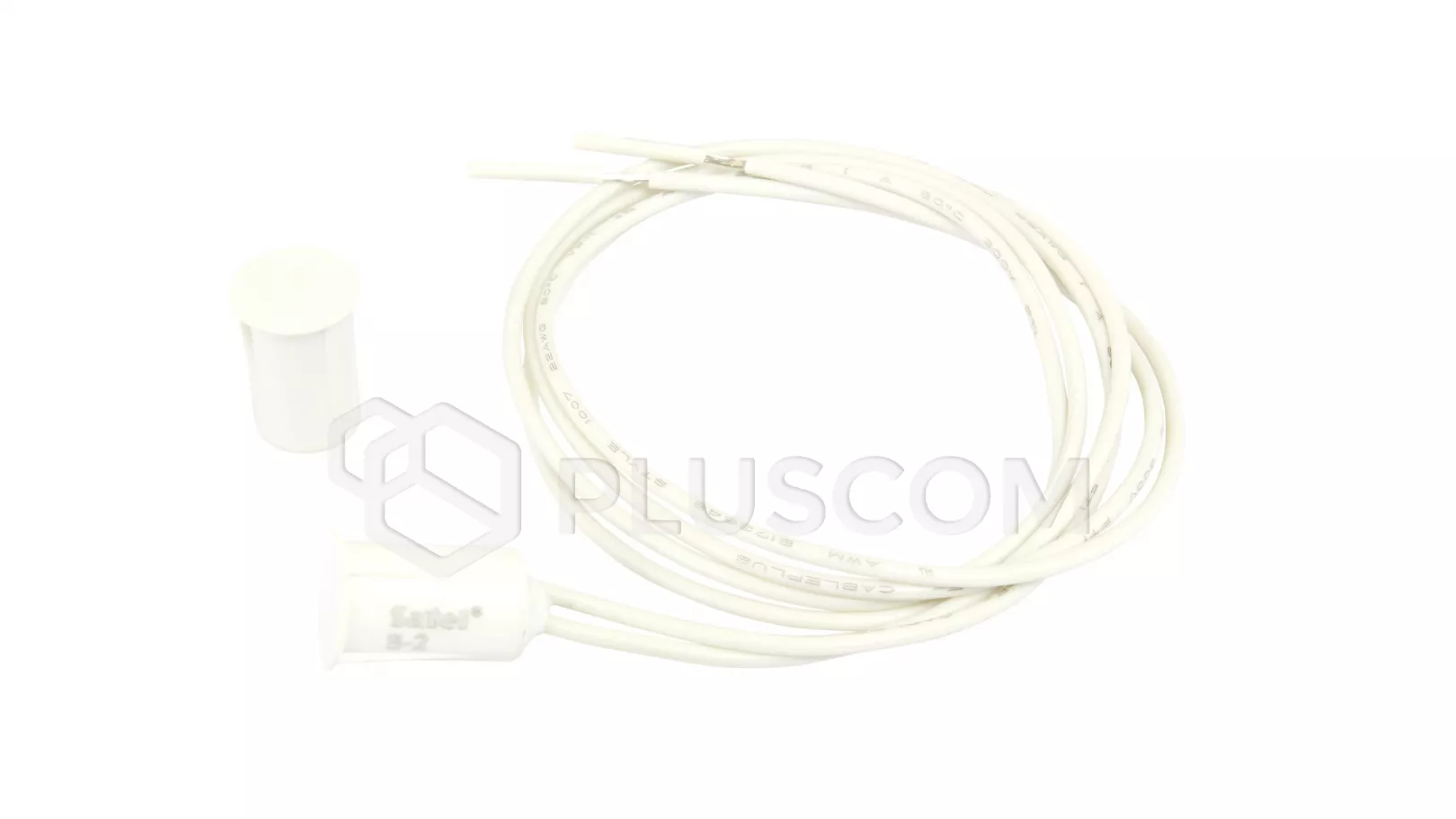

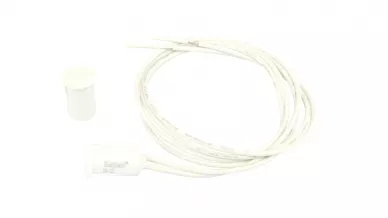

Satel B-2 Magnetic detector (white)

8,95 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #27515
Manufacturer: Satel
  • Dimensions ø9x14,5mm
  • Contact closing distance 19mm
  • Contact opening distance 20mm
  • Max switched voltage/current 100V/0,5A
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel B-2 Recessed contact (white)


Recessed reed switches are the basic perimeter protection of doors and windows.

Properties

  • recessed mounting
  • hermetic housing
TECHNICAL DATA:
  • Maximum reed switching voltage: 100 V
  • Maximum switching current: 500mA
  • Reed contact closing distance: 19 mm
  • Reed contact opening distance: 20 mm
  • EN50130-5 environmental class: II
  • Detector type (outside magnetic field): NO
  • Magnet housing dimensions: ø9x14.5mm
  • Dimensions of the reed switch housing: ø9x14.5mm
  • Operating temperature range: -10...+55 °C
  • Weight: 10g
