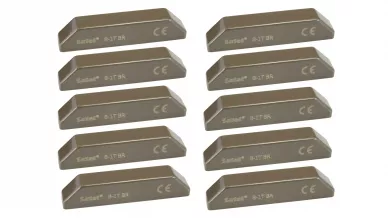

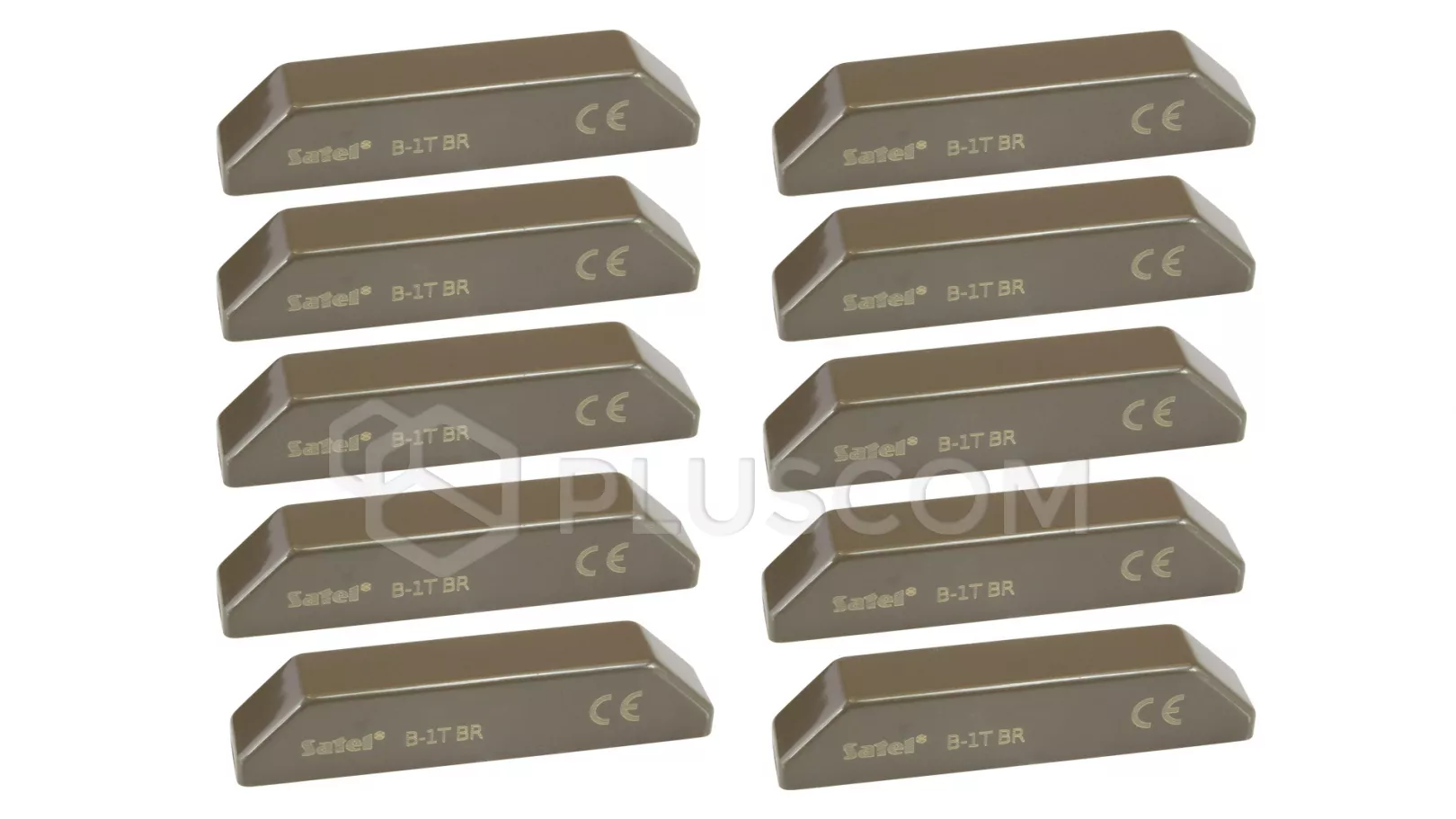

Satel B-1T BR Magnetic detector (brown) 10pcs

58,68 EUR including 22.00% VAT
In stock. Ships today!
Delivery time: 3 - 5 days
Product code: #4933
Manufacturer: Satel
  • Dimensions 65,5 x 11,1 x 13,6 mm
  • Make distance 25mm
  • Break distance 30mm
  • Max switched voltage/current 100V/0,5A
  • Multipack 10 pcs.
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

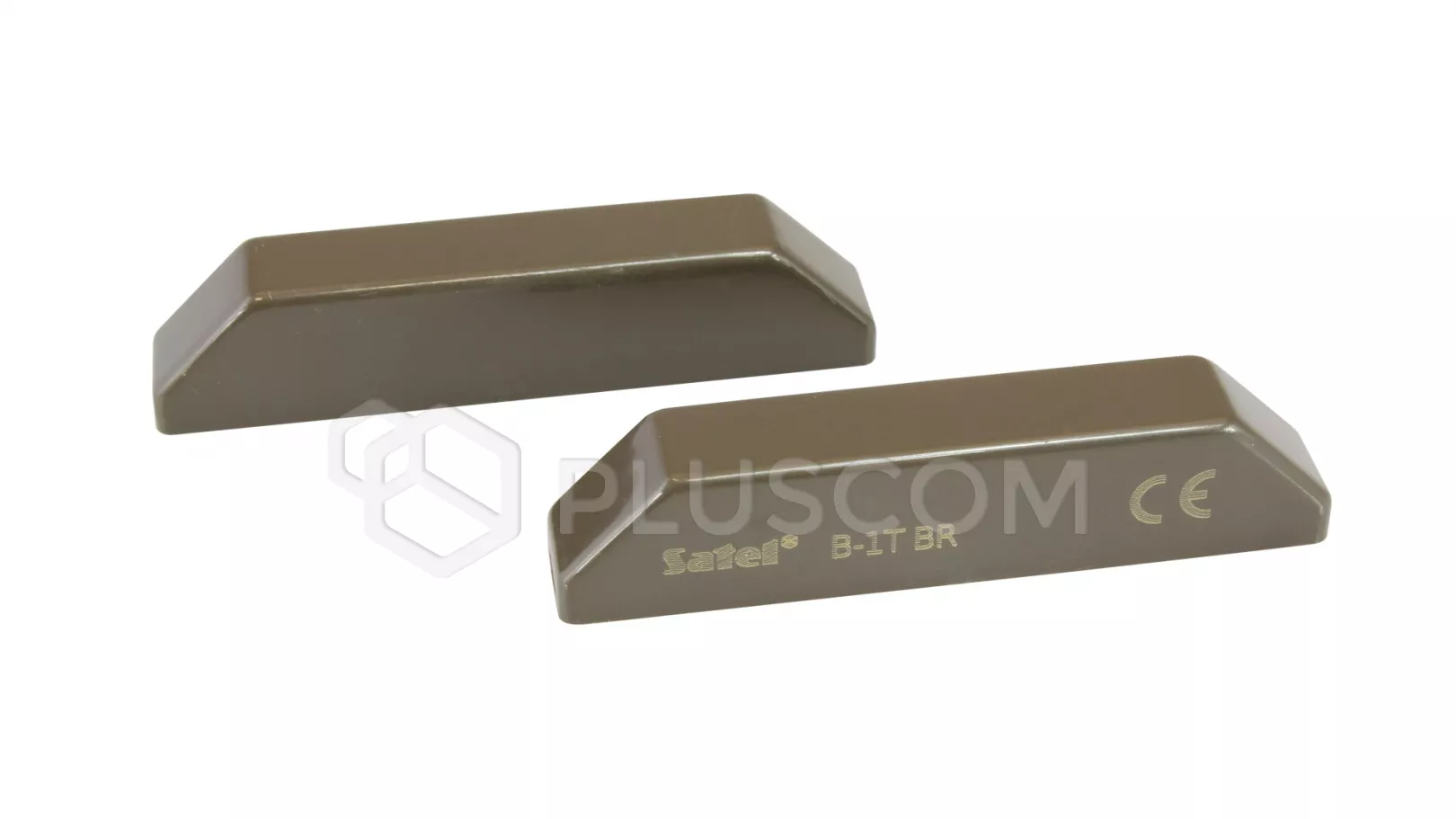

Satel B-1T BR Side reed contact with terminals (brown)


Magnetic detectors are basic protection perimeter of doors and windows.

Properties

  • surface mount - screw on
  • medium sized hermetic enclosure
Multipack 10 pcs.

TECHNICAL DATA:
  • Maximum reed switching voltage: 100 V
  • Maximum switching current: 500mA
  • Reed contact closing distance: 25 mm
  • Reed contact opening distance: 30 mm
  • EN50130-5 environmental class: II
  • Detector type (outside magnetic field): NO
  • Magnet housing dimensions: 65.5 x 11.1 x 13.6 mm
  • Reed switch housing dimensions: 65.5 x 11.1 x 13.6 mm
  • Operating temperature range: -10...+55 °C
  • Weight: 18g
