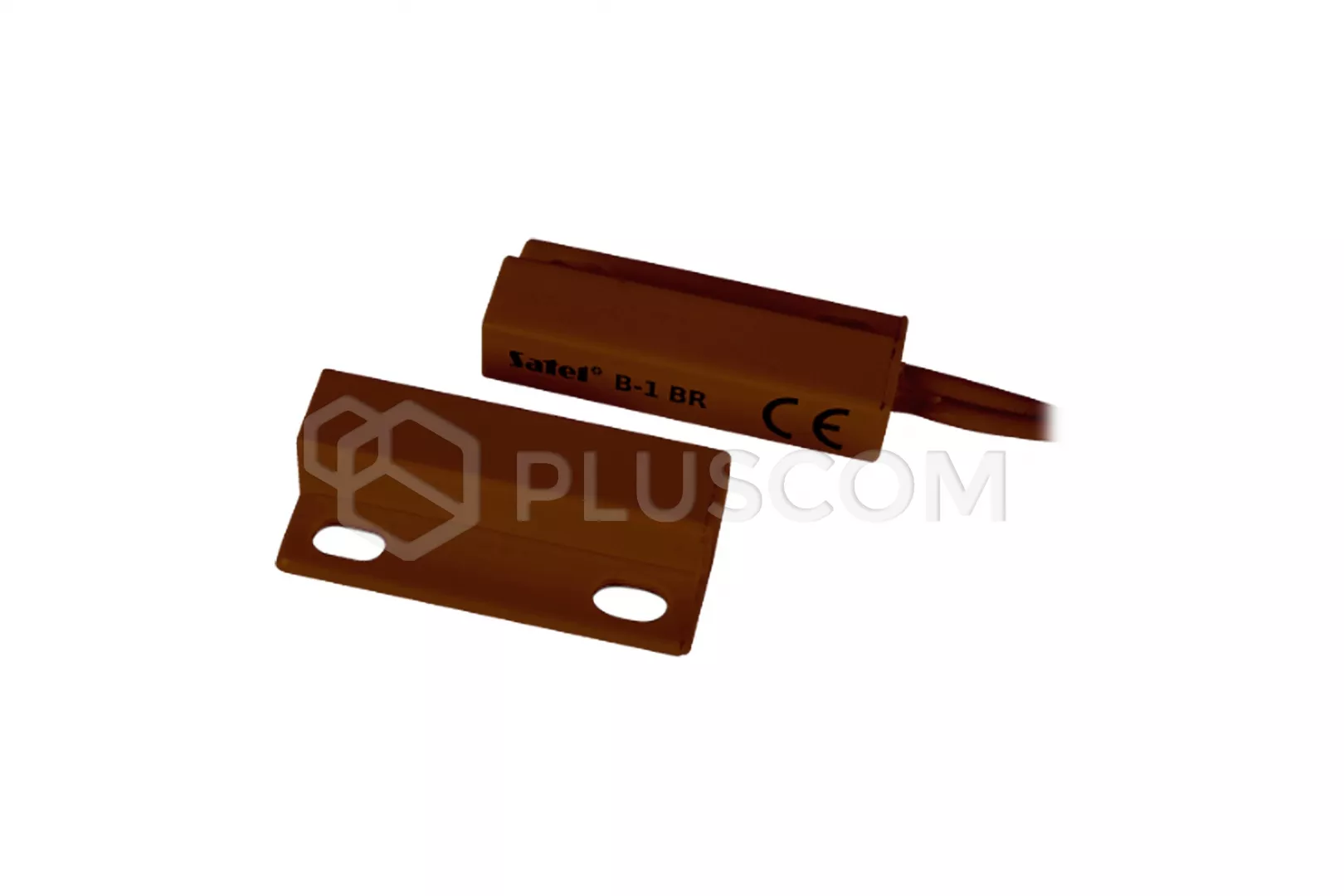

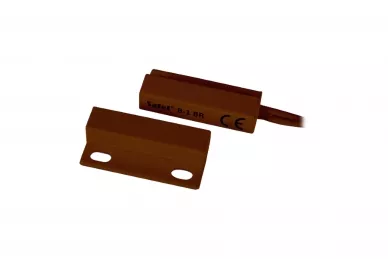

Satel B-1BR Surface magnetic detector (brown)

33,42 EUR including 20.00% VAT
Product code: #29835
Manufacturer: Satel
  • Contact closing distance 24mm
  • Contact opening distance 29mm
  • Alarm output: NC
  • Magnet housing dimensions: 28 x 12.5 x 6.5 mm
  • Multipack 10pcs
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel B-1BR Surface magnetic detector (brown) - 10pcs


Magnetic detectors can be used wherever there is a need control of the condition of doors, windows or other movable elements, e.g. for protection purposes or access control to specific facilities, rooms, devices; In automation systems, etc.

Magnetic detectors consist of two elements: a magnetic sensor (reed switch) and magnet. Reed switch placed near the magnet closes the electric circuit.
Each element of the detector has been placed in a hermetic housing.

Assembly

The detector element containing the magnet should be mounted on the movable part, while the reed switch on the fixed part of the protected door, window, etc. Elements of the B-1 BR detector are fixed to the surface with screws, with a suitable adhesive or double-sided tape.

TECHNICAL DATA
  • maximum switching voltage of the reed switch: 100 V
  • maximum switching current: 500 mA
  • reed contact closing distance: 24 mm
  • reed contact opening distance: 29 mm
  • detector type (outside magnetic field): NO
  • environmental class according to EN50130-5: II
  • maximum humidity: 93±3%
  • operating temperature range: -10...+55 °C
  • magnet housing dimensions: 28 x 12.5 x 6.5 mm
  • reed switch housing dimensions: 28 x 12.5 x 6.5 mm
  • weight: 12g
