Satel B-1 Magnetic detector (white) 10pcs

34,26 EUR including 23.00% VAT
Product code: #4928
Manufacturer: Satel
  • Dimensions 28x12,5mm
  • Make distance 24mm
  • Break distance 29mm
  • Max switched voltage/current 100V/0,5A
  • Multipack 10 pcs.
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

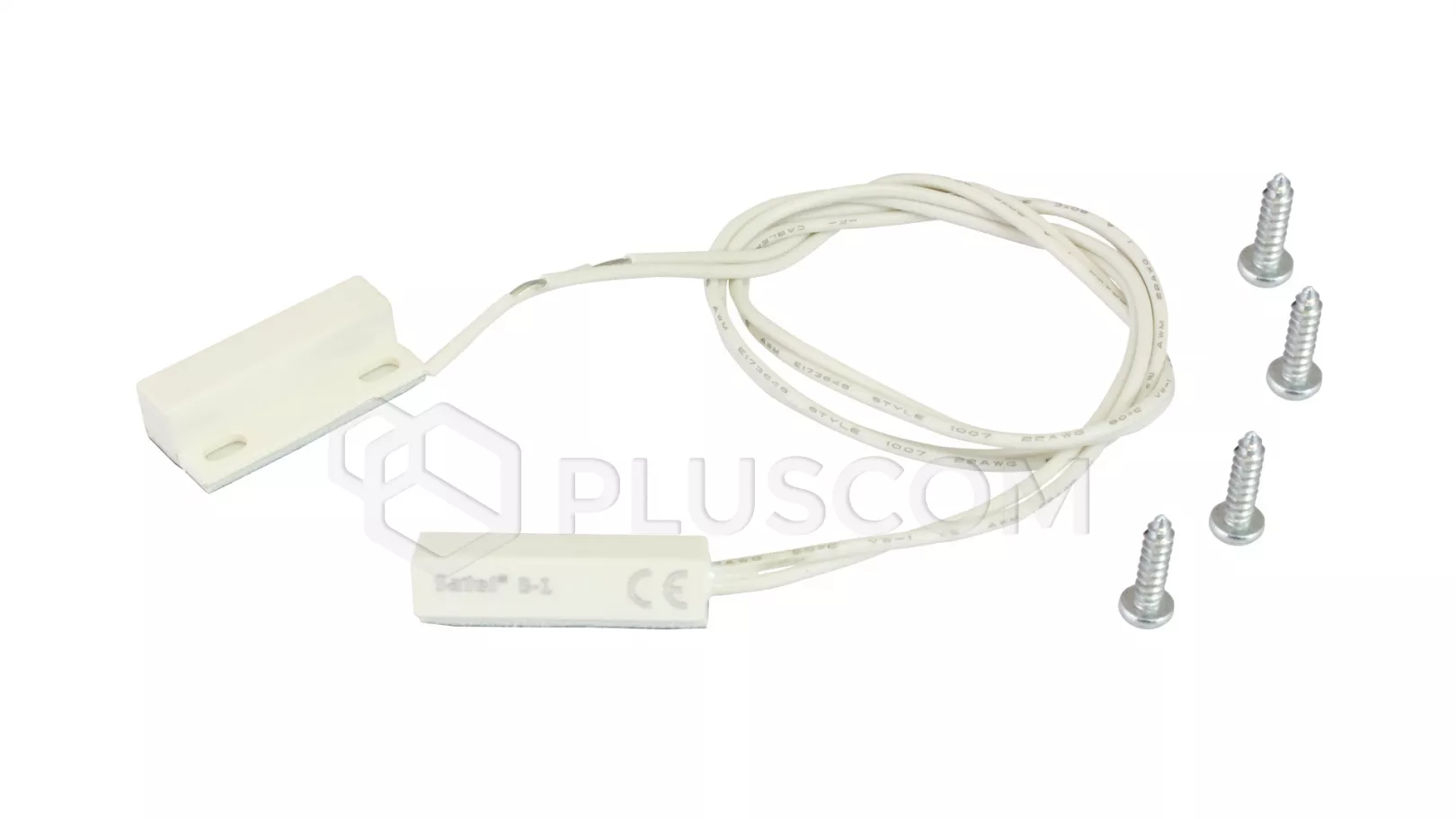

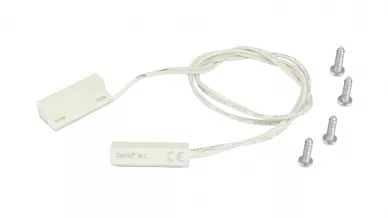

Satel B-1 Side contact (white)


Magnetic detectors are basic protection perimeter of doors and windows

Properties

  • surface mount (screw or glue)
  • small hermetic enclosure
Multipack 10 pcs.

TECHNICAL DATA:
  • Maximum reed switching voltage: 100 V
  • Maximum switching current: 500mA
  • Reed contact closing distance: 24 mm
  • Reed contact opening distance: 29 mm
  • EN50130-5 environmental class: II
  • Detector type (outside magnetic field): NO
  • Magnet housing dimensions: 28 x 12.5 x 6.5 mm
  • Reed switch housing dimensions: 28 x 12.5 x 6.5 mm
  • Operating temperature range: -10...+55 °C
  • Weight: 12g
