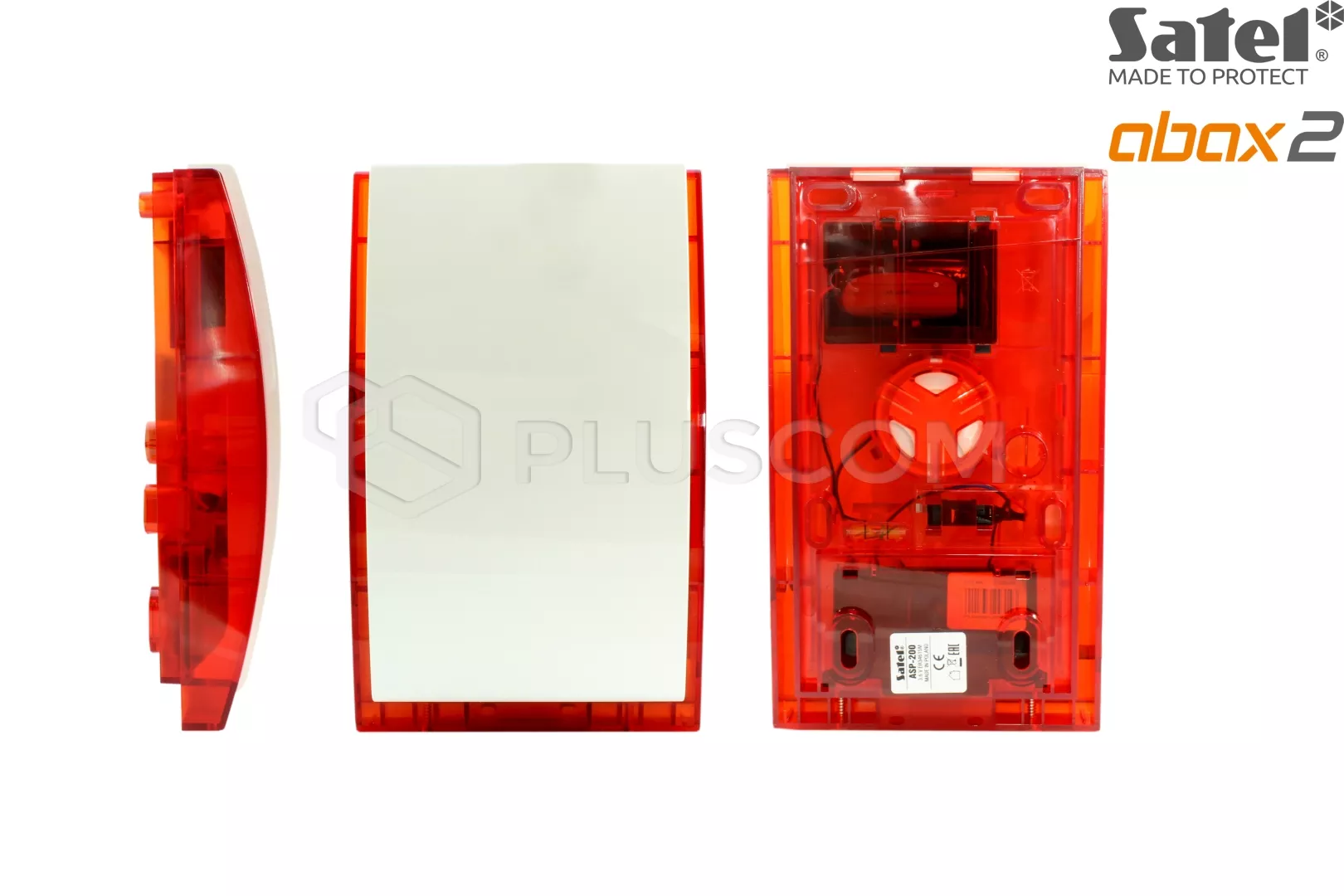

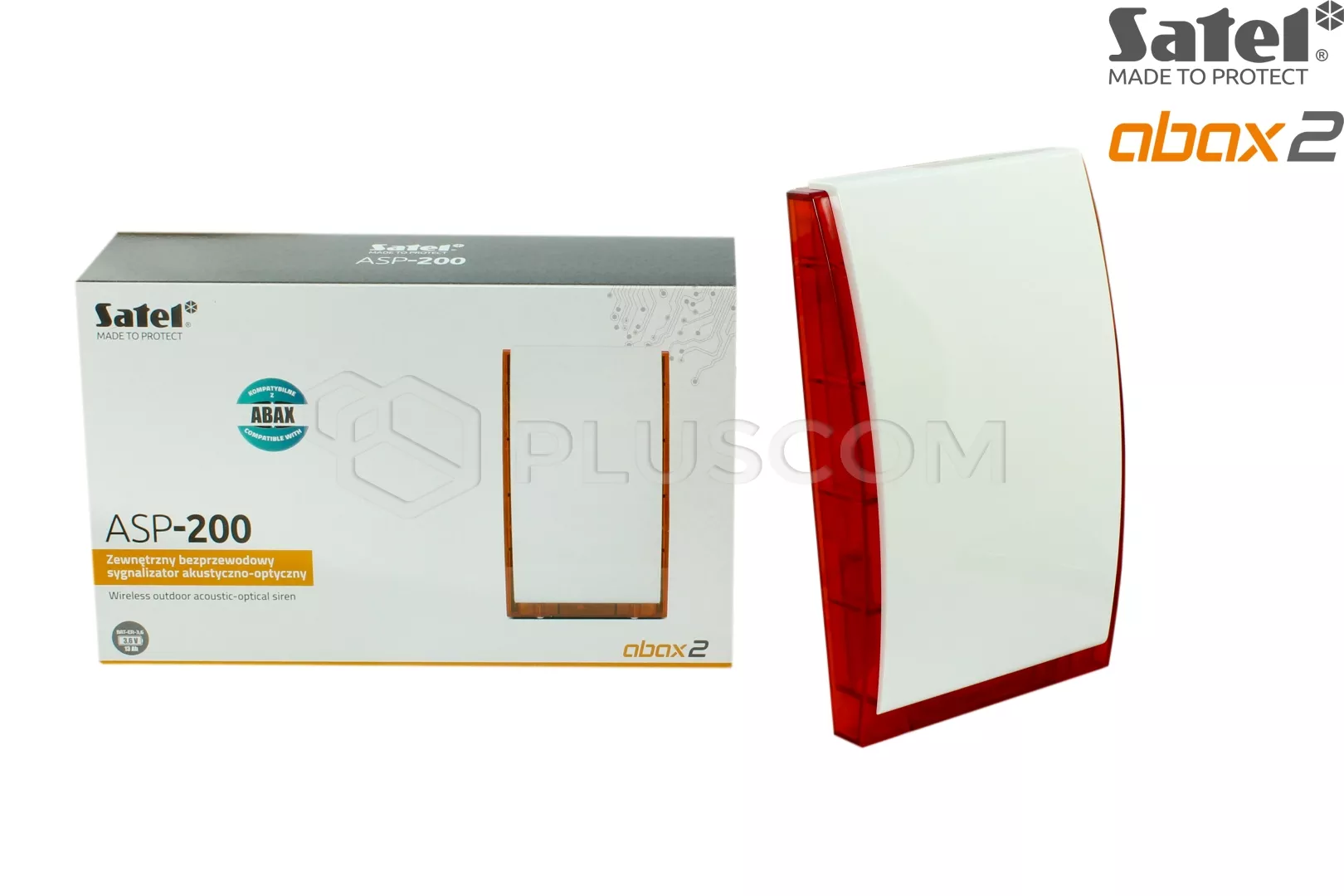

Satel ASP-200 R Wireless outdoor acoustic and optical siren ABAX 2/ABAX

137,62 EUR including 23.00% VAT
Product code: #19500
Manufacturer: Satel
  • acoustic signal 105dB
  • optical signaling: super bright LED
  • ECO option extending battery life
  • work in ABAX 2 and ABAX systems
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel HOLDER-ER Holder with cable and plug for ER34615 Satel ER34615 Battery 3.6V/13Ah

SATEL ASP-200 R Outdoor wireless siren acoustic-optical RED color

Satel ASP-200 R Wireless outdoor acoustic and optical siren

Satel ASP-200 R Wireless outdoor acoustic and optical siren


100% wireless siren does not require local power supply, two-way communication with the control panel is wireless. The siren is completely separated from the control panel, which prevents accidental damage to the control panel if an intruder were to use the cable connecting the control panel with the siren.
The signal is supported by:
  • ABAX 2:
    • ACU-220, ACU-280 controller
  • ABAX:
    • ACU-120, ACU-270 controller
Using the ABAX 2 controller to connect the signal introduces a number of new functions:
  • increased range communication, using the ACU-220 controller range is up to 2000m (in open space)
  • safe encrypted (AES standard) two-way radio communication in the 868MHz band
  • reliable - communication using 4 channels, automatic selection of the channel with the least interference
  • possibility of remote update of the signaling device software
  • remote configuration of the signaling device
  • ECO option after its activation can significantly extend the operating time on the battery
  • battery status control (when the voltage drops below 2.75V during each transmission, information about a low battery is sent

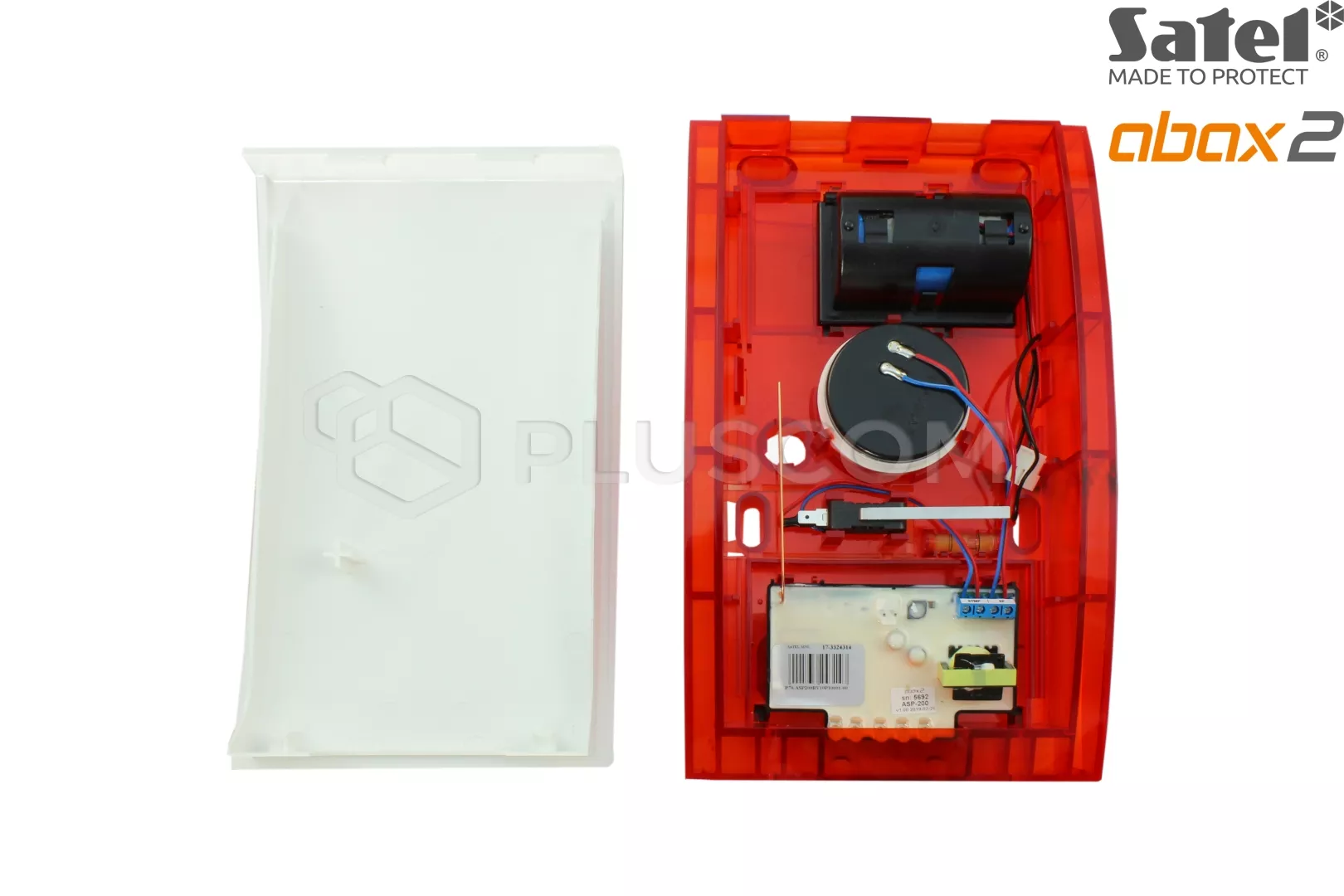

Interior of the siren:

Interior of the siren:

Satel ASP-200 R Wireless outdoor acoustic and optical siren

Satel ASP-200 R Wireless outdoor acoustic and optical siren


KEY PARAMETERS AND FEATURES
  • optical signaling: LED diodes (super bright)
  • acoustic signaling: piezoelectric transducer (sound intensity level from a distance of approx. 1m) 105dB
  • choice of one of four types of acoustic signal
  • optical and acoustic signaling is independently triggered via radio
  • sabotage protection against opening the housing and tearing off substrates
  • housing made of high-impact polycarbonate characterized by high mechanical strength
  • installed specialist lithium-thionyl chloride battery BAT-ER-3.6_13Ah guarantees long operating time in a wide temperature range -40°C...+55°C
  • remote configuration
  • remote battery status control
