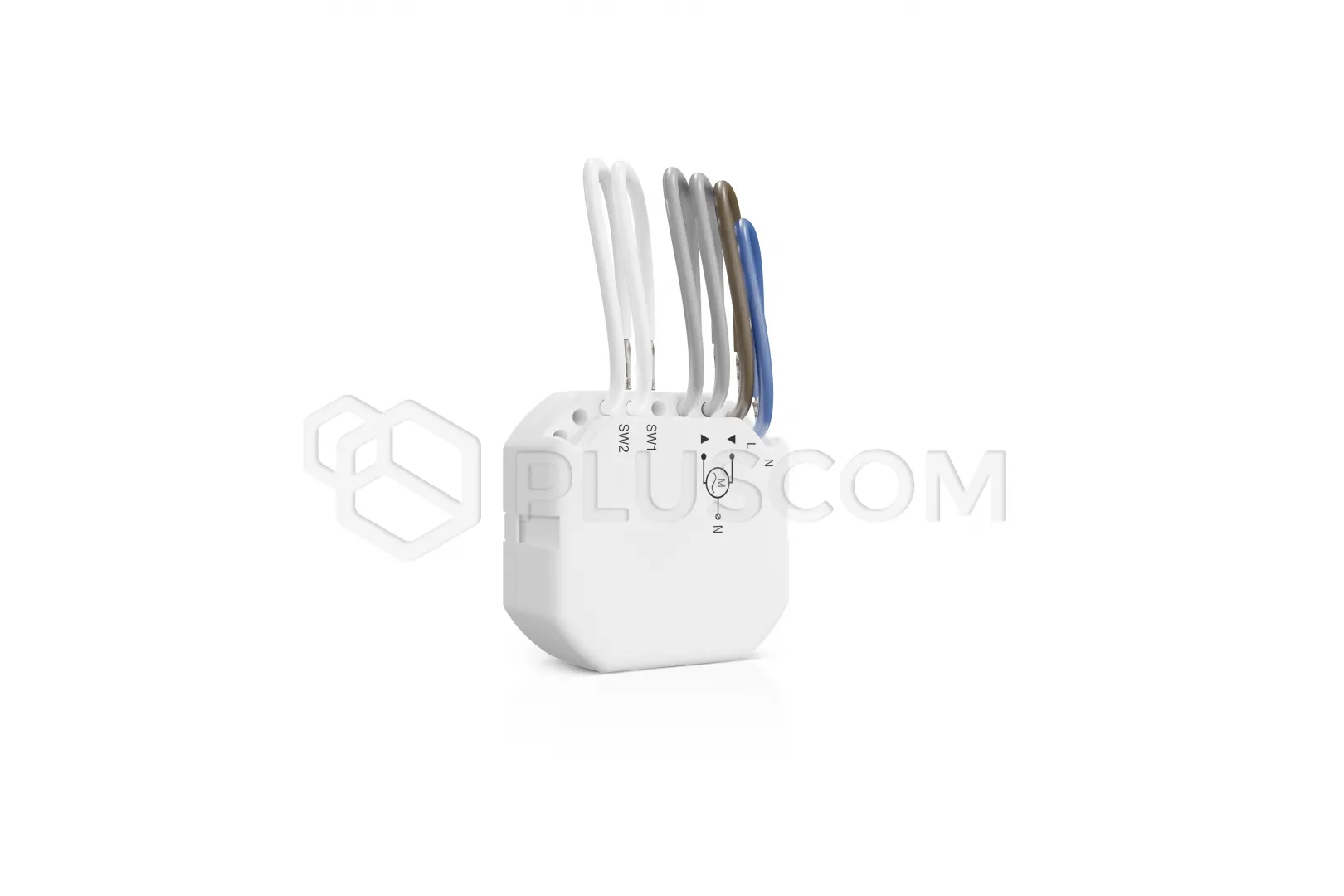

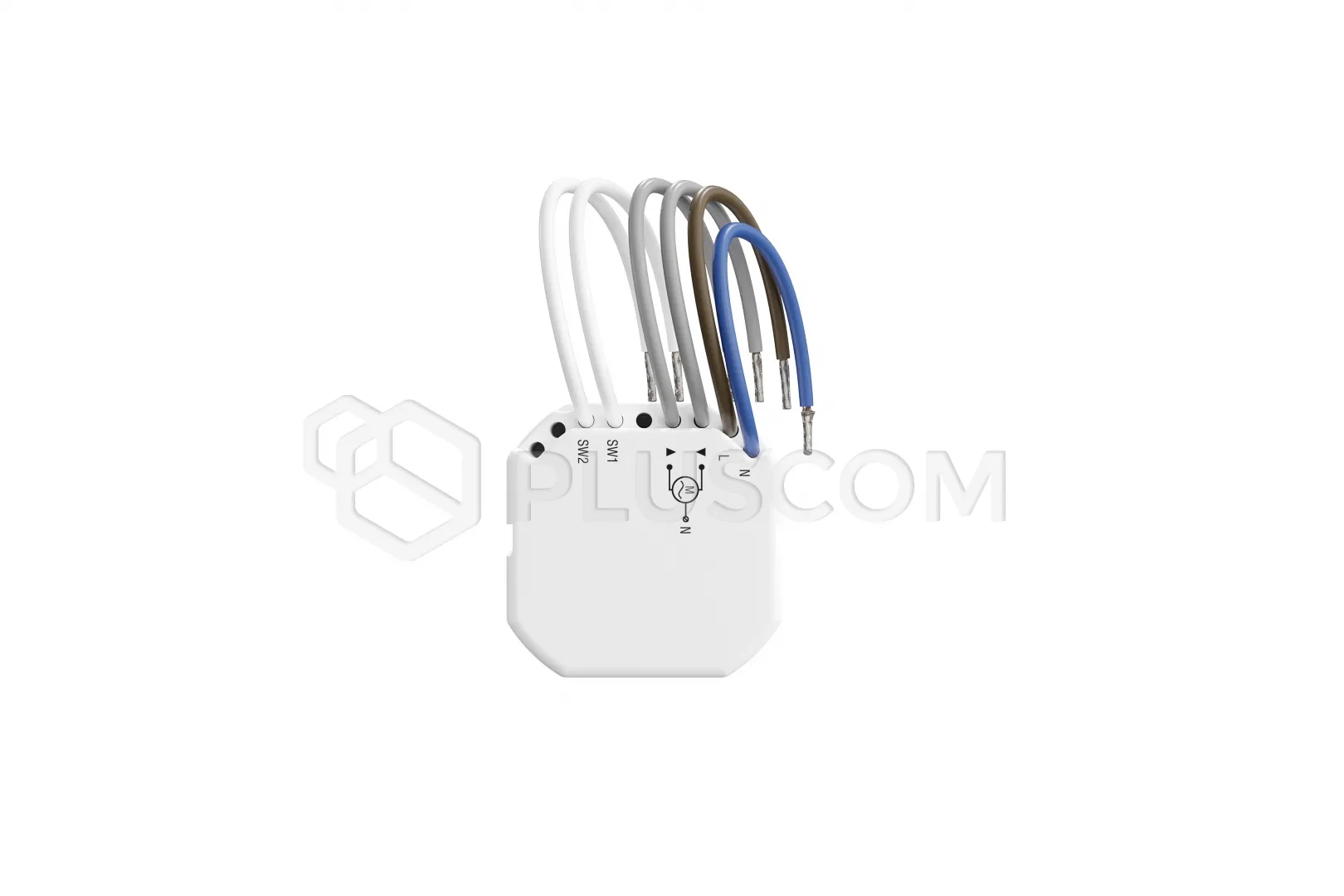

Satel ARSC-200 Wireless roller shutter/blind controller

Satel ARSC-200 Wireless Roller Shutter/Blind Controller

• Control of roller shutters/horizontal blinds/windows with a 230 V AC electric drive.
• Remote or local control using control inputs.
• Automatic detection of roller shutter/blind travel time.
• Detection of roller shutter/blind problems (power failure, incorrect position, mechanical jam, motor overheating).
• 2 control inputs:
• • Ability to connect a double bell button or blind switch.
  • Local roller shutter/blind control.
  • Ability to control any devices in the system.
• Compatibility with:
• • BE WAVE Hybrid control units.
  • BE controllers WAVE Smart HUB
• Operates in the 868 MHz frequency band
• AES-encrypted two-way radio communication
• Transmission channel diversity – 4 channels enable automatic selection of the one that allows for transmission without interference from other signals
• Remote programming of settings
• Remote software updates
• 230 V AC power supply
• Installation in flush-mounted and surface-mounted junction boxes with a minimum diameter of 60 mm

TECHNICAL DATA:

• Operating frequency band: 868.0 MHz ÷ 868.6 MHz
• Radio communication range (in open space): up to 1000 m
• Power supply voltage: 230 V AC, 50 Hz
• Standby power consumption: 0.45 W
• Maximum power consumption: 1 W
• Maximum load: 1.7 A / 350 W / 230 V AC
• Standards complied with: EN 50130-4, EN 50130-5,
• Environmental class according to EN 50130-5: II
• Operating temperature range: -10°C...+55°C
• Maximum humidity: 93±3%
• Dimensions: 47 x 47 x 22 mm
• Weight: 41 g
