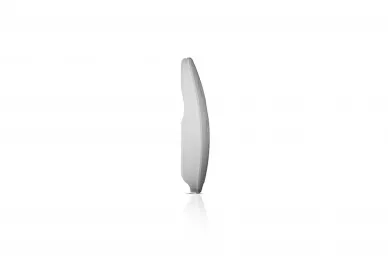

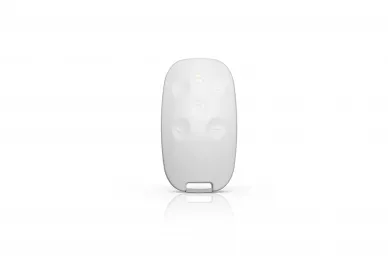

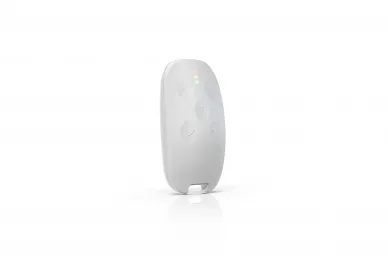

Satel APT-210 Bi-directional remote control keyfob

Satel APT-210 Two-way remote control BE WAVE / ABAX 2

• ABAX 2 controllers: ACU-220 / ACU-280 (software version 6.08 or newer)
• ABAX controllers: ACU-120 / ACU-270 (software version 5.04 or newer), INTEGRA 128-WRL control panel (software version 1.19 or newer and software version of the processor supporting the ABAX system 3.10 or newer).

FEATURES:

• encrypted two-way radio communication in the 868 MHz frequency band (AES standard in the case of the ABAX 2 system)
• diversification of transmission channels - 4 channels enabling automatic selection of the one that will allow transmission without interference with other signals in the 868 MHz frequency band (only in the case of the ABAX 2 system) ABAX 2)
• 5 buttons to activate up to 6 functions
• 3 LEDs indicating the status of the alarm system
• built-in sounder
• battery status control

TECHNICAL DATA:

• Operating frequency band: 868.0 ÷ 868.6 MHz
• Battery: CR 2032 3V
• Low battery voltage: 2.6 V
• Environmental class according to EN50130-5: II
• Radio communication range (in open area) for ACU-220: up to 600 m
• Radio communication range (in open area) for ACU-280: up to 300 m
• Operating temperature range: -10°C...+55°C
• Dimensions: 37 x 66 x 14 mm
• Weight: 25g
