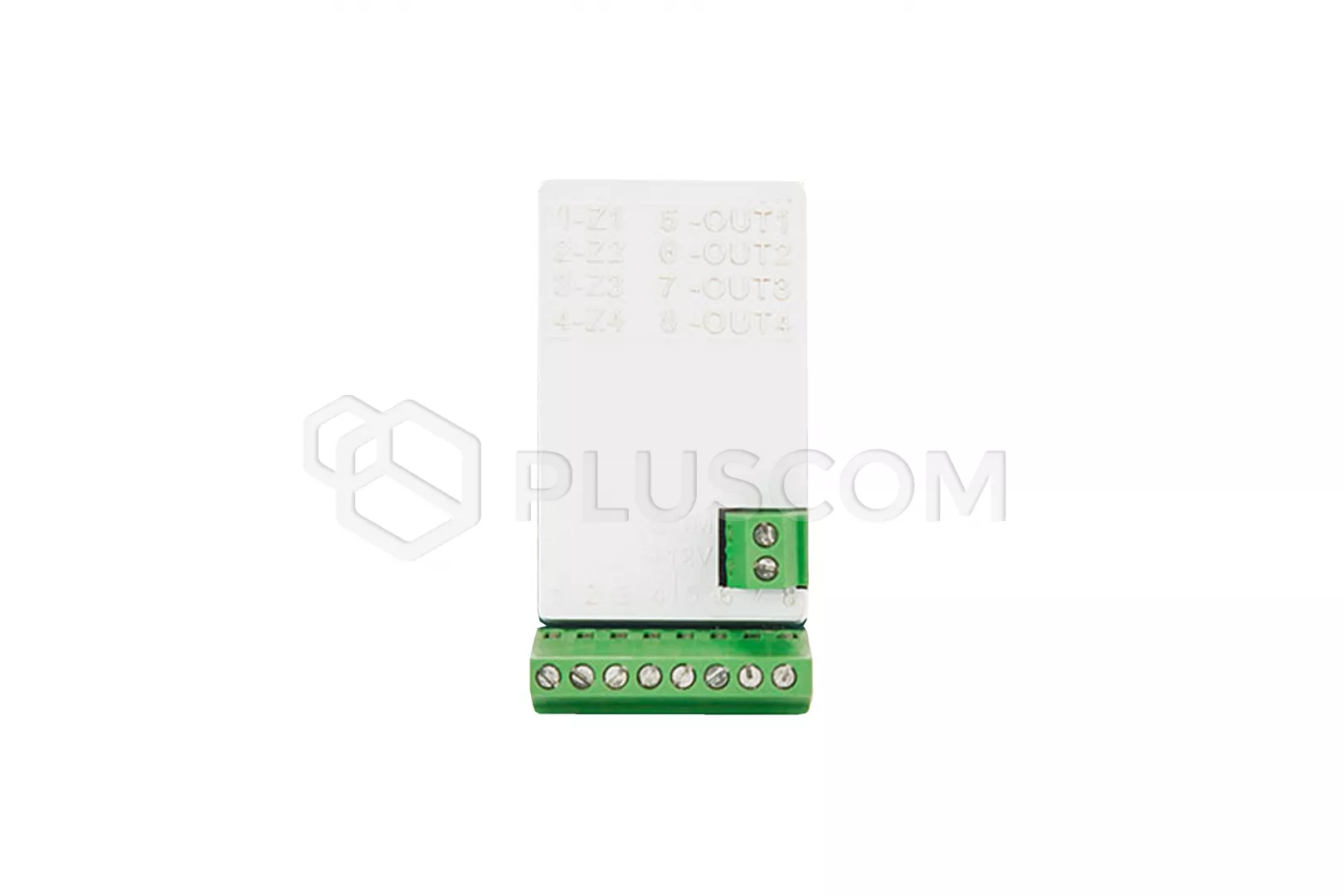

Satel ACX-210 Miniature wireless expander of wired zones/outputs

Satel ACX-210 Miniature wireless expander of wired zones/outputsh

The ACX-210 module, due to its size (21x41x13mm), requires a very small one assembly space. It is designed to work as a two-way street ABAX 2 / ABAX wireless system.
It is powered by a voltage of 4-24 V DC.

Software update and settings are configured remotely, a two-way radio communication in the ABAX 2 system is encrypted in AES standard.

FEATURES:

• 4 programmable wired inputs:
• • support for NO and NC detectors
  • EOL and 2EOL configuration support

• 4 programmable OC type wired outputs
• Encrypted two-way radio communication in the 868 frequency band MHz (AES standard for ABAX 2 system)

• adding wired devices to the ABAX 2 or ABAX system
• compatible with:
• • ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 radio signal repeater
  • ABAX system controllers (ACU-120 and ACU-270), INTEGRA 128-WRL control panel and ARU-100 radio signal repeater

• range of radio communication in the open area:
• • in ABAX 2: up to 2000 m (with ACU-220) / up to 1400 m (with ACU-280)
  • in ABAX: up to 500 m

• remote configuration and update of the firmware


TECHNICAL PARAMETERS:

• Supply voltage: 4-24 V DC
• Standby mode current consumption: 30 mA
• Max. current consumption: 35 mA
• Frequency band: 868,0 ÷ 868,6 MHz

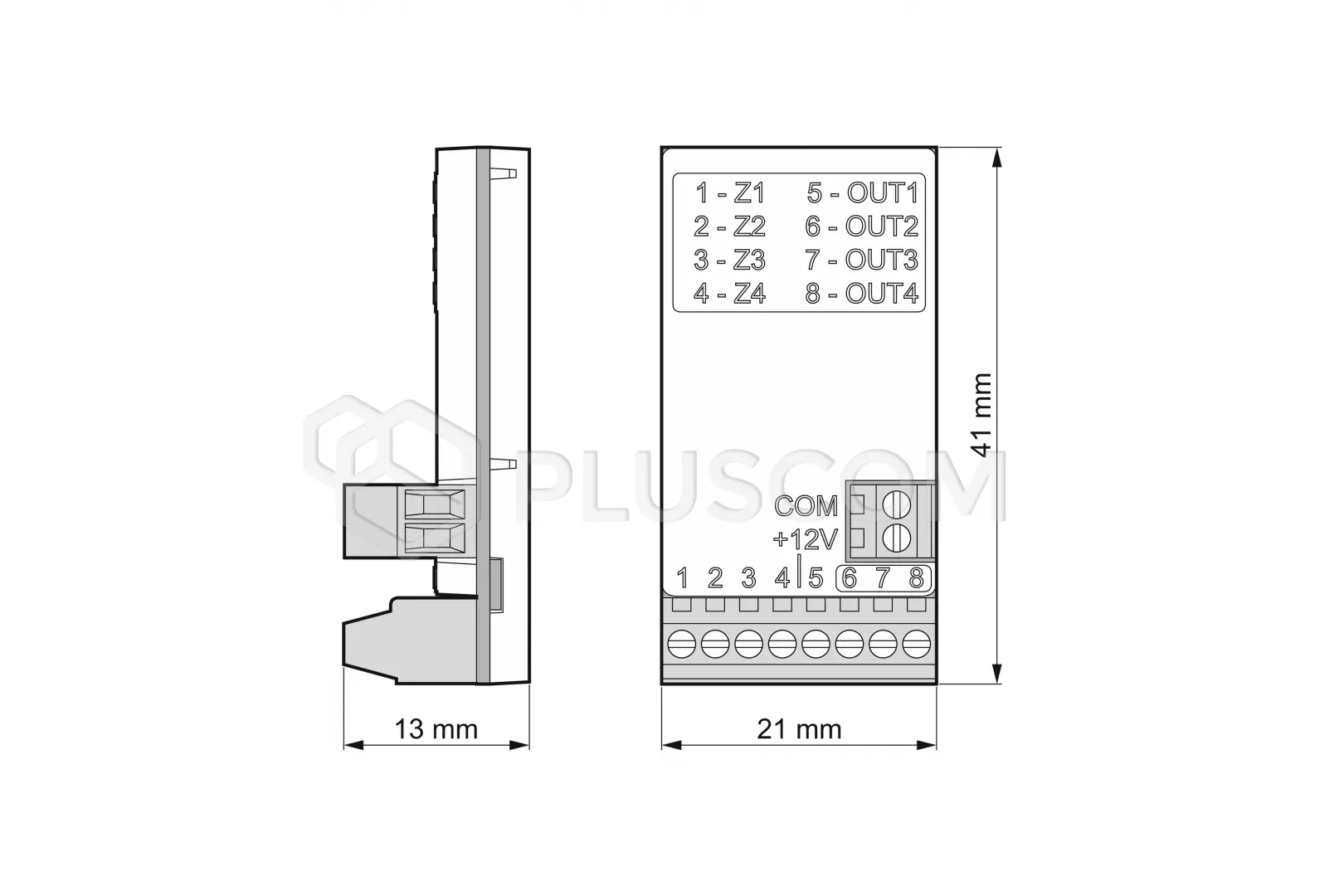

• Dimensions: 21x41x13mm
• Weight: 10g
