Satel ACTIVA-2 Active infrared barrier with 2 beams

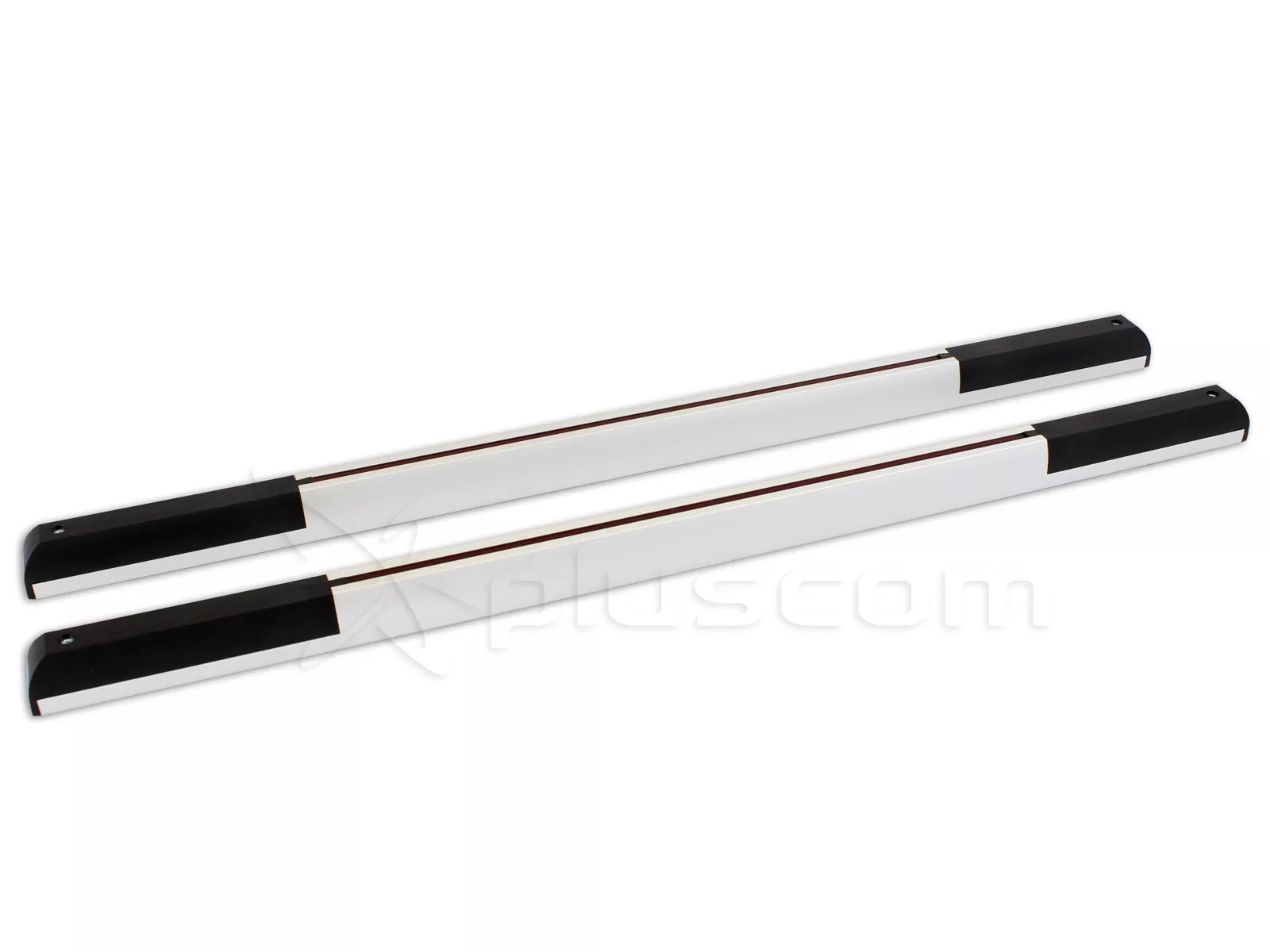

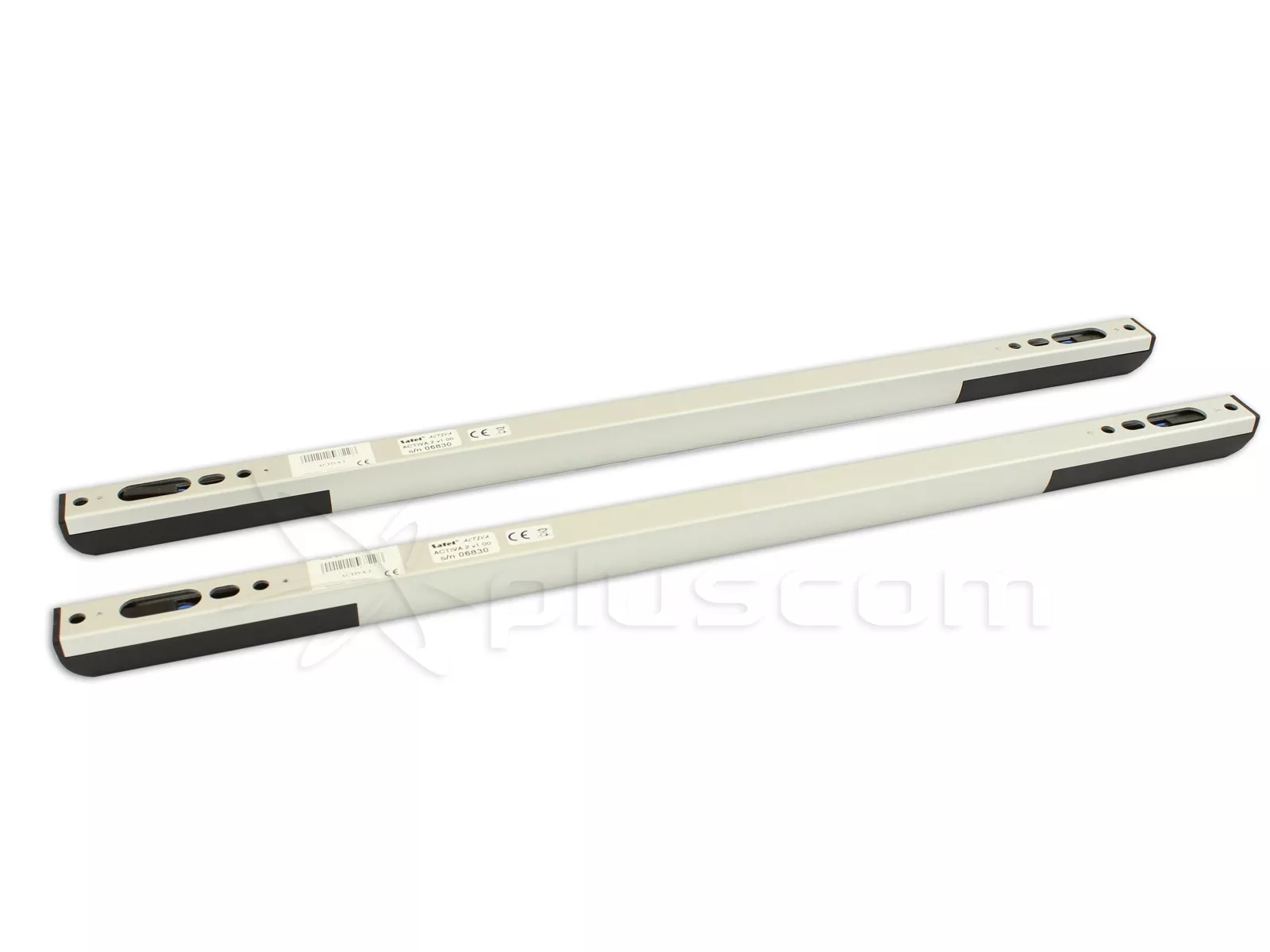

ACTIVIA-2 (2 beams,strips length 52cm)

ACTIVAis a series of photoelectric devices that acts as active infraredbarrier.

Each device includes transmitter and receiver.

Device properties

• Encodinginfrared beams, which prevents substitution of the transmitters (whenreceiver will be illuminated from another source, it will beinterpreted as a infrared beam interruption).
• Configurablesensitivity beams.
• Ability to lock automatically after a preset number of programmedviolations.
• Possibilityof permanently disabling beams.
• Configurablenumber of beams which will trigger the alarm.
• Memorylocks.
• Abilityto change the signal strength (barriers range).
• Programmabledevice using ACTIVIA.
• Tamperswitch detects an attempt to open case or tearing strip off the wall.
• Aestheticand durable (resistant to weather and mechanical damage) casing, madeof aluminum and polyamide.

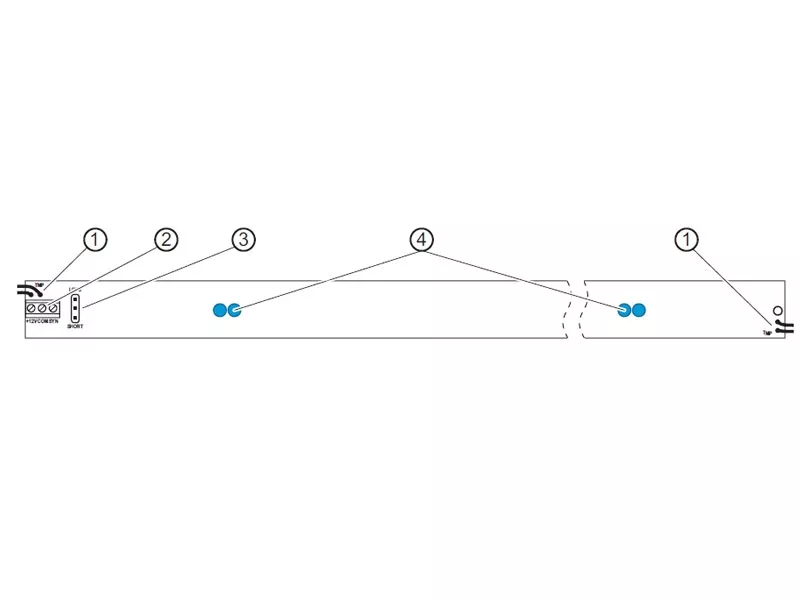

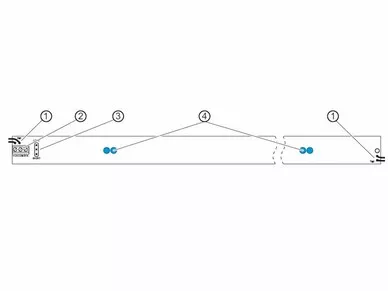

Transmitter

1. tamperswitch leads;
2. Pins

• +12V– power input;
• COM– ground;
• SYN - synchronizationterminal - must be connected to the same terminal receiver

3. Pins to set beamsstrength. Depending on the distance between transmitter andreceiver, adjust the infrared beam power by setting a jumper on pinsShort – Long on a transmitter electronic board: Short – up to 10meters, Long – to 20 meters.
4. LED emitting infraredradiation.

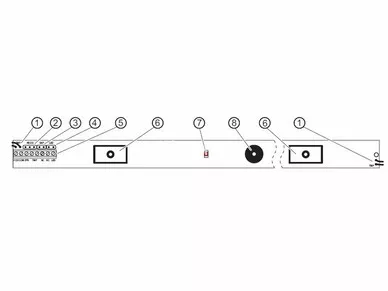

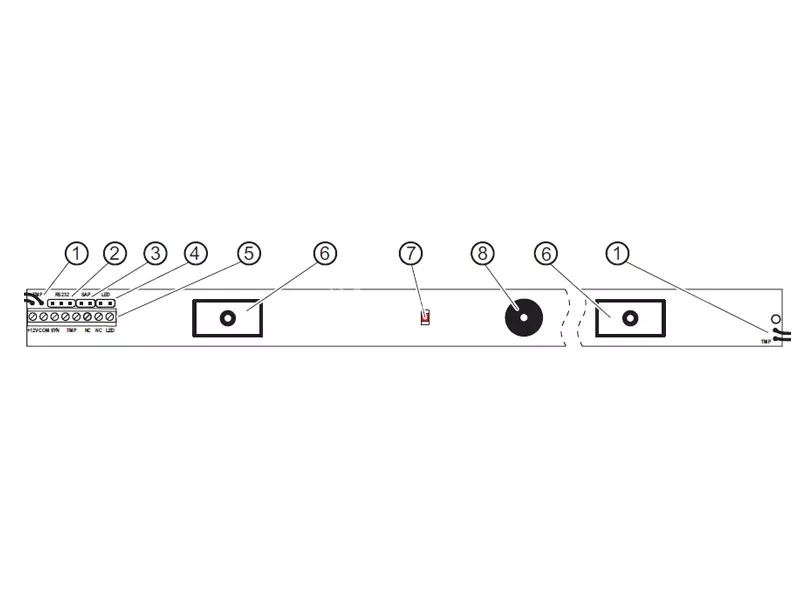

Receiver

1. tamperswitch leads;
2. RS-232port for PC connection;
3. SAP– pins synchronizing transmitter and receiver;
4. LED– violation signal pins. If jumper present device will signal withLED the interruption of the beam.
5. Pins:

• +12V– power input
• COM- ground;
• SYN - synchronization terminal -must be connected to the same terminal transmitter;
• TMP– tamper;
• NC– relay;
• LED

6. infraredreceiver;
7. LEDindicating device state (used when synchronizing ghr transmitter andthe receiver, also to indicate the violation of beams);
8. buzzerused for signalizing beams violation (for first 30 minutes fromturning on the device. Violation of any beam equals to one buzzersignal – for example: simultaneousviolating3 beams will generate 3 buzzer signal, 4 beam violations – 4buzzer signals and so on);

Installation

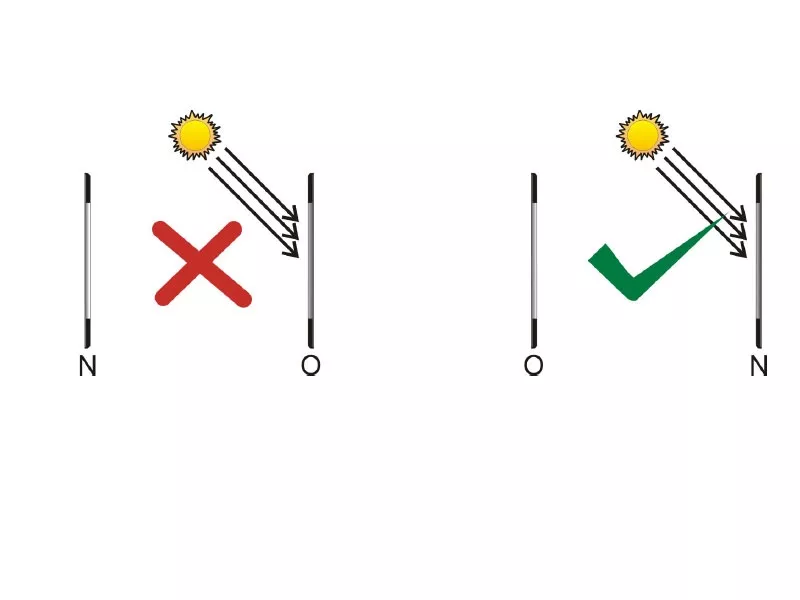

Duringthe installation one must pay attention to weather the sun don'tstrike directly at the receiver, as it may interfere with the deviceand trigger false alarms.

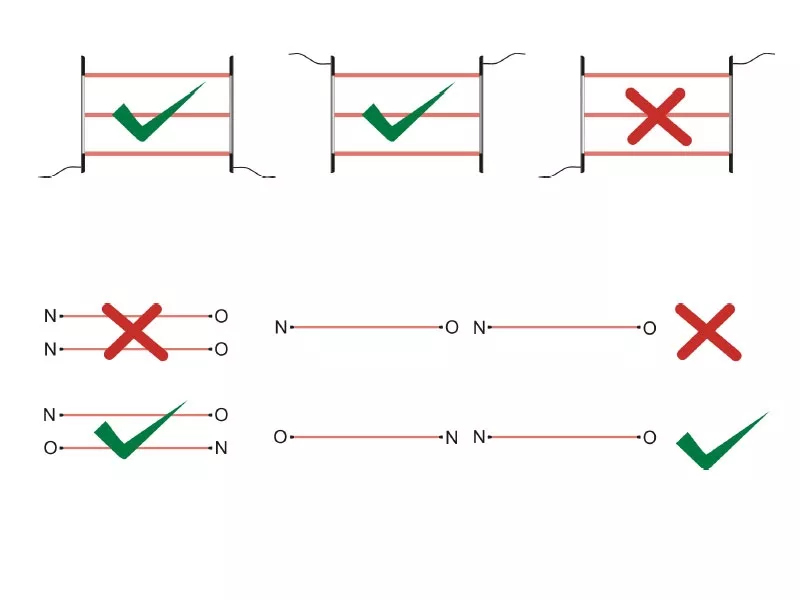

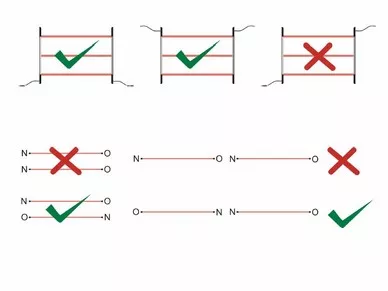

Barrierscan be mounted facing power lines up or down. Do not install powerlines facing opposite directions.

Configuration

Start-upand basic configuration can be performed manually by setting jumpersdirectly on the electronic board pins. Full configuration anddiagnostics is only possible using a computer with installed ACTIVAsoftware.
