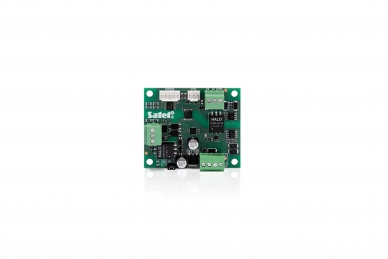

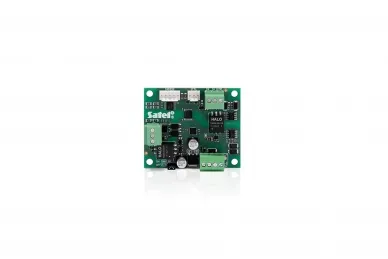

Satel ACSP-RSI Printer and galvanic isolation module for the RS-485 bus

170,36 EUR including 23.00% VAT
Product code: #43176
Manufacturer: Satel
  • Supply voltage: 12-18 V DC
  • Galvanic isolation of the RS-485 bus
  • Connecting a serial thermal printer
  • Dimensions: 61 x 51 mm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Satel ACSP-RSI Printer and galvanic isolation module for the RS-485 bus


The ACSP-RSI module is used for galvanic isolation of the ACSP-402 fire alarm control panel and APSP-402 repeater panel connected using the RS-485 bus. Owing to this, the repeater panel does not to be connected to the same protective earth circuit (PE) as the control panel. The module may be used for connecting a serial thermal printer which can provide printouts of events registered by the control panel. The module is an optional element of the ACSP addressable fire alarm system.

FEATURES:
  • galvanic isolation of the RS-485 bus
  • RS-485 port for connecting the ACSP-402 / APSP-402 repeater panel
  • RS-485 port for connecting to a second ACSP-RSI module
  • capability to connect a thermal serial printer
  • 12-18 V DC power supply from the ACSP-402 control panel / APSP-402 repeater panel
  • removable terminal blocks

TECHNICAL DATA:

  • Power supply voltage: 12-18 V DC
  • Current consumption: 45 mA
  • Maximum humidity: 93±3%
  • Operating temperature range: -10°C...+55°C
  • Dimensions: 61 x 51 mm
  • Weight: 28 g
