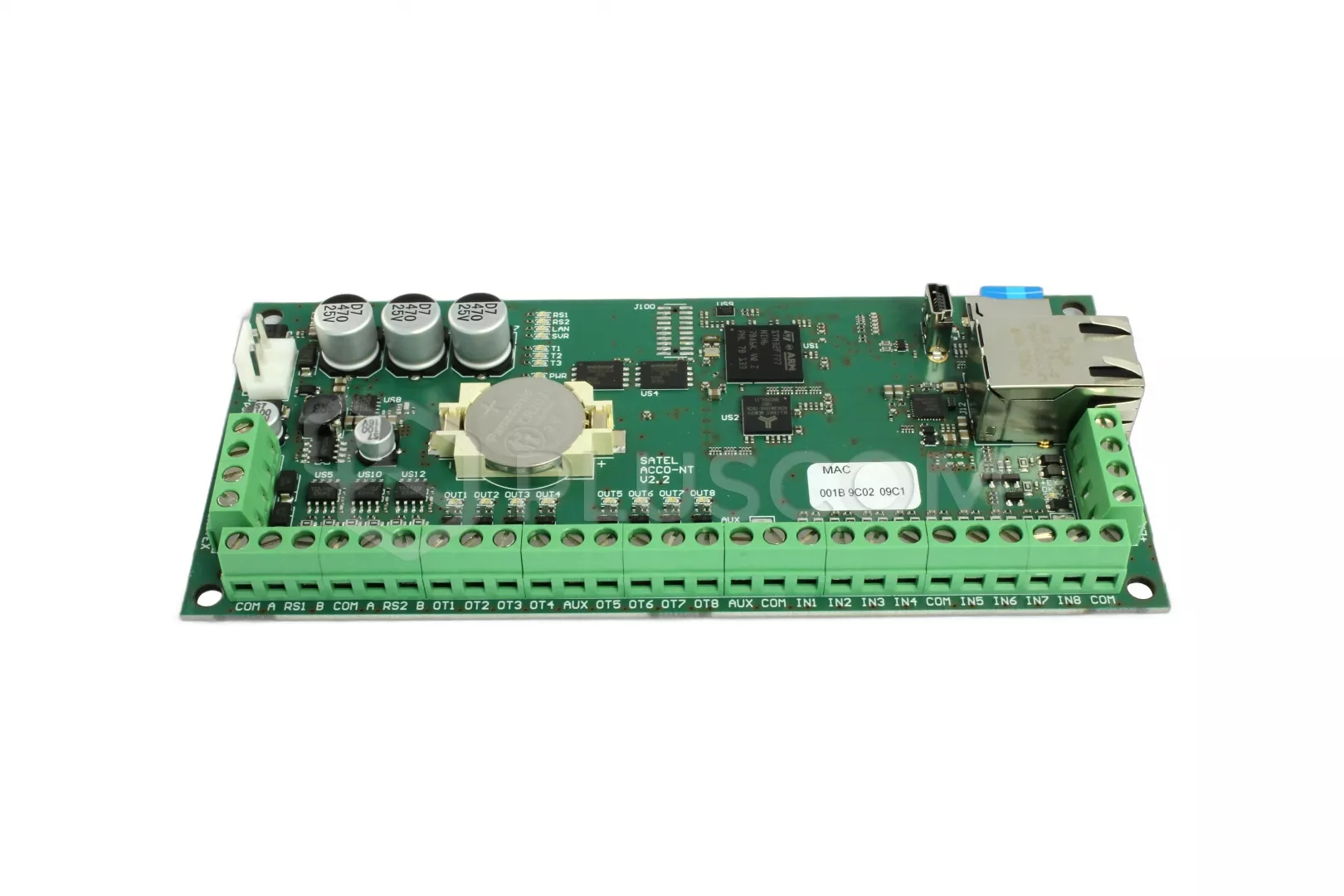

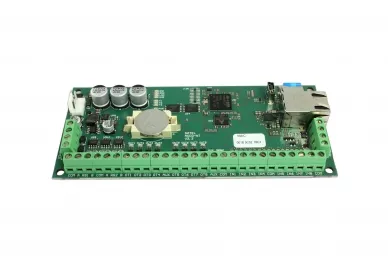

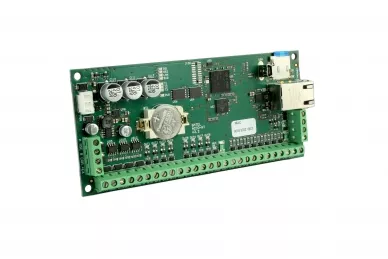

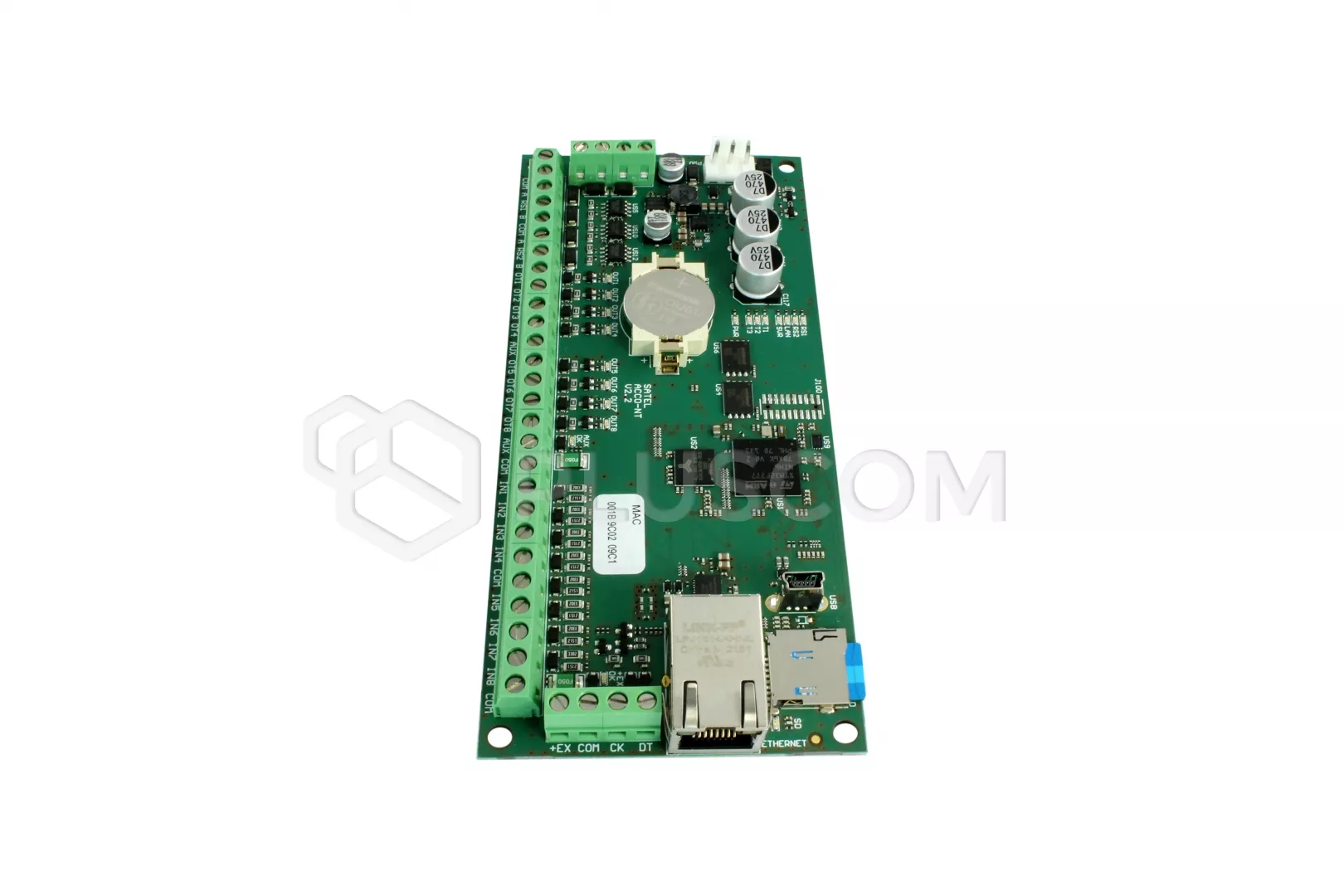

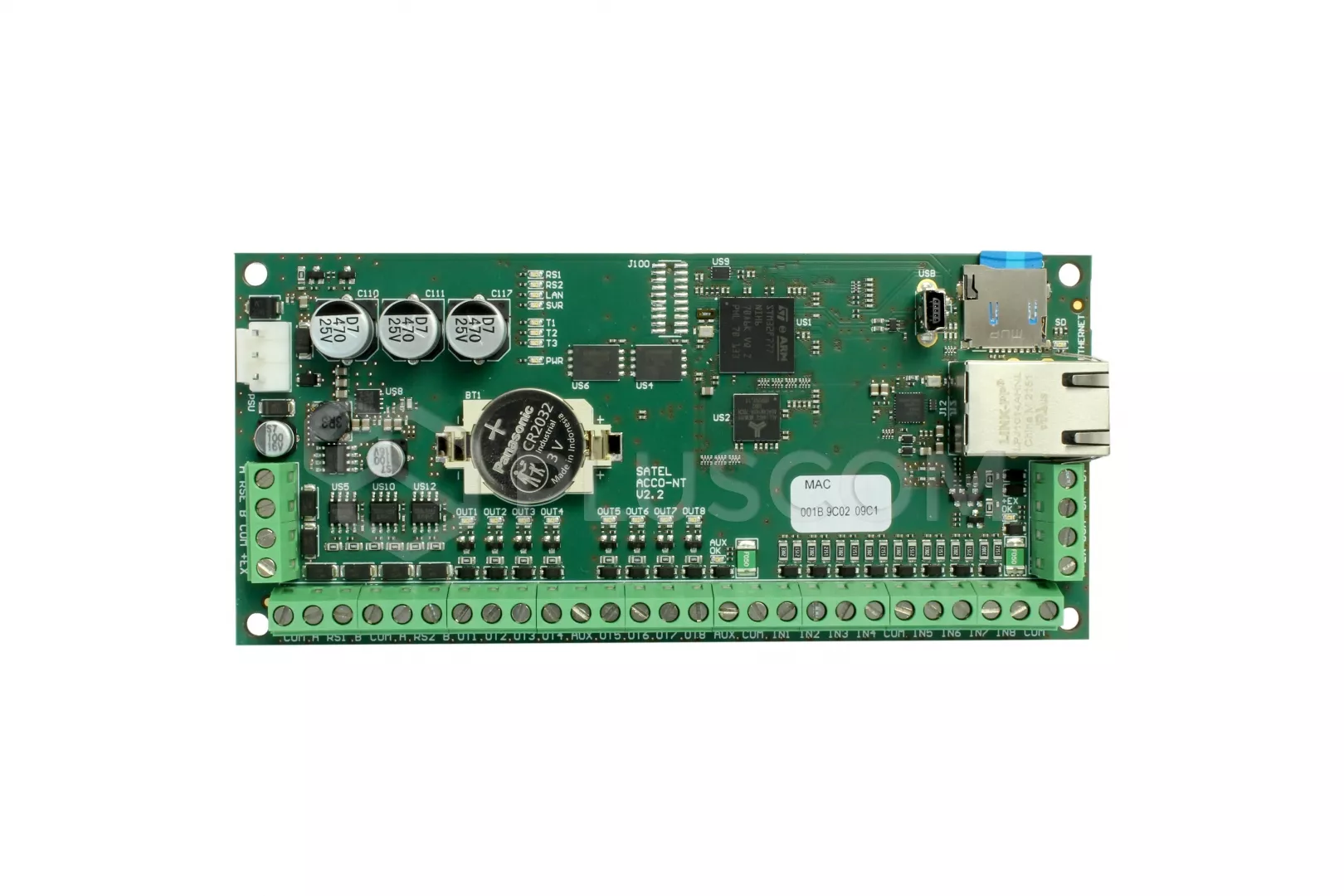

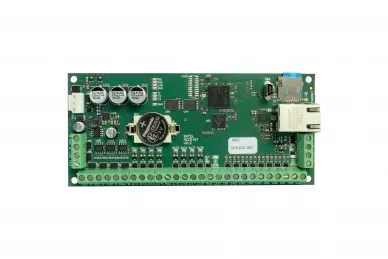

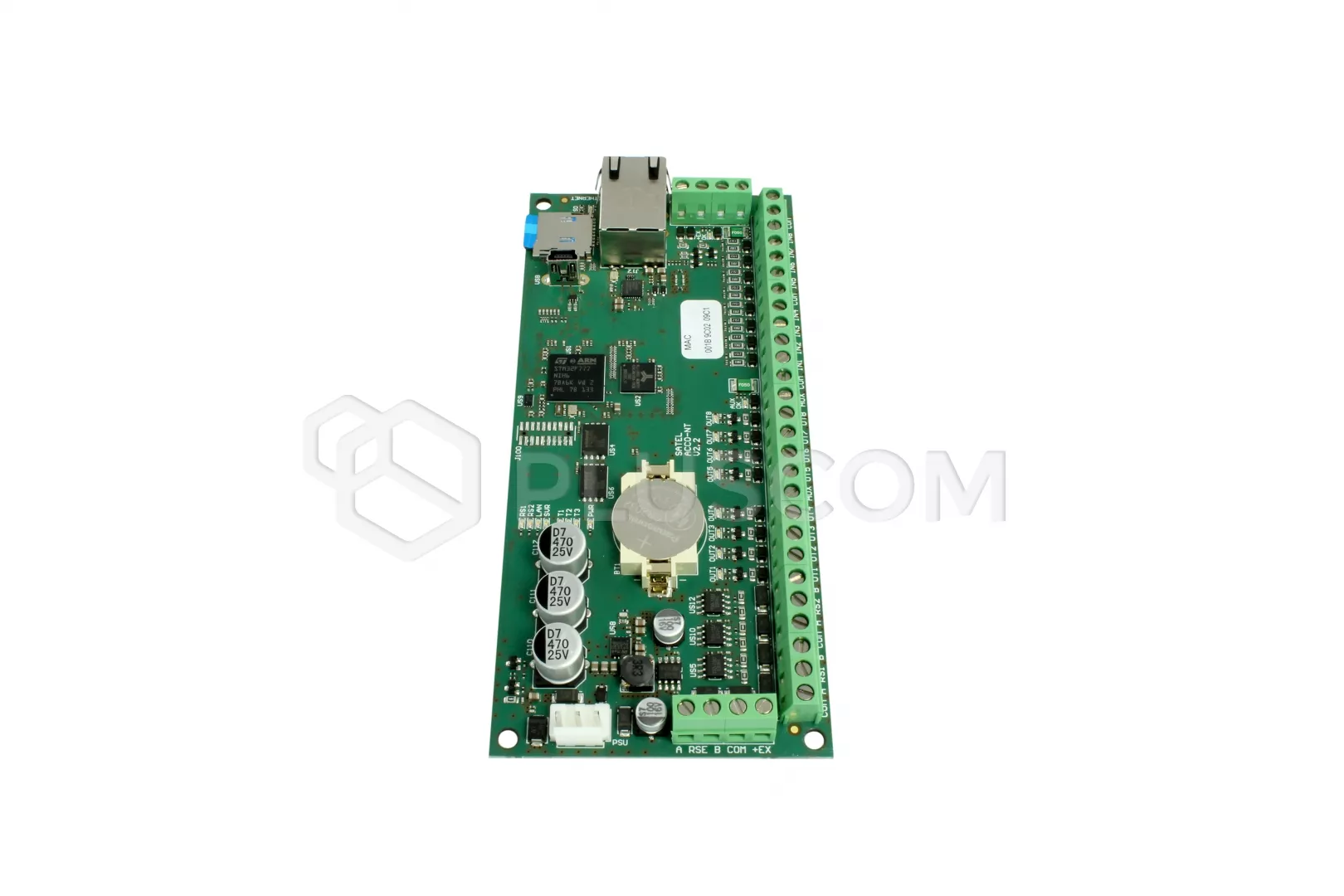

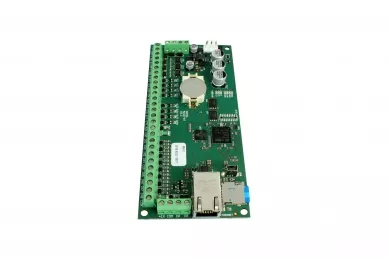

Satel ACCO-NT2 Access control panel

Satel ACCO-NT2 Access control panel

access control panel, which is an element of the ACCO access control system NET. It can be integrated with many burglary and assault alarm systems based on INTEGRA and INTEGRA Plus control panels.

ACCO-NT2 has the option of programming complex logical operations on outputs, thanks to which it is possible to implement non-standard functions control. What's more, the control panel provides support for 8,000 users (up to 65,000 in entire system), and each of them can be assigned 4 identifiers (cards, key rings, Dallas pills, etc.) and remote control.
The ACCO-NT2 access control panel works with door controllers ACCO-KP2 and archival ACCO-KP, ACCO-KPWG, ACCO-KP-PS models, ACCO-KPWG-PS (only in version 3.06 or higher).

KEY FEATURES

• up to 255 access control modules
• possibility to create up to 255 zones in 1 control panel (in the zone it is possible to define up to 255 access control modules)
• possibility to add up to 16 paths of transitions (in each path the possibility of define up to 16 zones)
• 8 programmable zones on the control panel board, expandable up to 264 enter
• 8 programmable outputs on the control panel board, expandable up to 264 exit
• 2 high-current outputs on the control panel mainboard that perform the function power outputs (load capacity of each output: 0.5 A / 12 V DC ± 15 %)
• possibility of connecting up to 32 expanders directly to the control panel: INT-E, INT-IORS, INT-O, INT-ORS, INT-PP, INT-RX-S
• electrical protection of all inputs, outputs and buses communication
• socket for connecting the APS-412, APS-612 or APS-612 buffer power supply APS-1412
• USB MINI-B port for configuring network settings and updating the control panel firmware
• status LEDs:
• • communication between control panel and RS-485 buses, computer and server
  • power system
  • microSD cards
• events are saved in the non-volatile memory of the control panel:
• • up to 1,000,000 events from the control panel
  • 100,000 events from each access control module
• number of users: 8,000 in the central office (65,000 in the entire system)
• can be assigned to a user:

• code
• passive transponder (in the form of, for example, a proximity card or key fob)
• Dallas pills
• pilot

• possibility of assigning 4 identifiers and 1 to one user remote
• access to selected zones in a specific time period
• the ability to unlock or lock a zone at a certain time or according to the access calendar
• implementation of logical functions on inputs and outputs
• tripod support
• possibility to control control panel outputs with key fobs
• possibility of mounting the control panel in the OPU-3 P housing or OPU-4 P
