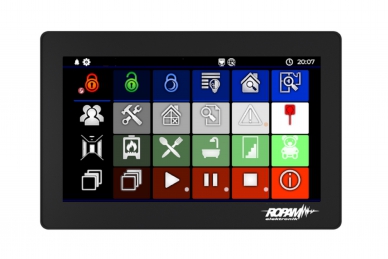

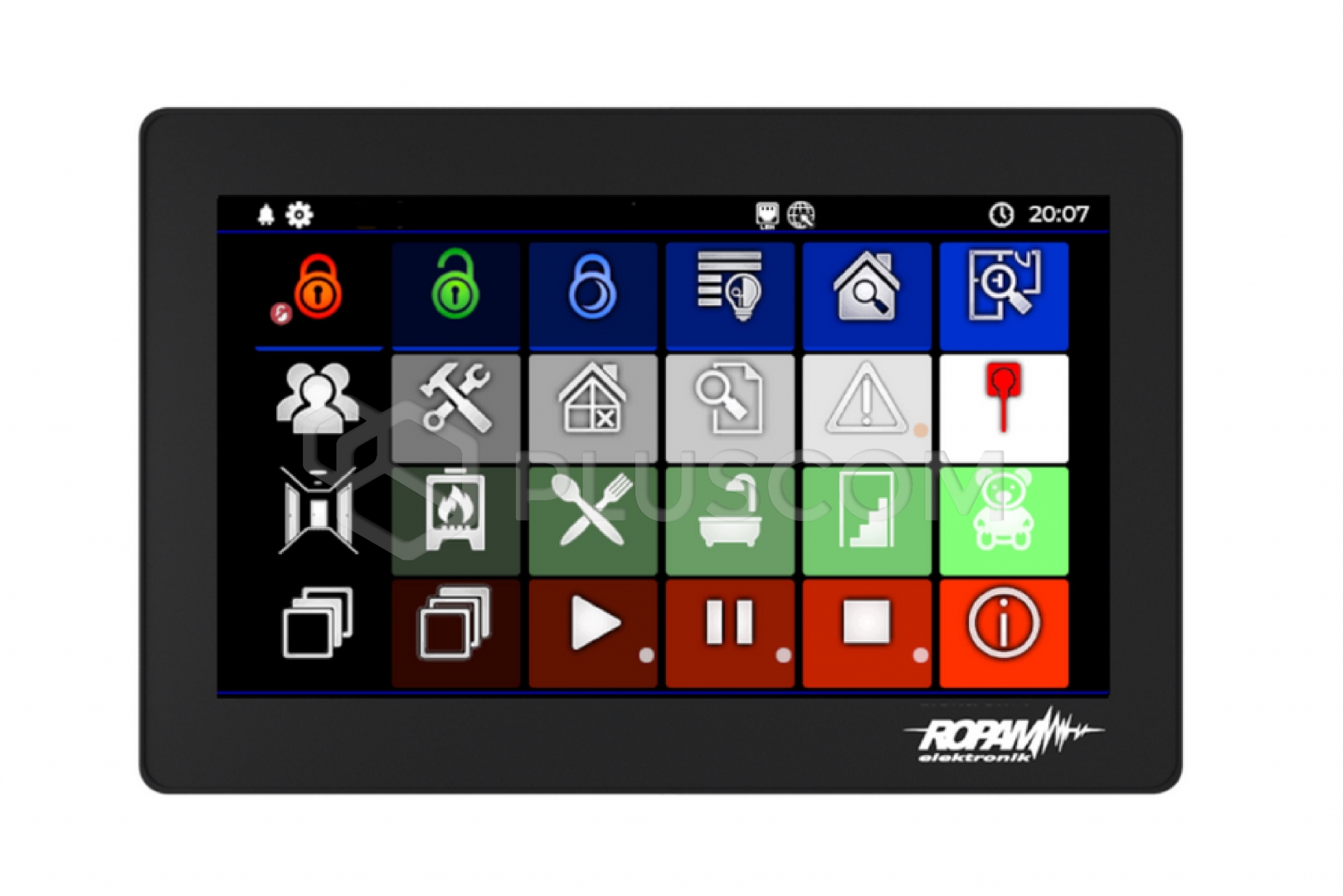

Ropam TPR-7B Touch Panel 7″ Black

Product code: #43218
Manufacturer: Ropam
  • Supply voltage (min/max): 9/14 VDC
  • Output type: OC type transistor output in active state is shorted to the supply ground in inactive s
  • Display: 7'' LCD with capacitive touch panel
  • System communication: RopamNET system bus
  • Anti-sabotage protection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Ropam TPR-7B Touch Panel 7″ Black


The TPR-7B touch panel is a modern control and monitoring element for your alarm system. Its modern design, proven technology, and intuitive, clear interface make controlling your alarm system and home automation easier than ever.

TPR-7 series touch panels are compatible with the following control panels:

  • NeoLTE-IP-64
  • NeoGSM-IP-64
  • Neo-IP-64

FEATURES:

  • 7″ touch panel
  • 800x480px color display
  • Capacitive touchscreen
  • Available in two colors: white/black
  • Interactive, personalized menu with over 80 widgets to choose from
  • 3 configurable screens with free icon arrangement
  • Dynamic icons that change appearance depending on input status
  • Text Tips for specific widgets and their functions
  • Individual and configurable background color for each icon – NEW

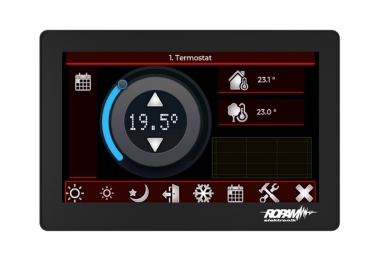

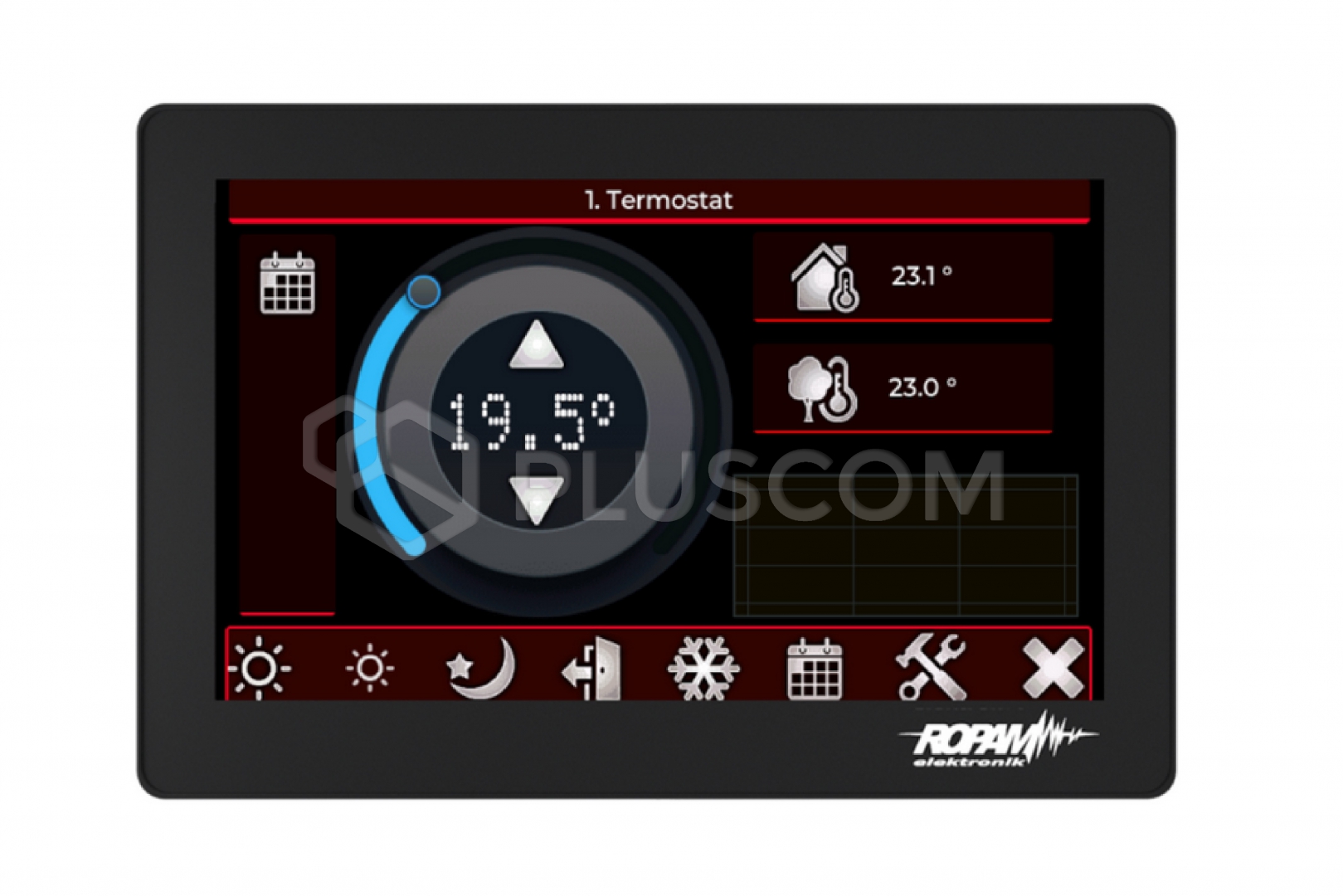

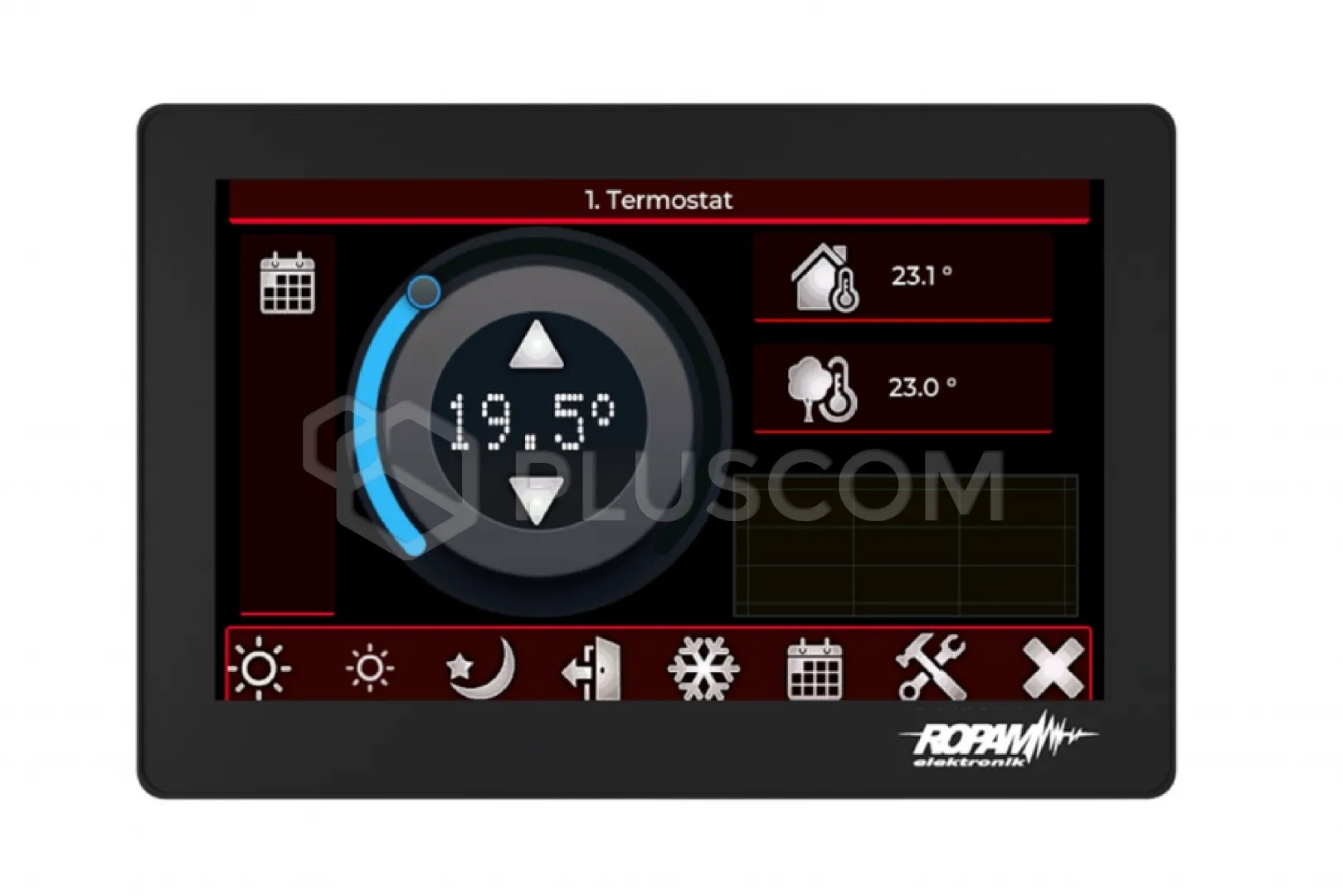

  • Home automation control: blinds, lighting, gates and barriers, room thermostat, and much more
  • Possibility to group devices in a single widget – NEW
  • Screen saver with calendar, clock, temperature, or photo frame functions
  • Audible alarm
  • Built-in SD card slot
  • Communication with the control panel via the RopamNET bus
  • Panel updates from an SD card – NEW
  • 2 additional alarm inputs
  • 1 built-in transistor output
  • Housing tamper protection
  • Dimensions and weight: 177x116x18 mm, 470 g
  • Separable terminal blocks

Technical specifications:

  • Supply voltage (min/max): 9/14 VDC
  • Current consumption (min/max): 200/240 mA
  • Connectors: Self-locking, flat
  • Output type: OC transistor output is shorted to ground when active; when inactive, it is in HiZ state.
  • Output current capacity: (max) 0.7 A
  • Input type: Configurable from: NO, NC, EOL, 2EOL/NO, and 2EOL/NC
  • Communication System bus: RopamNET system bus
  • Display: 7” LCD with capacitive touch panel
  • Fault indication: Buzzer
  • Housing protection: Tamper protection: removal from the wall
  • Operating conditions: Indoors
  • Temperature: -10 to +55 °C
    - Relative humidity: 20 to 90% non-condensing
  • Dimensions: 177x116x18 mm
  • Weight: ~ 385 g
