Ropam SROL-S Roller blind controller

40,79 EUR including 23.00% VAT
Product code: #21920
Manufacturer: Ropam
  • Autonomous with local and central control
  • Cooperation with NeoGSM-IP / IP-64, OptimaGSM, BasicGSM 2, MultiGSM 2
  • Galvanic separation
  • Local and central control
  • Flush mounting Ø60
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam BasicGSM 2 GSM Notification and control module The modular control panel Ropam OptimaGSM Ropam NeoGSM-IP-64 Alarm control panel with GSM/IP communication Ropam NeoGSM-IP Alarm control panel with GSM/IP communication Ropam MultiGSM 2 GSM Notification and control module

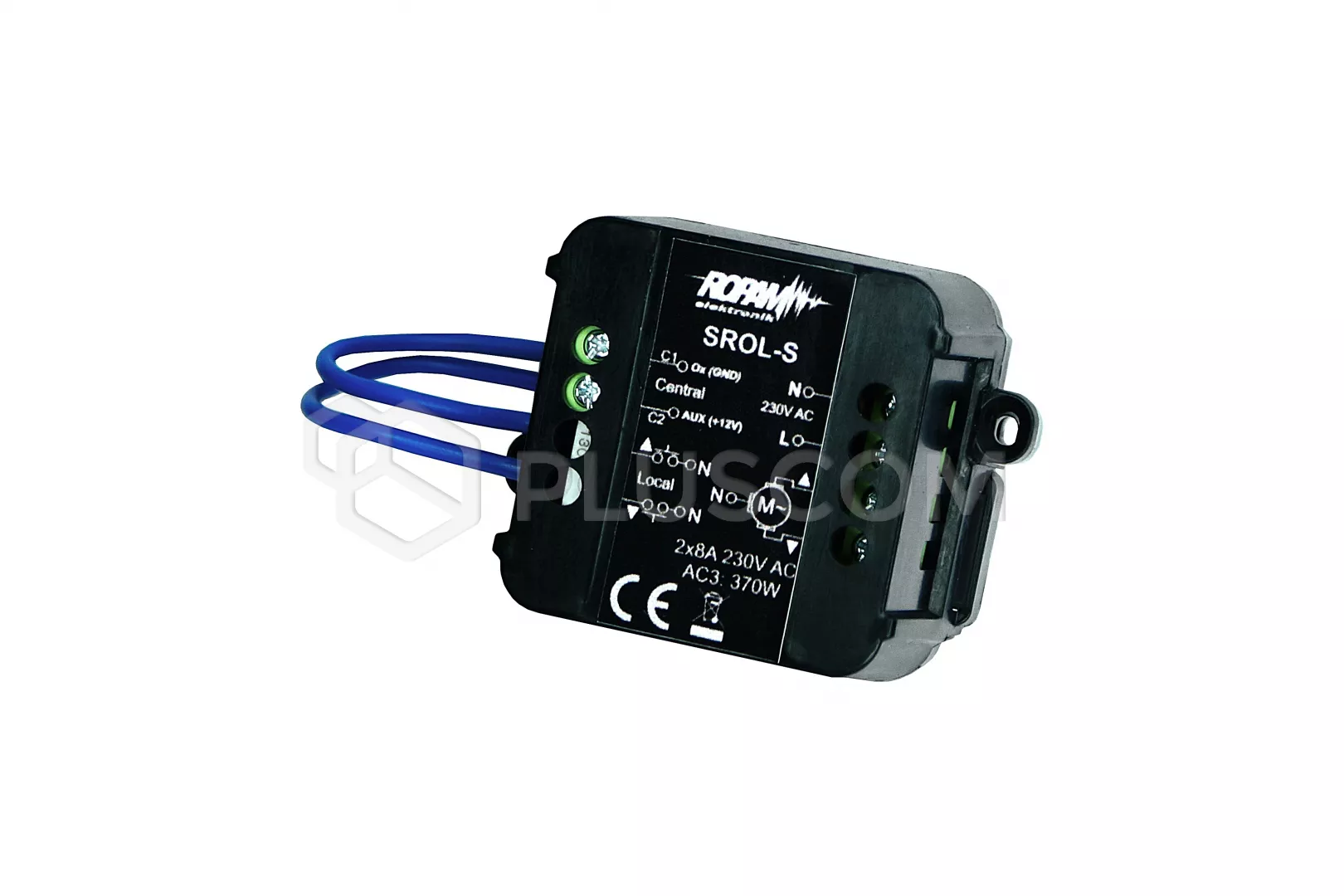

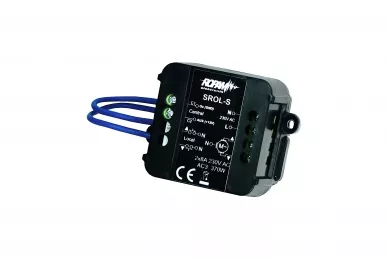

Ropam SROL-S Roller blind controller


SROL-S is a wired controller for wired control of window blinds or other similar devices. The module is supported by the control panels NeoGSM-IP / IP-64, OptimaGSM, BasicGSM 2, MultiGSM 2, as well as cooperates with third-party switchboards.

SROL-S provides intuitive control in touch panels and applications mobile widget "blinds" through radio remotes and functions logic.

PROPERTIES
  • wired roller blind controller, autonomous with central control
  • local control 230VAC (N) with double roller blind connectors (without memory) or single connector (bell button)
  • central control 12VDC from the control panel outputs (transistor outputs)
  • intuitive control in touch panels, mobile applications, 'blinds' widget, through radio remotes, logic functions
  • compatibility with NeoGSM-IP, NeoGSM-IP-64: one output in 'roller blind' mode allows to get the functions: up / down / stop
  • In the NeoGSM-IP system, it is possible to connect 16 independently controlled roller blinds or roller blind groups (eg 16 x 10 roller blinds)
  • compatibility with OptimaGSM, BasicGSM 2, MultiGSM 2: two outputs allow you to get the functions: up / down / stop
  • compatibility with other systems, control panels or controllers with transistor outputs (OC)
  • automatic setting of full up / down time
  • damaged relay motor protection
  • high quality relays (AC3: 350W 1-phase 240VAC)
  • do-box assembly (can Ø60)
  • small dimensions 45x58x26mm
  • galvanic separation between local and central 1.5kV control
  • power consumption: ~ 0.35 standby / 1W work
