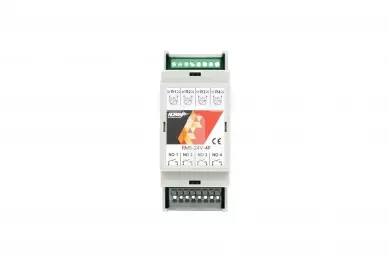

Ropam RM5-24V-4P 4-channel relay module

49,20 EUR including 23.00% VAT
Product code: #33438
Manufacturer: Ropam
  • Number of relays: 4
  • 4 channels
  • Trigger: 24VDC, 2A/1250V AC
  • Built-in surge protection system
  • TH35 2M DIN rail module
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

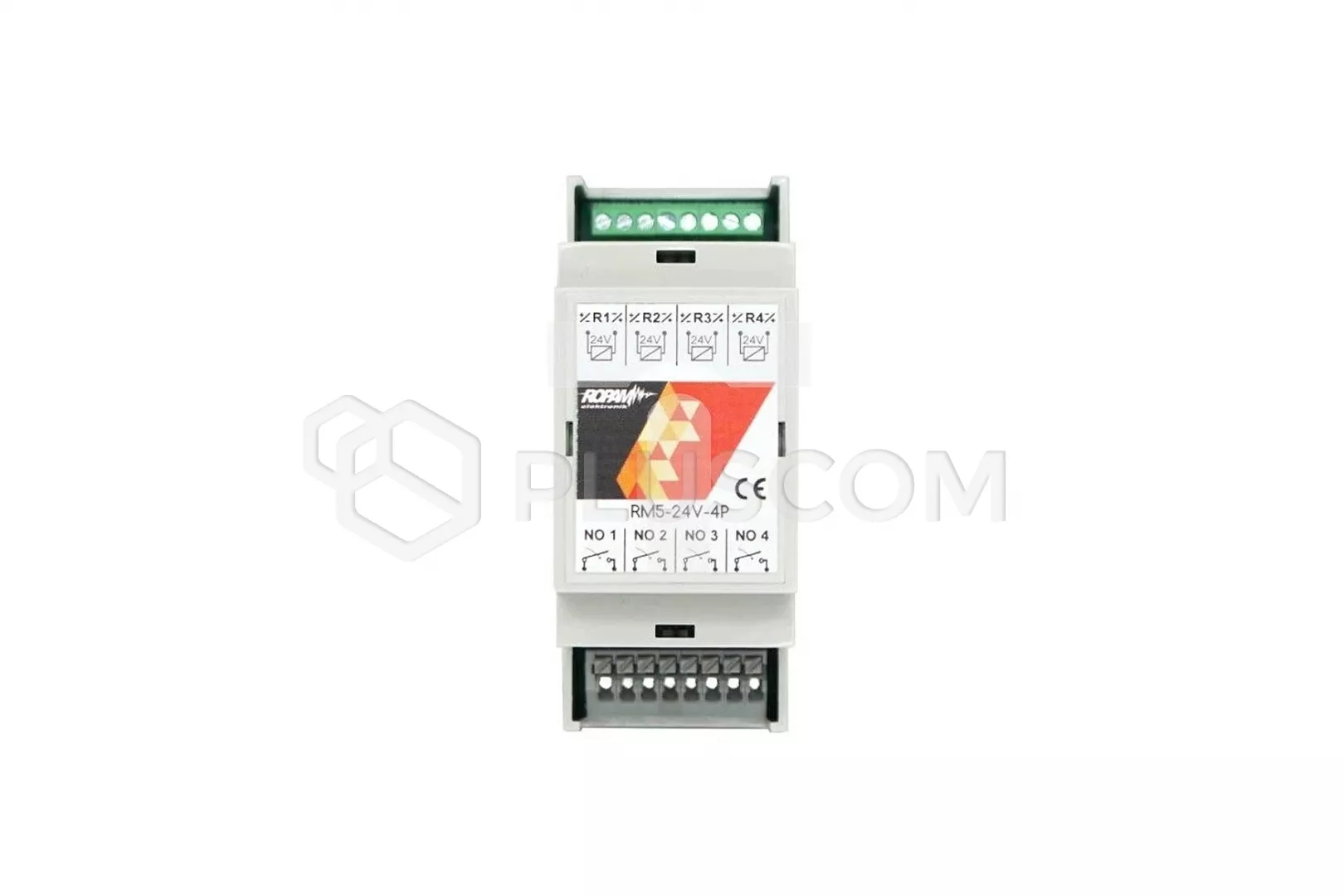

Ropam RM5-24V-4P 4-channel relay module

Relay module RM5-24V-4P, which is used to control other electrical devices. Is designed for mounting on a 2M DIN rail.
The module has four normally open (NO) contacts, which means it is at rest the contacts are disconnected, and when the relay coil is activated, the contacts are open closed. The relay coil requires a 24V DC power supply and operates in single-pole mode (SPST).

The module was designed to work in industrial conditions, and its the maximum load is 5A at a rated voltage of 250V AC. Built-in LED signaling allows you to monitor the relay status. Additionally, a module is equipped with surge protection, which increases its protection reliability and extends service life.

Properties of the RM5-24V-4P relay:
  • to be controlled via: OC/NPN transistor outputs (separation) 230V devices or devices requiring potential-free contacts (e.g. automation gates)
  • trigger: 24VDC, 5A/250VAC
  • built-in surge protection system (does not require a diode on the coil)
  • terminals WAGO screw connectors/spring connectors (C/NO)
