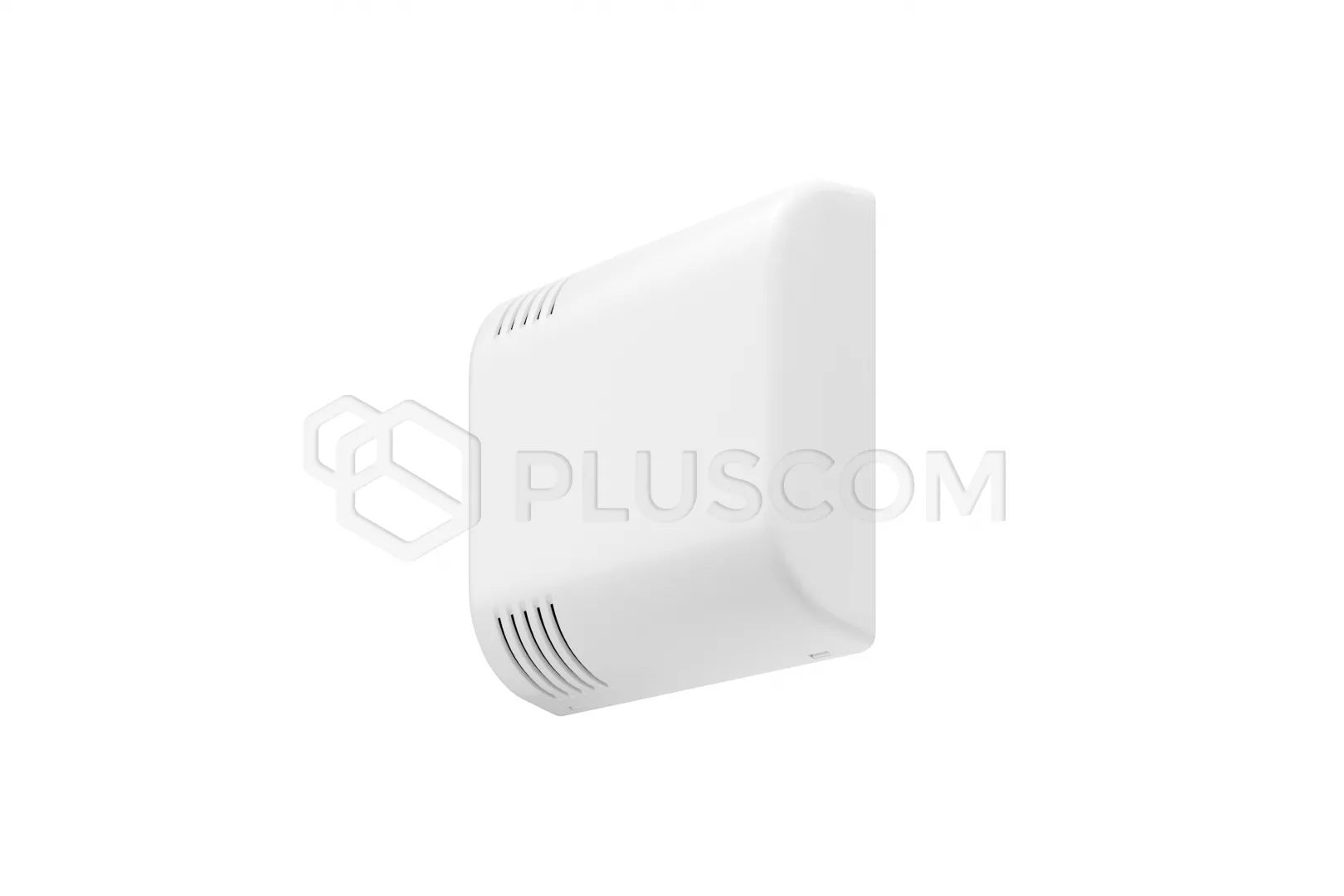

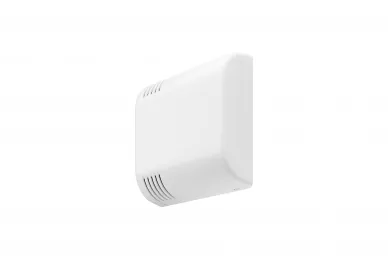

Ropam RHT-AQ-RN Temperature, humidity and air quality sensor - wired

Ropam RHT-RN Sensor temperature and humidity - Wired

RHT-RN is a wired air temperature and humidity sensor, closed in ABS surface-mounted housing. The device measures the room temperature (-20 ° C ... + 80 ° C) and air humidity (0 - 100% RH). The sensor is based on calibrated, digital transducer of temperature + air humidity.

The device communicates with the control panel based on the communication bus RopamNET and works with the NeoGSM-IP-64 series control panels.

FEATURES:

• temperature measurement in the range -20 ° C to + 80 ° C (sensor built-in air)
• humidity measurement in the range of 0-100% RH non-condensing
• measurement of CO2 concentration in the range of 400 - 6000 ppm
• measurement of TVOC (volatile organic compounds) concentration in the range of 0 - 3000 ppb
• high-class digital converter of temperature + air humidity and digital converter of CO2 and TVOC
• high-end digital temperature + air humidity sensor
• RopamNET (-RN) bus up to 1200m
• compatibility: NeoGSM-IP-64 (8)
• possibility of connecting a wired temperature sensor: TSR-1x (probe)

TECHNICAL DATA:

• power supply: 9-14 V DC (from the RopamNET bus)
• current consumption 35 - 40 mA
• temperature measurement range: -20 ° C ~ 80 ° C
• humidity measurement range: 0 ~ 100% RH
• communication RopamNET bus
• ABS surface mounted enclosure
• working conditions: -20 ° C to + 80 ° C
• dimensions: 80x25x80mm
• weight: 50g
