Ropam RHT-2H Temperature and humidity sensor - wired, in a hermetic casing

92,47 EUR including 23.00% VAT
Product code: #21927
Manufacturer: Ropam
  • Hermetic casing 64x117x36mm
  • Temperature measurement range: -20 ° C ... + 80 ° C
  • Humidity measuring range: 0 - 100% RH
  • Work with OptimaGSM, BasicGSM 2, MultiGSM 2, NeoGSM-IP
  • Power supply: 12-24 VDC or from the TSR-x bus
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam BasicLTE-SET LTE module set + GSM/LTE antenna in a housing Ropam BasicLTE LTE notification and control module with power supply and DIN housing Ropam BasicLTE LTE notification and control module with 12V/1.5A power supply Ropam BasicLTE-D4M LTE notification and control module for DIN rail Ropam BasicLTE-BOX LTE + AT-GSM-MINI90 module set in a housing Ropam BasicLTE LTE notification and control module (2G/4G)

Ropam RHT-2H Temperature and humidity sensor - wired, in a hermetic casing

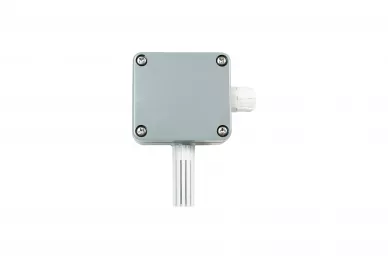

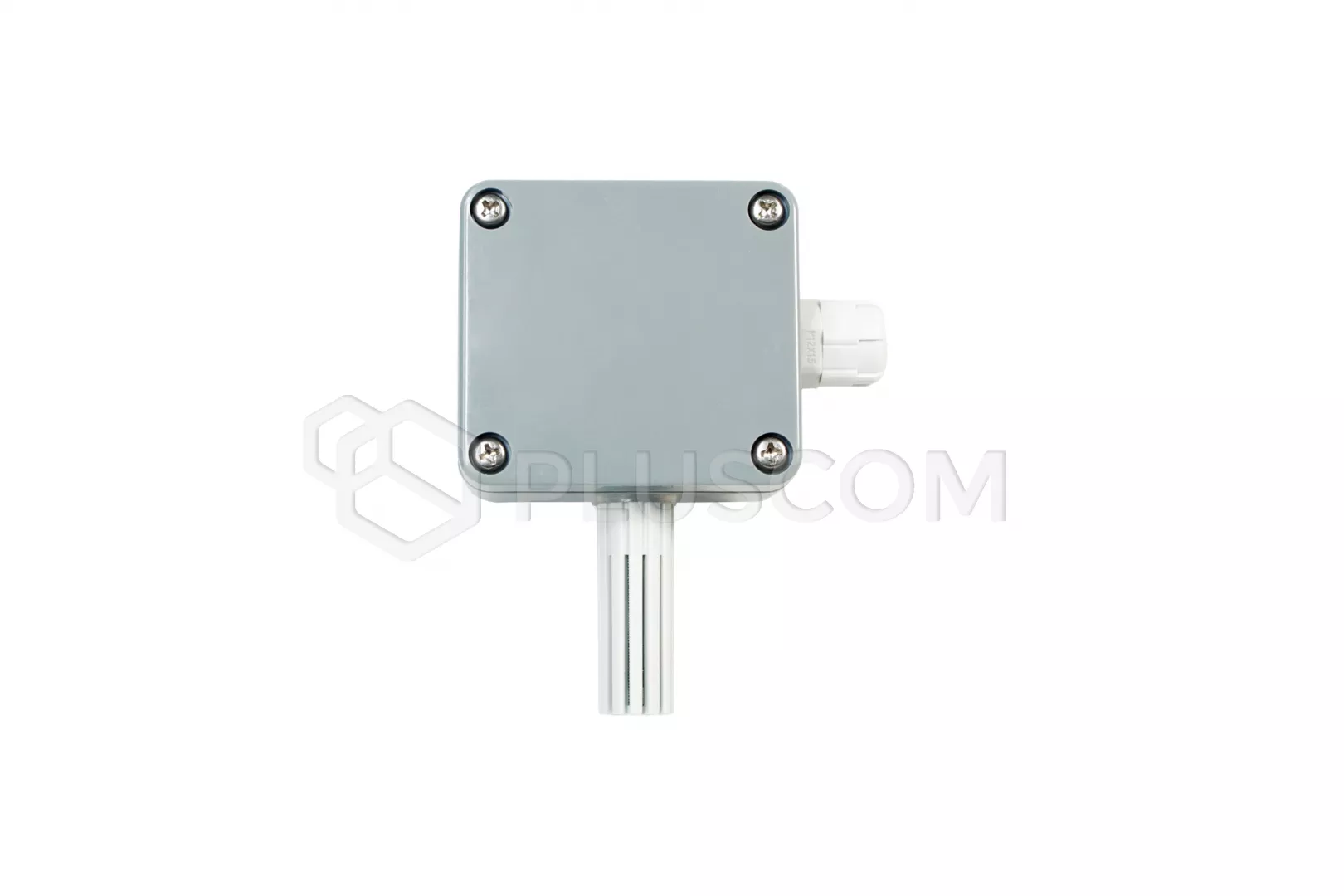

RHT-2H is a wired air temperature and humidity sensor, closed in hermetic casing IP65 with a protection filter (IP63). The device measures room temperature (-20 ° C ... + 80 ° C) and air humidity (0 - 100% RH). The sensor is based on a calibrated digital temperature converter + air humidity. It cooperates digitally with selected Ropam Elektronik systems or via analog outputs with other devices with inputs analog 0-10 e.g. PLC controllers.
Dedicated to home automation and climate control, it performs functions thermostat.

FEATURES:
  • digital bus compatible with TSR-x (for temperature sensors) - NeoGSM-IP (-64)
  • analog outputs T 0-10V: temperature in the range -20 ° C to + 80 ° C
  • analog outputs RH 0-10V: humidity in the range 0-100% RH
  • power supply: from TSR-x bus or 12-24 VDC (standalone operation)
  • compatibility: NeoGSM-IP (TSR-x bus), OptimaGSM, BasicGSM 2 ,, MultiGSM 2 (analog outputs 0-10V)
  • compatibility: HVAC heating and air conditioning controllers, controllers PLC, (analog outputs 0-10V)
  • optical operation signal

TECHNICAL DATA:
  • power supply: DC 12 ~ 24V or from TSR-x bus
  • temperature measurement range: -20 ° C ~ 80 ° C
  • humidity measurement range: 0 ~ 100% RH
  • surface-mounted ABS housing, IP65 with protection filter (IP63) for operation in difficult conditions
  • working conditions: -20 ° C to + 80 ° C
  • dimensions: 64x57x36mm, 64x117x36 (with filter and glands)
  • weight: 90g
