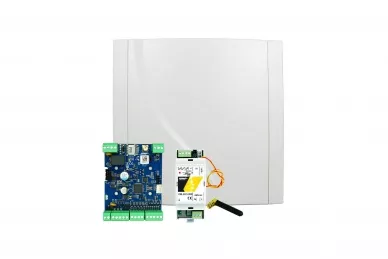

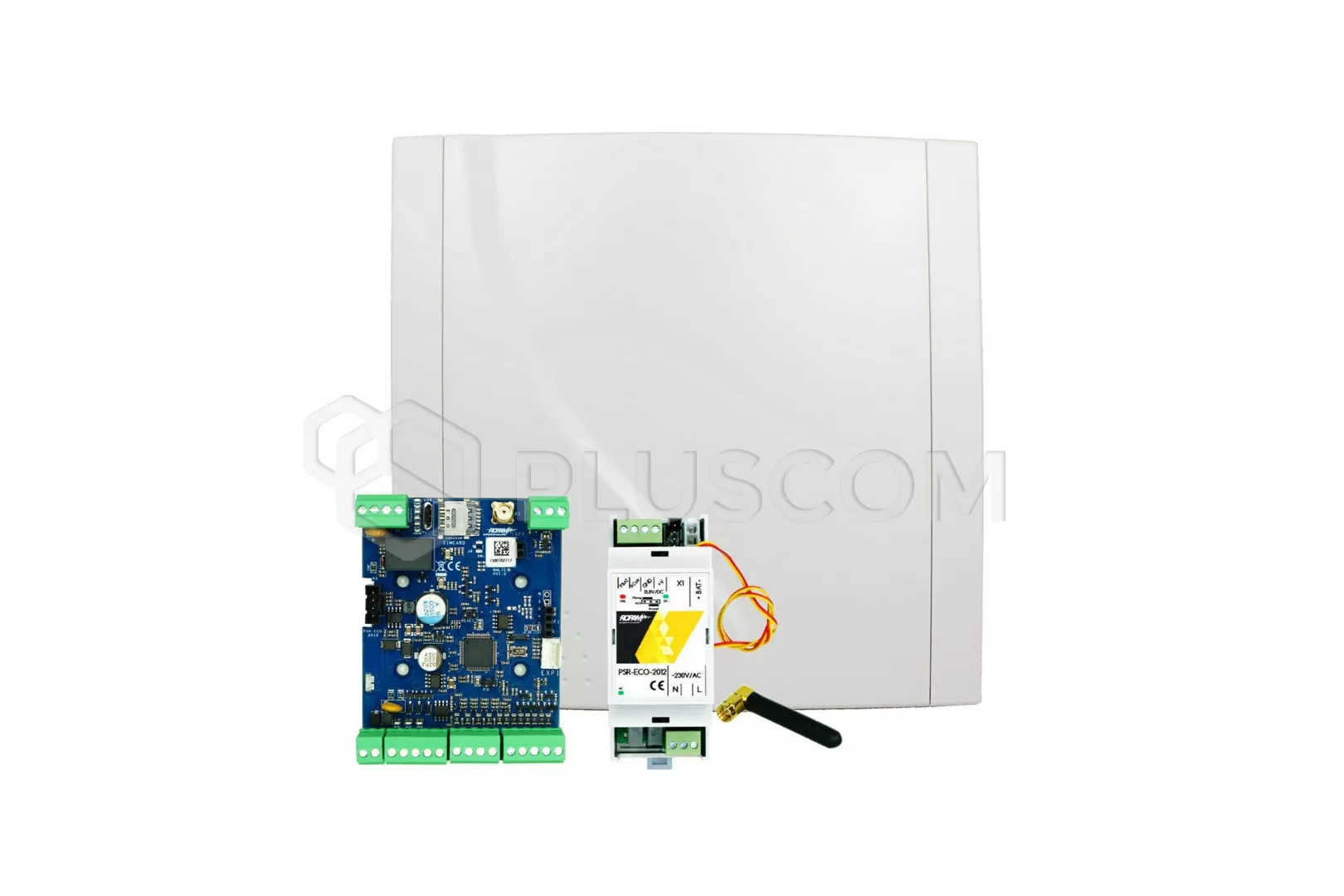

Ropam BasicLTE-SET LTE module set + GSM/LTE antenna in a housing

247,54 EUR including 23.00% VAT
Product code: #27554
Manufacturer: Ropam
  • O-R3P surface-mounted housing with space for a 7 Ah battery
  • The set includes a PSR-ECO-2012 12V/1.5A power supply
  • AT-GSM-MINI90 antenna
  • 8 inputs NC, NO / 4 outputs controlled
  • Power supply 230V AC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam TR-4 Radio transmitter Ropam TSR-1 Digital temperature detector - wired Ropam RM85-12V-1P Relay module Ropam EXP-RF 433 MHz RF receiver for controlling remote controls Ropam RHT-2H Temperature and humidity sensor - wired, in a hermetic casing Ropam RHT-2 Sensor temperature and humidity - Wired

Ropam BasicLTE-BOX LTE module set + GSM/LTE antenna in a housing and PSR-ECO-2012 power supply

BasicLTE Ropam communication module with a built-in LTE modem O-R3P surface-mounted housing with space for a 7 Ah battery, supplemented with the AT-GSM-MINI90 antenna and the PSR-ECO-2012 power supply. The module supports 4G networks and 2G. The device is equipped with an SMA antenna connector. BasicLTE is a module dedicated to integration with alarm control panels and controllers. It can also function as an alarm control panel. The module has 8 programmable inputs and 4 controlled outputs.
Modules from the BasicLTE series can be expanded with an EXP-RF radio receiver, thanks to which it is possible to control the module using TR-4 remote controls.

MODULE PROPERTIES:
  • built-in LTE modem with support for 4G and 2G networks (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
  • dedicated RopamBasic mobile application (Android, iOS) using the RopamBridge server for connection
  • 8 programmable inputs (I1-I6 NO/NC inputs, I7-I8 analog NO/NC inputs GND/+12V or 0-10V, 4-20mA)
  • 4 controlled outputs: O1 relay output, O2-O4 transistor outputs with short-circuit protection (0.7A)
  • 1 AUX output protected (1A)
  • FAC input for AC voltage control, e.g. in an alarm control panel
  • SMS/CALL/E-MAIL notifications (independent messages for events in the system)
  • VOICE/CLIP calls: independent voice call for events in the system with voice messages
  • support for up to 8 users: 8 phone numbers, 8 e-mail addresses
  • support for temperature sensor (TSR-x) or temperature and humidity sensor (RHT-2x)
  • USSD code support (pre-paid card control)
  • RTC clock, calendar, synchronization with LTE network or NTP servers
  • option to upload and play 8 voice messages
  • event memory: 1000 events with overwriting
  • programming: local via micro USB, remote via LTE/GPRS (RopamBridge server)
  • alarm module, alarm control panel functions
  • IP monitoring, cooperation with RMS or Kronos NET station/server, encrypted TCP/IP transmission, two IP addresses
  • intuitive visualization and control of alarm panels
  • smaller dimensions, compact design, detachable connectors and connectors
  • Built-in LogicProcessor:
    • advanced logical functions, arithmetic functions, counters, time relays
    • 10 independent logical conditions (if-then-else blocks)
    • 10 time relays to implement time-logical functions
    • 4 calendar timers
  • surface-mounted housing with anti-tamper protection
  • AT-GSM-MINI90 antenna
  • the set includes a PSR-ECO-2012 12V/1.5A power supply

APPLICATION
  • electronic burglary and intrusion detection systems
  • home automation system
  • programmable functions of time relays
  • control and control systems via LTE network
  • temperature control and surveillance systems
  • control and supervision systems for analog value from sensors with 0-10V/4-0mA output
  • control and supervision systems for energy transmission networks
  • access control systems
  • transmission and control of technical processes, e.g. pumping stations, breeding farms
