Ropam NeoLTE-IP-PS-SET Alarm control panel with LTE communication

Ropam NeoLTE-IP-PS-SET Alarm control panel with LTE communication

An alarm control panel with LTE communication, a built-in WiFi module, and home automation functions.
NeoLTE-IP-PS, along with peripherals, is a solution that integrates an electronic intruder alarm system and home automation.

Thanks to its modular design, the system can be expanded and adapted to the user's changing needs.

Design and functions compliant with PN-EN 50131-3, Grade 2.

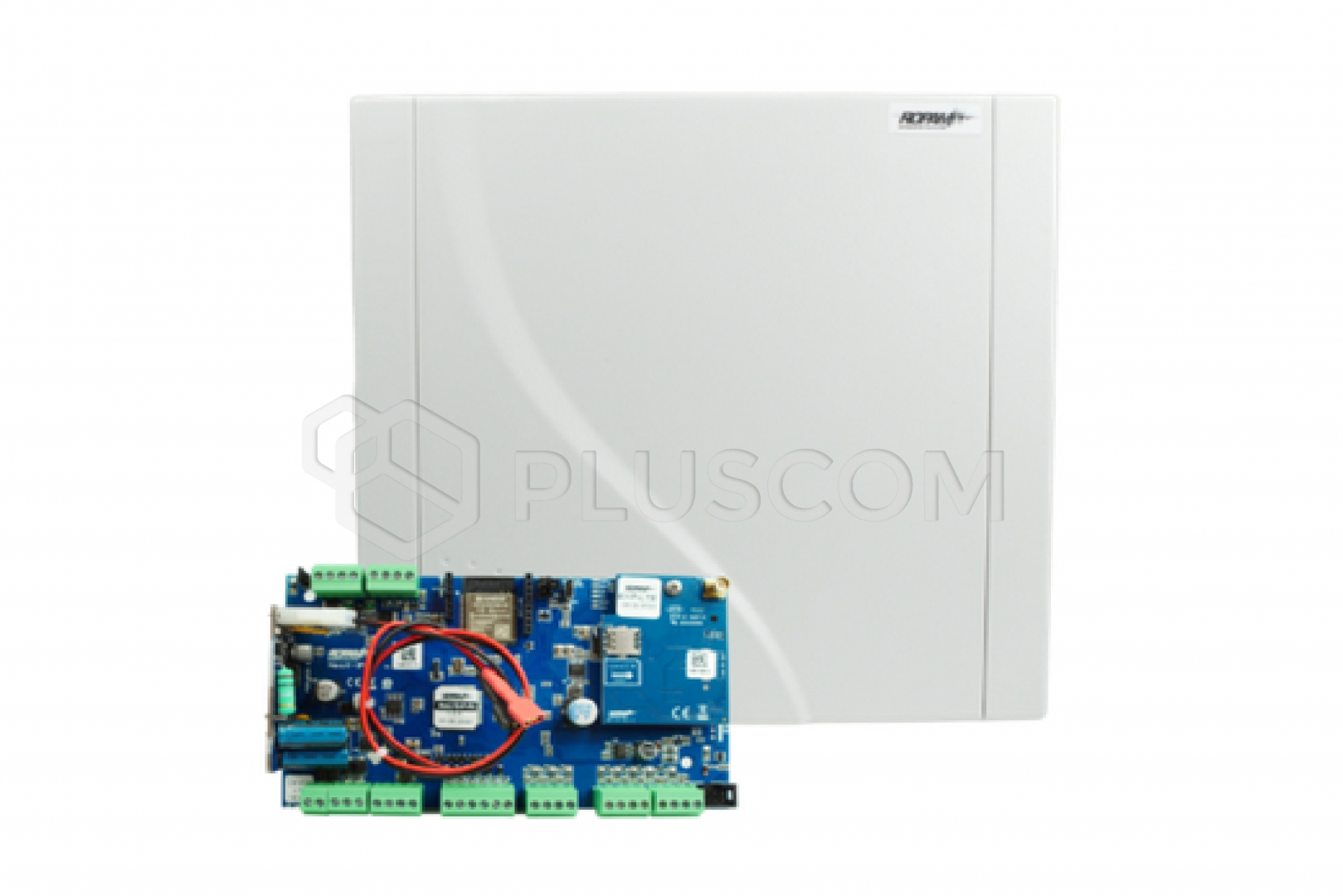

The kit includes:

• NeoLTE-IP-PS alarm control panel
• PS-3024 power supply
• AT-GSM-MINI90 antenna
• O-R3P surface-mount housing

FEATURES:

• LTE modem supports 4G and 2G networks (LTE-FDD: B1/B3/B5/B7/B8/B20/B28, GSM: 850/900/1800/1900 MHz)
• WIFI module (802.11 b/g/n, 2.4 GHz, with antenna on the housing)
• Wired LAN connection option via expander: EXP-LAN
• IP communication: WIFI/LAN primary channel, backup channels: GPRS/LTE
• Dedicated RopamNeo mobile application for online supervision and remote control
• 1 RopamNET communication bus for connecting and expanding the system with:
  – 4 TPR-4 touch panels or TK-4 touch keypads
  – 1 APm-ari wireless ari system controller
  – 2 EXP-O8R-RN-D9M/EXP-O8T-RN output expanders
  – 2 EXP-I8-RN input expanders
  – 1 EXP-I8 input expander
  – 1 RF-4C radio controller
• TSR connector for connecting 2 TSR-1/TSR-2/RHT-2 sensors
• Built-in Logic Processor for creating advanced logic functions
  – Advanced logic functions, arithmetic functions, counters, time relays
  – Graphical, block logic editor – DiagramEditor
• Programming: local via micro USB or WIFI/ETH, remote via GPRS/IP or LTE depending on the version
• USSD code support (prepaid card control)
• Convenient detachable terminal connectors

Building automation

• Support for 2 TSR temperature sensors or RHT temperature and humidity sensors – TSR connector
• Support for 1 heating zone (room thermostat function)
• Output control for Control of automation elements possible via: RopamNeo mobile app, SMS, DTMF, CLIP (KeyGSM)
• Analog AI input 0-10V or 4..20mA for monitoring physical parameters, e.g., battery voltage, humidity [%RH], temperature

Communication and control

• SMS notification and control – independent messages for system events
• PUSH notification to the RopamNeo mobile app
• VOICE/CLIP: independent voice connection for system events with voice messages (option to upload up to 16 messages)
• E-MAIL: independent email messages for system events, SMTP server support (SSL/TSL)
• GPRS monitoring: cooperation with the Ropam Monitoring Software station/server, Kronos NET, or SafeStar – encrypted TCP/IP transmission
• Built-in SIA-IP communication protocol
• RopamNeo – dedicated mobile app for iOS and Android

Technical specifications:

• 2 zones
• Number of onboard inputs/maximum: 8/32
• Number of onboard outputs/maximum: 8/24
• 1 analog input 0-10V/4-20mA
• Built-in LTE and WIFI modem
• Hybrid control unit: wired + ari wireless system
• Supports up to 32 users
• 4 timers with calendar
• 1 room thermostat
• Memory up to 1,000 events
• 1 RopamNET communication bus
• 230V/AC power supply – 24V/1.25A power supply included
