Ropam Neo-IP-PS-SET Alarm control panel with WiFi communication

Ropam Neo-IP-PS-SET Alarm control panel with WiFi communication

An alarm control panel with a built-in WiFi module and home automation functions.
Neo-IP-PS, along with peripheral devices, is a solution that integrates an electronic intruder alarm system and home automation.

Thanks to its modular design, the system can be expanded and adapted to the user's changing needs.

Design and functions compliant with PN-EN 50131-3, Grade 2.

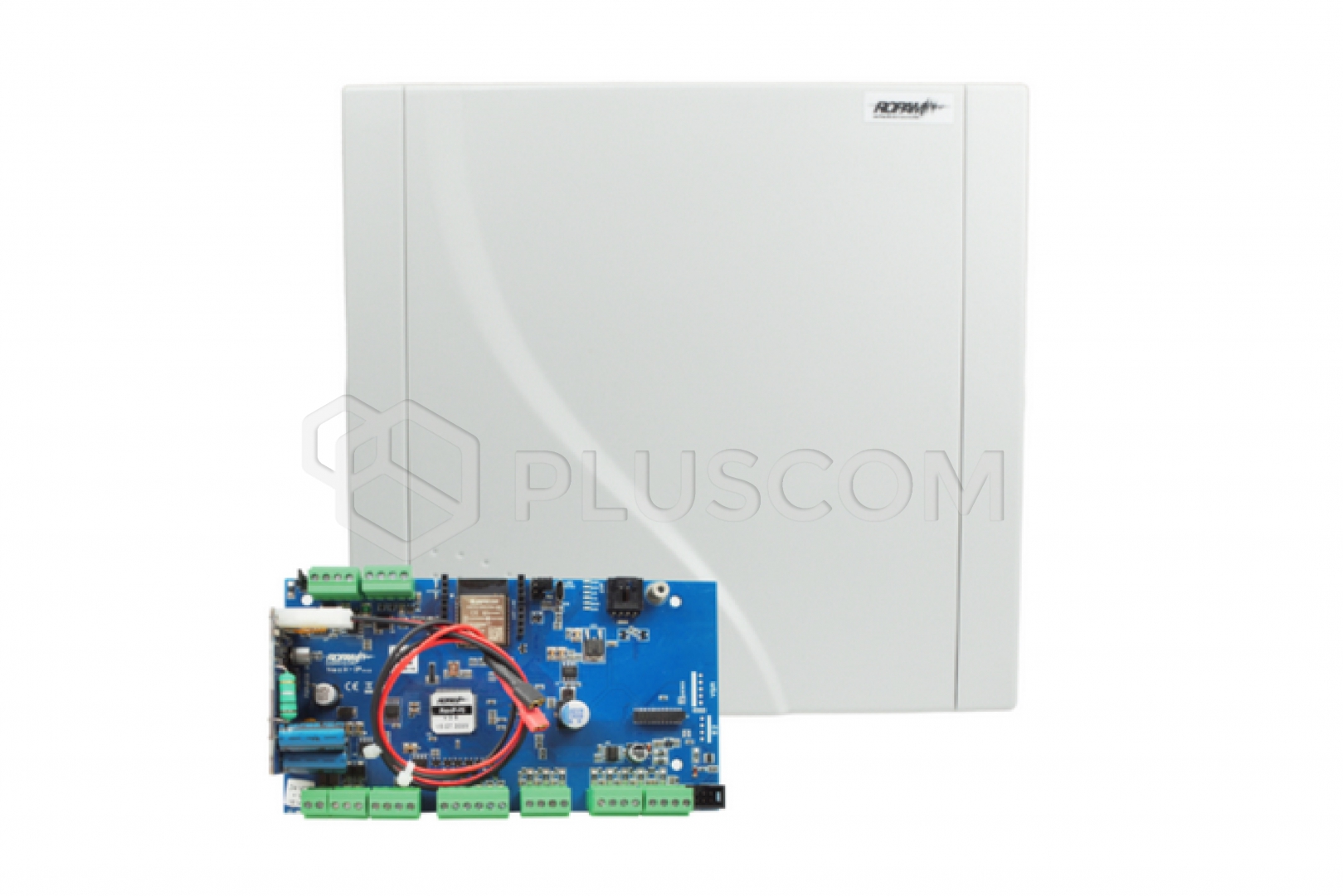

The kit includes:

• Neo-IP-PS alarm control panel
• PS-3024 power supply
• O-R3P surface-mount housing

FEATURES:

• WIFI module (802.11 b/g/n, 2.4 GHz, with housing antenna)
• Wired LAN connection option via the EXP-LAN expander
• Option to expand the control panel with an LTE modem via the EXP-LTE expander
• IP communication: WIFI/LAN primary channel, backup channels: GPRS
• Dedicated RopamNeo mobile application for online supervision and remote control
• 1 RopamNET communication bus for connecting and expanding the system with:
  – 4 TPR-4 touch panels or TK-4 touch keypads
  – 1 APm-ari wireless ari system controller
  – 2 EXP-O8R-RN-D9M/EXP-O8T-RN output expanders
  – 2 EXP-I8-RN input expanders
  – 1 EXP-I8 input expander
  – 1 RF-4C radio controller
• TSR connector for connecting 2 TSR-1/TSR-2/RHT-2 sensors
• Built-in LogicProcessor for creating advanced logic functions
  – Advanced logic functions, arithmetic functions, counters, time relays
  – Graphical, block-based logic editor – DiagramEditor
• Programming: local via micro USB or WIFI/ETH, remote via GPRS/IP or GSM, depending on the version.
• Supports USSD codes (prepaid card control)
• Convenient, detachable terminal connectors.

Building automation.

• Supports 2 TSR temperature sensors or RHT temperature and humidity sensors – TSR connector.
• Supports 1 heating zone (room thermostat function).
• Control of outputs for controlling automation elements is possible via: the RopamNeo mobile app, SMS, DTMF, CLIP (KeyGSM).
• AI 0-10V or 4..20mA analog input for monitoring physical parameters, e.g., battery voltage. humidity [%RH], temperature

Communication and control

• PUSH notification to the RopamNeo mobile app
• E-MAIL: independent emails for system events, SMTP server support (SSL/TSL)
• GPRS monitoring: cooperation with the Ropam, Kronos NET, or SafeStar Monitoring Software station/server – encrypted TCP/IP transmission
• Built-in SIA-IP communication protocol
• RopamNeo – dedicated mobile app for iOS and Android
• SMS, VOICE/CLIP – options available after adding an EXP-LTE modem to the control panel

Technical data:

• 2 zones
• Number of zones per On-board/maximum: 8/32
• Number of on-board outputs/maximum: 8/24
• 1 analog input 0-10V/4-20mA
• Built-in WIFI modem
• Hybrid control panel: wired + ari wireless system
• Supports up to 32 users
• 4 timers with calendar
• 1 room thermostat
• Memory for up to 1,000 events
• 1 RopamNET communication bus
• Power supply 230V/AC – 24V/1.25A power supply included
