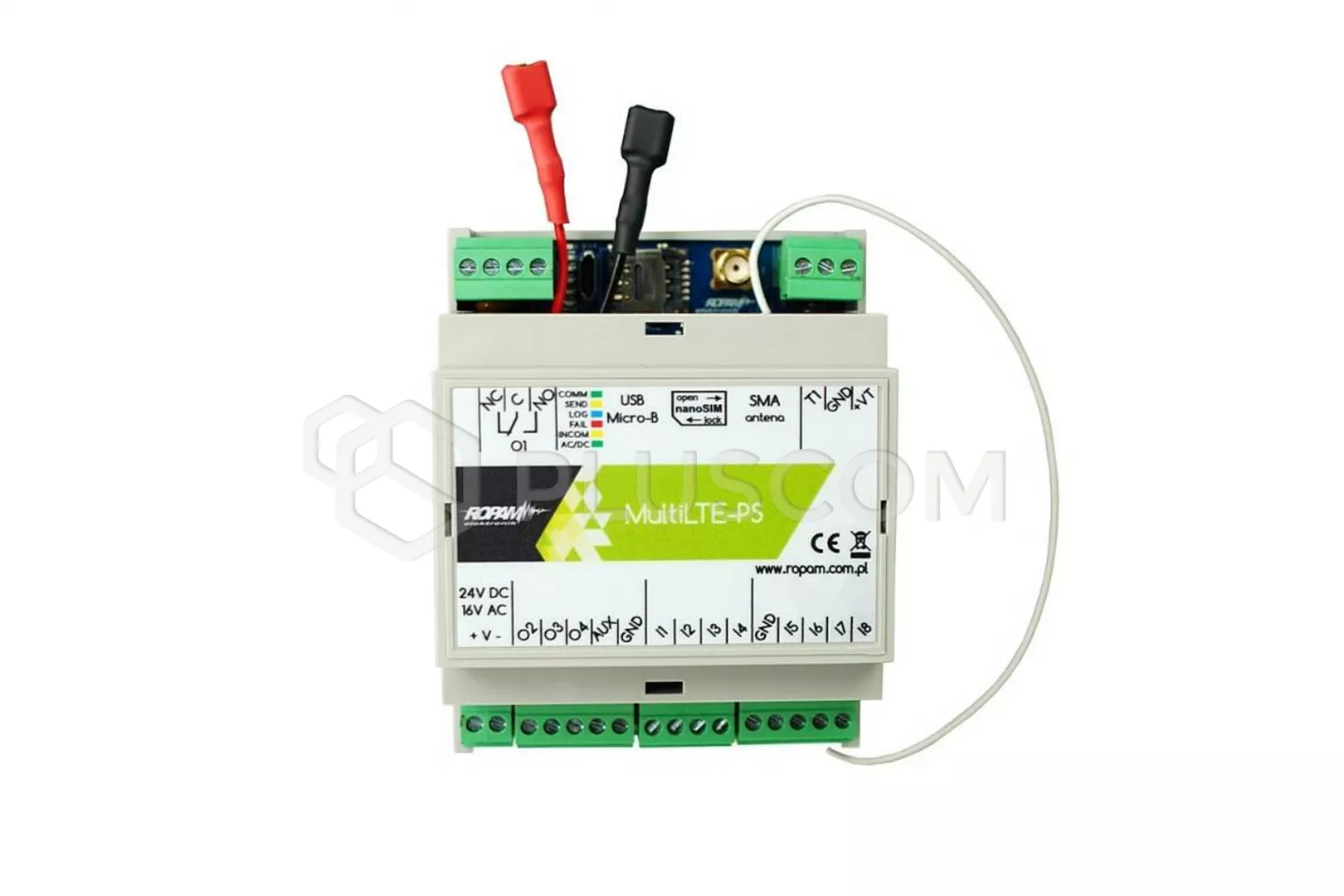

Ropam MultiLTE-PS-D4M LTE notification and control module in a DIN housing + power supply

Ropam MultiLTE-PS-D4M LTE notification and control module in a DIN rail housing with a built-in 12V/1.5A power supply

Module notification and control with alarm control panel functions. Built-in LTE modem enables data transmission in 2G and 4G technology.
MultiLTE-PS-D4M has a built-in RF radio receiver, which enables control system using the TR-4H remote control. It is distinguished by the function of supporting 1000 numbers phones or remote controls, data logging and remote user editing mobile application.

Thanks to its design, the module can be expanded with a display LCD-HDMI-D4M. The module can work autonomously or as an extension of others systems.

Properties:

• built-in LTE/GPRS modem with support for 4G and 2G networks
• 8 programmable inputs (I1-I6 No/NC inputs, I7-I8 analog inputs NO/NC GND/+12V or 0-10V, 4-20mA)
• 4 controlled outputs: O1 relay output, O2-O4 transistor outputs with short-circuit protection (0.7A)
• 1 AUX output protected (1A)
• FAC input for AC voltage control, e.g. in an alarm control panel.
• SMS/CALL/E-MAIL notifications (independent messages for events in the system)
• VOICE/CLIP calls: independent voice call for events in the system with voice messages
• built-in RF 433 Mhz radio receiver
• support for up to 1000 telephone numbers/1000 TR-4H remote controls, 8 e-mail addresses
• 8 independent user groups for notification and control
• ability to add users for a specified period of time
• dedicated RopamBasic mobile application (Android, iOS) with additional functions
• support for TSR series temperature sensor
• LoggerTemp:
• • advanced logical functions, arithmetic functions, counters, time relays
  • 10 independent logical conditions (if-then-else blocks)
  • 10 time relays to implement time-logical functions
  • 4 calendar timers
• USSD code support (pre-paid card control)
• RTC clock, calendar, synchronization with LTE network or NTP servers
• option to upload and play 8 voice messages
• event memory: 1000 events with overwriting
• programming:
• • local via micro USB,
  • remote via GPRS (RopamBridge server)
• alarm module, alarm control panel functions
• GPRS monitoring, cooperation with RMS or Kronos NET station/server, encrypted TCP/IP transmission, two IP addresses, backup SMS transmission, parallel operation with SMS/VOICE notification mode
• GSM jamming detection, status reporting and event memory recording
• intuitive visualization and control of alarm panels
• smaller dimensions, compact design, detachable connectors and connectors
• Built-in LogicProcessor for creating advanced logic functions
• Built-in 12V/1.5A buffer power supply
• DIN rail housing

APPLICATION

• electronic burglary and attack detection systems
• notifications for the Volunteer Fire Department units of the Volunteer Fire Department
• entry automation system, gates, barriers
• programmable functions of time relays
• control and control systems via the GSM network
• temperature control and supervision systems, e.g. server rooms, cold stores, refrigerators
• temperature recorder with automatic transmission of daily logs via e-mail
• control and supervision systems of analog value from sensors with 0 10V/4-0mA output
• control and supervision systems over energy transmission networks
• access control systems
• transmission and control of technical processes, e.g. pumping stations, breeding farms
