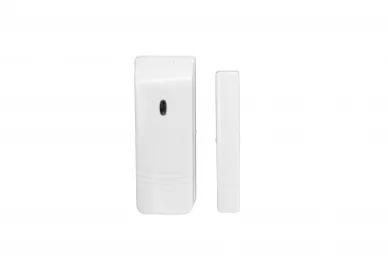

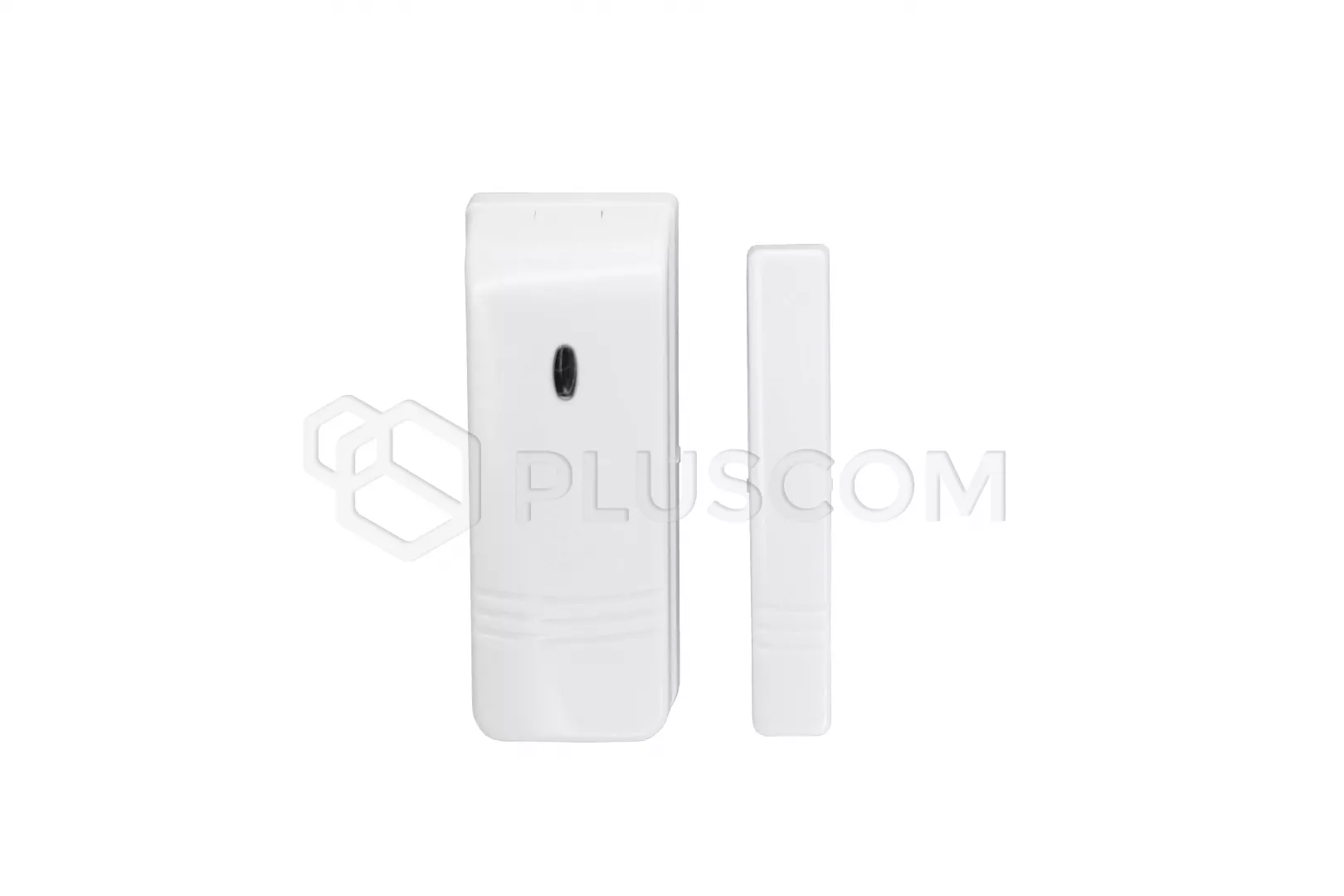

Ropam MGD-ARI-WH Wireless magnetic detector

45,56 EUR including 20.00% VAT
Product code: #33428
Manufacturer: Ropam
  • Detection of opening doors and windows
  • Input for a wired NC magnetic detector
  • Surface-mounted housing 32x81x28mm (detector), 13x75x18mm (magnet)
  • Compatibility: NeoLTE-IP-64, Neo-IP-64, NeoLTE-IP, Neo-IP
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Ropam SROL-ari Wireless roller shutter controller Ropam PIR-ari Wireless PIR detector Ropam FS-Ari wireless water flood detector Ropam APm-ari ARI wireless system controller

Ropam MGD-ARI-WH Wireless magnetic detector

MGD-ARI-WH is a wireless magnetic detector that belongs to the series of wireless devices of the ARI system. For proper operation, an APm-ari access point and a control panel from the Neo-IP-64 or Neo-IP family are required.

Magnetic detector properties
  • compatibility: NeoLTE-IP-64, Neo-IP-64, NeoLTE-IP, Neo-IP
  • compliance with the PN-EN 50131-2-2 level 2 standard
  • detection of opening doors, windows
  • input for wired NC magnetic detector
  • tamper contact: opening, removing the housing
Ari communication properties
  • automatic transmission power control, up to +10dBm, depending on strength (RSSI) and quality (LQI) for maximum battery life
  • two-way, encrypted communication in the ISM 868 MHz band
  • high RF sensitivity up to -110 dBm
  • range up to 2000m in open areas
General properties
  • optical signaling: alarm, lack of communication, low battery voltage
  • surface-mounted ABS housing, white
  • dimensions: 32x81x28mm (detector), 13x75x18mm (magnet)
  • operating temperature: -10'C to +55'C
  • power supply: ER14250M battery
